Oterra Series
Daikin 24,000 BTU Oterra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
$3,280.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 24K room setups:
- Large living rooms
- Open areas
- Workshops
- Basements
- 24,000 BTU
- Cooling
- 24,000 BTU
- Heating
- See specs
- Quiet Inside
- Efficient
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
Daikin
- Support Number
- (866) 588-6454
- Official Site
- Daikin Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
Daikin
Daikin 24,000 BTU Oterra 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R32 | 230V
Product Overview
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.

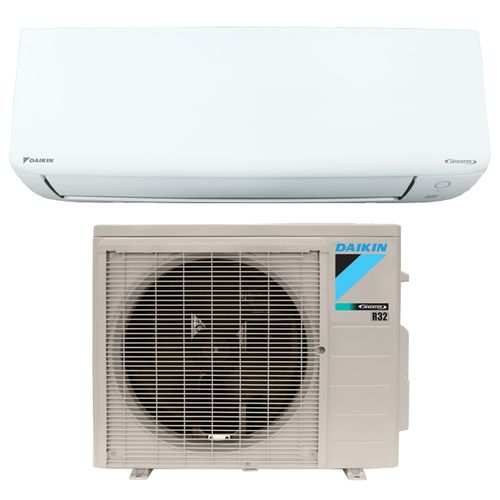

This product is a mini split package that includes both an indoor unit and outdoor unit.
Indoor Unit Description (FTXF24BVJU9)
Benefits:
- R-32 Easy, Proven, Efficient, Available
- Inverter Technology Reduces Energy Cost
- Uniform Air Circulation
- Optimal Comfort
- Quiet Operations
- Clean and Purified Indoor Air
- Easy to Clean
- Worry Free operation
Features:
- Inverter
- Power-airflow Dual Flaps
- Wide Angle Louvers
- Vericle Auto-Swing (Up and Down)
- Auto Fan Speed
- Quiet Operation
- Auto Defrosting
- Automatic Operation
- Programme Dry Function
- Fan Only Mode
- Sleep mode
- R/C with backlight & Signal Receiving Sign
- Catechin Filter/Green Tea Filter
- Titanium Apatite Air-Purifying Filter
- Wipe Clean Flat Panel
- Auto Restart (after power failure)
- Self-Diagnosis

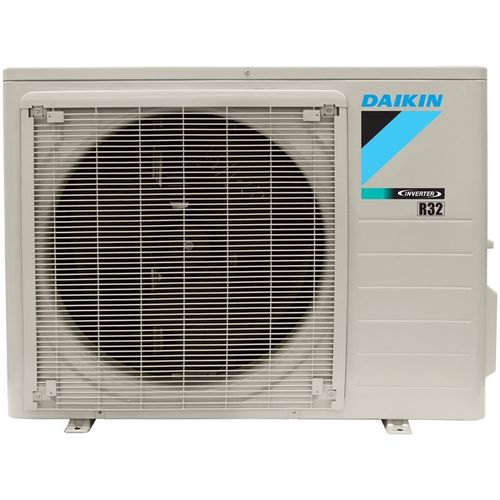

Outdoor Unit Description (RXF24BVJU9)
Benefits:
- Energy Savings
- Worry Free Operations
- Long life of equipment
- R-32 Easy, Prove, Efficient, Available
Features:
- Inverter Technology
- Swing Compressor
- Auto Restart (after power failure)
- Self Diagnosis
- Anti-Corrosion Treatment of Outdoor Heat Exchanger
- Quiet Operations
The AHRI Reference # for this unit is 213895726.
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.
Technical Specifications — RXF24BVJU9
| sku | RXF24BVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXF_BVJU9 |
| series name | OTERRA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | R-32-- 0.75 -2.0 Ton Single Split Heat Pump |
| product description | R-32-- Daikin OTERRA 2.0 Ton ODU Heatpump |
| cooling btu | 22,400 |
| heating btu | 24,000 |
| decibel level (dba) | 54 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 21.6 A |
| tonnage | 2 |
| btu/tonnage | 22,400 BTU/2 Ton |
| min/max outdoor temp for heating | 5 °F to 64.4 °F |
| min/max outdoor temp for cooling | 50 °F to 122 °F |
| zone compatibility | Single Zone |
| height | 29-1/2 in |
| width | 34-1/4 in |
| depth | 12-5/8 in |
| weight | 113 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
