Product Overview

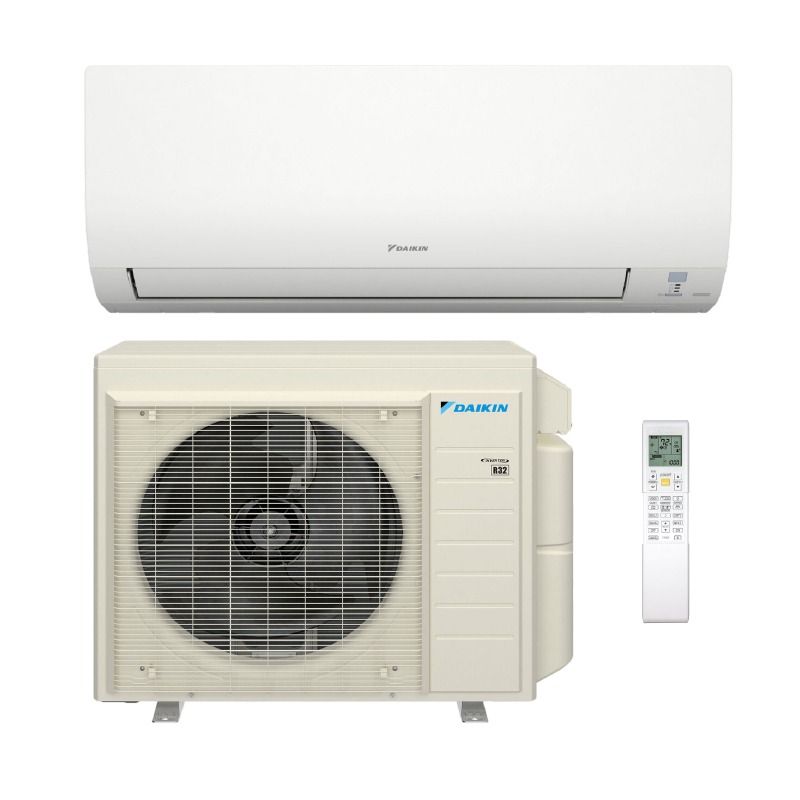

Daikin 24,000 BTU Aurora Single Zone Mini Split Heat Pump Condenser - R32 | 230V
24,000 BTU Daikin Aurora Mini Split Heat Pump Condenser - R32 | 230V
The 24,000 BTU Daikin Aurora Mini Split Heat Pump Condenser is a high-performance, energy-efficient heating and cooling solution designed for single-zone applications. Utilizing R32 refrigerant and an inverter-driven compressor, this unit delivers exceptional climate control, quiet operation, and maximum comfort even in extreme weather conditions.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Provides up to 21 SEER2 and 10.5 HSPF2 for outstanding energy efficiency
- Delivers 100% heating capacity at 5°F for reliable cold-weather performance
- Maintains 100% cooling capacity at 104°F for consistent summer comfort
- Wide operating temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Integrated Built-in WiFi (Wall Mount Unit Only) for remote control via the Daikin Comfort Control App
- Includes Self Diagnostics with a digital display for efficient troubleshooting
- Offers multiple operation modes: Econo Mode, Dry Function, and Powerful Mode for customized comfort
- Equipped with Auto Fan Speed Control for optimized airflow regulation
Durable and Weather-Resistant Construction:
- Precharged for up to 49 ft of liquid line to simplify installation
- Features Anti-Corrosion Treatment on the heat exchanger for enhanced durability
- Supports Low Ambient Cooling - with field settings and an air adjustment grille, operation extends down to 5°F
Quiet and User-Friendly Operation:
- Designed for Indoor and Outdoor Unit Quiet Operation to minimize noise levels
- Includes a Wireless Backlit IT Remote Controller for easy adjustments
- Features Auto Restart after power failures to maintain uninterrupted comfort
Flexible Installation Options:
- Max piping for 09/12 MBH: 66' length, 49' height
- Max piping for 15 MBH: 98' length, 66' height
- Max piping for 18/24 MBH: 99' length, 66' height
Warranty Coverage:
- Limited 12-Year Parts Warranty for long-term reliability
- Extended 12-Year Labor Warranty for additional protection
The 24,000 BTU Daikin Aurora Mini Split Heat Pump Condenser is the perfect solution for year-round comfort in extreme climates. Featuring smart inverter technology, built-in WiFi, and whisper-quiet operation, this unit delivers high-efficiency heating and cooling for maximum energy savings.
Daikin 24,000 BTU Aurora Multi Zone Wall Mount Mini Split Air Handler - R32 | 230V
Daikin Aurora 24,000 BTU Wall Mount Air Handler - R32 | 230V
The Daikin Aurora 24,000 BTU Wall Mount Air Handler is a powerful and energy-efficient heating and cooling solution designed for single zone and multi zone systems. Featuring advanced R32 refrigerant, built-in WiFi, and a durable heat pump, this unit delivers consistent and reliable comfort even in extreme conditions, all while maintaining quiet operation and superior energy efficiency.
Key Features:
Superior Heating & Cooling Performance:
- Supports 0.75 Ton to 2 Ton Heat Pump Systems
- Delivers up to 21 SEER2 and up to 10.5 HSPF2 for exceptional energy efficiency
- Capable of:
- 100% heating capacity at 5°F
- 100% cooling capacity at 104°F
- Operates within a wide temperature range:
- Heating: -13°F to 64.4°F
- Cooling: 50°F to 114.8°F
Advanced Technology:
- Built-in WiFi (wall mount unit only) for seamless connectivity and remote control
- Self-diagnostics with a digital display for simplified maintenance and troubleshooting
- Multiple operation modes, including Econo Mode, Dry Function, and Powerful Mode, for personalized comfort
- Equipped with Auto Fan Speed Control for consistent and optimized airflow
Durable and Quiet Design:
- Anti-Corrosion Treatment on the heat exchanger enhances durability and ensures long-term performance
- Quiet operation for both indoor and outdoor units minimizes noise for a peaceful environment
Flexible Installation and Operation:
- Precharged for up to 49 ft of liquid line, simplifying installation
-
Max piping capabilities:
- 09/12 MBH models: 66 ft length, 49 ft height
- 15 MBH models: 98 ft length, 66 ft height
- 18/24 MBH models: 99 ft length, 66 ft height
- Low ambient cooling capability down to 5°F with field setting and air adjustment grille
User-Friendly Features:
- Includes a Wireless Backlit IR Remote Controller for convenient operation
- Features Auto Restart functionality to resume operation automatically after power interruptions
Warranty Coverage:
- Limited 12-Year Parts Warranty ensures long-term reliability
The Daikin Aurora 24,000 BTU Wall Mount Air Handler combines advanced technology, durable construction, and superior energy efficiency. Designed for single zone and multi zone systems, it provides reliable year-round comfort in extreme temperatures, making it an excellent choice for residential and light commercial applications.
Technical Specifications — RXT24AVJU9
| sku | RXT24AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Mini-Split Heat Pump |
| system family | Mini-Split |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | RXT_AVJU9 |
| series name | AURORA |
| short description | Series Outdoor Mini-Split Heat Pump, Single Zone |
| family description | 0.75 - 2.0 Ton AURORA R-32 Split Heat Pump Up to 21.0 SEER2 / 10.5 HSPF2 / 12.2 EER2 |
| product description | 21.0 SEER2, Heat Pump, Ductless ODU, 2.0 Ton, Daikin AURORA R-32 |
| cooling btu | 22,400 |
| heating btu | 24,000 |
| decibel level (dba) | 55 dBA |
| refrigerant | R-32 |
| compressor type | Swing |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 25 A |
| min. breaker size | 21.6 A |
| tonnage | 2 |
| btu/tonnage | 22,400 BTU/2 Ton |
| min/max outdoor temp for heating | -13 °F to 60 °F |
| min/max outdoor temp for cooling | 50 °F to 115 °F |
| zone compatibility | Single Zone |
| height | 29-1/2 in |
| width | 34-1/4 in |
| depth | 12-5/8 in |
| weight | 127 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Technical Specifications — FTXV24AVJU9
| sku | FTXV24AVJU9 |
|---|---|
| manufacturer | Daikin |
| product category | Ductless Mini-Splits |
| product class | Multi-Split Fan Coil |
| system family | Multi-Split |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | FTXV_AVJU9 |
| series name | Multi-Split Fan Coil Indoor |
| short description | Multi-Split Fan Coil Indoor Indoor Multi-Split Fan Coil |
| family description | R-32 0.75 - 2.0 Ton Wall Mounted Unit |
| product description | 2.0 Ton Wall Mount - R-32 |
| decibel level (dba) | 52 dBA |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 5/8 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| zone compatibility | Multi Zone |
| height | 11-5/8 in |
| width | 39 in |
| depth | 10-3/8 in |
| weight | 27 lb |
| warranty | ALL PARTS - 12 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
Manuals
- Engineering Data Manual (English) - EM-EDUS092401 AURORA R32 Pair
- Installation Manual (English) - IM-IM_RXT-15-18-24_AVJU9
- Installation Manual (French) - IM-IM_FR_RXT-15-18-24_AVJU9
- Installation Manual (Spanish) - IM-03_ES_3P740831-1D
- Engineering Data Manual (English) - EM-EDUS122402A_MXM-A_MXT-A_MXT
- Installation Manual (English) - IM-3P741458-2D-FTXV15-24
- Installation Manual (English) - IM-EN_3P741458-2G FTXV15-24
- Operation Manual (English) - OM-EN_3P741457-2K FTXV15-24
