Cooper&Hunter Single-Zone 6,000 BTU 230V Olivia Midnight Series Black High Wall, Single Head, Wall-Mount Air Conditioning Unit for Heat Pump, Mini Split Inverter System, 0.5 Ton 23.5 SEER2 w/ Wi-Fi, Optional Install Kit - CH-B06OLVWM-230VI + CH-HPR06F9-230VO
Summary
The Olivia Midnight Series Single Zone Ductless Mini Split Systems we offer have options of 16ft, 25ft, and 50ft kits. Has a sleek black design that offers a distinguished and sharp look and feel. Paired with style and innovative features. Auto-swing horizontal louvers maintain even airflow throughout the room, and the Genius Core Technology enables the unit to operate with an ultra-low compressor speed of 12Hz for extra energy savings, granting them a high-efficiency rating of up to 26.4 SEER2. This system will both heat and cool your home or office effectively down to -13°F for Standard units, and even down to -22°F for Hyper units.
The units can be controlled with the Cooper&Hunter remote control, or via a smart device when used with the optional Wi-Fi kit and Cooper&Hunter Remote app. Other notable features include Follow Me Mode, Sleep Mode, Timer options, and 46°F Freeze Protection. The Olivia indoor wall-mounted series is an incredible option as a single or multi-zone mini split unit!

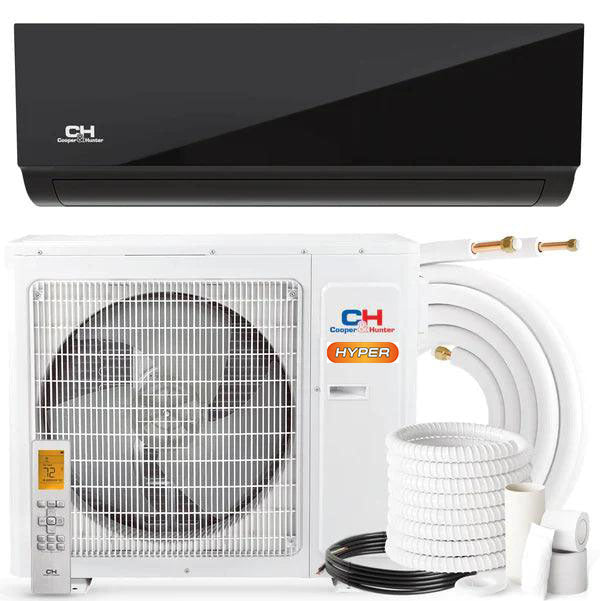

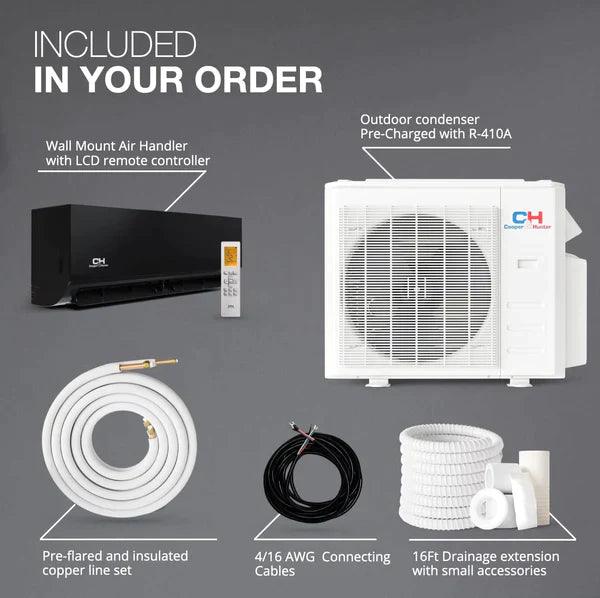

Included in Your Order:
Cooper & Hunter Single Zone Ductless Mini Split System (6,000 BTU Inverter with Heat Pump)
Outdoor Unit: 6,000 BTU (1pc) – Model: CH-ES06-230VO
Indoor Unit: 6,000 BTU (1pc with remote) – Model: CH-HPR06F9-230VI

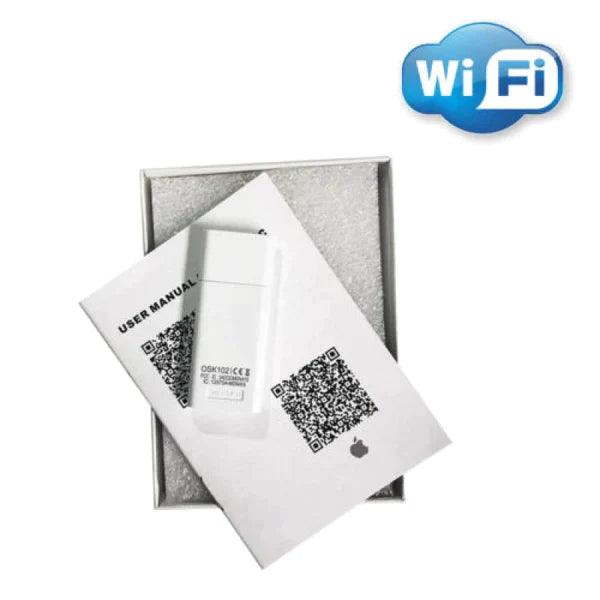

Wi-Fi Adapter
Optional Installation Kit (16ft, 25ft, or 50ft options available) Must be selected above.
Wireless Remote Control
Installation Manual
User's Manual
Manufacturer Warranty
Key Features:
- Sleek Black Design
- Auto-Swing for horizontal
louvers - Genius Core ultra-low
compressor speed of 12Hz - 46° Freeze Protection
- Turbo Mode
- Self-Clean Function
- Eco Mode
- Follow Me Mode
- Remote Control included
- Smart Kit ready with downloadable C&H remote app
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. The installation kit is necessary for the system to function. Ensure that you have selected the desired installation kit above. This kit comes with Pre-Flared 99% Copper Lines, Data Communication Wires, PVC Drainage Attachment, Wrapping Bands, etc.
Other Single Zone Olivia Systems
Olivia Standard Wall Mounts | SKU's |
6,000 BTU Olivia Single Zone with Optional Installation Kit 230V |
|
9,000 BTU Olivia Single Zone with Optional Installation Kit 115V |
CH-B09OLVWM-115VI + CH-ES09-115VO |
12,000 BTU Olivia Single Zone with Optional Installation Kit 115V |
CH-B12OLVWM-115VI + CH-ES12-115VO |
9,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-B09MOLVWM-230VI + CH-ES09-230VO |
12,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-B12MOLVWM-230VI + CH-ES12-230VO |
18,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-B18MOLVWM-230VI + CH-ES18-230VO |
24,000 BTU Olivia Single Zone with Optional Installation Kit 230V | CH-B24MOLVWM-230VI + CH-ES24-230VO |

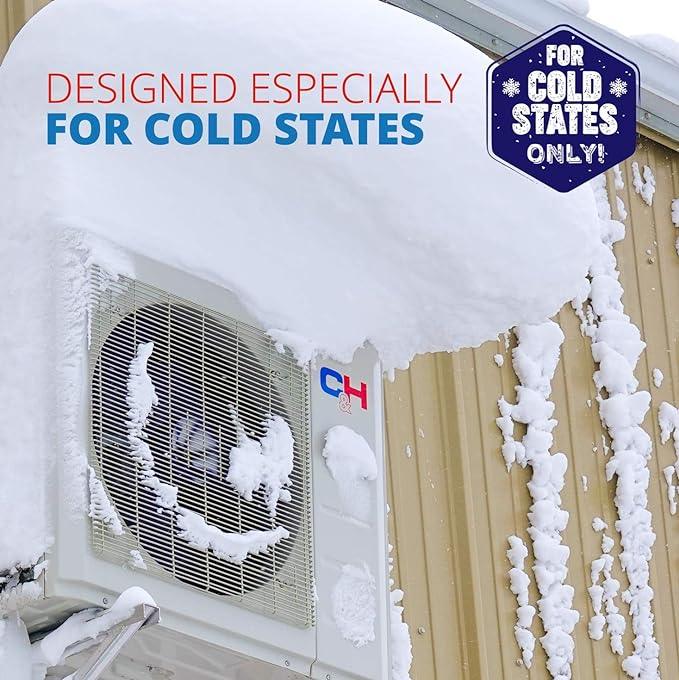

Olivia Hyper (Withstands Ambient Temperatures down to -23°F) | SKU's |
6,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-B06MOLVWM-230VI + CH-HPR06F9-230VO |
9,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-B09MOLVWM-230VI + CH-HPR09-230VO |
12,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-B12MOLVWM-230VI + CH-HPR12-230VO |
18,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-B18MOLVWM-230VI + CH-HPR18-230VO |
24,000 BTU High Efficiency, Hyper Unit with Optional Installation Kit 230V | CH-B24MOLVWM-230VI + CH-HPR24-230VO |
Regular Olivia (White Wall Mounts in Hyper and Regular) |
Link to Products |
Multi-Zone Olivia Units |
Link to Products |

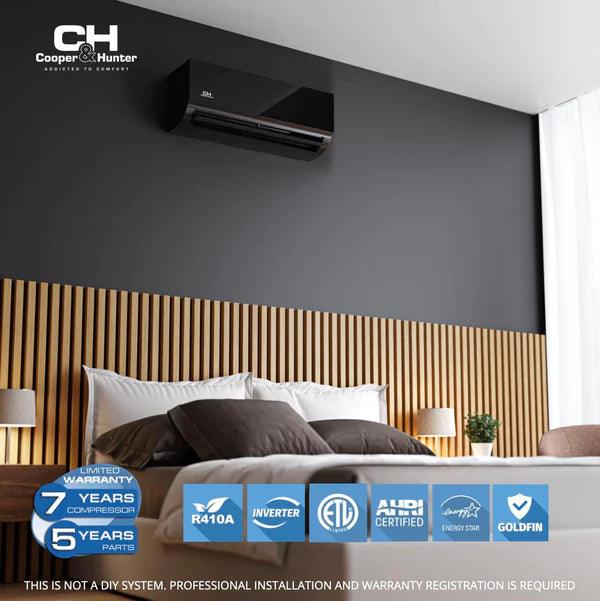

Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty (must be installed by a licensed HVAC technician)
- 1 year remote control
Technical Information
Indoor Unit: CH-B06OLVWM-230VI
Specification | Details |
---|---|
System Type | Single/Multi-zone unit |
BTU Rated | 6,000 BTU |
Power Source | 208-230V, 1Ph, 60Hz |
Dehumidification Value | 0.74 pints/day |
Voltage Range (V) | 187-253 |
Packing Dimensions (W x D x H) | 31.10 x 10.63 x 14.76 inches |
Controller | RG10K-exclusive remote |
Refrigerant Piping (Liquid/Gas Side) | 1/4" - 3/8" |
EER2 | 15 |
SEER2 | 23.5 |
Unit Net/Gross Weight | 17.64 / 22.49 lbs |

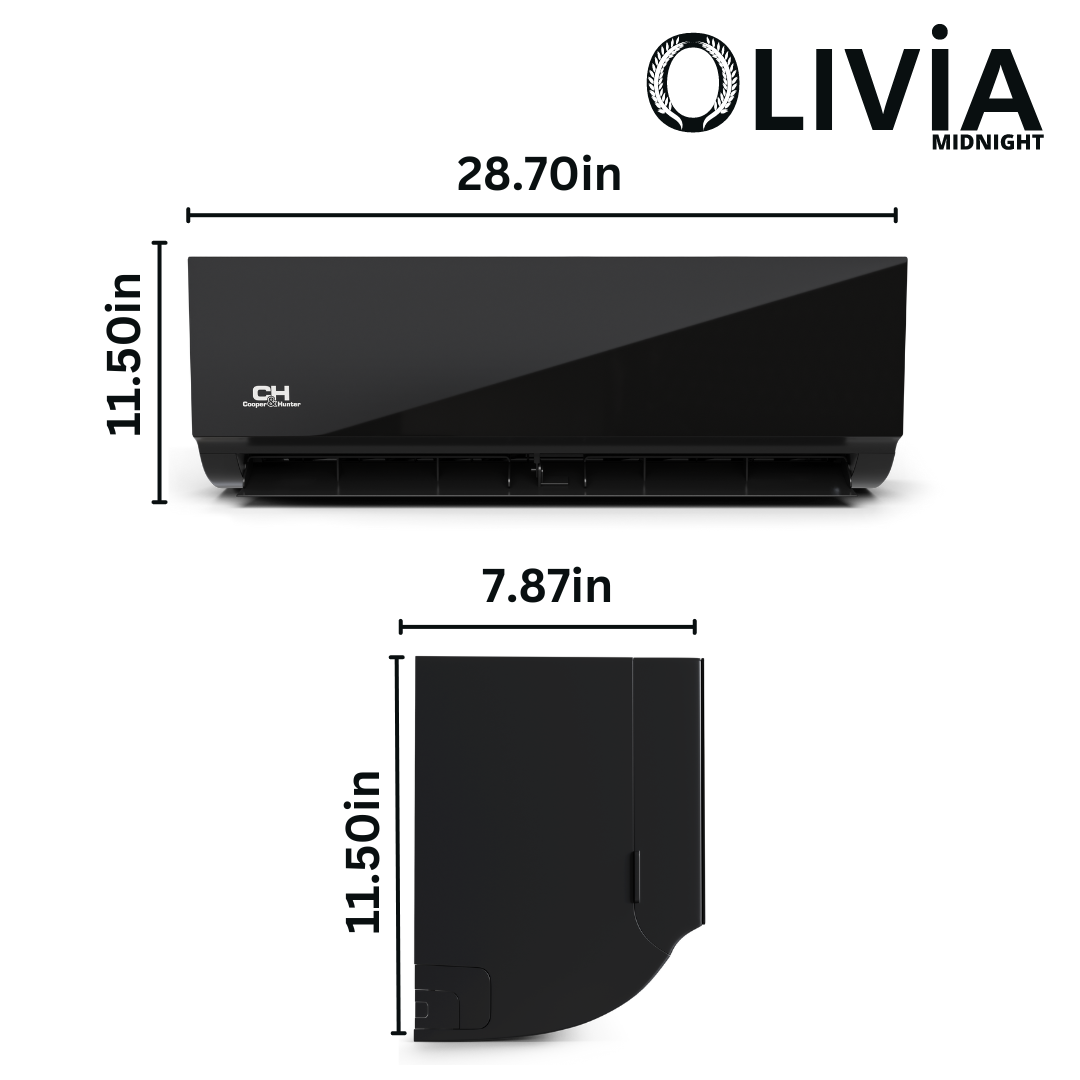

Unit Dimensions (W x H x D) | 28.70 x 7.87 x 11.50 inches |
Operation Range - Heating (°F) | 32 ~ 86 |
Operation Range - Cooling (°F) | 60 ~ 90 |
Minimum Circuit Ampacity | 3A |
Max Fuse | 15A |
Indoor Noise Level (H/M/L) | 38.5 / 33 / 20.5 dB |
Indoor Air Flow (H/M/L) | 294.12 / 247.06 / 176.47 / 141.18 CFM |
Drainage Water Pipe Diameter | 5/8" |
Outdoor Unit: CH-HPR06F9-230VO
Specification | Details |
---|---|
System Type | Single-zone unit |
BTU Rated | 6,000 BTU |
Power Source | 208-230V, 1Ph, 60Hz |
Dehumidification Value | 0.74 pints/day |
Max Pipe Length | 82.02 ft |
Refrigerant Type | R410A |
Voltage Range (V) | 187-253 |
Packing Dimensions (W x D x H) | 34.92 x 13.27 x 24.02 inches |
Refrigerant Piping (Liquid/Gas Side) | 1/4" / 3/8" |
HSPF2-5 | 10 |
HSPF2-4 | 12 |
EER2 | 15 |
Cooling Capacity (Min/Max) | 6,000 (2,500~11,800) BTU/h |
SEER2 | 23.5 |
Unit Net/Gross Weight | 63.71 / 69.00 lbs |
Unit Dimensions (W x H x D) | 30.12 x 11.93 x 21.85 inches |
Refrigerant Precharge | 25 ft |
Outdoor Noise Level | 53.5 dB |
Outdoor Air Flow | 1,294.12 CFM |
Minimum Circuit Ampacity | 13A |
Max Fuse | 15A |
Max Height Difference Between Indoor and Outdoor Unit | 32.81 ft |
Heating Capacity (Min/Max) | 7,000 (3,400~11,230) BTU/h |
COP | 3.76 |

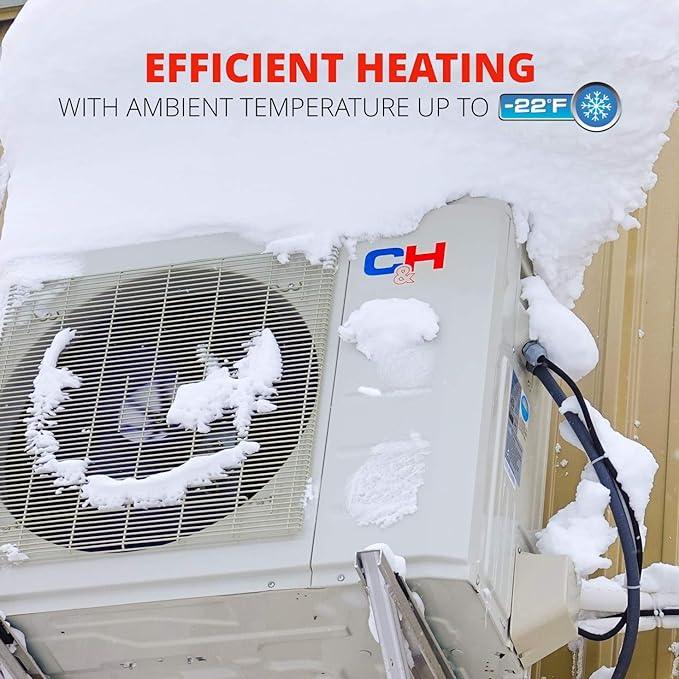

Ambient Temperature - Heating (°F) | -22 ~ 75 |
Ambient Temperature - Cooling (°F) | -22 ~ 122 |
Additional Refrigerant Charge (1/4" Liquid Line) | 0.16 |
Certifications
Performance Data/Features
- Auto-Swing for horizontal
louvers - Genius Core ultra-low
compressor speed of 12Hz - 46° Freeze Protection
- Turbo Mode
- Self-Clean Function
(Single-Zone only) - Eco Mode (Single-Zone only)
- Follow Me Mode
- Remote Control included
- Smart Kit ready with downloadable C&H remote app
