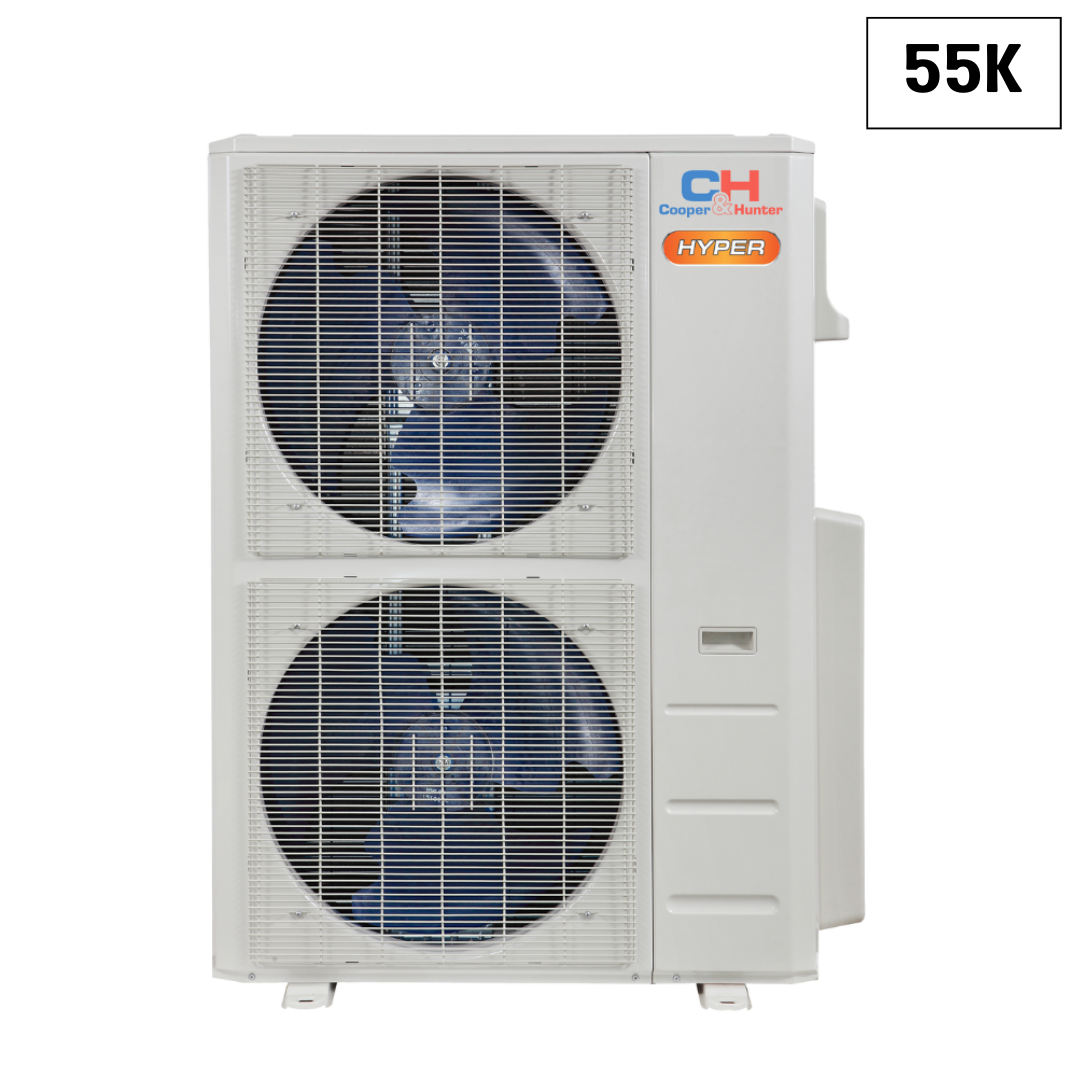

Cooper&Hunter High Efficiency Hyper Heat Multi-Zone R454B, 55,000 BTU (4.58 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 22.2 SEER2 (2-6 Zones) No Cut-off Valve CH-RHP55M-230VO
Summary
Cooper&Hunter’s 55K BTU, 230V Hyper Heat Multi-Zone Outdoor Unit sets a new standard for reliable and efficient climate control in expansive residential spaces. Designed to support up to six individual zones, this advanced system allows for precise temperature control across multiple rooms, delivering personalized comfort tailored to the needs of each space.
With Hyper Heating technology, this outdoor unit delivers powerful and consistent performance in extreme cold, operating efficiently in ambient temperatures as low as -22°F. Its inverter technology dynamically adjusts compressor activity to match heating and cooling demand, helping optimize energy use while maintaining dependable comfort. With ratings up to 22.2 SEER2, this system combines strong efficiency with reliable year-round operation.
This model uses R454B refrigerant, a lower-GWP alternative that helps reduce environmental impact while supporting modern efficiency standards. Built for durability and flexibility, the 55K BTU Hyper Heat outdoor unit is designed for dependable operation in demanding conditions, quiet performance, and compatibility with a wide range of Cooper&Hunter indoor units.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have selected compatible indoor unit(s) from our Indoor Units section. Unit is factory pre-charged for up to 150 ft.
What's Included
- 55,000 BTU 230V Hyper Heat Multi-Zone Outdoor Condenser Air Conditioner (CH-RHP55M-230VO)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Highlights
- Supports up to 6 zones
- Inverter Technology for precise compressor control
- Hyper Heat performance in temperatures as low as -22°F
- Up to 22.2 SEER2 efficiency
- R454B refrigerant with lower global warming potential
- High-Frequency Racer Technology helps the compressor reach maximum speed within 6 seconds on startup
- High-efficiency pipes with 54 teeth to improve heat exchange
- Intelligent Dusting Switch helps reverse the fan to clean dust, sand, and debris from the coil
- Built for large residential multi-zone applications
- Quiet operation with dependable year-round performance
Sizing and Compatibility:
This outdoor unit supports up to 6 zones. The total connected indoor capacity must remain within the approved loading range for the condenser. It is not mandatory to use all available ports on the outdoor unit; unused circuits may remain sealed when not connected to an indoor unit.
Compatible indoor unit combinations vary by model and capacity. Consult the Combination Chart for approved matchups, or contact our sales team for assistance selecting the correct indoor units for your application.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty
- Warranty requires installation by a licensed HVAC technician
- Registration is required within 60 days of installation
Technical Information
Model Number: CH-RHP55M-230VO
| Outdoor Model | CH-RHP55M-230VO |
| Power Supply | |
| Rated (V, Ph, Hz) | 208/230, 1, 60 |
| Cooling | |
| Rated Capacity (range) (Btu/h) | 51,000 (19,000~59,000) |
| SEER2 | 22.2 |
| Rated Current (RLA) (A) | 18.5 (10.5~24) |
| Heating | |
| Rated Capacity (range) (Btu/h) | 55,000 (20,000~59,000) |
| HSPF4 | 10.5 |
| HSPF5 | 8.5 |
| Electrical | |
| Minimum Circuit Ampacity (MCA) (A) | 43 |
| Max. Fuse (A) | 45 |
| Compressor | |
| Model | EKPQ440D1UMUB |
| Type | Twin-ROTARY |
| Brand | GMCC |
| RLA (A) | 28 |
| Input (W) | 3,430 |
| Refrigerant Oil | VG75 / 44 oz |
| Outdoor Fan Motor | |
| Qty | 2 |
| Input (W) | 85 |
| RLA (A) | 2.5 |
| Outdoor Unit | |
| Outdoor Air Flow (Max) (CFM) | 4,502.8 |
| Outdoor Noise Level (Max) (dB(A)) | 65 |
| Dimensions (W×D×H) (inch) | 37.48 x 16.34 x 52.48 |
| Packing (W×D×H) (inch) | 43.11 x 19.49 x 58.27 |
| Net/Gross Weight (lbs) | 246.47 / 276.68 |
| Refrigerant | |
| Type / Quantity (oz) | R454B / 151.68 |
| Precharge (ft) | 150 |
| Design Pressure (PSIG) | 550 / 340 |
| Refrigerant Piping | |
| Liquid Side / Gas Side (inch) | 6 x 1/4" / 4 x 3/8" + 2 x 1/2" |
| Max. Length for All Indoor Units (ft) | 262.4 |
| Max. Length for One Indoor Unit (ft) | 114.8 |
| Max. Height Difference Between Indoor and Outdoor (ft) | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 |
| Ambient Temperature | |
| Cooling (°F) | -22~122 |
| Heating (°F) | -22~75 |
