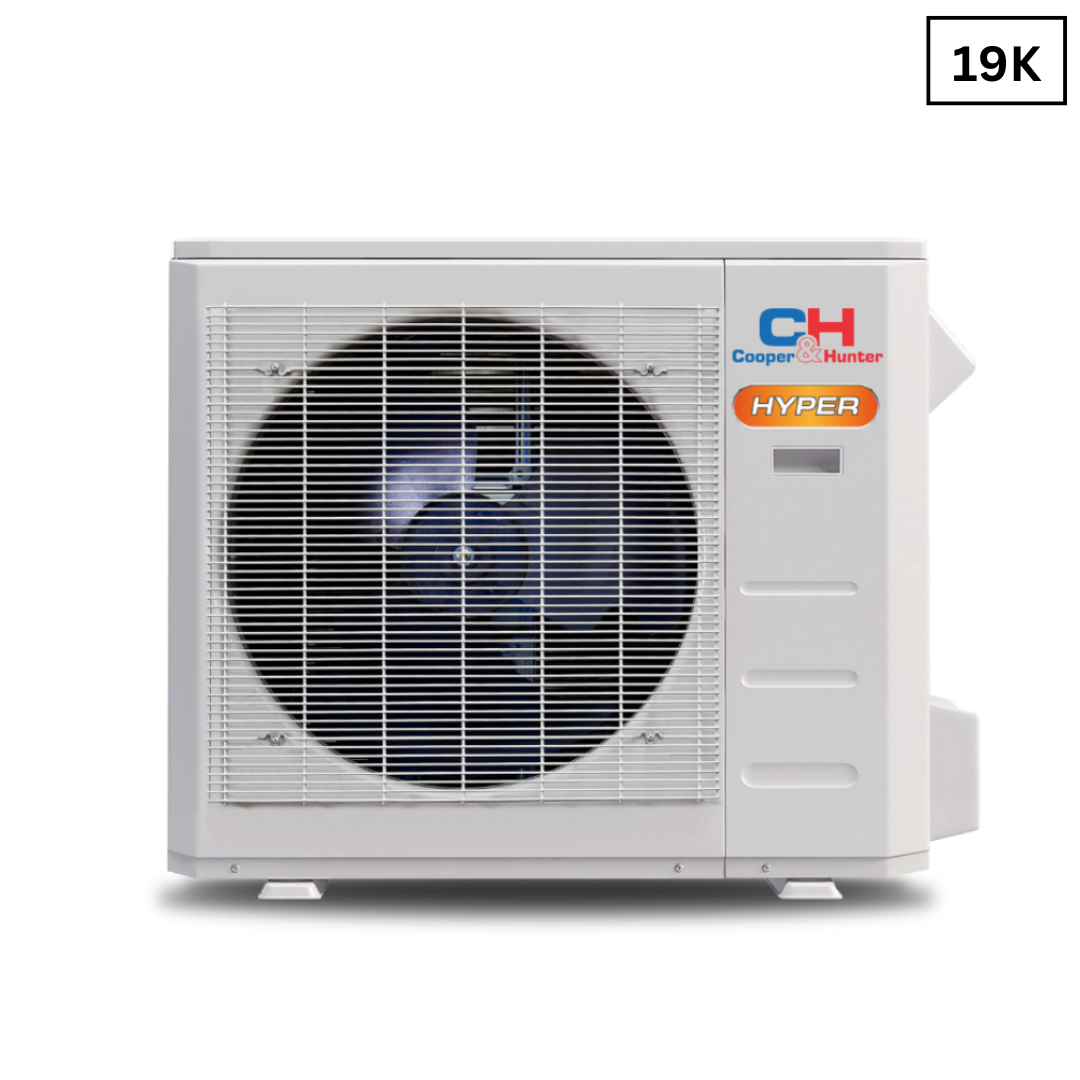

Cooper&Hunter High Efficiency Hyper Heat Multi-Zone R454B, 19,000 BTU (1.58 Ton) 230V Outdoor Condenser Air Conditioner, Heat Pump, Mini Split Inverter System Up To 25 SEER2 (2-3 Zones) No Cut-off Valve CH-RHP19M-230VO
Summary
Cooper&Hunter’s 19K BTU, 230V Hyper Heat Multi-Zone Outdoor Unit is an advanced and efficient solution for maintaining ideal indoor temperatures in residential settings. Designed to support up to three zones, this model allows personalized and independent climate control in multiple spaces, delivering tailored comfort for each room.
This unit uses inverter technology to adjust compressor speed dynamically and match heating or cooling demand with precision. Its Hyper Heat performance provides reliable operation in extreme conditions, including heating performance in ambient temperatures as low as -22°F. With efficiency ratings up to 25 SEER2, this condenser combines strong performance with energy-saving operation.
A major advantage of this model is the use of R454B refrigerant, a lower-GWP option that helps reduce environmental impact. Built for year-round dependability, the compact outdoor unit is designed for efficient operation, quiet performance, and compatibility with a wide range of Cooper&Hunter indoor units for flexible multi-zone applications.
Important
All units must be installed by a licensed HVAC professional for the warranty to be valid. Registration is required within 60 days of installation and can be completed online or by phone. This is an Outdoor Unit ONLY. Please ensure that you have selected compatible indoor unit(s) from our Indoor Units section. Unit is factory pre-charged for up to 75 ft.
What's Included
- 19,000 BTU 230V Hyper Heat Multi-Zone Outdoor Condenser Air Conditioner (CH-RHP19M-230VO)
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Highlights
- Supports up to 3 zones
- Inverter Technology for precise capacity control
- Hyper Heat performance in temperatures as low as -22°F
- Up to 25 SEER2 efficiency
- R454B refrigerant with lower global warming potential
- High-Frequency Racer Technology helps the compressor reach maximum speed within 6 seconds on startup
- High-efficiency pipes with 54 teeth to improve heat exchange
- Intelligent Dusting Switch helps reverse the fan to clean dust, sand, and debris from the coil
- Compact design with quiet operation
Sizing and Compatibility:
This outdoor unit supports up to 3 zones. The total connected indoor capacity must remain within the approved loading range for the condenser. It is not mandatory to use all available ports on the outdoor unit; unused circuits may remain sealed when not connected to an indoor unit.
Compatible indoor unit combinations vary by model and capacity. Consult the Combination Chart for approved matchups, or contact our sales team for assistance selecting the correct indoor units for your application.
Warranty
- 7 year compressor limited warranty
- 5 year parts limited warranty
- Warranty requires installation by a licensed HVAC technician
- Registration is required within 60 days of installation
Technical Information
Model Number: CH-RHP19M-230VO
| Outdoor Model | CH-RHP19M-230VO |
| Power Supply | |
| Rated (V, Ph, Hz) | 208/230, 1, 60 |
| Cooling | |
| Rated Capacity (range) (Btu/h) | 19,000 (5,400~28,000) |
| SEER2 | 25 |
| Rated Current (RLA) (A) | 5.6 (3.5~10) |
| Heating | |
| Rated Capacity (range) (Btu/h) | 20,000 (5,700~27,000) |
| HSPF4 | 10.4 |
| HSPF5 | 8.5 |
| Electrical | |
| Minimum Circuit Ampacity (MCA) (A) | 17.5 |
| Max. Fuse (A) | 20 |
| Compressor | |
| Model | KTM240D46UKT2 |
| Type | ROTARY |
| Brand | GMCC |
| RLA (A) | 9.2 |
| Input (W) | 2,045 |
| Refrigerant Oil | VG74 / 21 oz |
| Outdoor Fan Motor | |
| Qty | 1 |
| Input (W) | 120 |
| RLA (A) | 1.2 |
| Outdoor Unit | |
| Outdoor Air Flow (Max) (CFM) | 2,130.7 |
| Outdoor Noise Level (Max) (dB(A)) | 61.5 |

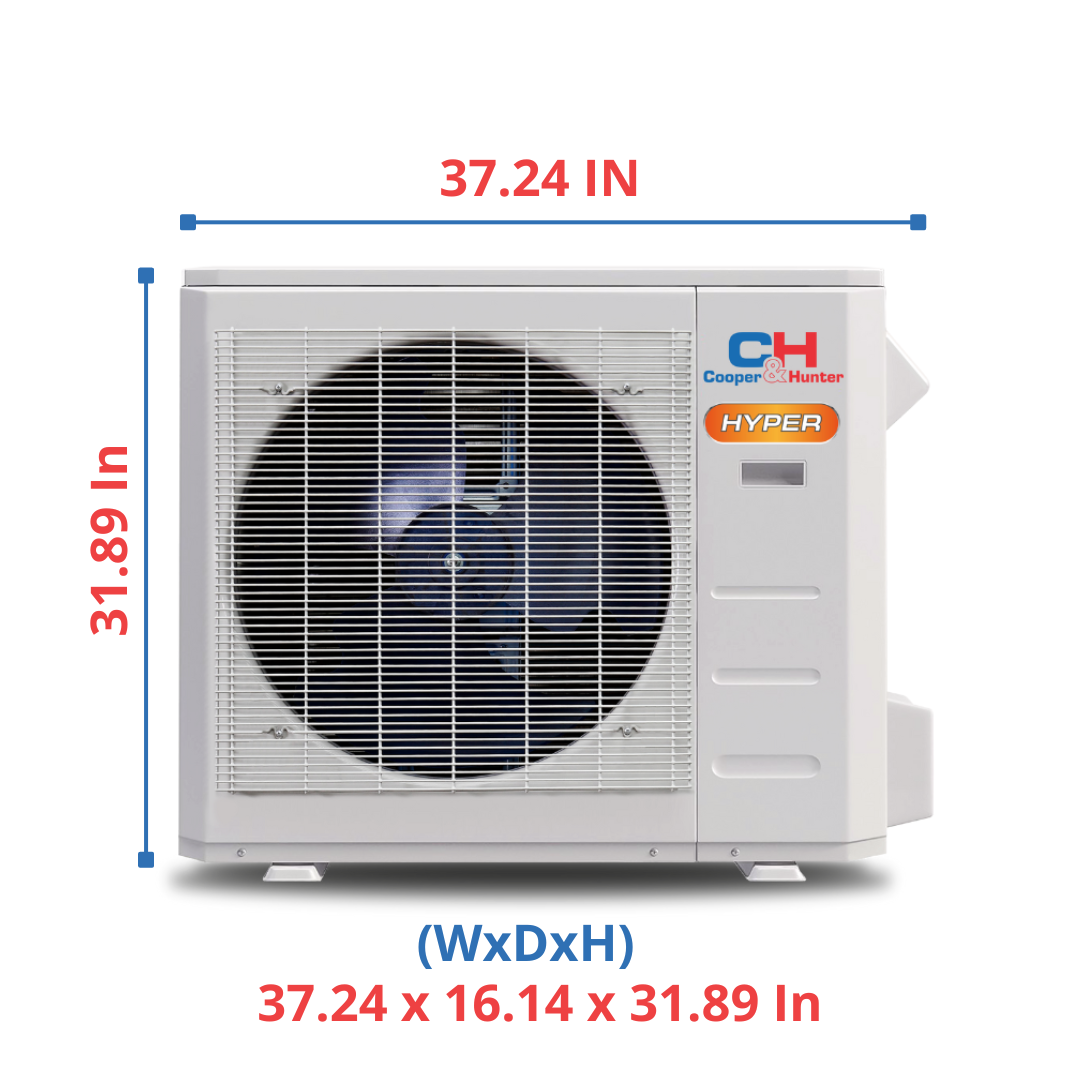

| Dimensions (W×D×H) (inch) | 37.24 x 16.14 x 31.89 |
| Packing (W×D×H) (inch) | 42.91 x 19.68 x 34.84 |
| Net/Gross Weight (lbs) | 137.35 / 148.15 |
| Refrigerant | |
| Type / Charged (oz) | R454B / 78.31 |
| Precharge (ft) | 75 |
| Additional Charge for Each (oz/ft) | 0.16 |
| Design Pressure (PSIG) | 550 / 340 |
| Refrigerant Piping | |
| Liquid Side / Gas Side (inch) | 3 x 1/4" / 3 x 3/8" |
| Max. Length for All Indoor Units (ft) | 196.8 |
| Max. Length for One Indoor Unit (ft) | 98.4 |
| Max. Height Difference Between Indoor and Outdoor (ft) | 49.2 |
| Max. Height Difference Between Indoor Units (ft) | 33 |
| Ambient Temperature | |
| Cooling (°F) | -22~122 |
| Heating (°F) | -22~75 |
| Certification | |
| AHRI | ✓ |
| Energy Star for Cold Climate | ✓ |
| NEEP | ✓ |
| ETL | ✓ |
