A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

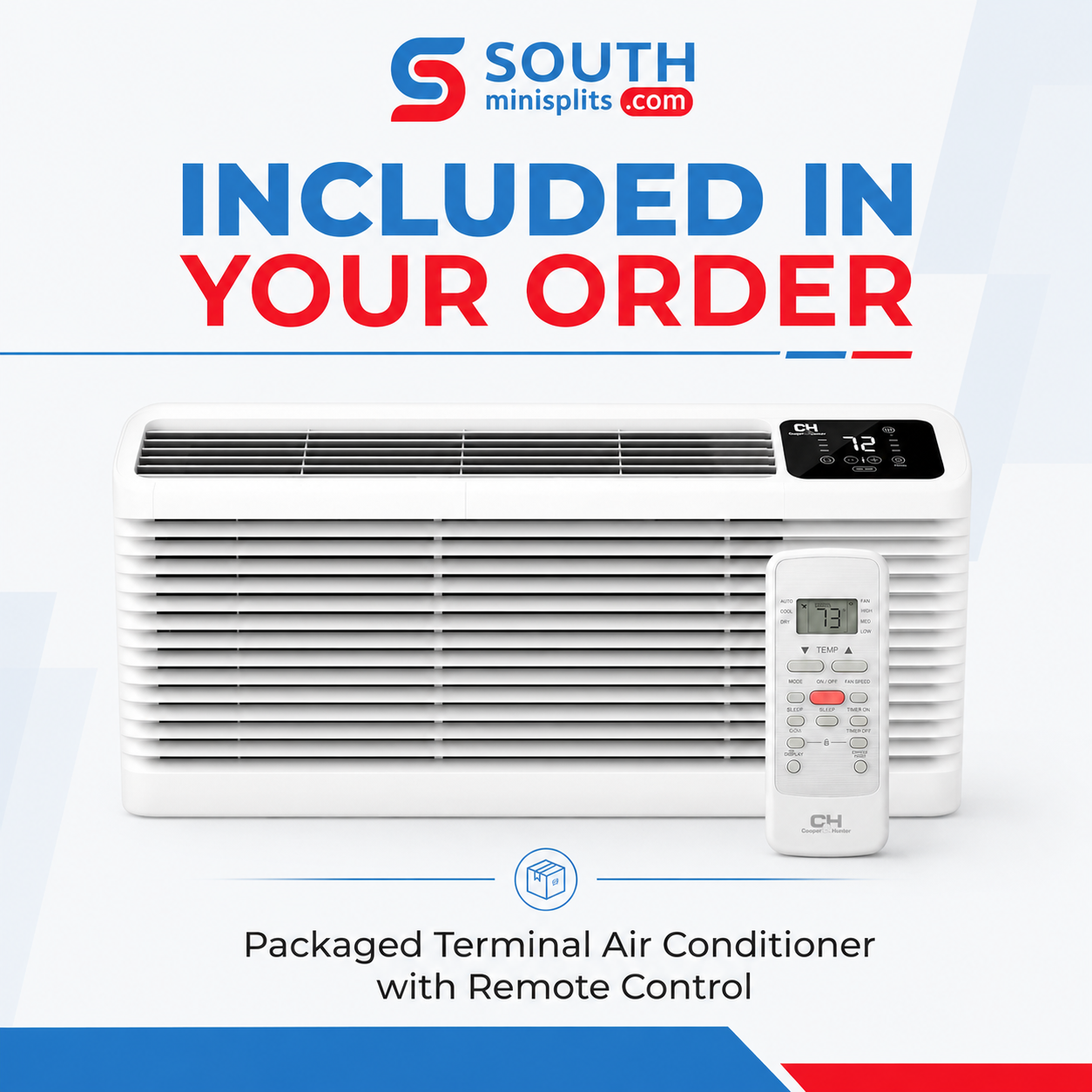

A high-efficiency packaged terminal air conditioner designed to provide cooling, heat-pump heating, electric resistance heating, humidity control, smart connectivity, and fresh-air ventilation from one compact through-the-wall unit.
Complete room comfort in one cabinet

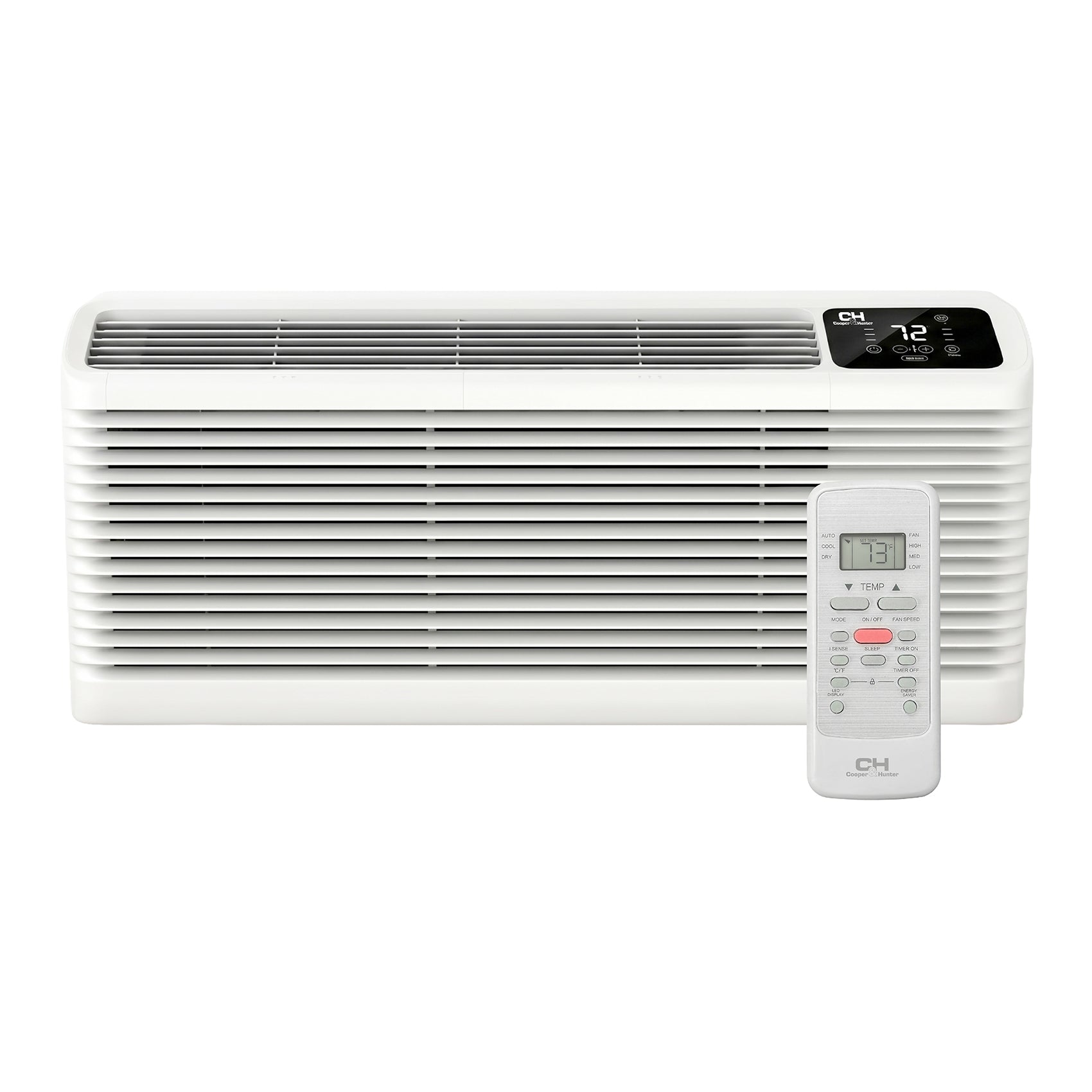

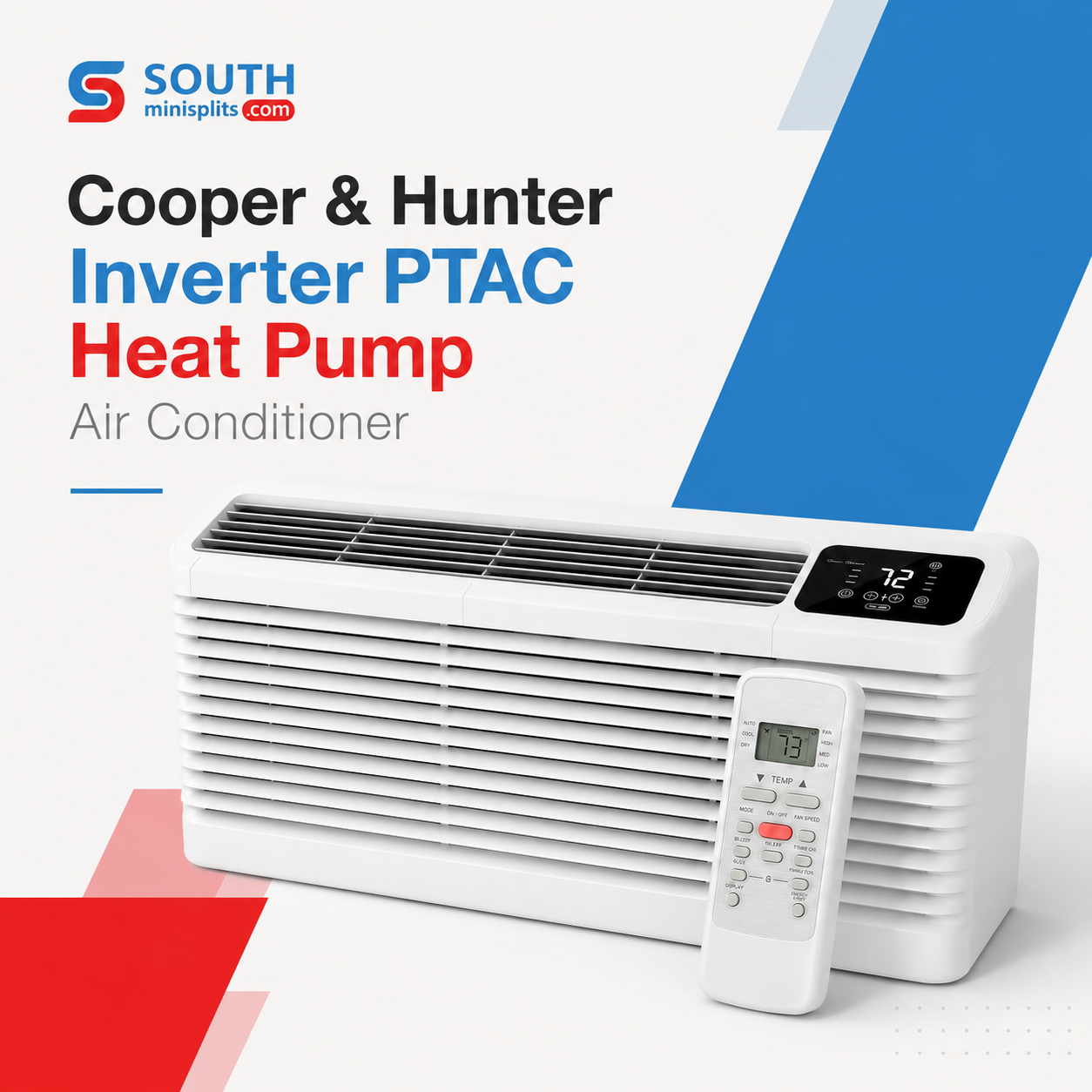

The Cooper&Hunter CH-PTI-09HP is an inverter-driven packaged terminal air conditioner that combines cooling, heat-pump heating, supplemental electric heating, ventilation, and humidity management in a compact through-the-wall configuration.
Unlike conventional fixed-speed PTAC equipment, inverter technology can modulate system output as room conditions change. This helps maintain more consistent temperatures while reducing the abrupt operating cycles commonly associated with traditional packaged terminal units.
Built-in WiFi technology provides smart-control capability, while the integrated fresh-air system introduces up to 60 CFM of outdoor air. The unit is also designed to control indoor relative humidity between approximately 40% and 60%.
Advanced packaged-terminal technology
Designed to combine variable-capacity operation with ventilation, moisture management, and connected control.

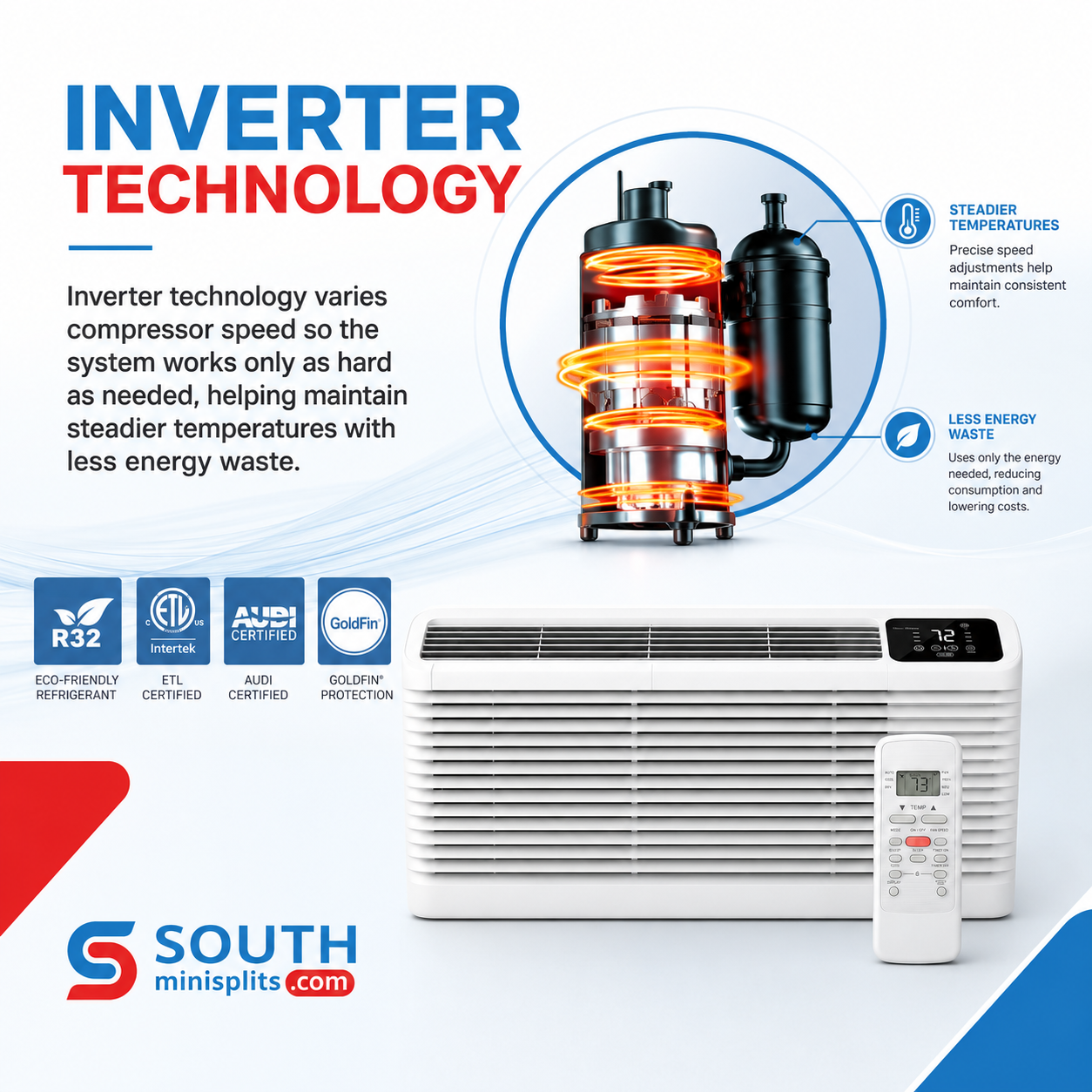

Inverter technology adjusts compressor output according to the room's heating or cooling demand instead of operating only at full capacity. This supports steadier comfort, improved part-load performance, and smoother operation.
Integrated Smart Kit technology provides WiFi capability without requiring a separate external smart module. Compatible smart-control functionality may depend on the application, network configuration, and supported mobile platform.
The integrated fresh-air system can introduce up to 60 CFM of outside air, helping reduce reliance on separate ventilation equipment in supported applications.
The unit is designed to maintain indoor relative humidity within an approximate 40% to 60% range, supporting greater occupant comfort in humid climates and moisture-sensitive environments.
Indoor sound levels are rated as low as 31 dB(A) at the quietest setting, making the unit suitable for guestrooms, bedrooms, offices, and other noise-sensitive spaces.
The CH-PTI-09HP provides efficient heat-pump heating and includes electric PTC resistance heat for supplemental heating when operating conditions or room demand require additional output.
| Specification | Details |
|---|---|
| Model | CH-PTI-09HP |
| System type | Inverter packaged terminal heat pump and air conditioner |
| Power supply | 208/230V, 1Ph, 60Hz |
| Cooling capacity | 4,000–11,000 BTU/h |
| EER / EER2 | 13.5 BTU/W |
| Cooling input | 670 W |
| Cooling rated current | 4.8 / 5.3 A |
| Electric heating capacity | 5,500–10,800 BTU/h |
| Electric heating input | 3,550 / 2,900 W |
| Electric heating rated current | 15.5 / 14.0 A |
| Heat-pump heating capacity | 5,500–10,800 BTU/h |
| Heat-pump heating input | 659 W |
| Heat-pump rated current | 3.3 / 3.6 A |
| COP | 4.0 W/W |
| Compressor type | Rotary inverter compressor |
| Compressor capacity | 2,305 W |
| Compressor input | 598 W |
| Compressor rated current | 4.15 A |
| Refrigerant oil | VG74 |

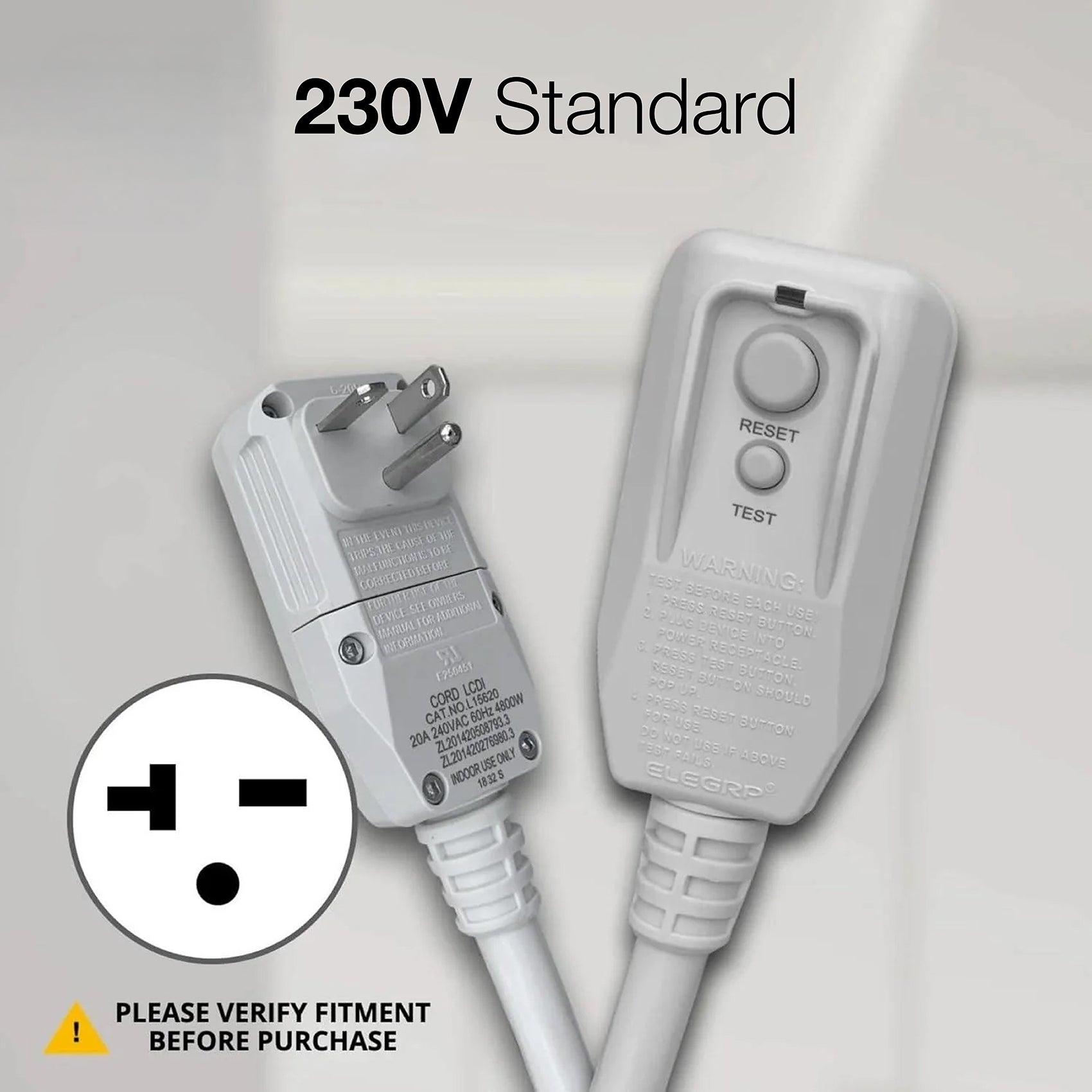

| Plug type | LCDI 6-20P |
| Recommended circuit breaker | 20 A |
| Outdoor fan motor input | 77 W |
| Refrigerant | R32 |
| Design pressure, low / high | 300 / 580 psi |
| Indoor airflow | 335 / 279 / 229 CFM |
| Fresh-air ventilation | Up to 60 CFM |
| Indoor sound levels | 46 / 44 / 40 / 31 dB(A) |
| Outdoor sound level | 63.5 dB(A) |
| Humidity control | Approximately 40%–60% relative humidity |
| Operating temperature range | 5°F to 122°F |
| Unit dimensions | 42 × 21 × 16 in. (W × D × H) |
| Packed dimensions | 44-1/8 × 24-3/8 × 19-1/4 in. (W × D × H) |
| Net / gross weight | 93.48 / 102.07 lb |
Technical Data
Loading technical data…
Product FAQs
On compatible systems, the app can provide remote on and off control, temperature adjustment, operating-mode selection, fan-speed control, daily or weekly scheduling, customized sleep settings, and an error-code check function. Available features can vary by model and app version.
Yes. Cooper & Hunter states that multiple users can connect and share control of compatible zones or units through the Cooper & Hunter Remote app, which can be useful for households, offices, and multi-zone installations.
Use the exact model number from the equipment label to search Cooper & Hunter’s website or support center. Confirm that the indoor unit, outdoor unit, voltage, capacity, and series shown in the result match the equipment before relying on the manual, submittal, leaflet, or troubleshooting material.
Yes. Cooper & Hunter’s support center allows installers to sign in or register for a personal account to access troubleshooting resources. Warranty diagnosis may still require direct troubleshooting with a Cooper & Hunter Technical Support agent while the technician is on site.
Yes. Cooper & Hunter’s Limited Warranty states that qualifying equipment must be properly installed by a state-certified or licensed HVAC contractor in accordance with applicable codes, permits, manufacturer instructions, and accepted trade practices.
Cooper & Hunter provides product manuals, troubleshooting guides, warranty information, product-specific documents, and selected troubleshooting videos through its official support center. Search using the exact model number to avoid using instructions for a different system.
Yes. Cooper & Hunter’s official website includes a Find Solution tool for selecting a system by application and climate zone, along with a dealer locator. Final equipment selection should still be confirmed against the project load, electrical requirements, installation conditions, and the exact product documentation.
Use Cooper & Hunter’s official Rebates & Incentives portal and enter the requested location and equipment information. Eligibility depends on the exact model, efficiency requirements, installation details, utility program, tax rules, and customer location.
No. Cooper & Hunter states that its systems meet guidelines in many regions and may qualify for rebates or other incentives, but availability and approval depend on the local program and the exact equipment. Verify eligibility before treating an incentive as part of the final project cost.
Compatible systems use the Cooper & Hunter Remote app, available through the Apple App Store and Google Play. The exact system must support Wi-Fi control and may require the manufacturer’s compatible wireless module or smart kit.
No. Cooper & Hunter’s Smart Kit instructions state that the reserved interface is intended for the manufacturer-provided compatible wireless module. Power should be disconnected before installation, and access, replacement, and maintenance of the wireless module should be handled by qualified personnel.
For the eligible product categories listed on its warranty page, Cooper & Hunter publishes one year of coverage for the original remote control, five years on parts, and seven years on the compressor for the original registered end user. Exact coverage can vary by product, purchase channel, registration status, and program eligibility, so confirm the warranty for the exact model.
The product owner or servicing technician should contact Cooper & Hunter Technical Support. For warranty troubleshooting, Cooper & Hunter instructs that the technician should be on site so the support agent can review error codes, symptoms, electrical readings, mechanical measurements, and other diagnostic information.
Have the unit model and serial number, installation date, installer’s EPA or HVAC license information, and the place of purchase available. Cooper & Hunter may also request photographs, error codes, measurements, or other diagnostic details before processing warranty support.
Yes. Cooper & Hunter’s support center states that one-on-one technical and warranty assistance is available in English, Spanish, Mandarin, Russian, and Ukrainian.
Cooper & Hunter lists Technical Support at (888) 293-9252 and an additional number at (786) 953-6706. Its support center currently lists availability Monday through Friday from 9:00 AM to 8:00 PM Eastern Time. Check the official support page for current hours before calling.
Cooper & Hunter’s published policy excludes labor and related field costs. It also states that refrigerant, charging, recharging, adjustment, and removal costs are not covered. The owner is generally responsible for these expenses even when an eligible replacement part is provided.
Register the equipment through Cooper & Hunter’s official warranty registration process. Registration can be completed online or by phone. Keep the model and serial numbers for each piece of equipment, the installation and purchase details, and the installing contractor’s information available before starting.
Cooper & Hunter states that products should be registered within 60 days of installation for its Limited Warranty. Registration and coverage remain subject to the current warranty policy and the eligibility requirements for the specific product.
Cooper & Hunter requests the model and serial number for each piece of equipment, installation date, owner contact information, installer or dealer information, purchase details, an email address, and the HVAC license number. Much of this information should be available on the product labels and installation invoice.
Yes. Cooper & Hunter’s published policy states that warranty coverage applies to products remaining at their original installation location. Equipment removed and reinstalled elsewhere may be excluded from warranty coverage.
Yes. Cooper & Hunter lists damage or repairs arising from non-compatible parts, third-party components, alterations, modifications, or improper applications among its warranty exclusions. Use components approved for the exact equipment and application.
Cooper & Hunter’s published Limited Warranty is provided to the first original owner at the original installation location and is not transferable to subsequent owners. Review the current warranty policy for the exact product and transaction.
No. Wi-Fi and app compatibility are model dependent. Some systems include compatible wireless capability, while others require a specific Cooper & Hunter Wi-Fi accessory or do not support app control. Confirm the exact model’s product documents and accessory compatibility before ordering.
