Bravo Pisa Series 24,000 BTU 22.0 SEER2, Single Zone Concealed Slim Duct Mini Split Heat Pump System w/ 16' Installation Kit

SKU BRV-P24DT230VI + BRV-P24LS-230VO Slim Duct22.0 SEER2208-230V
Leave a Review
$1,671.84 $1,857.60 Save $185.76 (10%)
In StockShips in 1-2 business days

Brand Information

Bravo
Support Number
(888) 293-9252
Official Site
Bravo Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.
Bravo Pisa Series • Single-Zone Slim Duct

Bravo Pisa 24,000 BTU Single-Zone Concealed Slim Duct Heat Pump

Hidden, ducted heating and cooling with a low-profile air handler, flexible return-air installation, inverter performance, and R32 refrigerant.

24,000 BTUCooling class
22.0 SEER2High-efficiency performance
208–230VSingle-phase power
R32Refrigerant

Comfort hidden above the ceiling

Concealed comfort with flexible air distribution

The Bravo Pisa Series pairs the BRV-P24DT230VI concealed slim-duct indoor unit with the BRV-P24LS-230VO outdoor heat pump. The low-profile air handler installs above a ceiling or within another concealed space, allowing conditioned air to be delivered through supply ducts and discreet room registers.

This format is well suited to bedrooms, offices, suites, and layouts where one concealed unit can serve a dedicated zone or distribute air through multiple short duct runs. Variable-speed inverter operation adjusts output as conditions change to support steadier temperatures and efficient part-load performance.

Single-zone systemCooling & heatingConcealed installationLow-profile cabinetWired controllerMax. 65 ft line length

Purpose-built slim-duct performance

A compact air handler designed for concealed installations

The feature presentation combines the verified Bravo specifications with practical concealed-duct capabilities highlighted for the equivalent manufacturer platform.

Flexible return-air configuration

The return-air opening can support rear or bottom intake configurations, giving installers more flexibility when coordinating the air handler with framing, ceiling space, and return duct placement.

7⅞

Ultra-slim concealed profile

At only 7-7/8 inches high, the indoor unit is designed to fit where vertical space is limited while remaining hidden above the finished ceiling or within a compact mechanical space.

Built-in condensate pump

An integrated drain pump provides additional flexibility when routing condensate from a concealed installation. Drainage design, lift limits, slope, and access should be verified during system planning.

CFM

Strong ducted airflow

The indoor blower delivers up to 741 CFM across multiple fan speeds, supporting conditioned-air delivery through properly designed short duct runs and supply registers.

Quiet inverter comfort

The variable-speed system adjusts output instead of relying only on abrupt on-and-off cycling. The indoor unit is listed as low as 34 dB at its quietest fan setting.

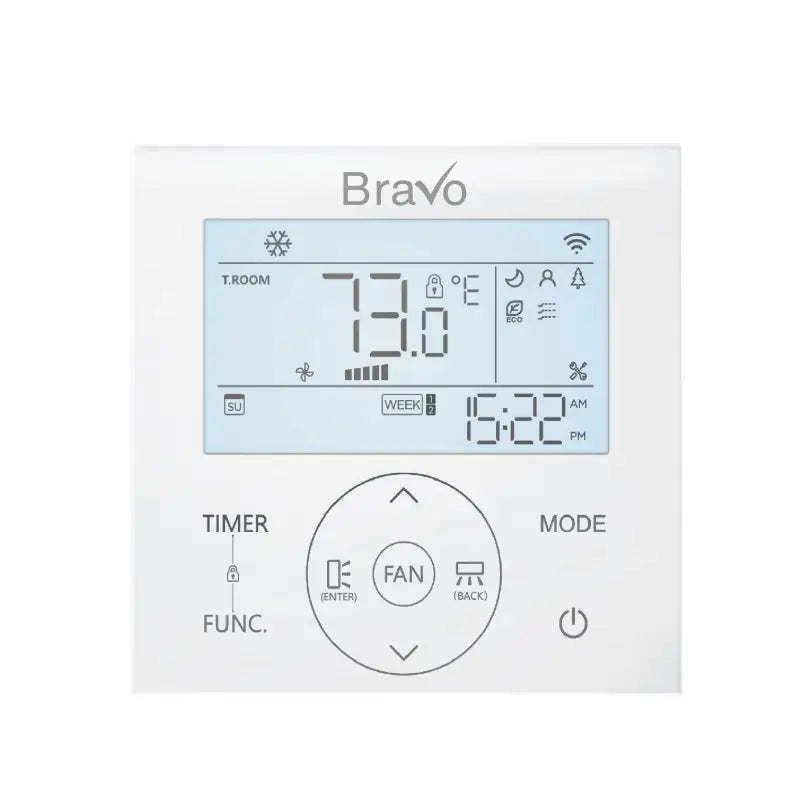

Wired wall control included

The included wired controller provides a fixed, convenient control point for temperature and operating adjustments—particularly useful when the indoor unit itself is concealed from view.

Matched system

Built around the correct Bravo Pisa pairing

This listing is for the BRV-P24DT230VI concealed slim-duct indoor unit paired with the BRV-P24LS-230VO outdoor heat pump. It is a 24,000 BTU-class, 208–230V single-zone system using R32 refrigerant, rated up to 22.0 SEER2 and 9.5 EER2.

System typeSingle-zone heat pump
Indoor styleConcealed slim duct
Efficiency22.0 SEER2 / 9.5 EER2
RefrigerantR32

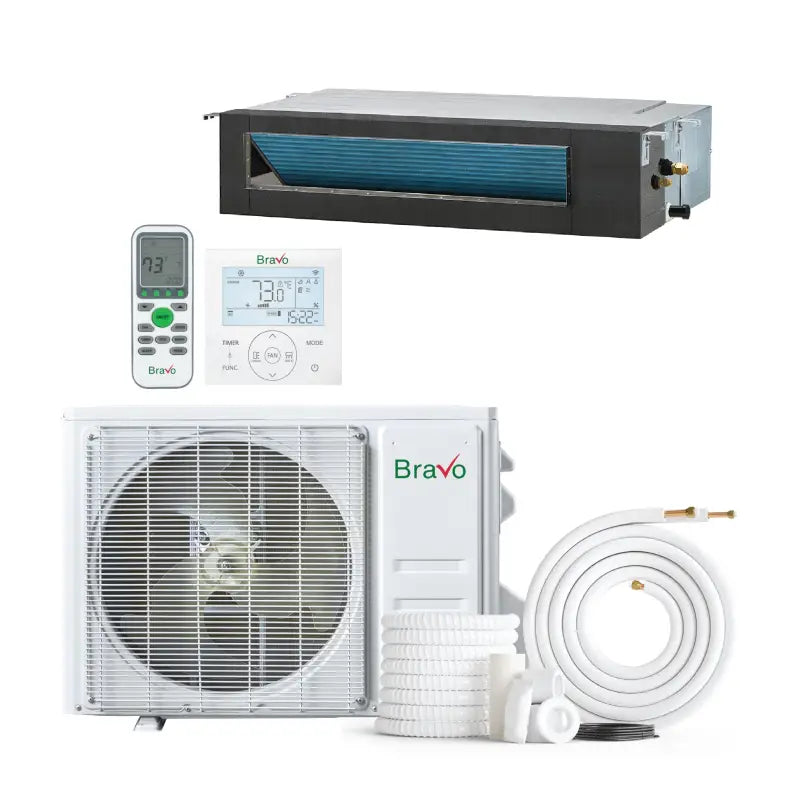

What’s Included

Indoor unitBRV-P24DT230VI
Outdoor unitBRV-P24LS-230VO
ControlWired controller included
Installation kit16 ft line set installation kit included

Indoor Specs

Spec Details

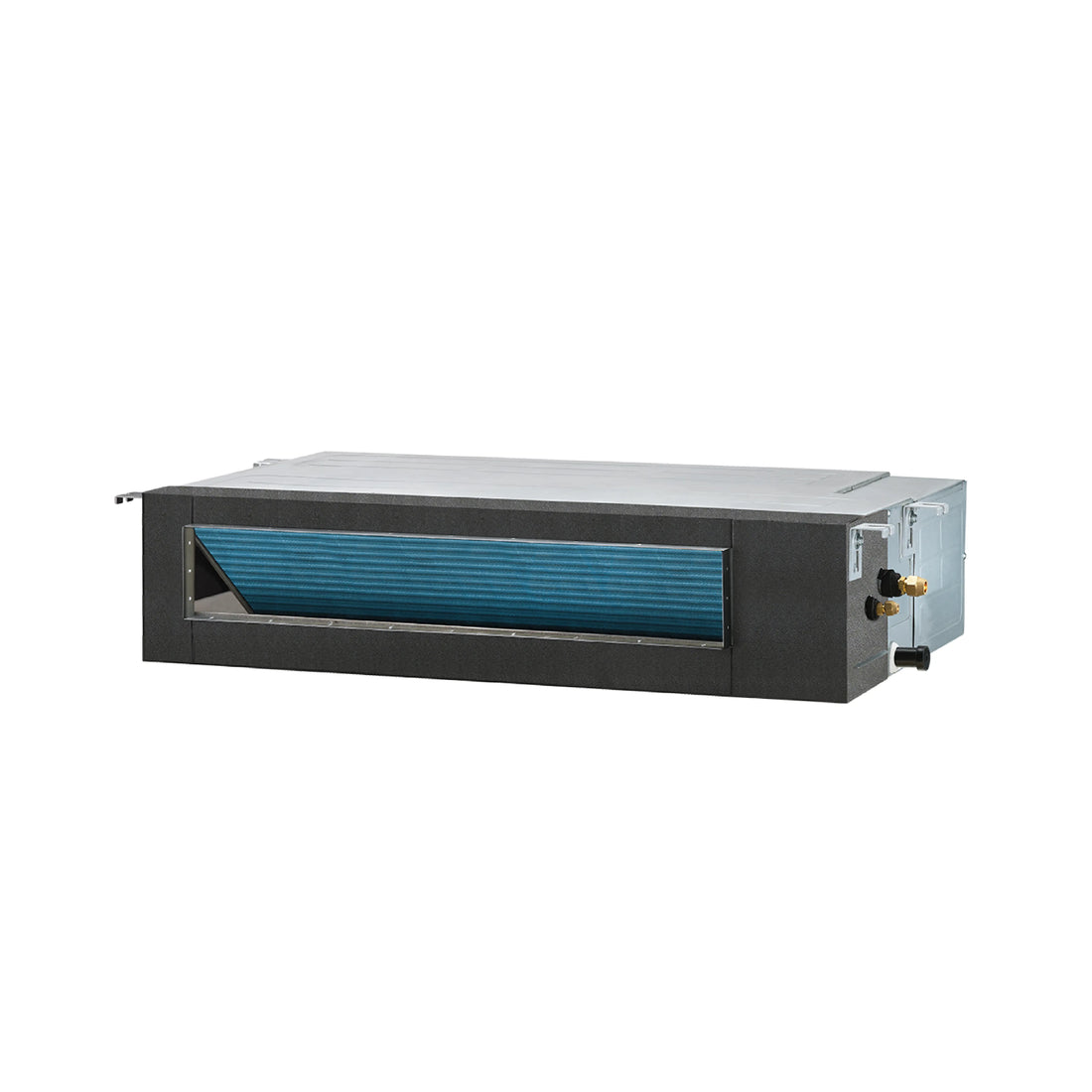

Model BRV-P24DT230VI
Power supply 208-230V, 1Ph, 60Hz
Voltage range 187-253
Communication wiring AWG 16x4
Cooling capacity 24,000 (7550~24600) BTU/h
Cooling input 1870 W
Cooling rated current 8.1 A
Heating capacity at 47°F 8700~28500 BTU/h
Heating input at 47°F 2030 W
Heating rated current at 47°F 8.8 A
EER2 9.5
SEER2 22.0
COP 3.34 W/W
HSPF2-4 9.5
HSPF2-5 8.8
Indoor fan motor qty 1
Indoor fan motor output 60 W
Indoor fan motor RLA 0.26 A
Indoor airflow 741/623/558/529/470 CFM
External static pressure 0.48
ESP range 0-.048 In.W.G
Indoor noise level 51/49/46/39/34 dB
Dehumidification 5.49 Pints/h
Drain connection 0.63
Refrigerant piping 1/4 in. liquid, 1/2 in. gas
Controller Wired Controller
Room temperature range, cooling 62~89°F
Room temperature range, heating 32~86°F
Filter dimensions 21-5/8"x21-7/8"x1/8"
Unit dimensions (W x D x H) 43 -1/4"×17 -3/4"×7 -7/8"
Packed dimensions (W x D x H) 50 -3/4"×22 -1/4"×9 -5/8"
Net / gross weight 50.7 lbs
Design pressure 609/174 PSIG

Outdoor Specs

Spec Details

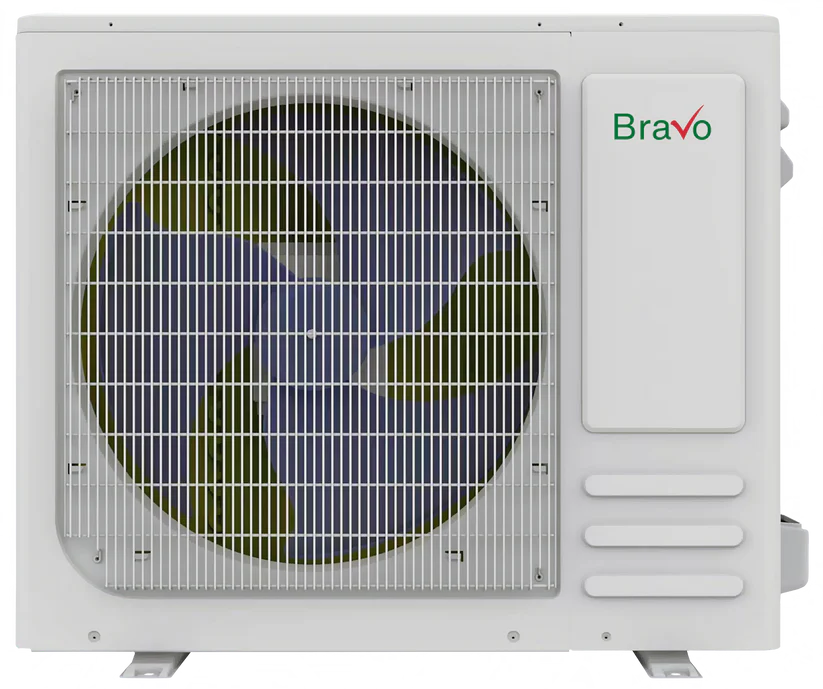

Model BRV-P24LS-230VO
Power supply 208-230V, 1Ph, 60Hz
Voltage range 187-253
Minimum circuit ampacity 17 A
Maximum fuse 25 A
Compressor model C-6RZ180H3BAF
Compressor type Rotary
Compressor brand SANYO
Compressor capacity 20199 BTU/h
Compressor input 1410 W
Compressor rated current (RLA) 6 A
Refrigerant oil / charge 15.22 oz
Outdoor fan motor qty 1
Outdoor fan motor output 85 W
Outdoor fan motor RLA 0.37 A
Outdoor fan speed 850 r/min
Outdoor airflow 1412 CFM
Outdoor noise level 60 dB
Throttle type EEV
Refrigerant type R32
Refrigerant amount 42.33/2.64
Factory precharge 25 ft
Additional charge for 1/4 in. liquid pipe 0.11 oz
Refrigerant piping 1/4 in. liquid, 1/2 in. gas
Maximum level difference 49 ft
Maximum pipe length 65 ft
Ambient range, cooling 5~127°F
Ambient range, heating -4~75°F
Unit dimensions (W x D x H) 36 -1/8"×14 -3/4"×27 -1/2"
Packed dimensions (W x D x H) 37 -3/8"×16 -1/2"×28 -7/8"
Net / gross weight 88.2 lbs

Documents & Downloads

Important

Professional installation is recommended. Verify electrical requirements, line set sizing, refrigerant charge, drainage, clearances, and local code requirements before installation. A 16 ft installation kit is included with this system.

FAQs

What refrigerant does this Bravo Pisa system use?
This system uses R32 refrigerant.
What voltage does this system require?
208-230V, 1Ph, 60Hz.
Is this a single-zone system?
Yes, this pairing is a single-zone system with one indoor unit and one outdoor unit.
What type of indoor unit is included?
This listing includes a slim duct indoor unit, model BRV-P24DT230VI.
What controls are included?
This system includes a Wired Controller.
What is the maximum line set length?
Maximum pipe length is 65 ft, with a maximum level difference of 49 ft.
Is an installation kit included?
Yes. This system includes a 16 ft installation kit.
