Flexible return-air configuration
The return-air opening can support rear or bottom intake configurations, giving installers more flexibility when coordinating the air handler with framing, ceiling space, and return duct placement.
Bravo Pisa Series • Single-Zone Slim Duct
Bravo Pisa 18,000 BTU Single-Zone Concealed Slim Duct Heat Pump
Hidden, ducted heating and cooling with a low-profile air handler, flexible return-air installation, inverter performance, and R32 refrigerant.
18,000 BTUCooling class
22.0 SEER2High-efficiency performance
208–230VSingle-phase power
R32Refrigerant
Comfort hidden above the ceiling
Concealed comfort with flexible air distribution
The Bravo Pisa Series pairs the BRV-P18DT230VI concealed slim-duct indoor unit with the BRV-P18LS-230VO outdoor heat pump. The low-profile air handler installs above a ceiling or within another concealed space, allowing conditioned air to be delivered through supply ducts and discreet room registers.
This format is well suited to bedrooms, offices, suites, and layouts where one concealed unit can serve a dedicated zone or distribute air through multiple short duct runs. Variable-speed inverter operation adjusts output as conditions change to support steadier temperatures and efficient part-load performance.
Single-zone systemCooling & heatingConcealed installationLow-profile cabinetWired controllerMax. 65 ft line length
Purpose-built slim-duct performance
A compact air handler designed for concealed installations
The feature presentation combines the verified Bravo specifications with practical concealed-duct capabilities highlighted for the equivalent manufacturer platform.
Ultra-slim concealed profile
At only 7-7/8 inches high, the indoor unit is designed to fit where vertical space is limited while remaining hidden above the finished ceiling or within a compact mechanical space.
Built-in condensate pump
An integrated drain pump provides additional flexibility when routing condensate from a concealed installation. Drainage design, lift limits, slope, and access should be verified during system planning.
Strong ducted airflow
The indoor blower delivers up to 500 CFM across multiple fan speeds, supporting conditioned-air delivery through properly designed short duct runs and supply registers.
Quiet inverter comfort
The variable-speed system adjusts output instead of relying only on abrupt on-and-off cycling. The indoor unit is listed as low as 33 dB at its quietest fan setting.

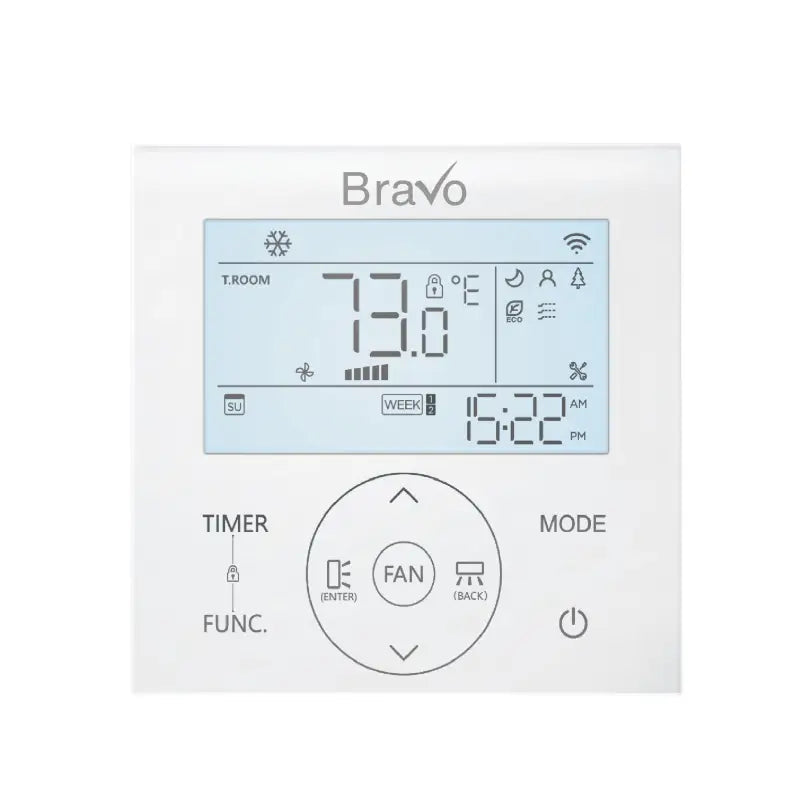

Wired wall control included
The included wired controller provides a fixed, convenient control point for temperature and operating adjustments—particularly useful when the indoor unit itself is concealed from view.
Matched system
Built around the correct Bravo Pisa pairing
This listing is for the BRV-P18DT230VI concealed slim-duct indoor unit paired with the BRV-P18LS-230VO outdoor heat pump. It is a 18,000 BTU-class, 208–230V single-zone system using R32 refrigerant, rated up to 22.0 SEER2 and 9.5 EER2.
System typeSingle-zone heat pump
Indoor styleConcealed slim duct
Efficiency22.0 SEER2 / 9.5 EER2
RefrigerantR32
What’s Included
Indoor unitBRV-P18DT230VI
Outdoor unitBRV-P18LS-230VO
ControlWired controller included
Installation kit16 ft line set installation kit included
Indoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P18DT230VI |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Communication wiring | AWG 16x4 |
| Cooling capacity | 18,000 (6000~19400) BTU/h |
| Cooling input | 1450 W |
| Cooling rated current | 6.3 A |
| Heating capacity at 47°F | 4000~21400 BTU/h |
| Heating input at 47°F | 1805 W |
| Heating rated current at 47°F | 7.8 A |
| EER2 | 9.5 |
| SEER2 | 22.0 |
| COP | 2.8 W/W |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 9.2 |
| Indoor fan motor qty | 1 |
| Indoor fan motor output | 50 W |
| Indoor fan motor RLA | 0.23 A |
| Indoor airflow | 500/426/370/300/283 CFM |
| External static pressure | 0.4 |
| ESP range | 0-.04 In.W.G |
| Indoor noise level | 48/44/41/36/33 dB |
| Dehumidification | 4.64 Pints/h |
| Drain connection | 0.63 |
| Refrigerant piping | 1/4 in. liquid, 3/8 in. gas |
| Controller | Wired Controller |
| Room temperature range, cooling | 62~89°F |
| Room temperature range, heating | 32~86°F |
| Filter dimensions | 14-7/8"x14-3/4"x1/8" |
| Unit dimensions (W x D x H) | 36 -1/4"×17 -3/4"×7 -7/8" |
| Packed dimensions (W x D x H) | 44 -1/8"×21 -7/8"×9 -7/8" |
| Net / gross weight | 39.7 lbs |
| Design pressure | 609/174 PSIG |
Outdoor Specs
| Spec | Details |
|---|---|
| Model | BRV-P18LS-230VO |
| Power supply | 208-230V, 1Ph, 60Hz |
| Voltage range | 187-253 |
| Minimum circuit ampacity | 12 A |
| Maximum fuse | 20 A |
| Compressor model | C-4RZ120H3AAF |
| Compressor type | Rotary |
| Compressor brand | SANYO |
| Compressor capacity | 15798 BTU/h |
| Compressor input | 850 W |
| Compressor rated current (RLA) | 3 A |
| Refrigerant oil / charge | 11.83 oz |
| Outdoor fan motor qty | 1 |
| Outdoor fan motor output | 33 W |
| Outdoor fan motor RLA | 0.15 A |
| Outdoor fan speed | 1000 r/min |
| Outdoor airflow | 882 CFM |
| Outdoor noise level | 55 dB |
| Throttle type | Capillary |
| Refrigerant type | R32 |
| Refrigerant amount | 37.74/2.35 |
| Factory precharge | 25 ft |
| Additional charge for 1/4 in. liquid pipe | 0.11 oz |
| Refrigerant piping | 1/4 in. liquid, 3/8 in. gas |
| Maximum level difference | 49 ft |
| Maximum pipe length | 65 ft |
| Ambient range, cooling | 5~127°F |
| Ambient range, heating | -4~75°F |
| Unit dimensions (W x D x H) | 33 -1/2"×13 -3/4"×23 -3/4" |
| Packed dimensions (W x D x H) | 35"×15 -1/8"×24 -3/4" |
| Net / gross weight | 66.8 lbs |
Documents & Downloads
Owner's Manual
Bravo Slim Duct Owner's Manual
Controller Manual
Bravo Wired Remote Controller
Smart Controls
Smart Sync Manual
Important
Professional installation is recommended. Verify electrical requirements, line set sizing, refrigerant charge, drainage, clearances, and local code requirements before installation. A 16 ft installation kit is included with this system.
FAQs
What refrigerant does this Bravo Pisa system use?
This system uses R32 refrigerant.
What voltage does this system require?
208-230V, 1Ph, 60Hz.
Is this a single-zone system?
Yes, this pairing is a single-zone system with one indoor unit and one outdoor unit.
What type of indoor unit is included?
This listing includes a slim duct indoor unit, model BRV-P18DT230VI.
What controls are included?
This system includes a Wired Controller.
What is the maximum line set length?
Maximum pipe length is 65 ft, with a maximum level difference of 49 ft.
Is an installation kit included?
Yes. This system includes a 16 ft installation kit.
