Product Overview
The ACIQ 80-Gallon Heat Pump Water Heater delivers powerful performance while maximizing energy efficiency for larger households. This ENERGY STAR® certified unit uses advanced heat pump technology to significantly reduce energy usage, helping you save on utility bills while providing a continuous supply of hot water. With an 80-gallon capacity, it’s designed to meet the demands of busy homes with high hot water needs. Equipped with multiple smart operating modes, including Heat Pump, Hybrid, and E-Heater, you can customize the unit to match your lifestyle, optimizing for efficiency or faster recovery when needed. Its quiet operation and environmentally friendly design, using R134a refrigerant, ensure it blends seamlessly into your home. Built to handle even cold climates, the ACiQ 80-Gallon Heat Pump Water Heater ensures consistent performance year-round, while its durable construction and low-maintenance design make it a reliable long-term investment for your home.
Energy Efficiency:
- Uniform Energy Factor (UEF): 4.00
- Recovery Efficiency: 450%
- Electric Input: 5.5 kW
- Electric Usage: 1240.0 kWh/year
Storage:
- Normal Gallon Capacity: 80
- Rated Gallon Capacity: 75
Power supply:
- Normal Operational Voltage: 240V,1Ph,60Hz
- Voltage Range: 208~240
Other Features:

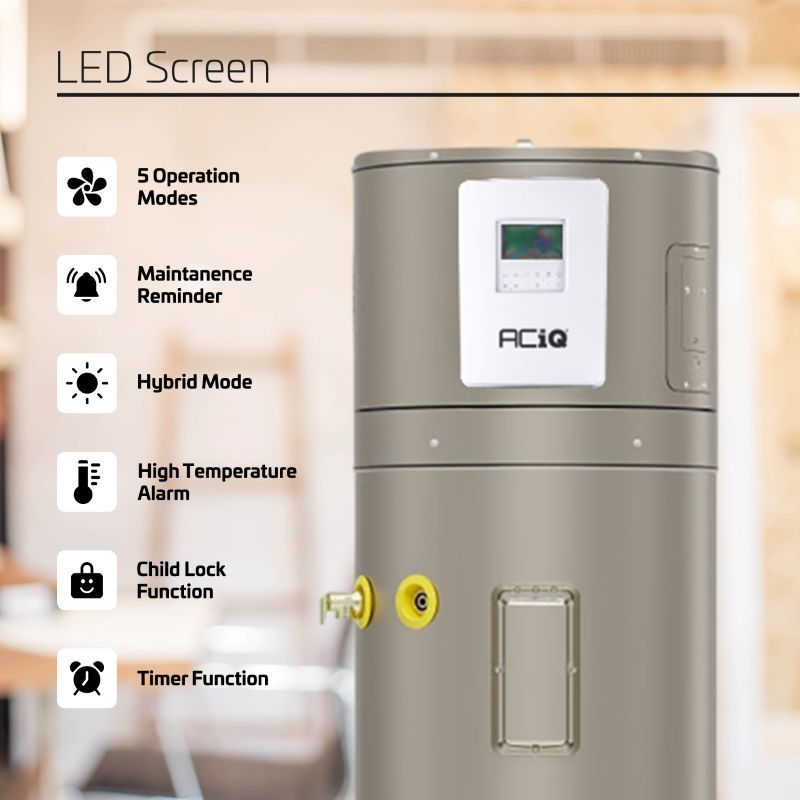

- LED Screen: Yes
- Dry Fire Protection: Yes
- Operation Modes: 5
- Replaceable Filter: Yes
Technical Specifications — ACIQ-80G-HP-WH
| sku | ACIQ-80G-HP-WH |
|---|---|
| refrigerant charge | 18.34 oz. |
| weight (in lbs) | 358.000000 |
| ahri certificate number | 215402334 |
| brand/manufacturer | ACiQ |
| decibel level (dba) | 49.5 |
| energy star | Yes |
| capacity | 80 Normal Gallon Capacity |
| electrical | 208V/240V, 60Hz, 1Ph |
| phase | Single Phase |
| wattage | 5500 Total Unit Wattage |
| max breaker size | MOP: 25A (208V) / 30A (240V) |
| min. breaker size | MCA: 23.6A (208V) / 26.8A (240V) |
| height | 74.20" |
| width | 25.60" (Unit Diameter) |
| warranty | 10-year parts and 12-year tank with online registration once installed & 10-year parts and 10-year tank with no registration. For commercial/non-residential , 1-year parts and 1-year tank warranty. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
