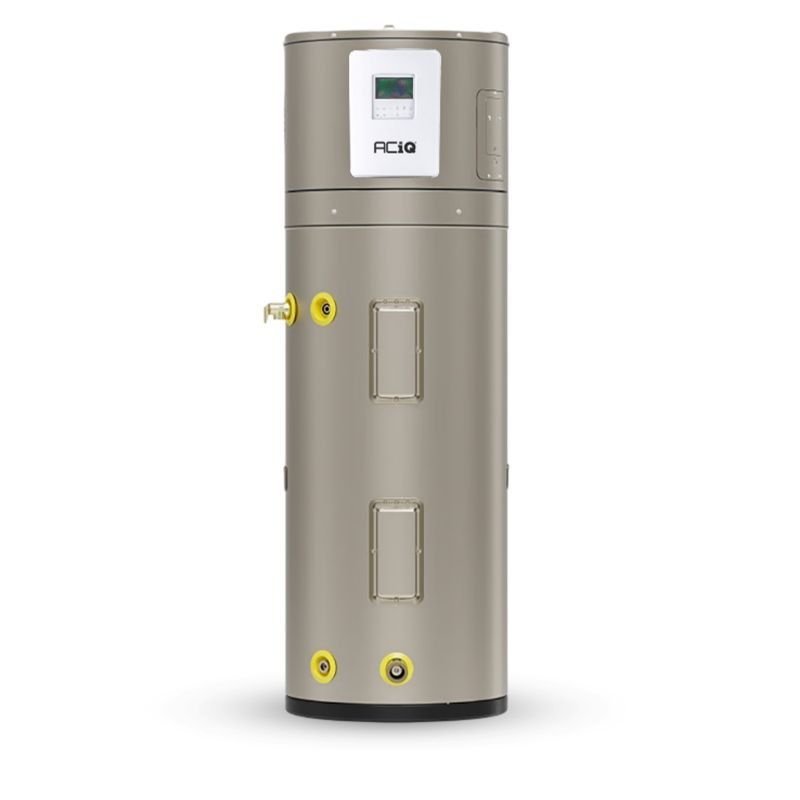

Product Overview
The ACIQ 50-Gallon Hybrid Water Heater combines advanced heat pump technology with the power of traditional electric heating, providing your home with an energy-efficient and reliable hot water solution. Perfect for medium-sized households, this hybrid water heater is designed to adapt to your lifestyle with multiple operating modes for energy savings or faster recovery when you need hot water quickly. With its quiet operation and sleek design, the ACIQ 50-Gallon Hybrid Water Heater seamlessly integrates into any home. It’s designed to perform even in colder climates, delivering consistent hot water year-round while helping you save on energy costs. Installation is simple, and maintenance is minimal, making it a convenient, long-lasting investment for your home.
Energy Efficiency:
- Uniform Energy Factor (UEF): 3.75
- Recovery Efficiency: 430%
- Electric Input: 5.5 kW
- Electric Usage: 855 kWh/year
Storage:
- Normal Gallon Capacity: 50
- Rated Gallon Capacity: 47
Power supply:
- Normal Operational Voltage: 240V,1Ph,60Hz
- Voltage Range: 208~240
Other Features:

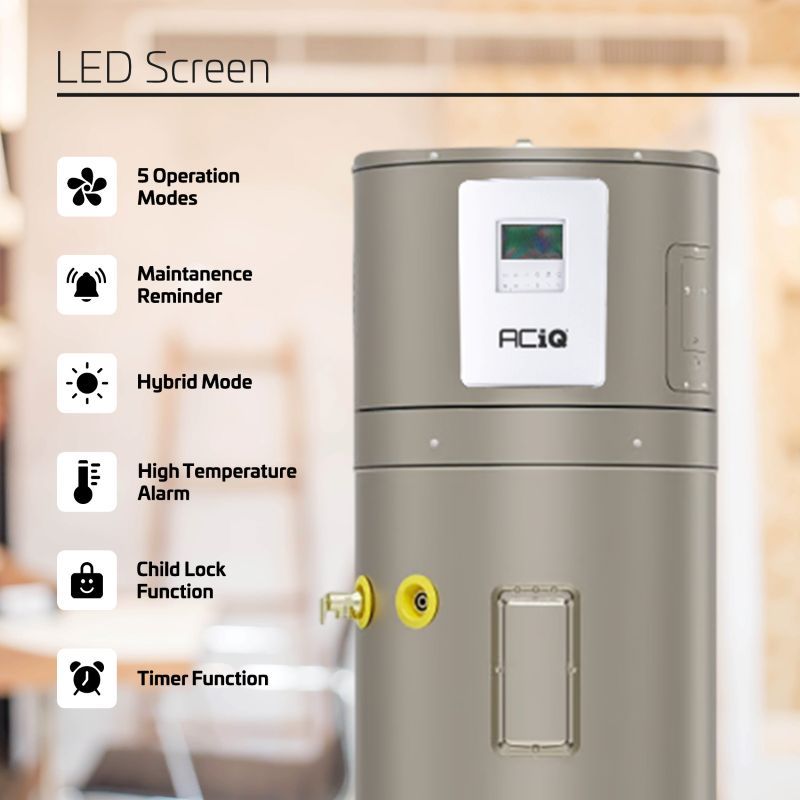

- LED Screen: Yes
- Dry Fire Protection: Yes
- Operation Modes: 5
- Replaceable Filter: Yes
Technical Specifications — ACIQ-50G-HP-WH
| sku | ACIQ-50G-HP-WH |
|---|---|
| refrigerant charge | 18.34 oz. |
| weight (in lbs) | 264.600000 |
| ahri certificate number | 215402333 |
| brand/manufacturer | ACiQ |
| decibel level (dba) | 49.5 |

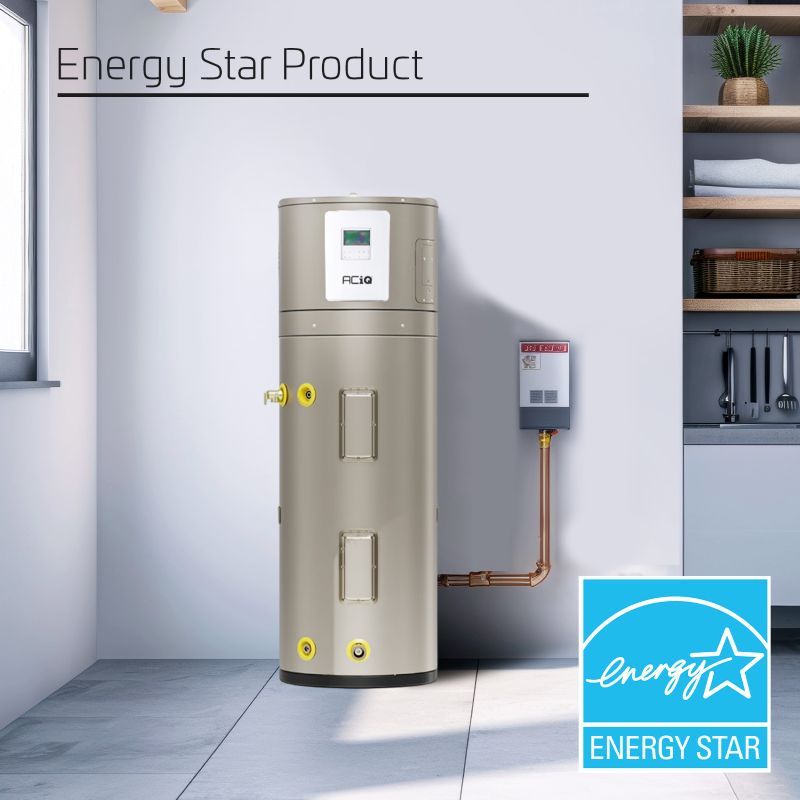

| energy star | Yes |
| capacity | 50 Normal Gallon Capacity |
| electrical | 208V/240V, 60Hz, 1Ph |
| phase | Single Phase |
| wattage | 5500 Total Unit Wattage |
| max breaker size | MOP: 25A (208V) / 30A (240V) |
| min. breaker size | MCA: 23.6A (208V) / 26.8A (240V) |

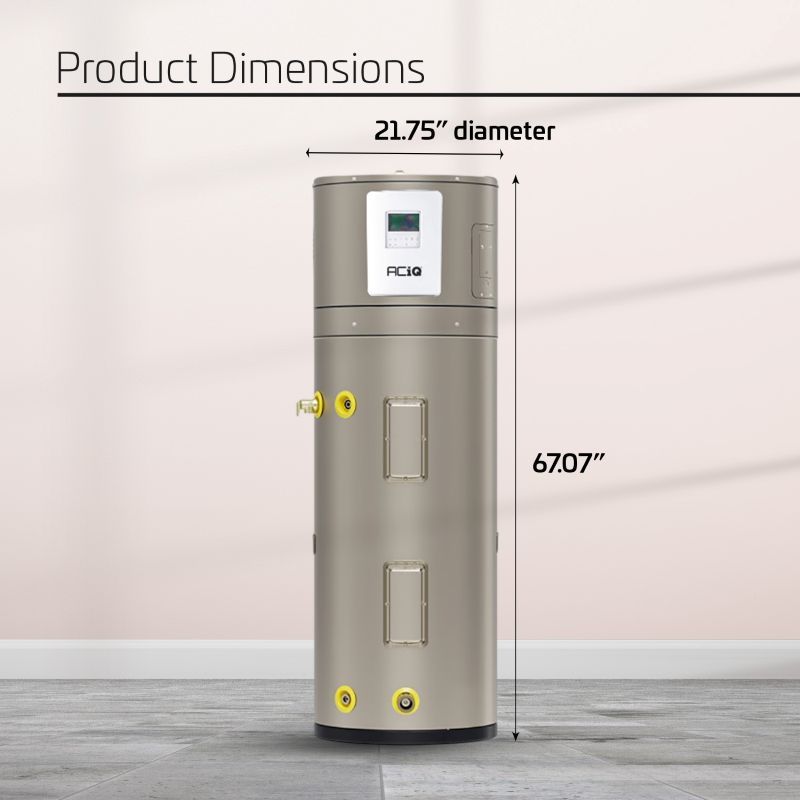

| height | 66.40" |
| width | 21.70" (Unit Diameter) |
| warranty | 10-year parts and 12-year tank with online registration once installed & 10-year parts and 10-year tank with no registration. For commercial/non-residential , 1-year parts and 1-year tank warranty. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
