Product Overview

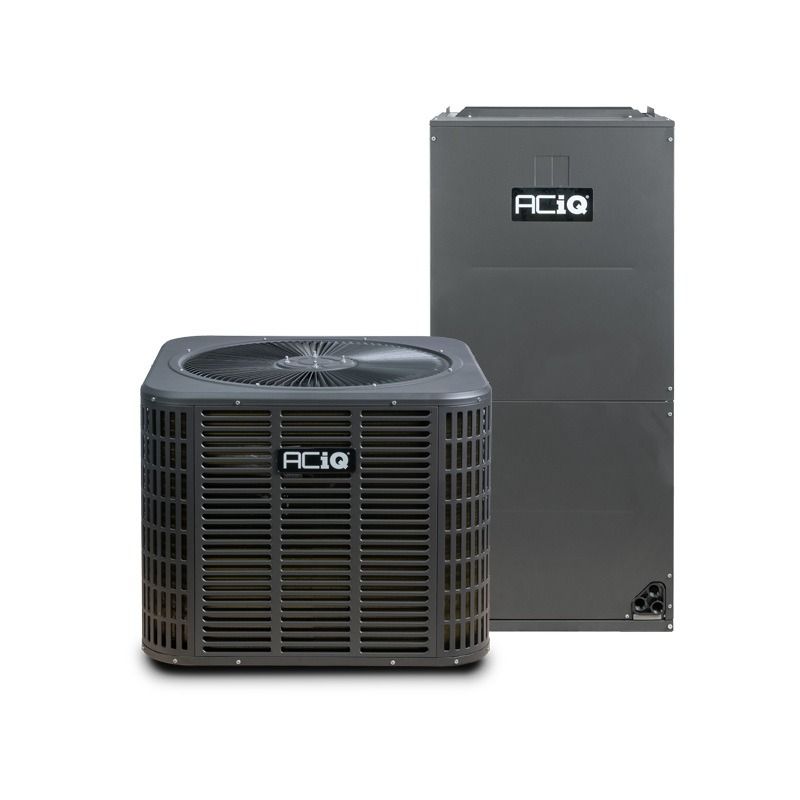

ACIQ 5 Ton 17 SEER2 High Efficiency Central Heat Pump Condenser - R454B Inverter
OVERVIEW

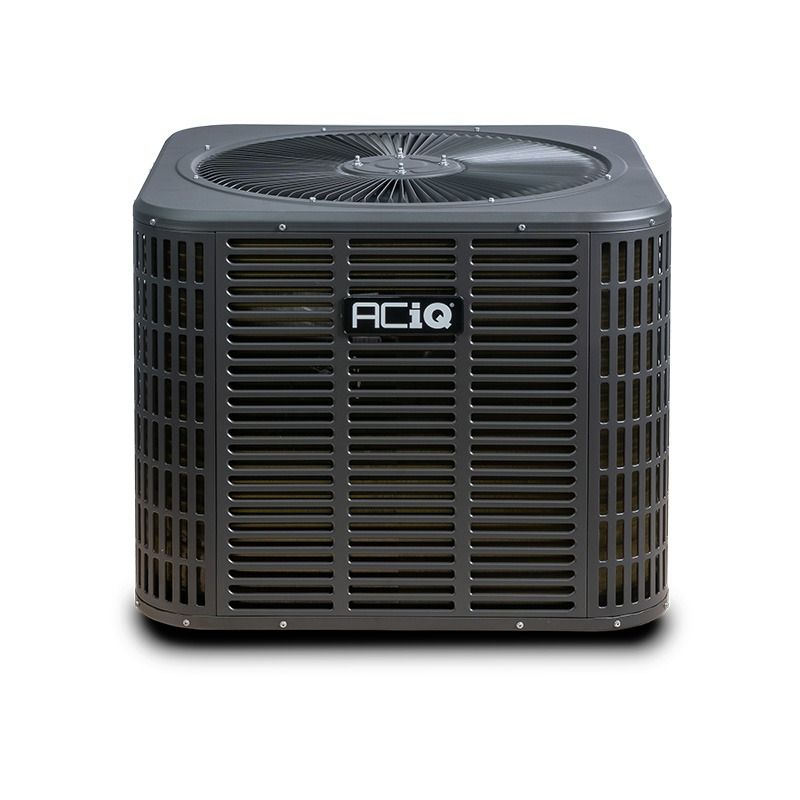

The ACIQ-60TD-HP is a 5-ton heat pump condenser engineered to provide optimal comfort year-round. With its advanced inverter technology and high SEER rating, this system ensures efficient heating and cooling, making it an excellent choice for homeowners seeking reliability and performance.
QUICK FACTS
- 5 ton, 17 SEER2 heat pump condenser
- Can heat and cool a large house in average conditions
- Pre-charged with R454B refrigerant
- Utilizes a variable-speed compressor that adjusts to real-time heating and cooling demands, enhancing comfort and reducing energy consumption
5 Tons
The ACIQ ACIQ-60TD-HP heat pump condenser has an output of 5 tons, generally enough to heat and cool a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.
Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
ACiQ 5 Ton Inverter Central Air Handler - 21" Width - R454B

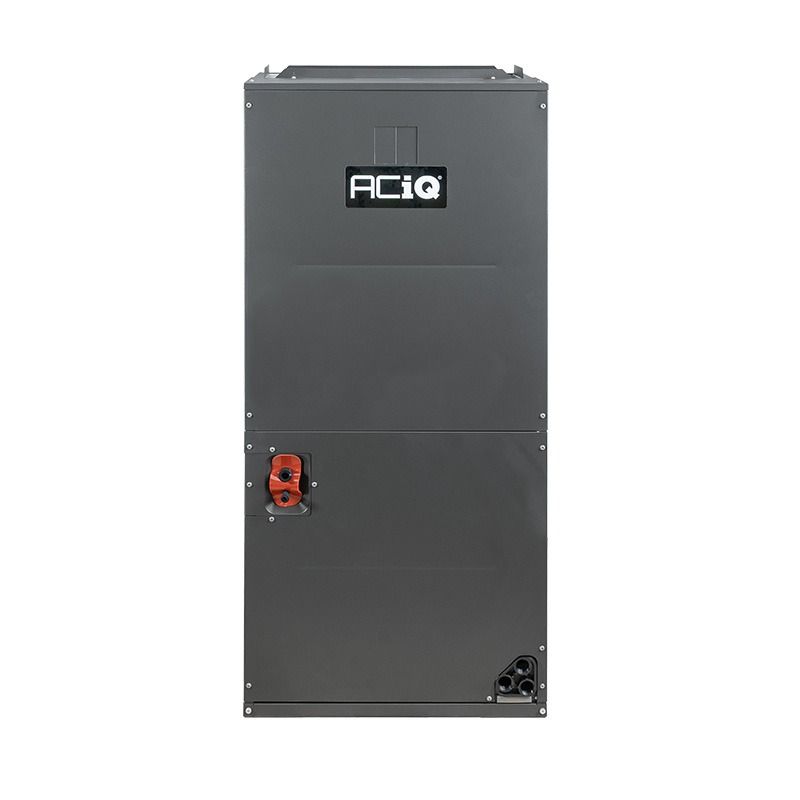

With its efficient multi-speed blower motor, the ACIQ-60TD-AH is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.
QUICK FACTS
- 5 ton central ducted air handler
- Compatible with any 24v thermostat
- Multi speed constant torque blower motor
- Can be installed in upflow or horizontal-right orientations
- Compatible with R454B refrigerant
5 Tons
The ACIQ-60TD-AH air handler is rated for an output of 5 tons. While the unit does require a condenser to function, heat kits may be installed in the air handler to provide supplemental electric heating, which can be used as a backup heat option for a heat pump setup.
Installation and Durability
To make a more versatile unit, ACiQ designed the ACIQ-60TD-AH to easily be installed in an upflow or horizontal right position. For durability, the ACIQ-60TD-AH air handler is designed with an extremely strong outer casing to protect the unit.
Technical Specifications — ACIQ-60TD-HP
| sku | ACIQ-60TD-HP |
|---|---|
| refrigerant charge | 141.09 oz. |
| weight | 220.000000 |
| ahri certificate number | 217006584 |
| manufacturer | ACiQ |
| product features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 8.2 |
| cooling btu | 53,000 BTU |
| heating btu | 54,000 BTU |
| decibel level (dba) | 70 Decibels |
| refrigerant | R454B |
| seer2 | 17 |
| condenser stages | Two Stage |
| compressor type | Scroll |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| max breaker size | 60A |
| min. breaker size | 35A |
| tonnage | 5 Ton |
| zone compatibility | Single Zone |
| height | 33-3/16" |
| width | 29-1/8" |
| depth | 29-1/8" |
| warranty | 12 Years Compressor and 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACIQ-60TD-AH
| sku | ACIQ-60TD-AH |
|---|---|
| weight | 190.000000 |
| ahri certificate number | 217006584 |
| manufacturer | ACiQ |
| hspf2 | 8.2 |
| cooling btu | 53000 BTU |
| heating btu | 54000 BTU |
| maximum cfm | 1700 |
| decibel level (dba) | 62 Decibels |
| horsepower | 1/2 HP |
| electric backup heat capabilities (optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| refrigerant | R454B |
| filter size | 20" x 22" |
| seer2 | 17 |
| condenser stages | Variable Speed |
| liquid valve size | 3/8" |
| suction valve size | 3/4" |
| electrical | 208/230V, 1 Phase, 60Hz |
| electric phase filter | Single Phase |
| tonnage | 5 Ton |
| connection | Flare to Braze |
| height | 56" |
| width | 21" |
| depth | 24-1/2" |
| warranty | 7 Years Parts with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
