Home Top Discharge Series
Top Discharge Series

ACIQ 4 Ton 18 SEER2 High Efficiency Central Heat Pump Split System - R454B Inverter - Multi-Positional

SKU ACIQ-48TD-HP32 + ACIQ-48TD-AH32 Air Handler18.0 SEER2208-230V
Leave a Review
$3,949.99
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Efficient
High Efficiency

Brand Information

ACIQ
Support Number
1-877-909-ACiQ
Official Site
ACIQ Official Site
Product Overview Full product description Read the longer product copy, features, and application notes.
ACIQ

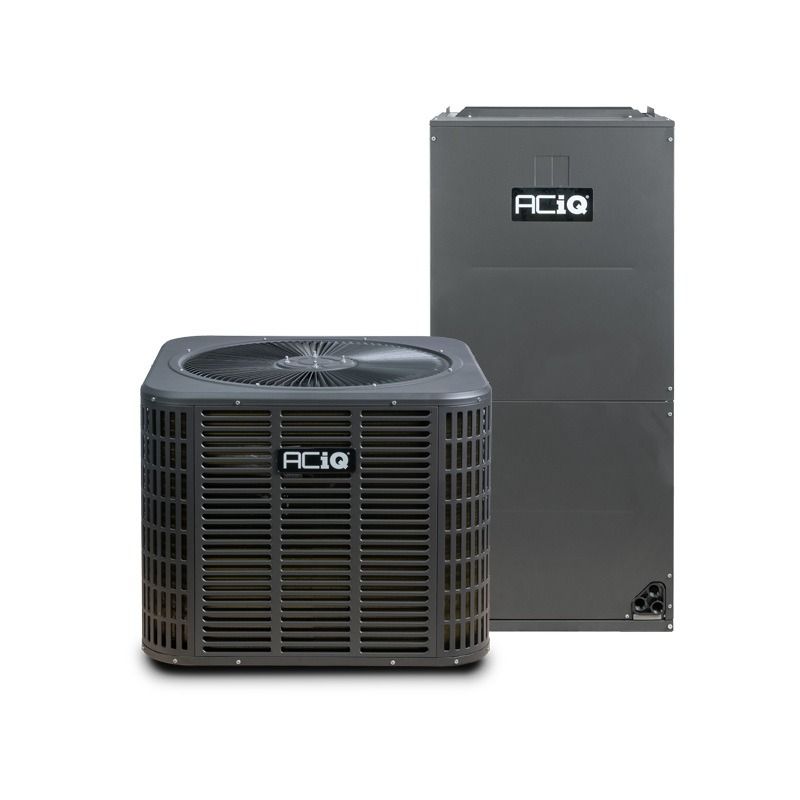

ACIQ 4 Ton 18 SEER2 High Efficiency Central Heat Pump Split System - R454B Inverter - Multi-Positional

Product Overview

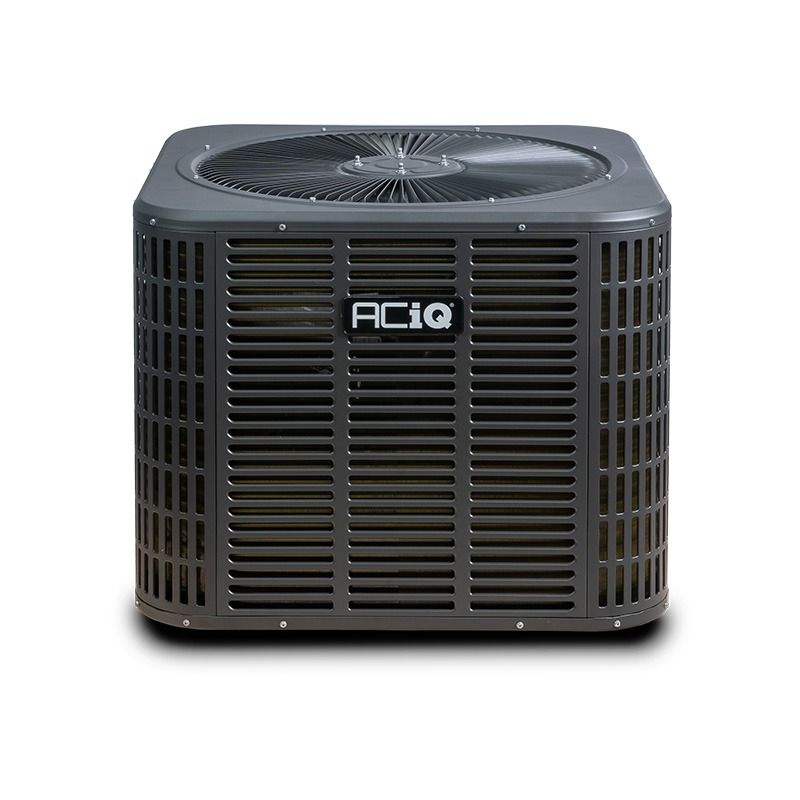

ACIQ 4 Ton 18 SEER2 High Efficiency Central Heat Pump Condenser - R454B Inverter

OVERVIEW

The ACIQ-48TD-HP is a 4-ton heat pump condenser engineered to provide optimal comfort year-round. With its advanced inverter technology and high SEER rating, this system ensures efficient heating and cooling, making it an excellent choice for homeowners seeking reliability and performance.

QUICK FACTS

  • 4 ton, 18 SEER2 heat pump condenser
  • Can heat and cool a medium to large house in average conditions
  • Pre-charged with R454B refrigerant
  • Utilizes a variable-speed compressor that adjusts to real-time heating and cooling demands, enhancing comfort and reducing energy consumption

4 Tons

The ACIQ ACIQ-48TD-HP heat pump condenser has an output of 4 tons, generally enough to heat and cool a medium to large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function on its own, and it needs an indoor coil or air handler to work.

Disclaimer: This condenser contains R454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R454B air handler or evaporator coil equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.

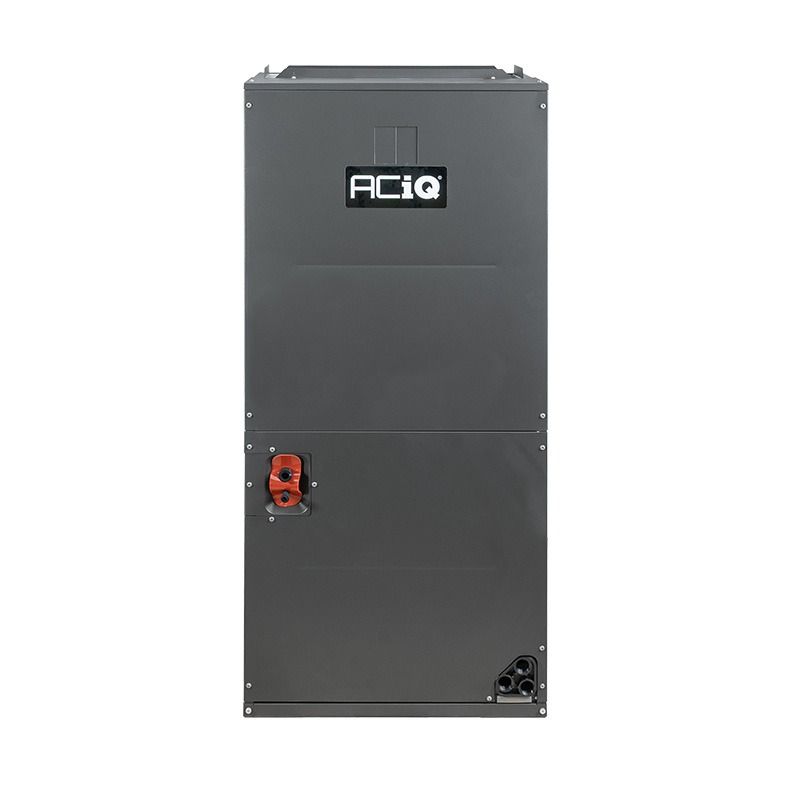

ACiQ 4 Ton Inverter Central Air Handler - 21" Width - R454B

With its efficient multi-speed blower motor, the ACIQ-48TD-AH is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

QUICK FACTS

  • 4 ton central ducted air handler
  • Compatible with any 24v thermostat
  • Multi speed constant torque blower motor
  • Can be installed in upflow or horizontal-right orientations
  • Compatible with R454B refrigerant

4 Tons

The ACIQ-48TD-AH air handler is rated for an output of 4 tons. While the unit does require a condenser to function, heat kits may be installed in the air handler to provide supplemental electric heating, which can be used as a backup heat option for a heat pump setup.

Installation and Durability

To make a more versatile unit, ACiQ designed the ACIQ-48TD-AH to easily be installed in an upflow or horizontal right position. For durability, the ACIQ-48TD-AH air handler is designed with an extremely strong outer casing to protect the unit.

Technical Specifications — ACIQ-48TD-HP

sku ACIQ-48TD-HP
refrigerant charge 141.09 oz.
weight 220.000000
ahri certificate number 217006583
manufacturer ACiQ
product features Inverter, Two Stage Condenser, Variable Speed Condenser
hspf2 8.5
cooling btu 47000 BTU
heating btu 47,000 BTU
decibel level (dba) 70 Decibels
refrigerant R454B
seer2 18
condenser stages Two Stage
compressor type Scroll
liquid valve size 3/8"
suction valve size 3/4"
electrical 208/230V, 1 Phase, 60 Hz
electric phase filter Single Phase
max breaker size 60A
min. breaker size 35A
tonnage 4 Ton
zone compatibility Single Zone
height 33-3/16"
width 29-1/8"
depth 29-1/8"
warranty 12 Years Compressor and 7 Years Parts with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.

Technical Specifications — ACIQ-48TD-AH

sku ACIQ-48TD-AH
weight 190.000000
ahri certificate number 217006583
manufacturer ACiQ
hspf2 8.5
cooling btu 47000 BTU
heating btu 47000 BTU
maximum cfm 1600
decibel level (dba) 60 Decibels
horsepower 1/2 HP
electric backup heat capabilities (optional) 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts
refrigerant R454B
filter size 20" x 22"
seer2 18
condenser stages Variable Speed
liquid valve size 3/8"
suction valve size 3/4"
electrical 208/230V, 1 Phase, 60 Hz
electric phase filter Single Phase
tonnage 4 Ton
connection Flare to Braze
height 56"
width 21"
depth 24-1/2"
warranty 7 Years Parts with Online Registration
safety information PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here.
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
What types of products does ACiQ offer?

ACiQ offers a broad range of heating, cooling, ventilation, thermostat, and water-heating products. Its catalog includes mini splits, central air conditioners and heat pumps, furnaces, air handlers, PTAC systems, mobile-home HVAC equipment, commercial systems, thermostats, ventilation products, and hybrid water heaters. Availability and specifications vary by model.

How can I contact ACiQ technical support or customer service?

ACiQ provides support through its official contact form and by phone at 1-877-909-ACiQ. The published support hours are Monday through Friday, 8:00 a.m. to 5:00 p.m. Have the model number, serial number, and a clear description of the question or problem ready.

What information is needed to register an ACiQ product?

ACiQ’s registration form requests the part number, serial number, purchase date, installation date, customer contact and address information, and installer details, including the installer name, license number, and phone number or other identifying information.

How can I request a replacement part for an ACiQ product?

Submit a request through the official ACiQ Parts Quote form or contact ACiQ parts support. Include the SKU or model number and a clear description of the part needed so the parts team can identify the correct component.

Where can I find manuals and technical documents for an ACiQ product?

Use the official ACiQ Tech Center and select the appropriate product category. ACiQ organizes installation manuals, owner manuals, specification sheets, wiring diagrams, troubleshooting guides, warranty documents, and other technical resources by product family and model.

How do I start an ACiQ warranty claim?

Start with ACiQ’s official warranty claim form. Be prepared to provide the owner’s contact information, the equipment model number, a description of the issue, and any supporting files requested. Additional diagnosis and equipment documentation may be required before the claim is approved.

What diagnosis is required for an ACiQ warranty issue?

ACiQ states that a factory-authorized, EPA-certified contractor must diagnose the equipment. The submission should include the diagnostic procedure, the required part number or part description, and the model and serial numbers. ACiQ may also request the original installation invoice.

Does an ACiQ warranty claim cover labor and shipping costs?

ACiQ’s published warranty-resolution process states that round-trip shipping and labor associated with diagnosis and part replacement are not reimbursed. Coverage can vary by product and jurisdiction, so review the exact warranty certificate for the equipment before proceeding.

How do I register an ACiQ product for warranty coverage?

Register the equipment through ACiQ’s official online warranty registration form. Add each unit being registered and submit the requested equipment, customer, purchase, installation, and installer information. Keep a copy of the completed registration and related purchase and installation records.

How can I check an ACiQ warranty registration or coverage status?

Use ACiQ’s Warranty Finder to look up a registration, check its status, or provide missing information. Have the equipment and owner details available so the record can be matched accurately.

Does every ACiQ product have the same warranty coverage?

No. ACiQ warranty periods and conditions vary by product type and model. Review the warranty certificate listed for the exact equipment and use ACiQ’s warranty resources to confirm the applicable parts, compressor, replacement, registration, and eligibility terms.
