Product Overview

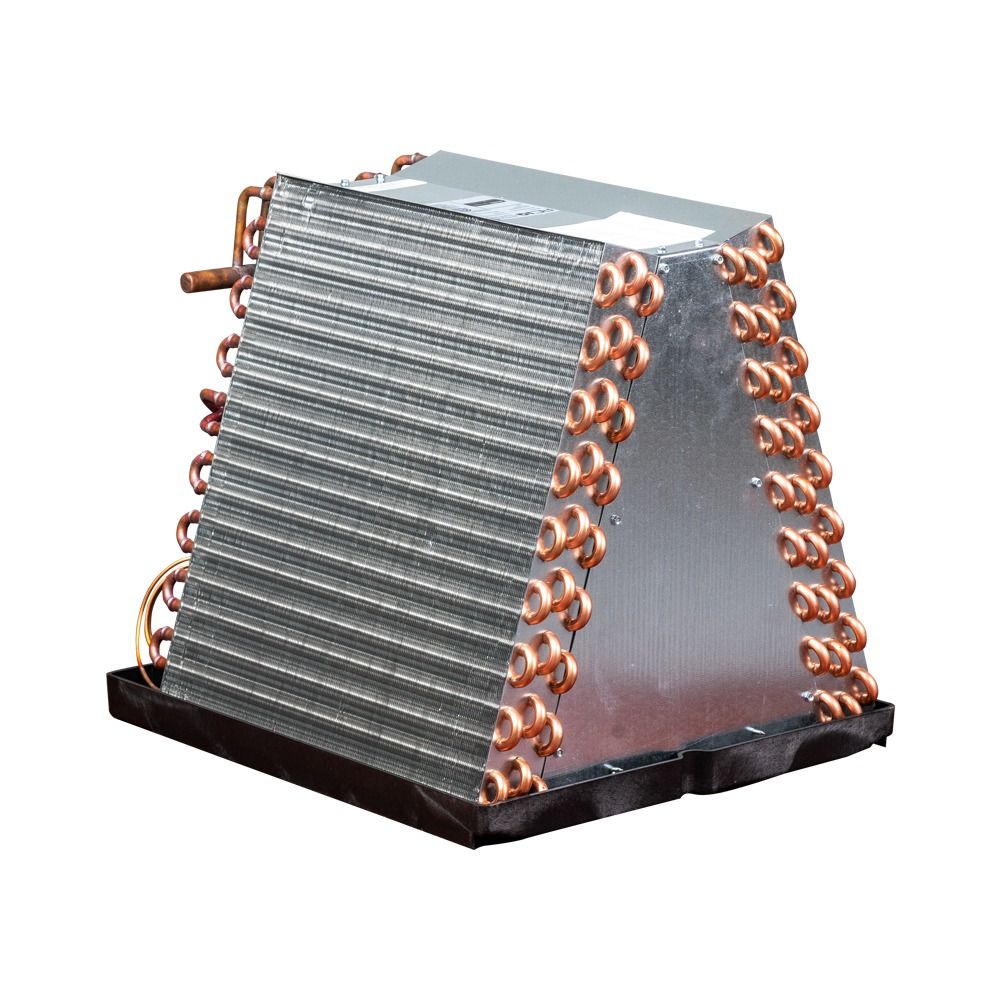

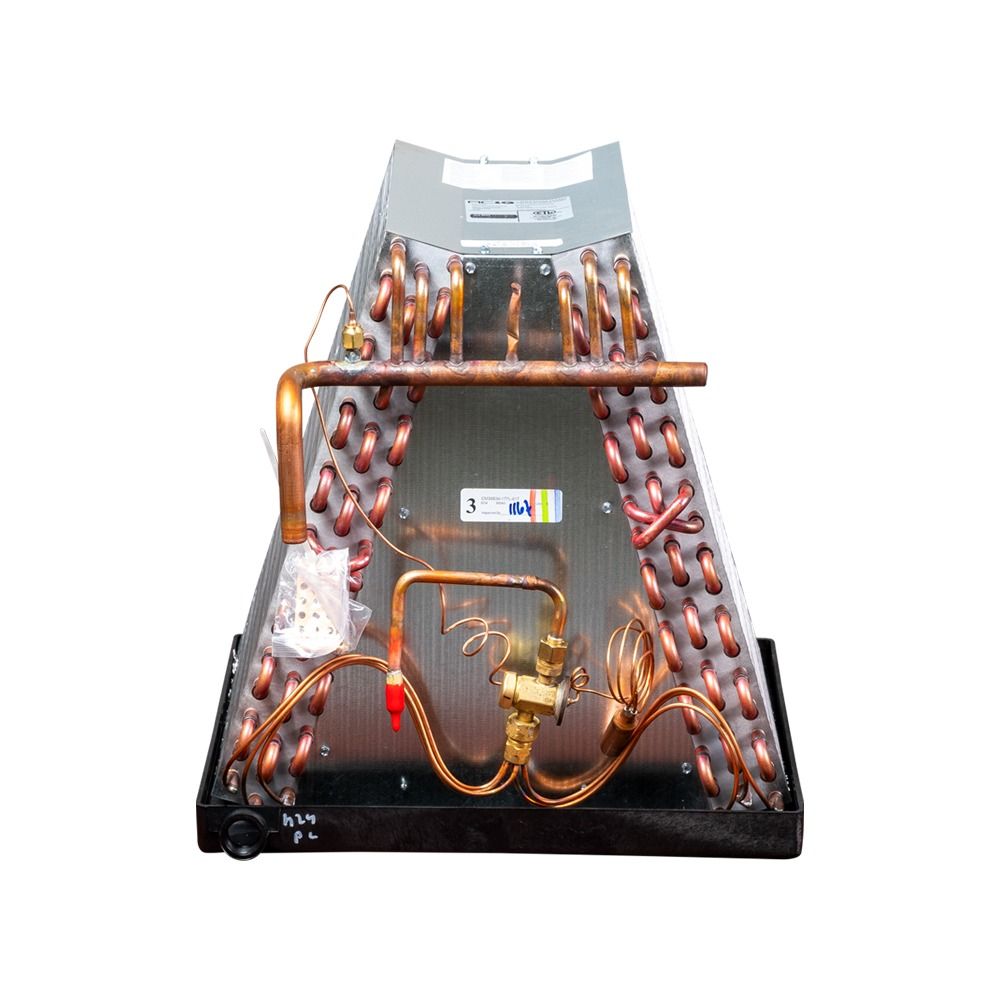

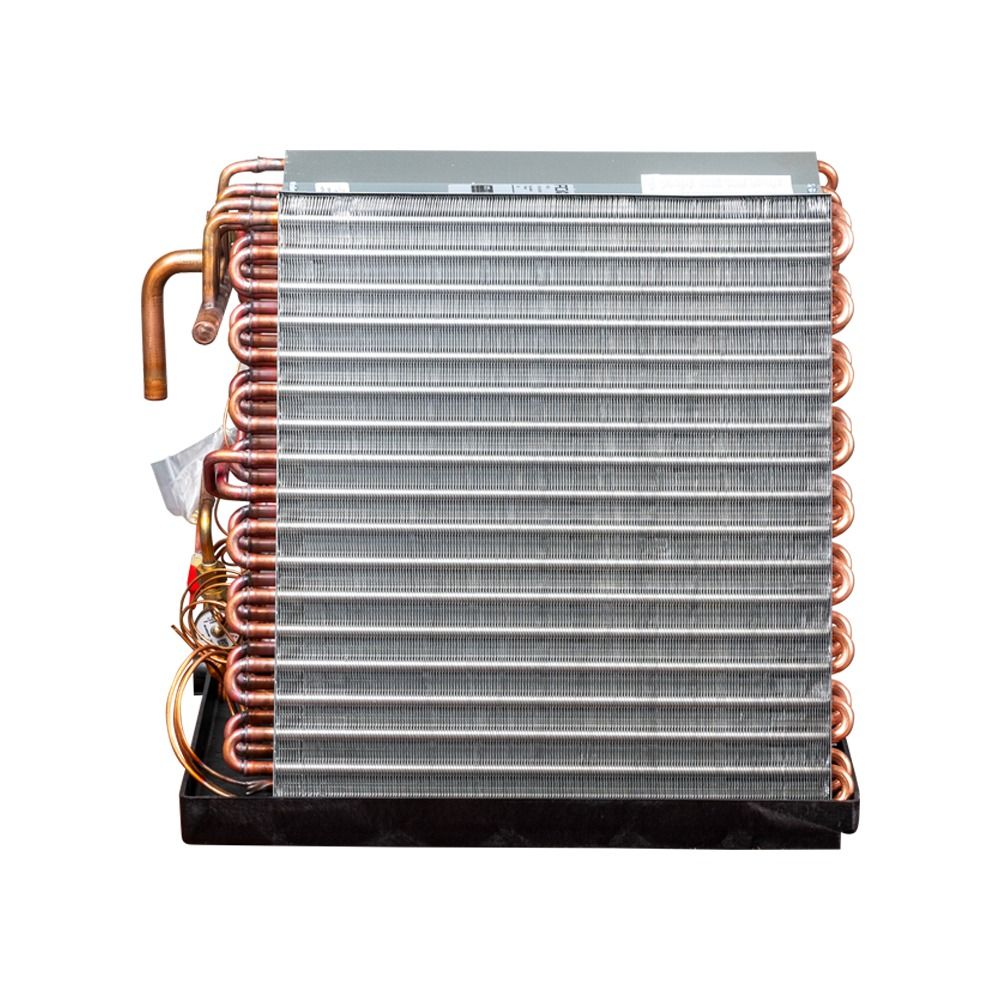

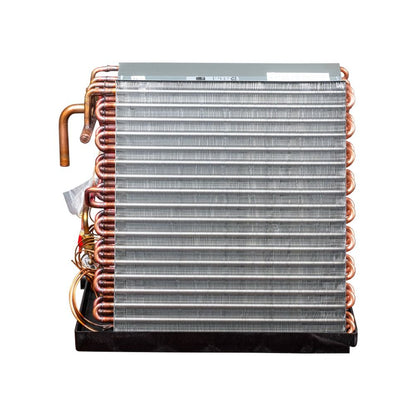

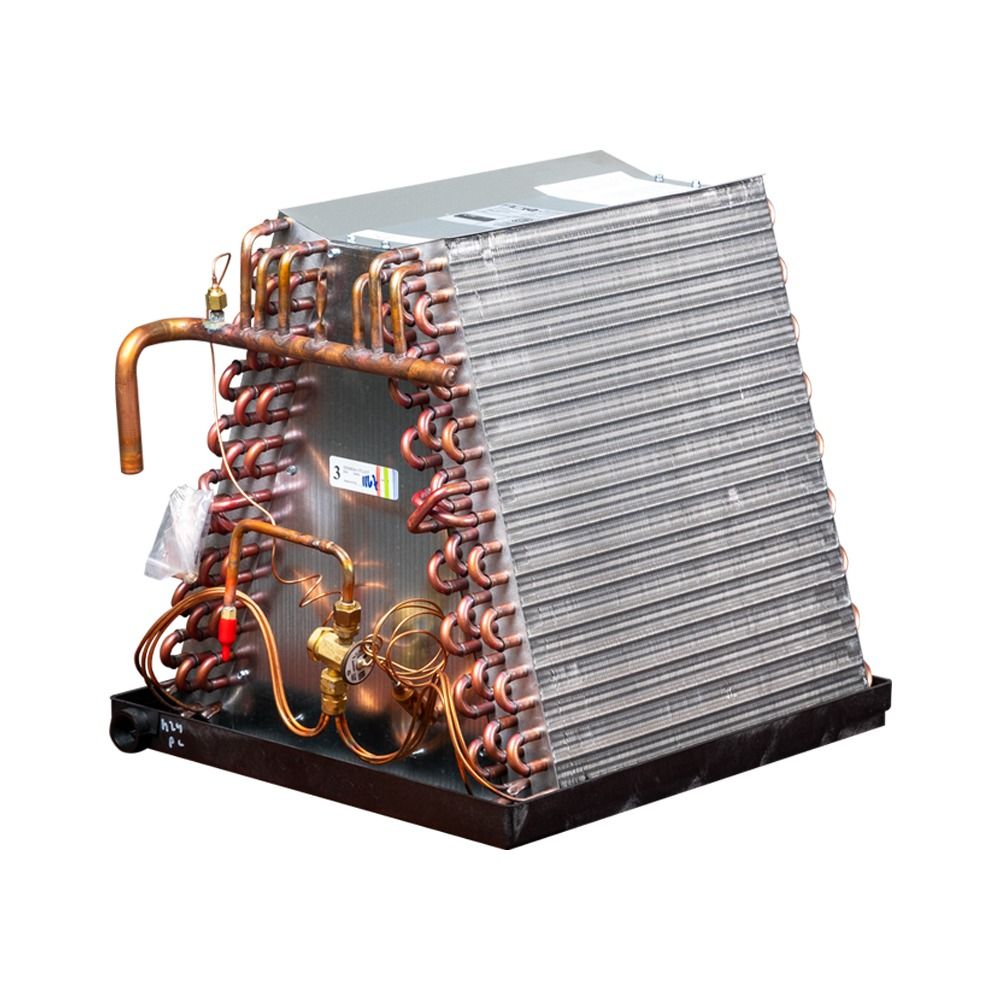

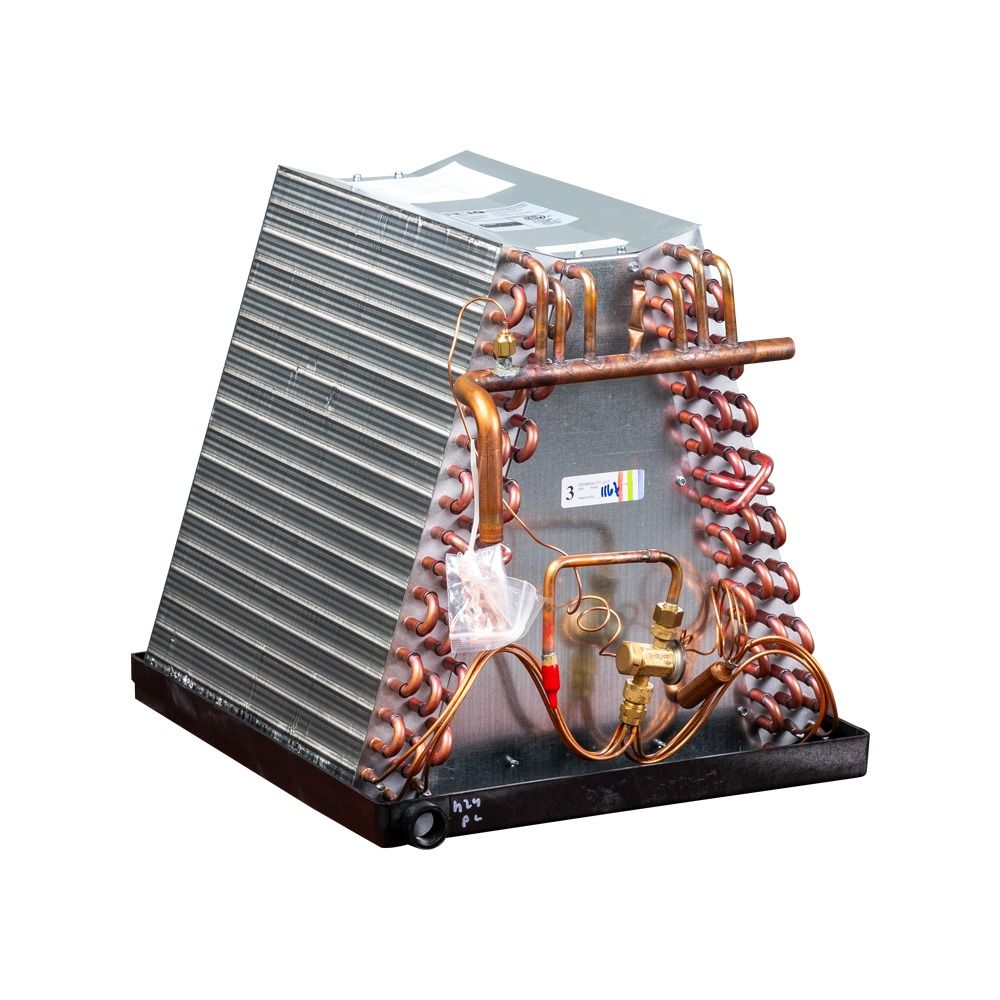

ACIQ 4 Ton Uncased Downflow Mobile Home Coil with TXV | Copper - R32
OVERVIEW
The ACIQ-MH48BU4VYEC coil is designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with sweat fit/braze fittings and a sturdy, compact design, this downflow evaporator coil allows for a quick and easy installation process with compatible equipment.
QUICK FACTS
- 4 ton downflow evaporator coil
- Designed for mobile and manufactured home use only
- Compatible with both AC-only and heat pump condensers
- Sturdy and compact design
- Rifled copper tubing, enhanced aluminum fins
- Left-hand refrigerant and plumbing connections
- Heavy duty polypropylene drain pans
- AHRI certifiable with all brands of A/C and heat pump systems
- ETL listed for use with both R32 refrigerant
- Downflow plate kit included
4 TON
The ACIQ-MH48BU4VYEC evaporator coil is rated to be compatible with condensers with up to 4 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Note: Do not use heavy duty plastic drain pans on oil furnaces or other applications where outlet temperatures may exceed 290℉ +/-5℉. Specify metal drain pans for these applications.

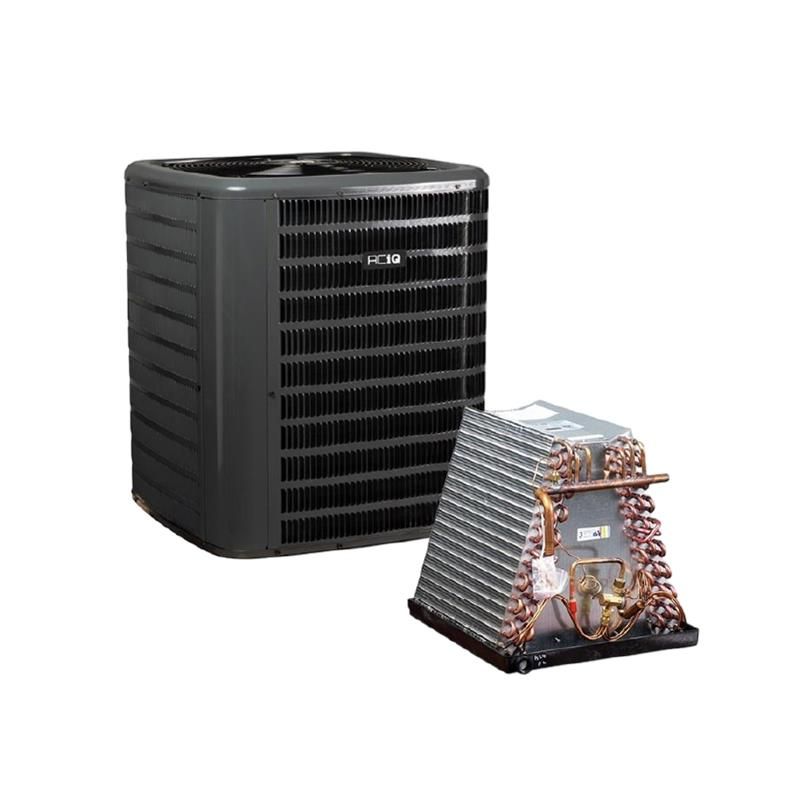

4 Ton 14.3 SEER2 Single Stage Heat Pump Condenser - R32
OVERVIEW
The ACiQ AQ-GLZS4BA4810 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of ACiQ's equipment, the AQ-GLZS4BA4810 is manufactured with high-quality materials to provide a superior comfort in your home.
Utilizing advanced technology, the ACiQ heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Ideal size to cover a medium to large house in ideal climates
- 4 ton, 14.3 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
4 Ton
The ACiQ AQ-GLZS4BA4810 heat pump has a capacity of 4 tons. In an ideal climate, this tonnage will normally cover up to a medium to large house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.
14.3 SEER2
At 14.3 SEER2, the AQ-GLZS4BA4810 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.
Warranty
The AQ-GLZS4BA4810 condenser comes with ACiQ's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The ACiQ AQ-GLZS4BA4810 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.
Installation and Maintenance
The ACiQ AQ-GLZS4BA4810 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.
Comfort in Mind
With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the AQ-GLZS4BA4810 heat pump has some of the lowest sound outputs on a single stage unit on the market today.
ACiQ Standard Mitigation Refrigerant Detection System (RDS) Kit - R32
ACiQ RDS Kit Features
- Kit includes all components needed for RDS installation
- Sensor wire length of 8 feet, and mitigation board power wire length 3 feet
- Flexible installation location, ideal for installs on existing equipment
- System designed to last the useful life of the evaporator coil
- Optional relay for controlling additional components
Technical Specifications — AQ-GLZS4BA4810
| sku | AQ-GLZS4BA4810 |
|---|---|
| weight (in lbs) | 284.000000 |
| brand/manufacturer | Private Brand |
| replaces | GSZ140481, GSZB404810 |
| product features | New Refrigerant Compliant |
| hspf2 | 7.8 |
| cooling btu | 48,000 |
| heating btu | 48,000 |
| decibel level (dba) | 74 |
| horsepower | 1/4 HP |
| refrigerant | R32 |
| seer2 (efficiency) | 14.3 |
| condenser stages | Single Stage |
| compressor type | Scroll |
| liquid line | 3/8" |
| suction line | 1 1/8" |
| liquid valve size | 3/8" |
| suction valve size | 7/8" |
| electrical | 208/230v 1 Phase 60 Hz |
| max breaker size | 40 Amps |
| min. breaker size | 25.5 Amps |
| tonnage | 4 Ton |
| connection | Sweat |
| height | 36 1/2" |
| width | 35 1/2" |
| depth | 35 1/2" |
| warranty | 10 Years Parts Limited Warranty with Online Registration |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Technical Specifications — ACiQ-MH48BU4VYEC
| sku | ACiQ-MH48BU4VYEC |
|---|---|
| weight (in lbs) | 63.000000 |
| brand/manufacturer | ACiQ |
| replaces | ACiQ-M48BU4VYEC |
| configuration | Downflow |
| refrigerant | R32 |
| liquid line | 3/8" |
| suction line | 7/8" |
| tonnage | 4 Ton |
| style | A-Coil |
| height | 23 1/2" |
| width | 17 3/4" |
| depth | 19 1/2" |
| warranty | 10 Year Limited Warranty |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
