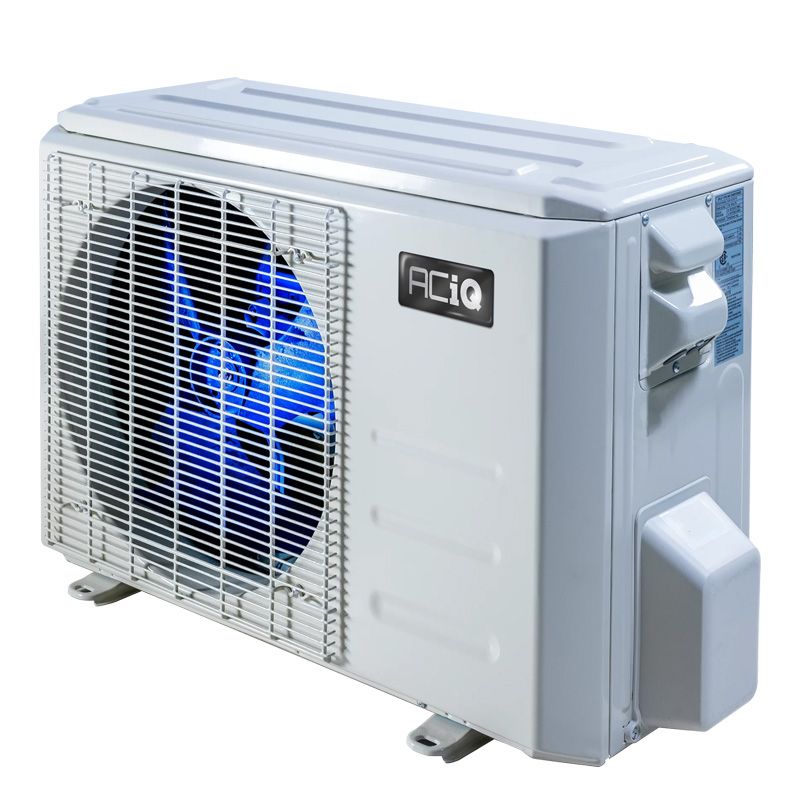

Product Overview
OVERVIEW
Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning System - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
Size for Heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 2-ton heat pump system automatically adjusts to run like a 1 ton to keep you cool and dry.
QUICK FACTS
- 12,000 BTU to 24,000 BTU variable output based on demand
- Inverter mobile home heat pump system for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation at even the highest workloads
24,000 BTU, 17.0 SEER2
With an efficiency rating of 17.0 SEER2, the variable output ACiQ-24-EHPB-MH will keep you comfortable across a wide range of conditions. Use our handy size calculator to determine the demand for your home. For cooling, this system can operate anywhere from 12,000 BTU to 24,000 BTU without short cycling.
Upgrade to a Mobile Home System!
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Mobile Home Buying & Sizing Guide
- Mobile home approved product types
- Product differences
- Figuring out the right size unit for your needs
- Determining factors
- Repair vs. replace
Technical Specifications — ACiQ-24-EHPB-MH
| sku | ACiQ-24-EHPB-MH |
|---|---|
| refrigerant charge | 25' |
| weight (in lbs) | 109.130000 |
| brand/manufacturer | ACiQ |
| product features | Inverter, Two Stage Condenser, Variable Speed Condenser |
| hspf2 | 9.2 |
| cooling btu | 24000 BTU |
| heating btu | 24000 BTU |
| maximum cfm | 1765 |
| decibel level (dba) | 60 |
| electric heat | Heat Pump |
| refrigerant | R410A |
| seer1 (efficiency) | 20 |
| seer2 (efficiency) | 17 |
| condenser stages | Variable Speed |
| compressor type | Rotary |
| liquid line | 3/8" |
| suction line | 5/8" |
| electrical | 208/230V 1 Phase 60 Hz |
| max breaker size | 30 Amps |
| min. breaker size | 19 Amps |
| tonnage | 2 Ton |
| btu/tonnage | 24,000 BTU/2 Ton |
| mini split type | Multi-Positional |
| min/max outdoor temp for heating | 5～75 |
| min/max outdoor temp for cooling | 5～122 |
| zone compatibility | Single Zone |
| height | 26.5" |
| width | 35.04" |
| depth | 13.46" |
| warranty | 12 year compressor, 7 year parts with online registration |
| resources | AHRI Certificate with ACIQ-24W-WMAHRI Certificate with ACIQ-24-ACLAHRI Certificate with ACIQ-24-ACL-14AHRI Certificate with ACIQ-24-AHBSubmittalBrochureService ManualInstallation ManualOwner's ManualWired Control ManualHeating PerformanceQuick Start Guide - Condenser +Coil and/or Furnace SystemsQuick Start Guide - Condenser +Air Handler SystemsWarranty InformationACiQ 24 Volt Wiring NoticeYou will need Adobe® Acrobat® Reader to view PDF documents. |
| safety information | PROPOSITION 65 WARNINGThis product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 pleaseClick Here. |
Documents
- AHRI Certificate with ACIQ-24W-WM
- AHRI Certificate with ACIQ-24-ACL
- AHRI Certificate with ACIQ-24-ACL-14
- AHRI Certificate with ACIQ-24-AHB
- Submittal
- Brochure
- Heating Performance
- Quick Start Guide - Condenser +Coil and/or Furnace Systems
- Quick Start Guide - Condenser +Air Handler Systems
- ACiQ 24 Volt Wiring Notice
Warranty
