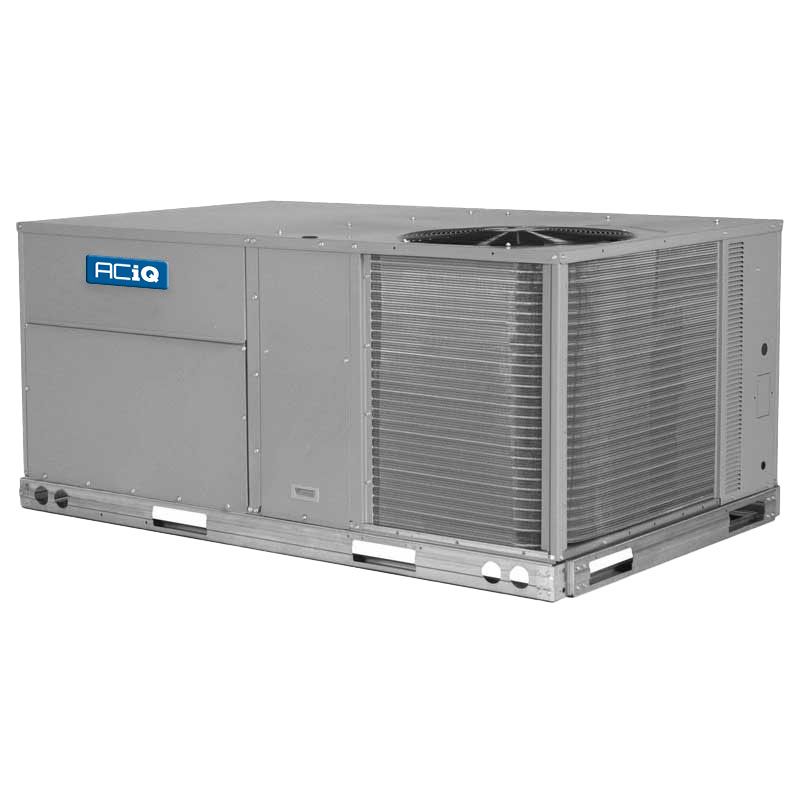

ACiQ 12.5 Ton Light Commercial Packaged Heat Pump - 208/230v 3 Phase-R410A

Name: ACiQ 12.5 Ton Light Commercial Packaged Heat Pump - 208/230v 3 Phase-R410A
Brand: ACiQ
SKU: RHV150H02A0AAA

SKU: RHV150H02A0AAA

Brand ACiQ

Voltage 208-230V

Refrigerant R410A

AC Type Commercial Packaged Units

For Light Commercial Packaged Air Conditioner

Free Shipping on orders above $300

No Sales Tax in Select States

Up to 15% off on bulk orders - call for more details

Low stock

Price

$24,648.55

Quantity

NOTE: The default selection does not include an installation kit. Upgrade your selection to add to your order.

Recommended accessories

Loading recommended accessories…

View full details

OVERVIEW

The RHV150H02A0AAA is a 12.5-ton packaged rooftop heat pump designed for commercial applications requiring both efficient cooling and heating. Engineered with advanced features like the patented X-Vane™ Fan Technology and a variable-speed ECM motor, this unit offers enhanced energy efficiency, reduced maintenance, and versatile installation options. Ideal for spaces such as offices, retail stores, and restaurants, it provides reliable year-round comfort.

Features

12.5 Ton, 15.0 IEER, 10.6 EER
Up to 150,000 Heating BTUs
R-410A refrigerant and a fixed refrigerant metering device
Fixed-speed scroll compressor for reliable performance
Patented Vane Axial fan with electric commutated variable-speed motor, reducing energy consumption and maintenance
Field-convertible between vertical and horizontal airflow
Upgraded unit control board with intuitive indoor fan adjustment
Single-point electrical connections; designed to fit existing roof curbs dating back to 1989
Meets or exceeds ASHRAE Standard 90.1-2016 and IECC-2018 minimum efficiency requirements

Easy to Maintain

With the new vane axial fan and direct drive ECM motor, there is no longer a need to adjust belts or pulleys as in past designs, reducing maintenance and installation time. Easy access handles provide fast access to all normally serviced components. The "œno-strip" screw system has superior holding power and guides screws into position while preventing the screw from stripping the unit's metal. Sloped, corrosion resistant composite drain pan sheds water and prevents rust. RHV units are designed with a naturally draining heat exchanger. Unlike positive pressure heat exchangers, this does not need to be periodically, manually drained, saving costs on labor and maintenance.

Easy to Use

The unit control board puts all connections and troubleshooting points in one convenient place. Most low voltage connections are made to the same board for easy access. Setting up the fan is made simple by an intuitive switch and rotary dial arrangement. Packaged Heat Pump Units have high and low pressure switches, a filter drier, and 2-in. filters standard.

X-Vane Fan Technology

The direct drive X-Vane indoor fan system uses a vane axial fan design and electrically commutated motors. This vane axial design compared to past belt drive systems has 75% fewer moving parts, uses up to 40% less energy and has no fan belts, blower bearings, or shaft.

Warranty

ACiQ offers a very comprehensive warranty policy on Packaged Heat Pump Units, including a 10 year warranty on the aluminized heat exchanger, a 5 year warranty on the compressor, and a 1 year warranty on any replacements parts. For these warranties to be upheld, the packaged unit must be installed following your state and local codes. They must also be properly serviced maintained over the warranty's life, requiring a minimum of once-per year maintenance.
