01. What Does a Dual Run Capacitor Do in a Mini Split?

To understand why a failing capacitor brings your cooling to a standstill, it helps to examine how electrical power is delivered to your outdoor condenser. Unlike simple household appliances that plug into a wall and draw constant current, heavy-duty HVAC motors, specifically the hermetic compressor and the outdoor condenser fan motor, require a sudden, concentrated boost of electrical energy to break static friction and begin rotating. The run capacitor remains continuously in the circuit while the system operates, providing a steady phase shift in power that maintains rotational torque and keeps motors running efficiently.

A dual run capacitor combines two distinct capacitors into a single cylindrical aluminum housing. Inside this housing, you will find three top-mounted connection terminals usually labeled C (Common), HERM (Hermetic Compressor), and FAN (Condenser Fan). The common terminal receives incoming power from the contactor relay, while the HERM terminal feeds continuous starting torque to the heavy compressor motor, and the FAN terminal powers the outdoor fan blade assembly. By housing both circuits in one space-saving metal canister, manufacturers streamline the internal wiring layout of the outdoor cabinet.

Extreme summer heat is the primary enemy of electrical capacitors. During heatwaves, high ambient outdoor temperatures combined with the intense heat generated by continuous compressor operation cause the internal dielectric fluid inside the capacitor casing to break down over time. As heat expands the fluid and degrades the thin insulation layers separating the aluminum foil rolls inside, the component loses its ability to store microfarads of electrical charge. While advanced variable-speed inverter units, such as those found in modern multi-zone or R-454B single-zone systems, rely heavily on solid-state printed circuit boards, many traditional fixed-speed mini splits, auxiliary condenser units, and packaged units still rely on dual run capacitors to power critical motor circuits. When heat breaks down the dielectric material, the capacitor can no longer deliver the required voltage phase shift, leaving your system completely stranded.

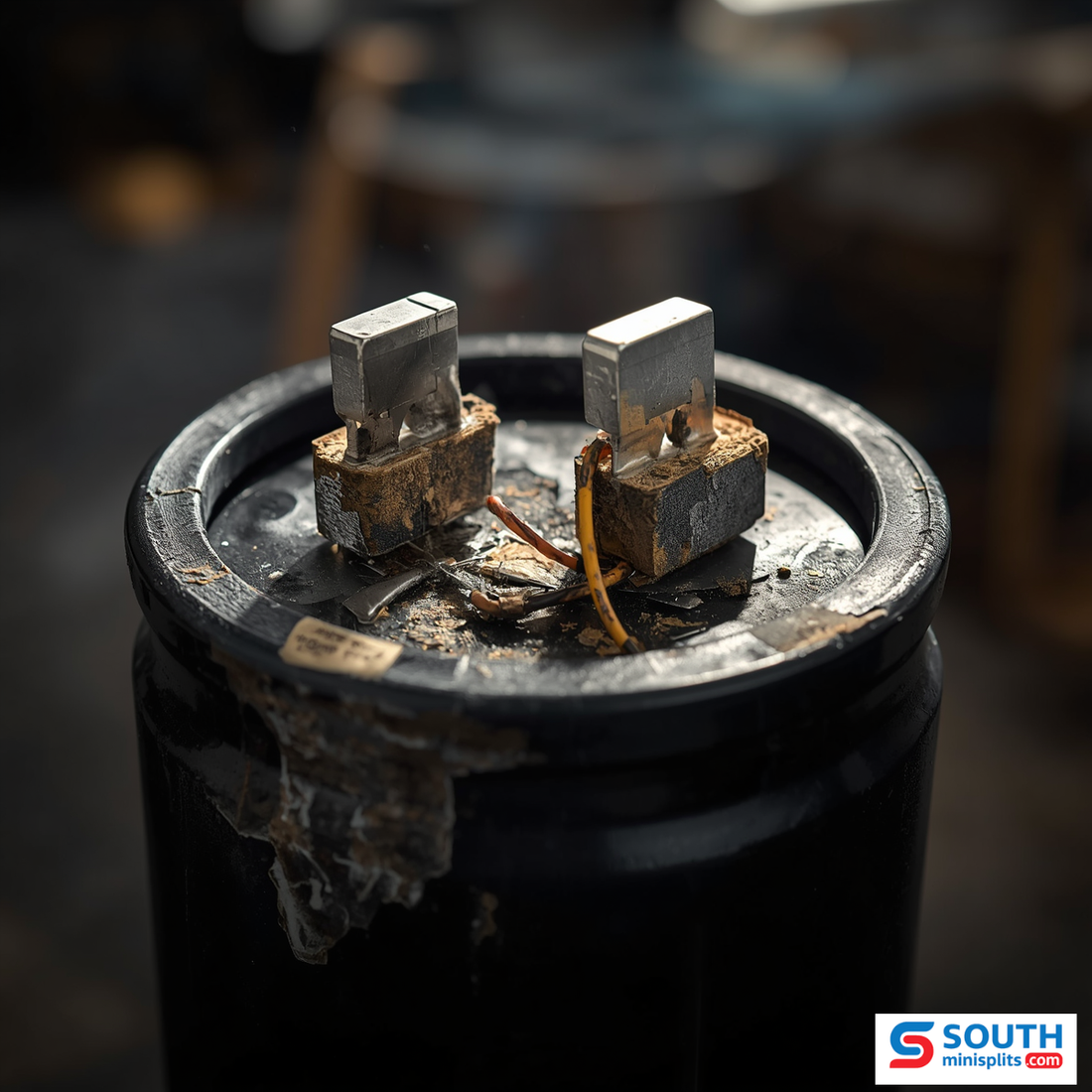

02. 4 Telltale Signs Your Mini Split Capacitor is Failing

Recognizing the symptoms of a failing capacitor early can help you fix the problem before a total electrical blowout damages other internal components like the motor windings. When inspecting a struggling outdoor unit during a heatwave, look for these key diagnostic indicators:

03. Safety First: Preparing for Replacement

Before attempting any electrical repairs on your air conditioning equipment, safety must be your top priority. Dual run capacitors store lethal amounts of high-voltage electrical energy even after the main circuit breaker has been turned off. Following proper isolation and discharge protocols protects you from severe electrical shocks.

First, completely isolate the unit from your home's power grid. Locate the main electrical service panel and flip the dedicated double-pole breaker powering your outdoor AC or heat pump unit to the "OFF" position. Next, move to the outdoor disconnect box located on the wall near your condenser unit, open the weather-resistant cover, and pull the disconnect block entirely out of the switch box. Never rely on the indoor thermostat alone to shut down power, as automated cooling cycles can trigger sudden voltage delivery while your hands are inside the cabinet.

Once all power sources are disconnected, equip yourself with essential safety gear: rubber-insulated work gloves, safety glasses, and hand tools with insulated grips rated for electrical work. Unscrew the access panel on the side of your outdoor unit to expose the high-voltage electrical compartment. Locate the cylindrical capacitor, which is typically secured against the cabinet wall with a metal strap.

Even with the breaker turned off, you must safely discharge any electrical energy stored inside the capacitor. Using a screwdriver with a thick, insulated rubber handle, bridge the metal blade across the C (Common) terminal and the HERM terminal simultaneously, holding it firmly against both spade connections for several seconds. Repeat this bridging procedure between the C terminal and the FAN terminal. You may hear a small pop or see a minor spark as the residual voltage dissipates; this indicates that stored power has been safely grounded and the component is now safe to handle.

04. Step-by-Step Mini Split Dual Run Capacitor Replacement Guide

With safety procedures completed and the system powered down, executing a mini split dual run capacitor replacement is a straightforward task. Follow this step-by-step process to ensure a successful installation:

• 1.

  Step 1: Document the Wiring Configuration: Before disconnecting a single wire from the old capacitor, take out your smartphone and take several clear, well-lit photos of the terminal connections from multiple angles. Notice the color coding of each wire attached to the C, HERM, and FAN posts. Mixing up the compressor wire with the fan wire during reassembly can cause immediate motor damage or trip the system's internal overload protectors upon power-up.

• 2.

  Step 2: Remove the Faulty Capacitor: Using needle-nose pliers, gently grasp the insulated female spade connectors at the end of each wire and pull them straight off the terminal posts. Avoid pulling directly on the wire insulation, as this can weaken the crimped wire connections. Once all wires are detached and safely pushed aside, loosen the hex screw securing the metal mounting strap around the body of the capacitor and slide the blown unit out of the cabinet.

• 3.

  Step 3: Inspect and Mount the Replacement Component: Compare your replacement capacitor side-by-side with the original unit to confirm that the physical height, diameter, and terminal lug configurations match. Slide the new capacitor into the mounting bracket, tighten the metal securing strap until the cylinder is held firmly in place against the cabinet wall, and verify that the top terminals have ample clearance from surrounding sheet metal.

• 4.

  Step 4: Reconnect Terminals According to Your Photo Wiring Map: Refer to your reference photos and carefully push each spade connector onto its corresponding terminal post on the new capacitor. Connect the common line wire(s) to the post marked C, the thick compressor start wire to the post marked HERM, and the fan motor wire to the post marked FAN. Ensure each spade terminal slides completely over the male lug with a tight, snug fit. Loose spade connectors create high electrical resistance, generating localized heat that will scorch terminals and lead to premature failure.

• 5.

  Step 5: Secure Cabinet and Perform Initial Power Test: Reinstall the metal access panel on the outdoor cabinet and tighten all sheet metal screws. Move back to the outdoor disconnect box, reinsert the pull-out block in its correct orientation, and close the protective cover. Finally, turn the main double-pole breaker back on at your home's electrical panel. Set your indoor thermostat to "Cooling" at a temperature lower than the current room reading. The outdoor fan blade should immediately begin spinning smoothly, followed a moment later by the steady, quiet hum of the compressor delivering cold air inside.

05. How to Choose the Correct Replacement Capacitor

When buying a replacement capacitor, precision is crucial. You cannot simply select a random capacitor off the shelf and expect your system to function properly. Matching the electrical specifications printed on the label of your original unit is essential for reliable operation.

Voltage Ratings: 370V vs. 440V

Run capacitors designed for residential cooling systems usually feature a voltage rating of either 370 VAC or 440 VAC. This rating indicates the maximum continuous alternating current voltage the internal insulation can safely handle. When sourcing a replacement part, you can safely install a capacitor with a higher voltage rating than the original, but you must never install a capacitor with a lower voltage rating. For instance, replacing a 370V unit with a heavy-duty 440V unit is safe and often extends component lifespan under high heat conditions. However, replacing a 440V unit with a 370V capacitor will quickly cause the component to short-circuit and explode under heavy load.

Universal vs. OEM Sourcing

While original equipment manufacturer (OEM) replacement parts are engineered specifically for your exact model, high-grade universal dual run capacitors built to industrial standards offer identical performance as long as microfarad and voltage specs match. If you are servicing specialty HVAC equipment, such as PTAC units, floor console mini splits, or universal floor ceiling systems, checking the comprehensive selection of HVAC parts ensures you get components that fit your system's mounting footprint perfectly.

06. When a New Capacitor Doesn't Fix the Problem

If you have installed a new, properly rated dual run capacitor and your mini split still refuses to start or continues to trip the main breaker, your system is likely experiencing a secondary issue. Understanding these potential complications will help you determine whether further troubleshooting is possible or if it is time to call a professional technician.

Locked Rotor Amps (LRA) and Mechanical Binding

If a failing capacitor was left buzzing in an unserviceable state for an extended period during a heatwave, the high heat generated within the compressor windings may have caused mechanical binding. When a compressor's internal pistons or scroll sets lock up, the unit enters a state known as "Locked Rotor Amps" (LRA). In this condition, the motor draws maximum current upon power-up, immediately tripping the thermal overload switch or main circuit breaker regardless of whether the capacitor is brand new.

Blown Contactor Relays and Fused Control Boards

When a capacitor fails under heavy electrical load, the resulting electrical arc can weld the contactor relay points together inside the high-voltage electrical box. Inspect the contactor located directly adjacent to your run capacitor. If the black plastic plunger appears melted, or if the silver contact pads show severe pitting and corrosion, the contactor cannot properly route power to the new capacitor and must be replaced as well.

System Aging and Full Equipment Upgrades

If your cooling equipment is over 10 to 12 years old, uses obsolete refrigerants, or has experienced multiple major electrical component failures, continually replacing individual parts can become a costly cycle. Upgrading to modern, high-efficiency ductless heat pump technology offers long-term reliability and significant energy savings.
