01. Why Open Floor Plans Need Specialized Air Distribution

To understand why a 4-way ceiling cassette excels in expansive spaces, it helps to analyze the physics of indoor air movement across large, undivided square footage. Standard HVAC design relies on room boundaries to trap and circulate conditioned air. When interior partition walls are removed, air currents expand freely, mixing with localized heat loads created by large glass doors, high vaulted ceilings, and kitchen appliances.

Thermal stratification plays a significant role in open-concept discomfort. Because warm air naturally rises toward the ceiling while cool air settles near the floor, large open spaces frequently develop temperature layers. During mid-summer, heat gathers near the ceiling plane and radiates downward toward living spaces. A standard wall-mounted unit positioned on one far wall must push cool air across the entire length of the room to combat this heat. By the time that linear air stream reaches the far side of an open space, its velocity has dissipated, resulting in stagnant, humid air pockets.

Furthermore, open floor plans contain distinct operational micro-climates. A kitchen active with cooktops, dishwashers, and recessed lighting generates high internal heat loads. Meanwhile, an adjacent sitting area with floor-to-ceiling glass windows experiences variable solar heat gain throughout the afternoon. A single-directional wall air handler cannot adjust its distribution pattern to address these competing thermal zones simultaneously. Achieving balanced, edge-to-edge comfort across a multi-functional great room demands a central air distribution hub capable of circulating air evenly in every direction at once.

02. Key Benefits of 4-Way Ceiling Cassettes for Open Layouts

Four-way ceiling cassette mini splits are specifically engineered to eliminate the cooling issues inherent to expansive, open-concept floor plans. By shifting the point of air discharge from an exterior wall to the overhead ceiling plane, these units transform how conditioned air moves throughout your home.

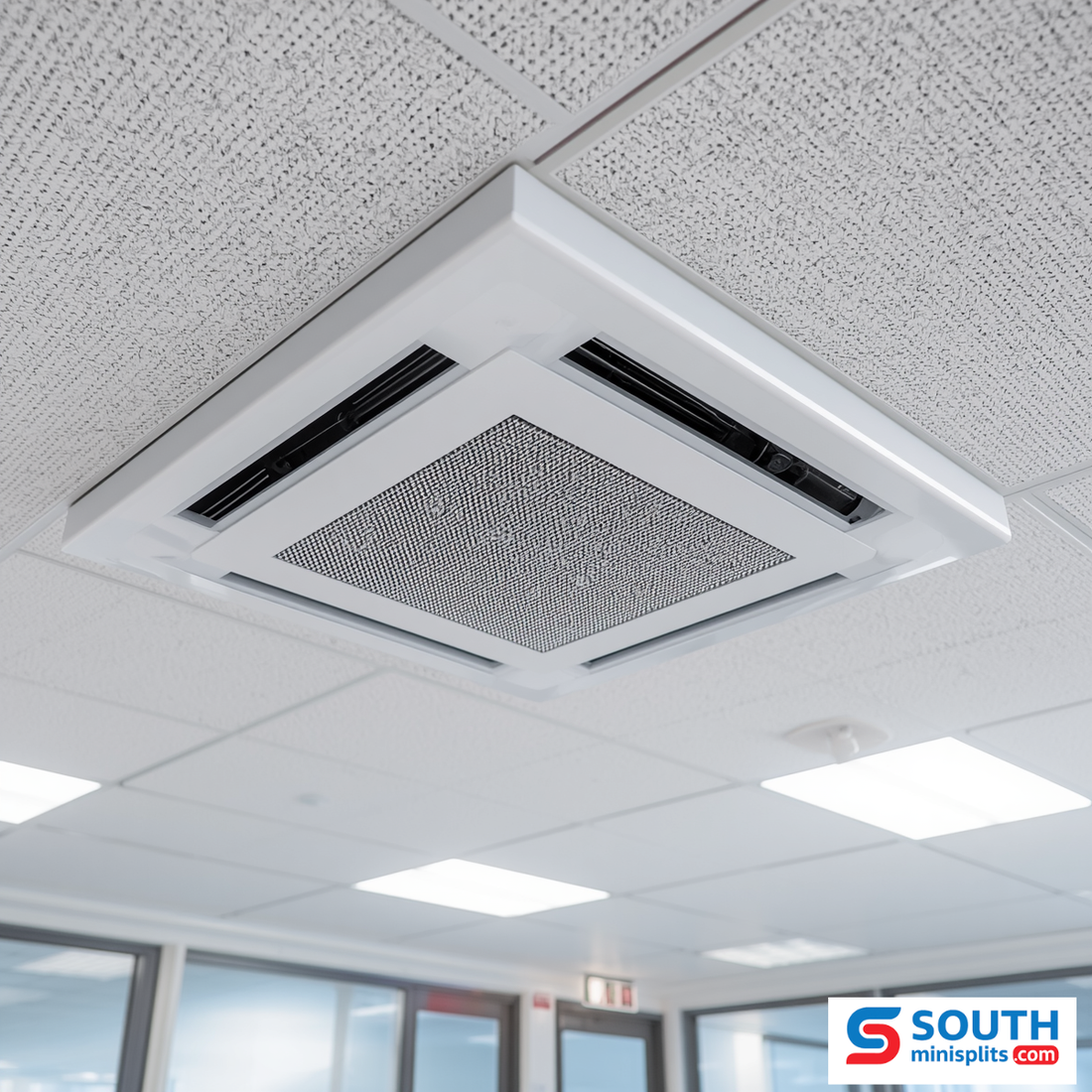

The primary advantage of a 4-way cassette is its true 360-degree air pattern. Outfitted with four independent motorized louver vanes, the cassette draws warm room air upward into its central return grill, chills and dehumidifies it across an internal evaporator coil, and pushes the cool air outward in four distinct directions simultaneously. This quad-directional discharge creates a gentle circular air pattern that cascades down walls and sweeps across the floor plane, eliminating stagnant air pockets and ensuring consistent temperatures throughout the entire room.

Aesthetics represent another significant benefit of ceiling cassettes for design-conscious property owners. While high-performance wall-mounted air handlers protrude several inches from wall surfaces, a ceiling cassette installs almost completely out of sight. The main mechanical body rests hidden within the ceiling joist cavity, leaving only a sleek, ultra-thin fascia grille visible flush against the drywall. This low-profile footprint preserves valuable accent wall space for artwork, custom cabinetry, or large windows, allowing your interior decor to take center stage.

Additionally, modern 4-way cassettes offer advanced directional control features. Many units allow users to adjust each of the four motorized vanes independently using a wireless remote or smartphone application. If family members sitting in the living area prefer gentle indirect air while the kitchen area requires direct cooling during meal prep, the louvers can be angled to direct airflow precisely where it is needed most.

03. Sizing & BTU Calculation Guide for Open Spaces

Selecting the right cooling capacity is essential when installing a ductless system in an open-concept space. Undersized units will run continuously without reaching your target setpoint, while oversized systems can cycle off too quickly, leaving excess humidity behind. Determining the correct British Thermal Unit (BTU) capacity requires assessing the total cubic volume and thermal factors of your open space.

To calculate baseline capacity, measure the length and width of the entire open space, including connected kitchen, dining, and living zones. Multiply length by width to determine total square footage. For spaces with standard 8-foot ceilings, multiply total square footage by 20-25 BTUs per square foot. However, because open floor plans often feature vaulted ceilings, expansive glass, or high-heat kitchen appliances, adjustments are frequently necessary. Add 10% to 20% more cooling capacity if your space includes ceilings higher than 9 feet, large south-facing windows, or heavy cooking equipment.

For compact open areas, lofts, or smaller studio layouts, exploring targeted capacity options like 6000 BTU, 9000 BTU, or 12000 BTU options provides smooth, efficient temperature control. Moderate open floor plans spanning 500 to 800 square feet typically perform best when paired with medium-capacity systems such as an 18000 BTU or 24000 BTU configuration.

When managing larger residential spaces or light commercial open concepts, higher output options ensure rapid heat removal. Reviewing higher-capacity choices like 28000 BTU, 30000 BTU, 36000 BTU, 42000 BTU, 48000 BTU, 55000 BTU, or 60000 BTU systems guarantees that even extreme heatwaves won't compromise indoor comfort.

04. Architectural Installation & Placement Strategy

Unlocking the full potential of a 4-way ceiling cassette requires strategic placement during installation. Positioned correctly, a single cassette can condition a vast open space effortlessly. Positioned poorly, such as too close to a wall or tucked into a corner, its 360-degree distribution benefit is reduced.

The primary goal when placing a ceiling cassette is centering the unit relative to the main open living space. Mounting the cassette near the geometric center of the room allows all four air discharge louvers to throw air equal distances toward perimeter walls. Maintain at least 3 to 4 feet of clearance between the edges of the cassette grille and adjacent walls, light fixtures, or tall furniture to prevent air deflective turbulence.

Structural considerations are also crucial during planning. Most standard residential ceiling cassettes fit into common wooden floor or ceiling joist spaces (typically spaced 16” or 24” on-center). Compact cassettes often fit directly between existing joists without structural modification. For larger commercial-grade cassettes, your installer may need to construct a simple header box out of framing lumber to create a secure, square mounting opening.

Managing condensate water is another key factor during installation. Because ceiling cassettes sit flat above the ceiling drywall, gravity-only condensate lines can be difficult to run horizontally across long joist spans. Fortunately, high-quality 4-way ceiling cassettes come equipped with built-in miniature condensate lift pumps. These internal pumps lift water several inches vertically into PVC drain piping, allowing installers to route condensate lines effortlessly through attic spaces or exterior walls without risk of ceiling leaks.

05. Alternative & Complementary Mini Split Options for Open Concepts

While 4-way ceiling cassettes offer an exceptional solution for open spaces, every architectural layout has unique requirements. Depending on ceiling joist accessibility, roof pitch, or installation preferences, other ductless mini split styles can complement or serve as alternatives to ceiling cassettes.

If your home features limited attic clearance or decorative exposed timber beams that prevent ceiling mounting, consider low-profile alternatives. Options like universal floor ceilings offer flexible mounting positions—attaching either flush against the ceiling plane or low along a perimeter wall. For homeowners who prefer floor-level air delivery, exploring single zone floor console or multi-zone floor console units provides powerful low-level heating and cooling.

For property owners seeking complete invisibility, ducted mini split configurations present another compelling choice. Utilizing a Concealed Duct system or a multi-position air handler allows you to hide the entire mechanical air handler in an attic, closet, or soffit. Conditioned air is then distributed through short duct runs to sleek ceiling grilles or linear slot diffusers, keeping your interior decor clean and uncluttered.

If your open floor plan connects to adjacent bedrooms, home offices, or secondary suites, combining indoor styles using a flexible multi-zone heat pump system ensures tailored comfort everywhere. You can power a central 4-way cassette in the main great room while running quiet one zone wall mount, multi-zone wall mounts, or standard wall mount units in surrounding bedrooms, all connected to a single outdoor multi-zone condenser.
