Model #4PAMSHQC12
FEATURES

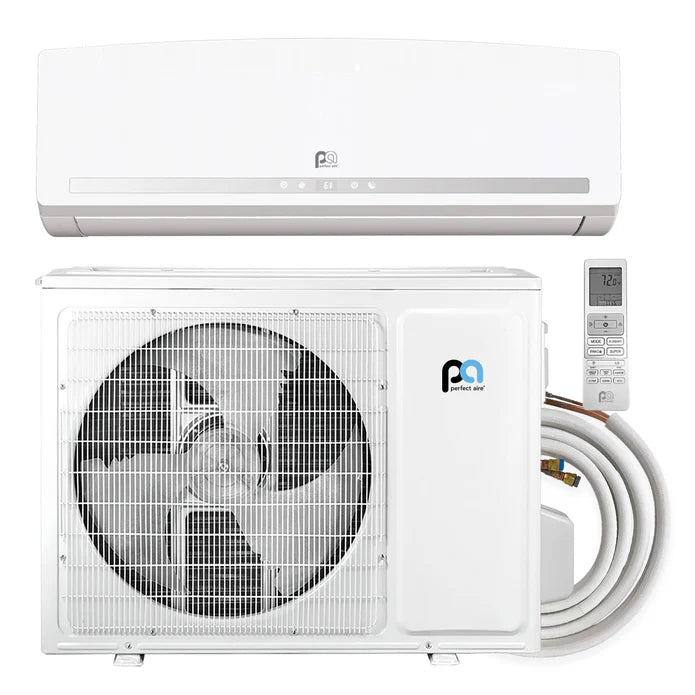

โข 12,000 BTU Quick Connect Mini-Split built for bringing comfort to single-zone environments up to 500 sq. ft. System includes high-wall indoor air handler, mounting bracket, outdoor condenser, cable & line set with quick connect adapters and installation accessories.
โข AHRI certified and Energy Star rated with a high-efficiency 22.0 SEER.
โข Perfect for the DIY home installer, this Perfect Aire Quick Connect Mini-Split includes revolutionary Quick Connect adaptors for ultra-easy installation, no need to charge or evacuate refrigerant.
โข Control room temperature, set fan speeds and create programmable, intelligent modes for when you're at home or away, all from your mobile device with the convenient mobile app.

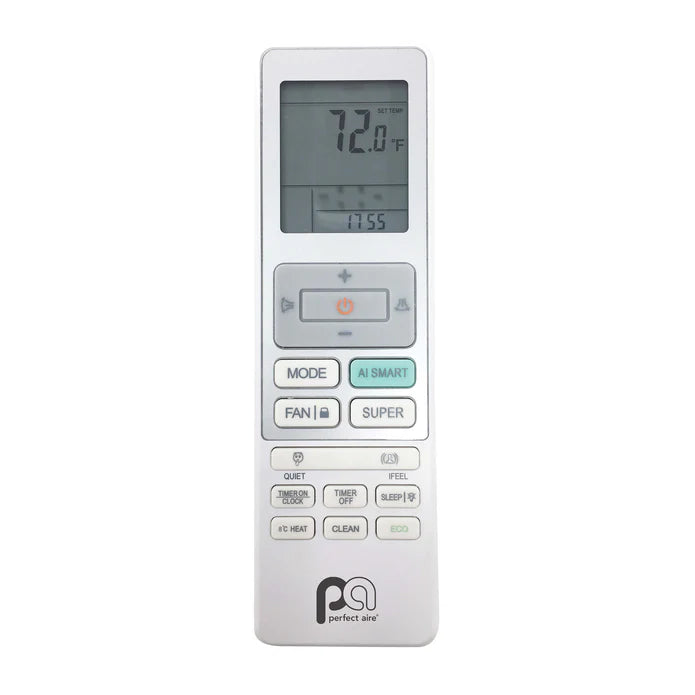

โข System includes a full-function remote control with a built-in thermostat that puts you in control of your comfort from anywhere in the room.
โข You're in control of your comfort with 7 indoor fan speeds, adjustable vertical and horizontal swing louvers, a programmable 24-hour timer and convenient smart, super and auto functions

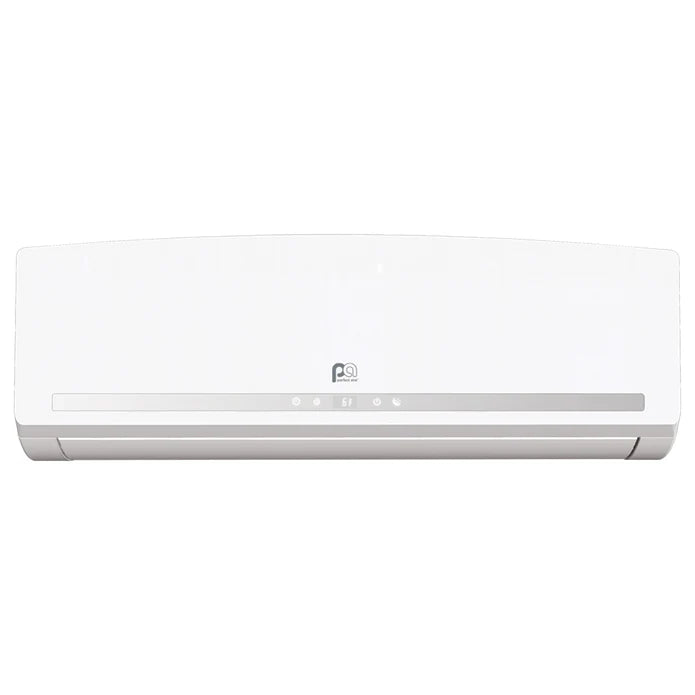

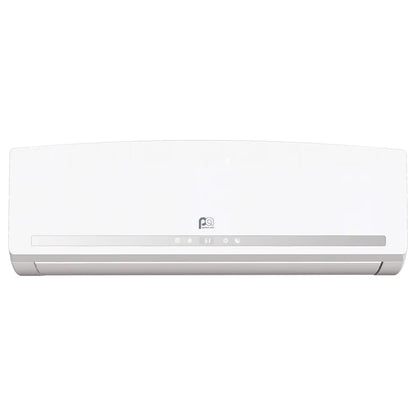

โข Sleek high-wall indoor air handler features a reusable and eco-friendly filter. Just slide-out and wash with soap and water โ no need to purchase replacements
โข System features premium R454B, an energy-efficient and environmentally friendly refrigerant that yields high-performance results and meets the EPA's 2025 Global Warming Potential (GWP) regulations.
โข The high-performance inverter heat pump is designed to provide efficient operation in a wide range of temperatures, all the way down to 41ยฐF (-15ยฐC) in cooling mode and -4ยฐF (-20ยฐC) in heat mode.
โข System includes models 4PAMSHQCW12, 4PAMSHQCO12, and 2DALS14-38-25
SPECIFICATIONS
Cooling Capacity (BTU):ย 12000
Heating Capacity (BTU):ย 12000
Coverage Area (sq. ft.):ย 500
Smart Home Compatible:ย Yes
SEER2:ย 22
HSPF2 Region 4:ย 9.5
TEMPERATURE RANGE
Cooling Operating Temperature Range (ยฐF):ย 5 - 115
Heating Operating Temperature Range (ยฐF):ย 75 - -4
DIMENSIONS & WEIGHT
Indoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCW12ย 33 x 11 x 8.75
Indoor Unit Weight (lb.):
4PAMSHQCW12ย 18.75

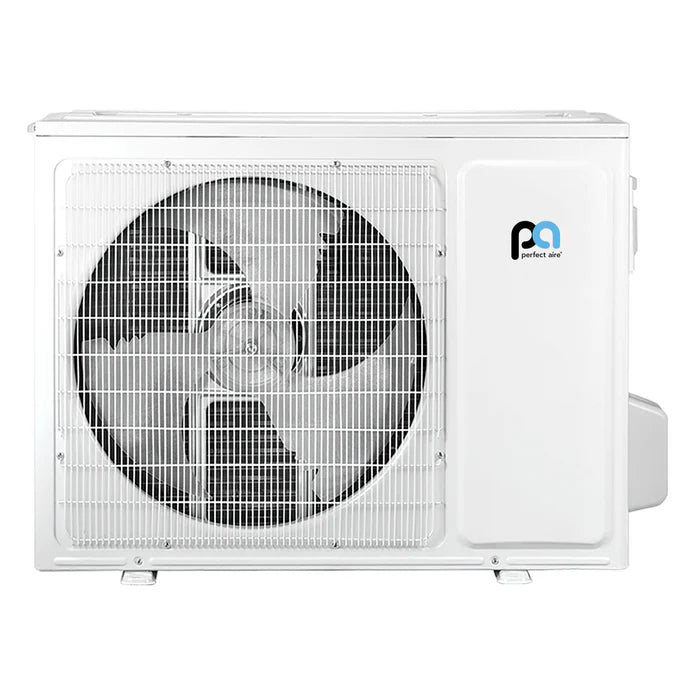

Outdoor Unit Dimensions (WxHxD)(in.):
4PAMSHQCO12ย 32 x 23 x 11
Outdoor Unit Weight (lb.):
4PAMSHQCO12ย 77.25
ELECTRICAL REQUIREMENTS
Power Supply (V):ย 115
Maximum Fuse (A):ย 25.0
Battery Type:ย AAA
No-Hassle Comprehensive Product Warranty
7 Years Parts/Compressor
