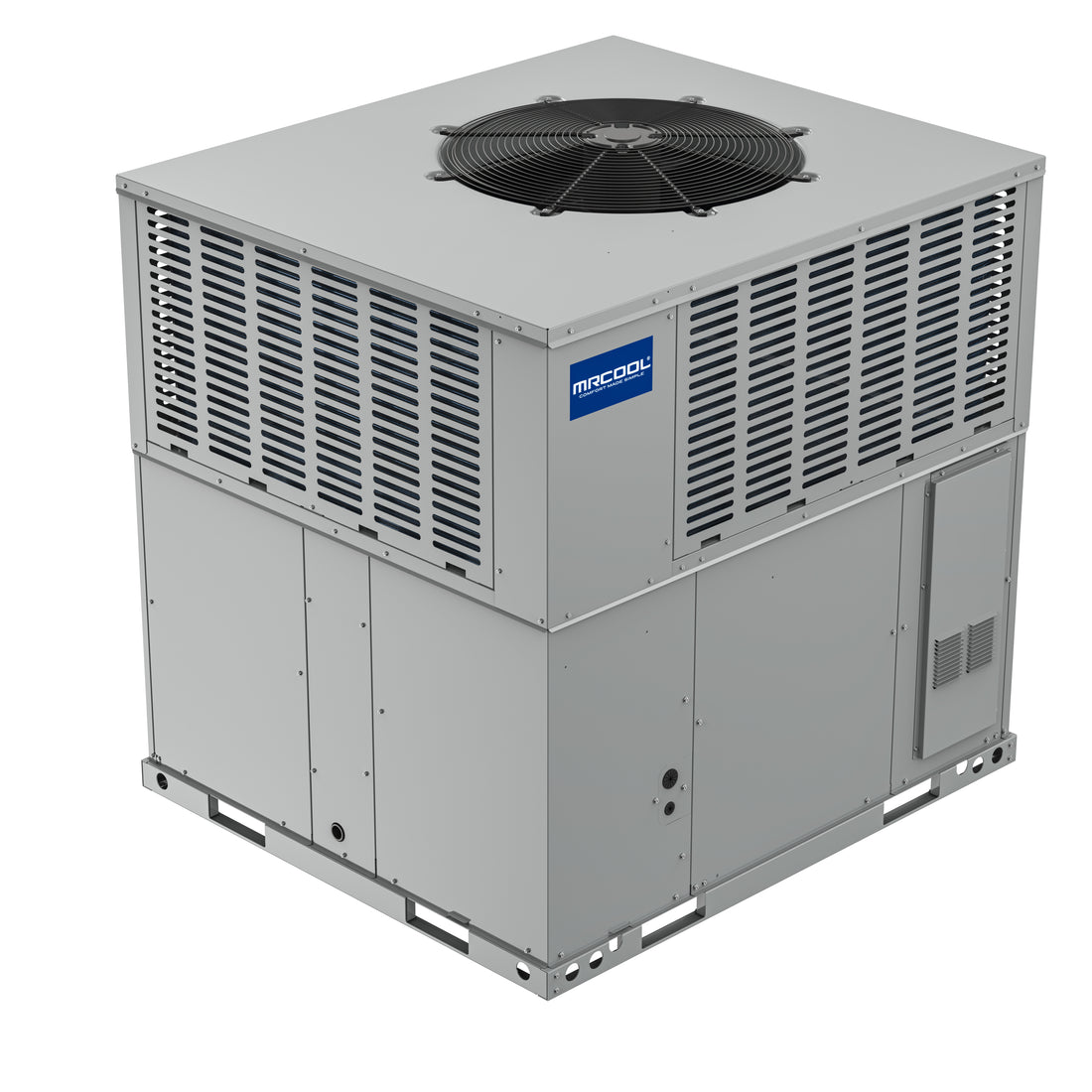

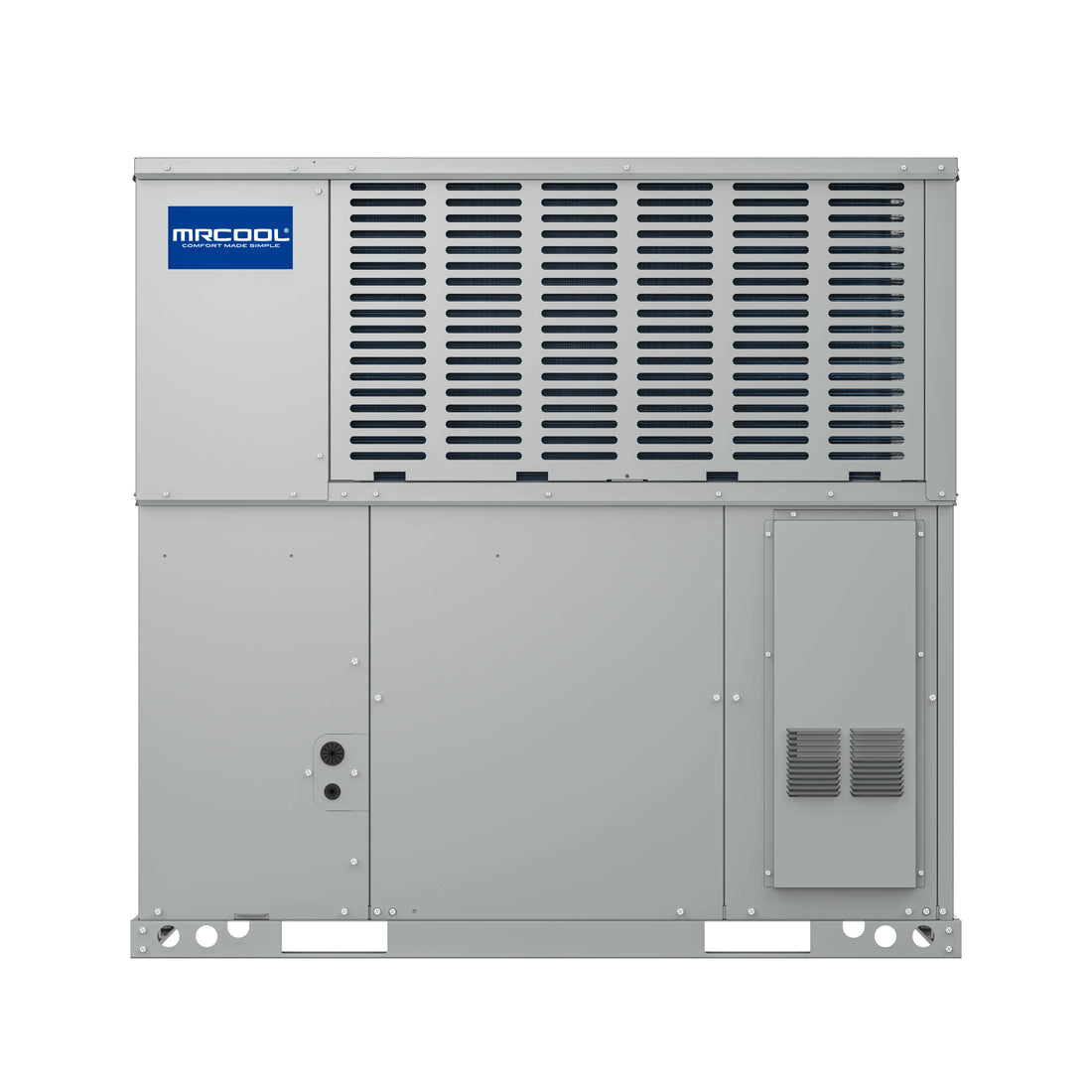

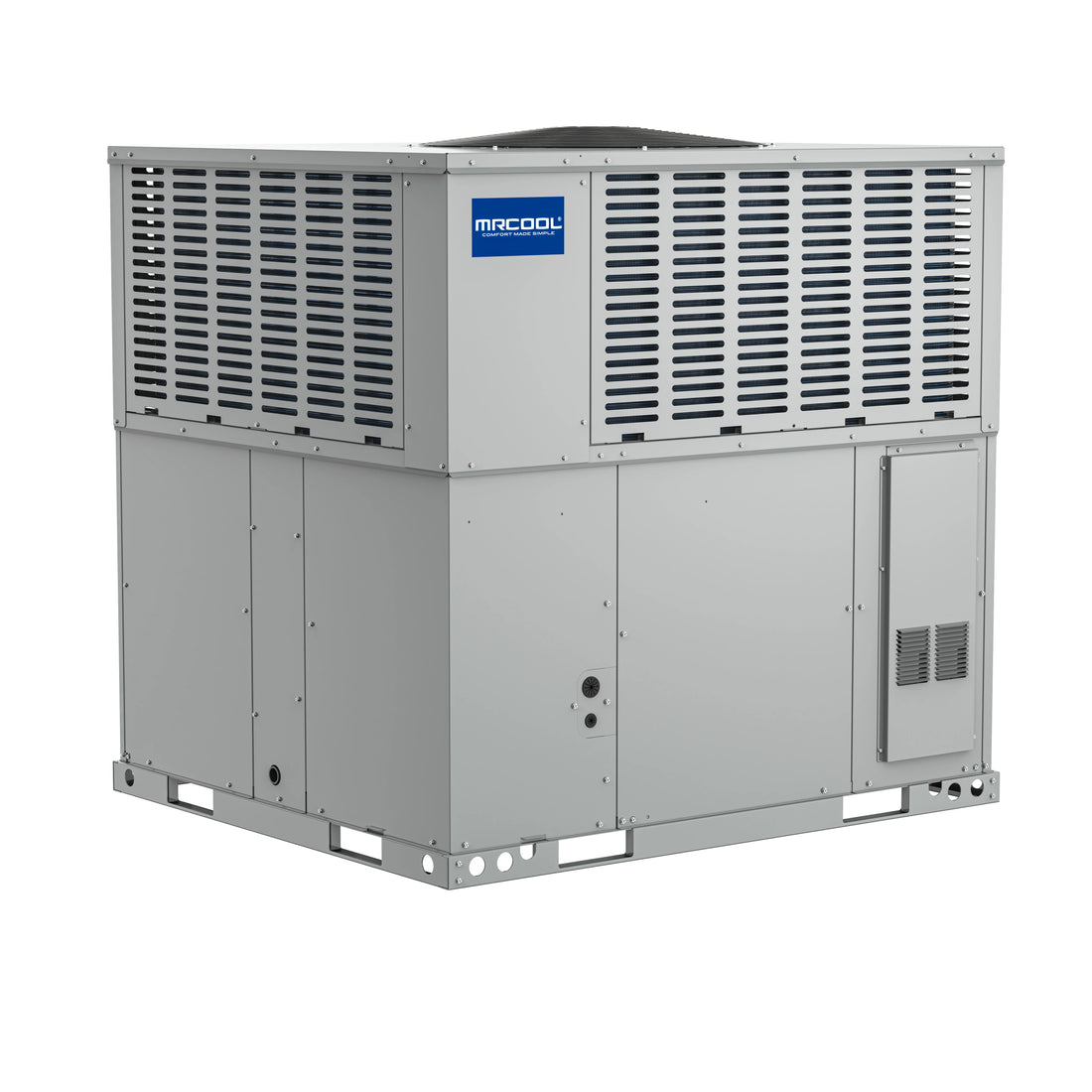

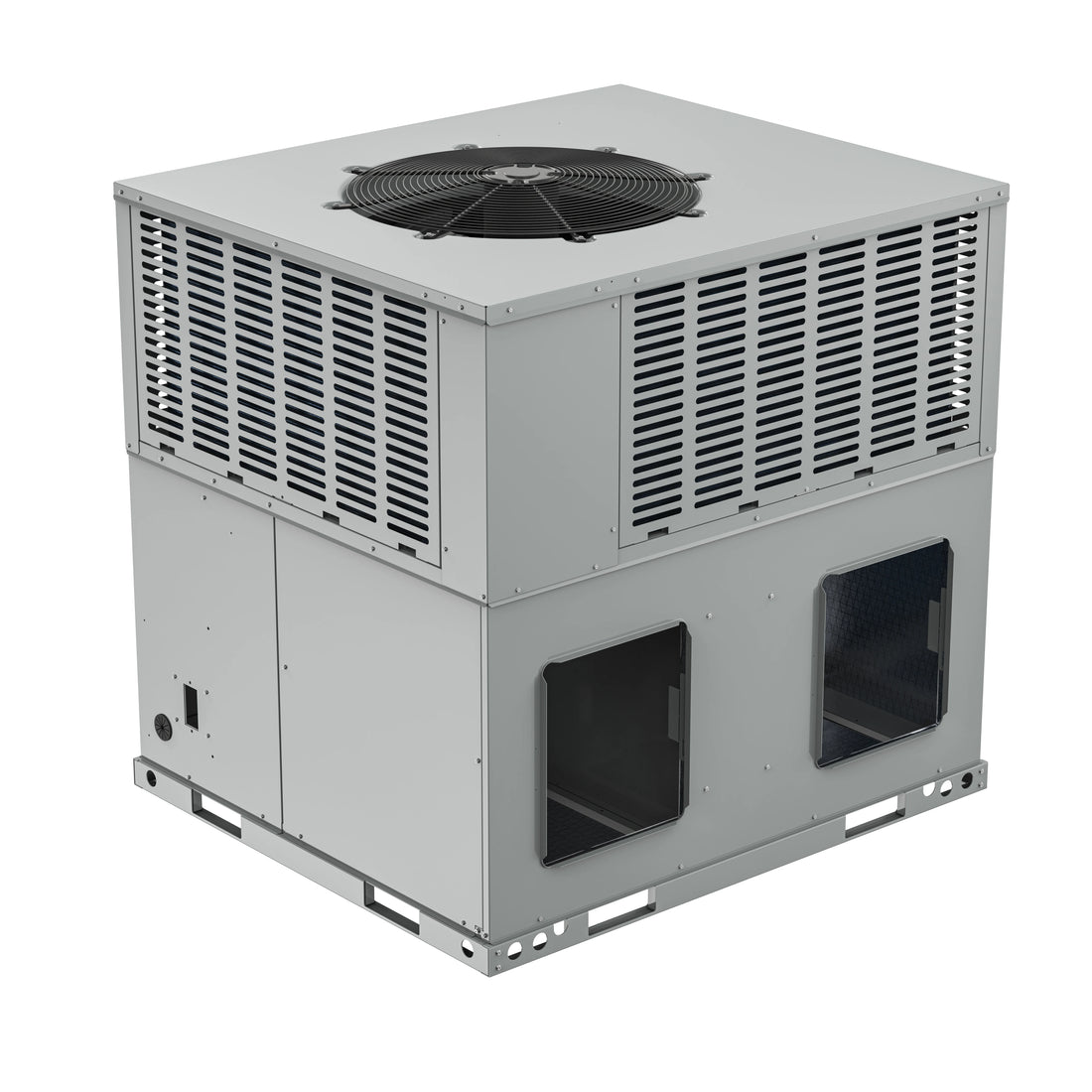

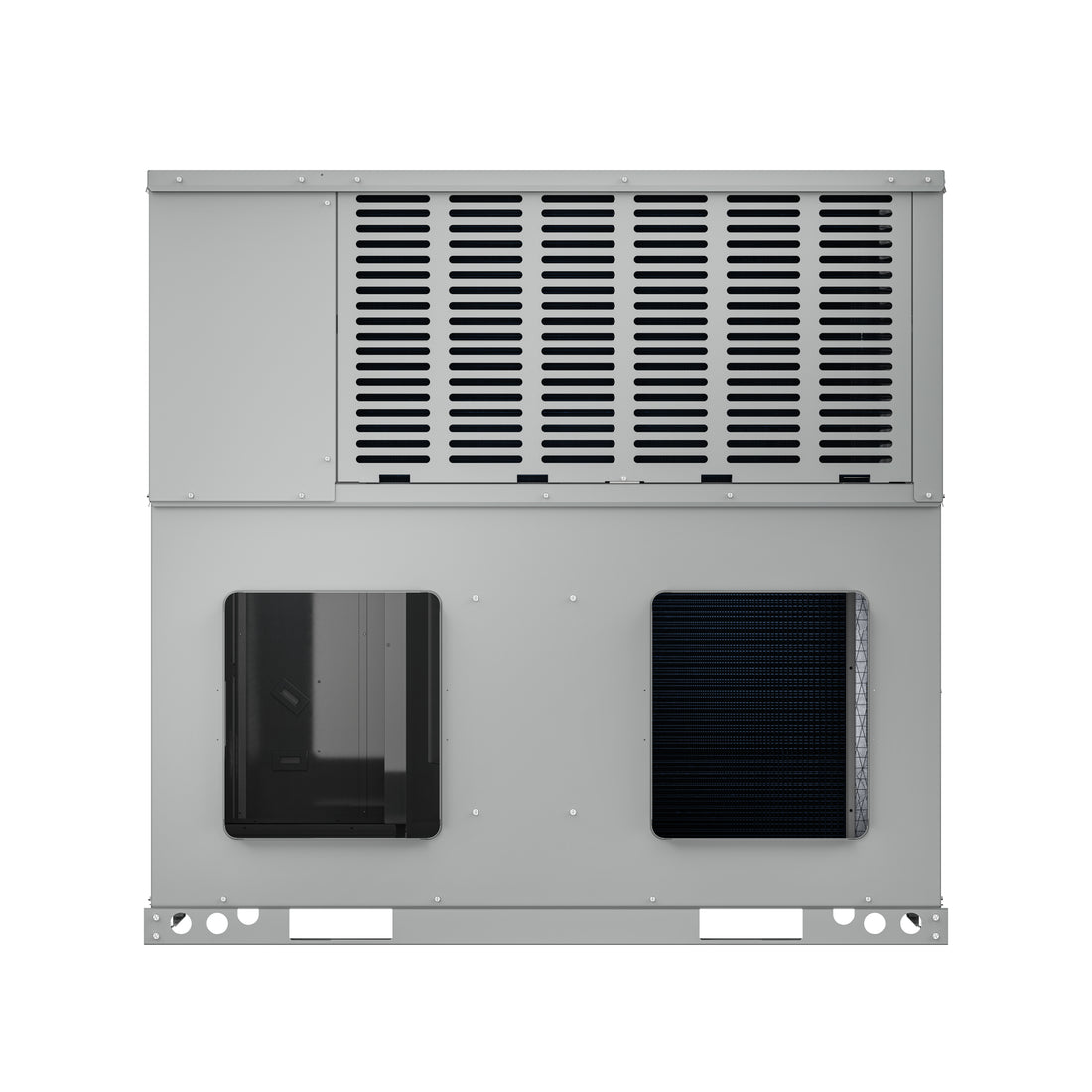

MRCOOL VersaPro® 2.5 Ton 60,000 BTU Packaged A/C & Gas Unit (R-454B) — MPG30S060MO13C
Overview
TheMRCOOL® VersaPro® MPG30S060MO13Cis a packaged A/C & gas system designed for downflow or horizontalinstallation. It combines a13.4 SEER2air conditioner with an 81% AFUEgas furnace for efficient cooling and dependable heat. Built with a rugged, power-painted galvanized steel cabinet, microchannel coil design, anECM blower motor, and integrated safety controls, it’s engineered for consistent performance and long service life.
Fuel type:Natural Gas / Propane (LP conversion kit included).
Highlights
- Efficient cooling:13.4 SEER2 and 11 EER2 ratings.
- Reliable heat:81% AFUE, 60,000 BTU input gas furnace.
- R-454B refrigerant:next-generation, lower-GWP option.
- ECM blower motor:improved airflow control and temperature consistency.
- Microchannel coils:aluminum design for strong heat transfer and corrosion resistance.
- Installation flexibility:downflow and horizontal configurations supported.
- Propane ready:LP kit included for easy conversion.
What’s Included
- Packaged A/C & gas unit:MPG30S060MO13C
- LP conversion kit(included)
Performance & Electrical
| Cooling | 2.5 Ton • 28,400 BTU |
| Heating | 60,000 BTU Input • 48,000 BTU Output • 81% AFUE • 1 Stage |
| Efficiency | 13.4 SEER2 • 11 EER2 |
| Airflow | 930 CFM |
| Power | 208/230V • 1 Phase • 60 Hz |
| Max Fuse / Breaker | 30A |
| Minimum Circuit Ampacity | 21.5A |
| Refrigerant | R-454B • 44 oz |
| Sound Level | 79 dBA |
| Min Ambient Cooling | 64.4°F |
Connections & Components
| Control Type | 24V Thermostat |
| Gas Connection | 1/2" |
| Drain Connection | 3/4" |
| Compressor | Rotary (non-inverter) |
| Condenser Fan | PSC • 1/6 HP • 840 RPM |
| Blower Motor | ECM • 1/2 HP • 4 Speeds |
| Ignition | Direct Spark Ignition |
| Metering Device | Piston |
| Burners | 5 |
Dimensions & Weight
| Net | 50.69" W × 46.44" D × 35.06" H • 432 lb |
| Gross | 51.44" W × 48.625" D × 37" H • 458 lb |
Documents & Downloads
Important
- Fuel:Natural gas or propane (LP conversion kit included).
- Install orientation:Downflow or horizontal.
- Warranty:Base coverage listed as5-year parts / 20-year heat exchanger. Registered coverage listed as10-year parts / heat exchanger.
- Electrical:208/230V single phase; verify breaker sizing and local code requirements before installation.
FAQs
What size space is this 2.5 ton unit typically used for?
A 2.5 ton system is commonly selected for many mid-to-larger residential applications, but the right size depends on insulation, windows, climate, duct condition, and layout. If you share your square footage and location, we can help narrow it down.
Is it set up for natural gas or propane?
It supportsnatural gasandpropane. AnLP conversion kit is includedfor propane setups.
What installation orientations does it support?
Designed fordownfloworhorizontalinstallation.
What thermostat does it use?
It uses a standard24V thermostatcontrol.
What are the key efficiency ratings?
Cooling efficiency is listed at13.4 SEER2and11 EER2, with furnace efficiency at81% AFUE.
