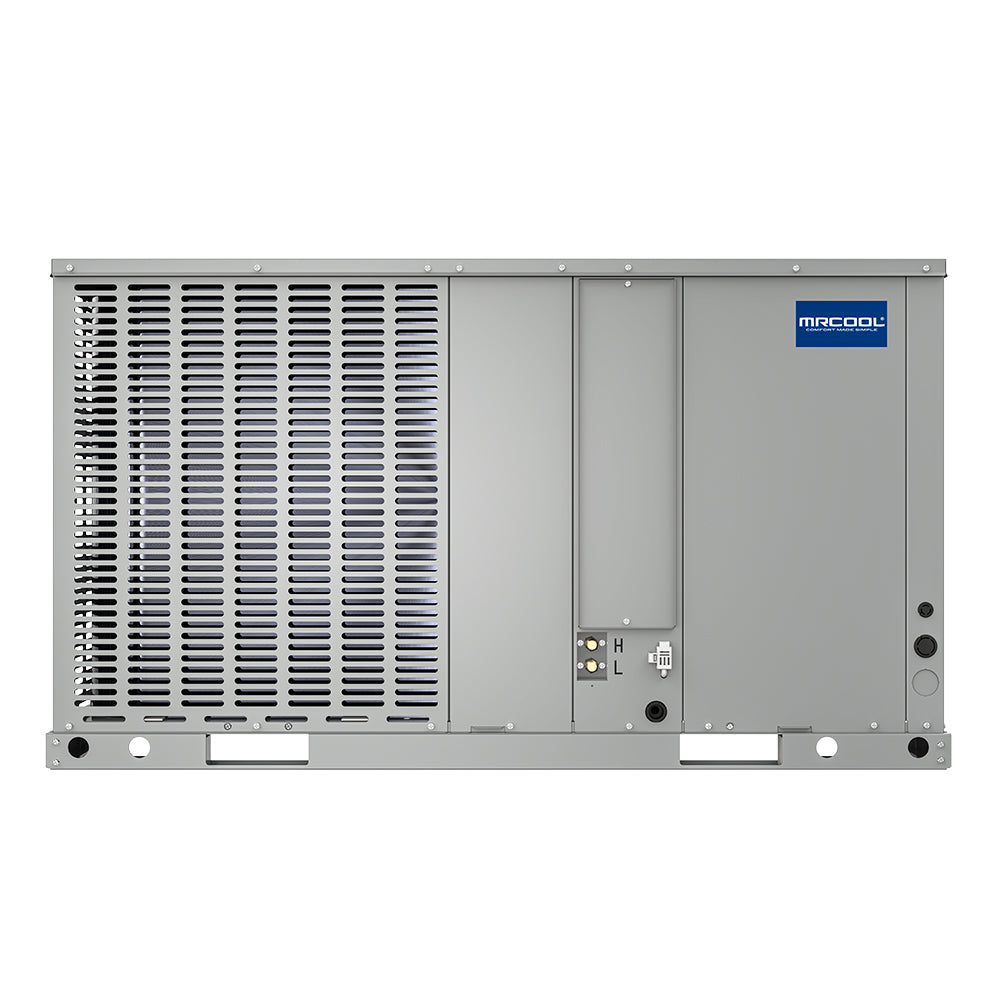

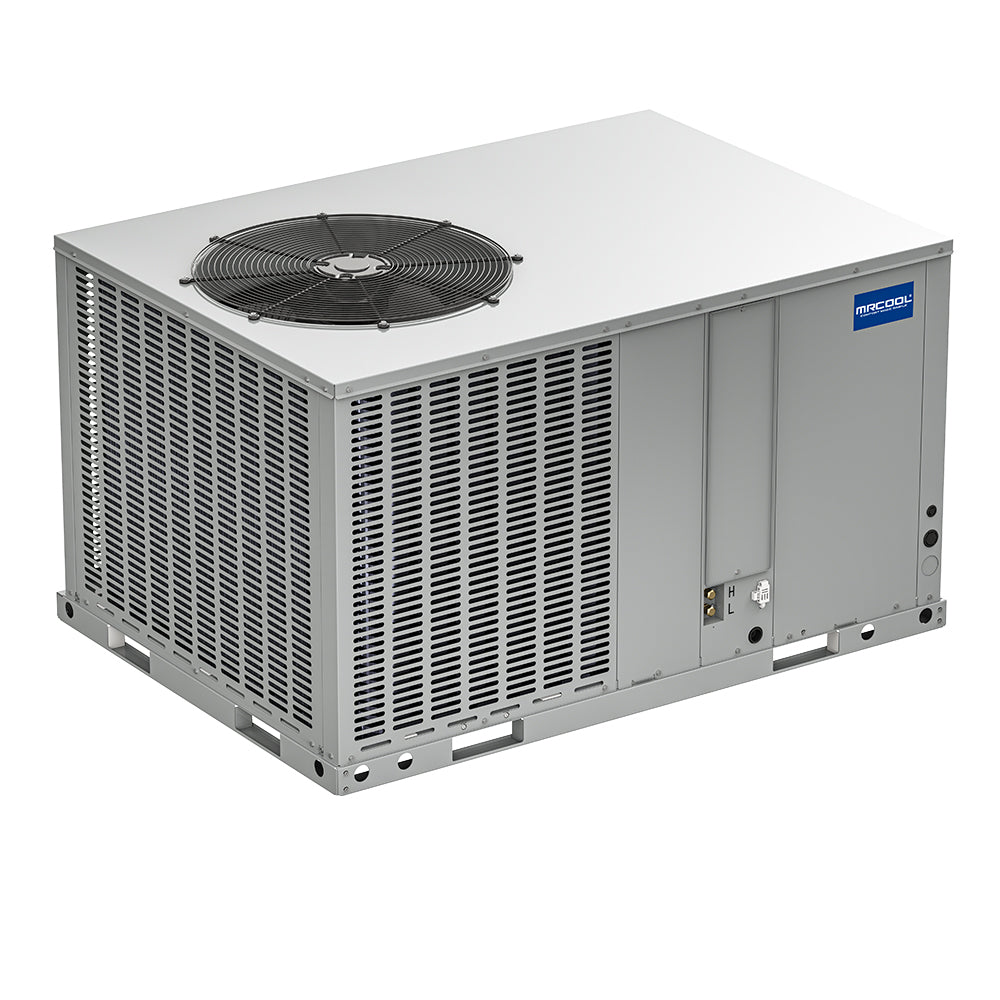

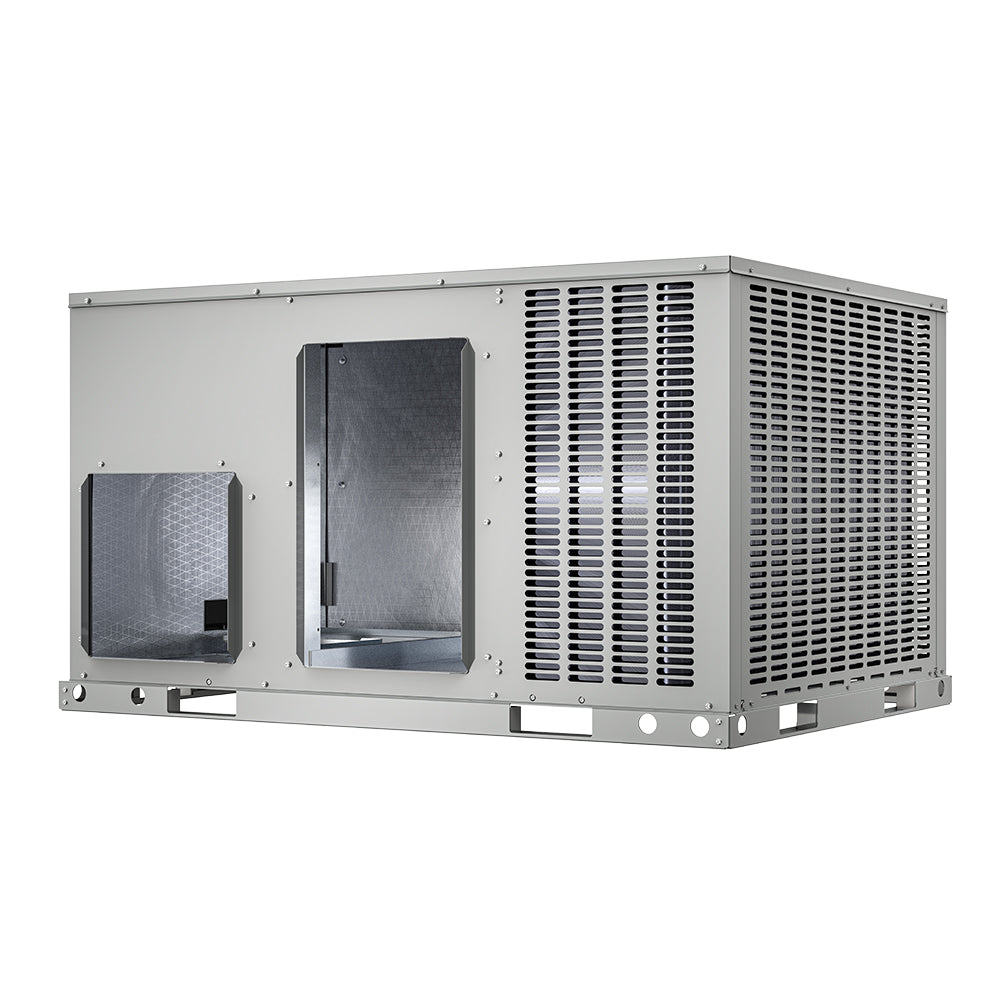

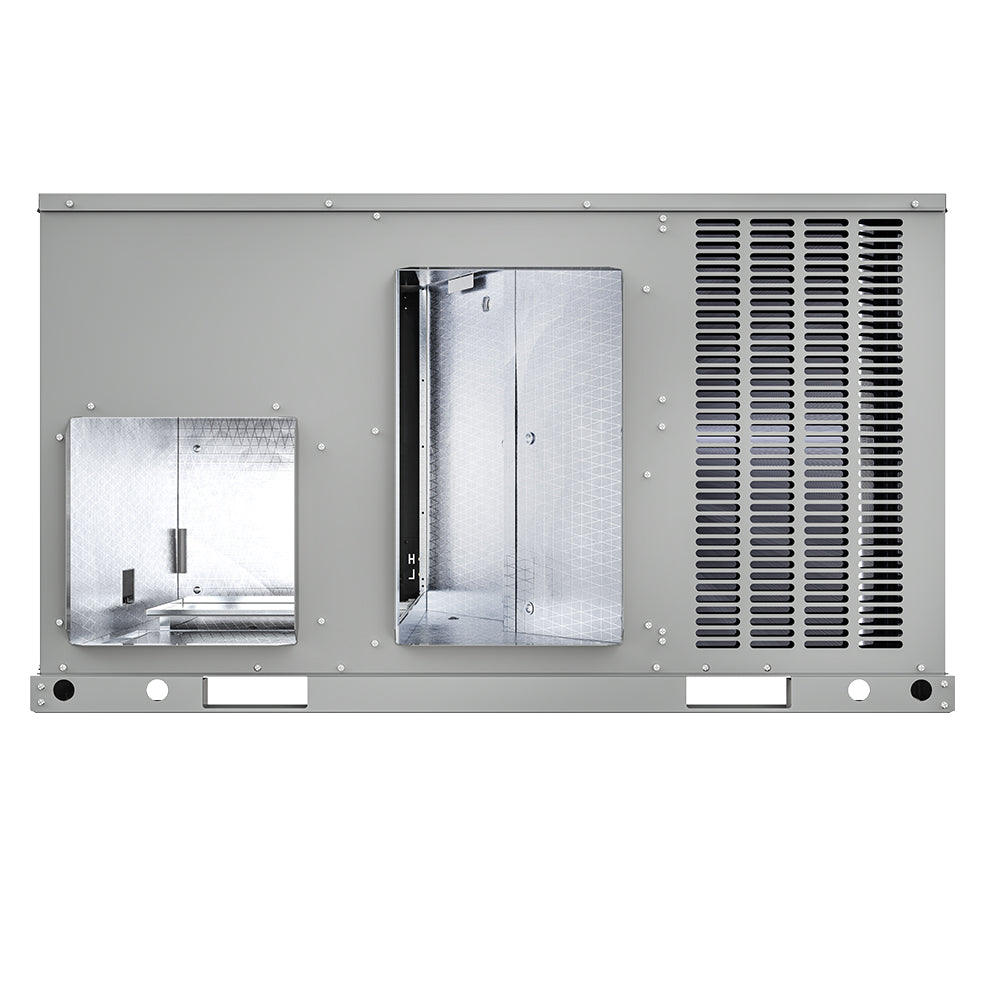

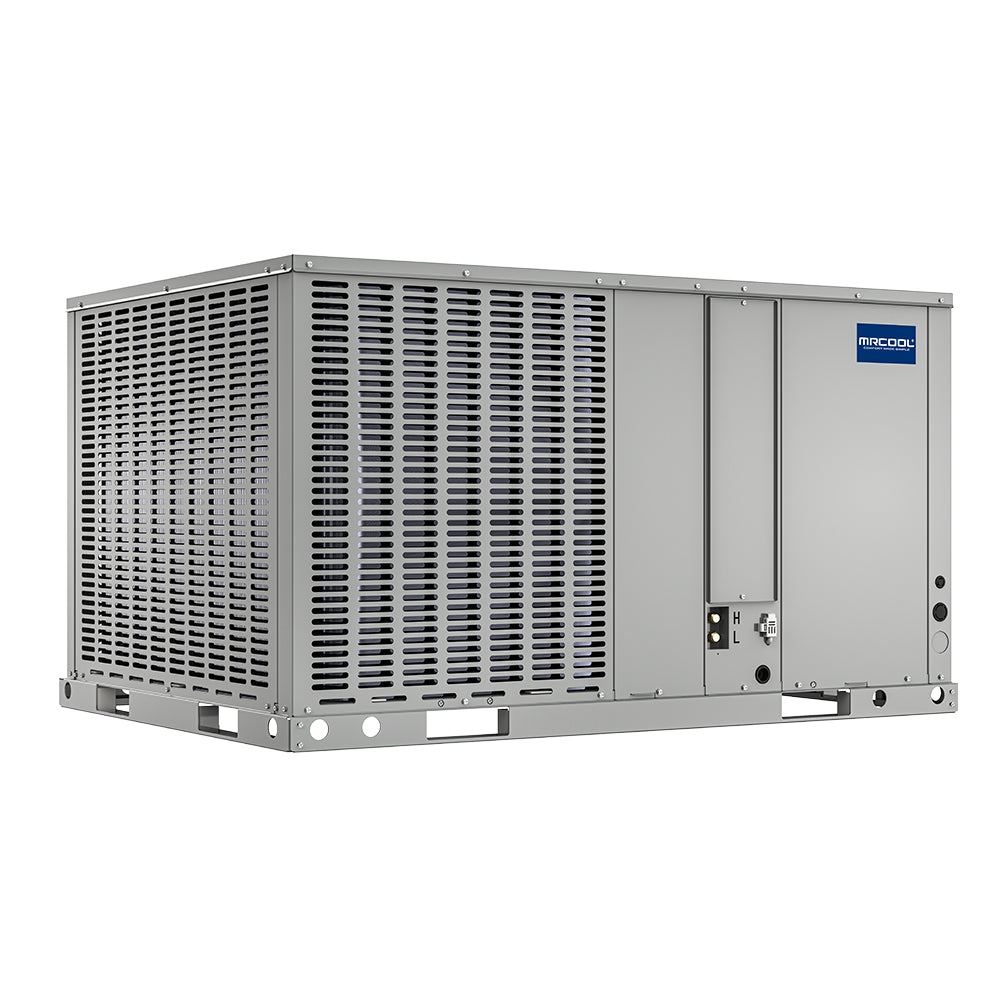

MRCOOL VersaPro™ 48k BTU Heat Pump Package Unit | MPH481H413B (13.4 SEER)

SKU MPH481H413B Packaged Units13.4 SEER2208-230V
$4,138.00 $5,052.00 Save $914.00 (18%)
Currently unavailableContact us for lead time
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Rated
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

MRCOOL VersaPro™ 48k BTU Heat Pump Package Unit | MPH481H413B



Summary

Even in the worst of weather conditions, the MRCOOL® VersaPro™ 48K BTU 13.4 SEER2 Package Heat Pump is able to maintain your ultimate comfort level within your home, providing high-performance cooling and powerful heating capabilities within a single, easy-to-install system. Encased in a resilient anti-rust, power-painted galvanized steel cabinet, this heating and cooling solution offers an optimal balance of affordability and durability. The unit's high-efficiency compressors function smoothly, ensuring quiet and consistent performance. Internal safeguards protect against high and low pressures, coil temperature variations, and power surges. With an ECM blower motor and advanced copper tube/aluminum fin coils, this package heat pump delivers exceptional efficiency using R410A refrigerant.



Important

Registration required for 10-year warranty. Optional electric heat kit available (5/8/10/15/20kW). AHRI Certified and ETL Listed for quality assurance.



Key Features

  • Complete 4-ton packaged heat pump system
  • Durable galvanized steel cabinet with anti-rust coating
  • High efficiency scroll compressor
  • ECM condenser fan motor (1/4 HP, 980 RPM)
  • PSC blower motor (3/4 HP)
  • Copper tube/aluminum fin coil for optimal heat transfer
  • Quiet horizontal discharge design
  • Optional electric heat kit available (5/8/10/15/20kW)
  • Internal safeguards against operational extremes
  • 13.4 SEER2 efficiency rating
  • R410A eco-friendly refrigerant (106 oz)



Complete Technical Specifications

SKU MPH481H413B
UPC 840255582490
Certifications ETL Listed, AHRI Certified
Cooling Capacity 48,000 BTU (4 Ton)
Heating Capacity 48,000 BTU
Efficiency Rating 13.4 SEER2
Refrigerant R410A (106 oz)
Electrical 208/230V 1 Phase 60 Hz
Electrical Details 26.8A Min Circuit Ampacity, 40A Max Fuse Breaker
Compressor Type Scroll
Condenser Fan Motor ECM, 1/4 HP, 980 RPM
Blower Motor PSC, 3/4 HP
Net Dimensions (HxWxD) 33.07" x 58.50" x 42.05"
Net Weight 442 lbs
Shipping Dimensions 34.13" x 58.74" x 42.36"
Shipping Weight 451 lbs

Performance Features

Cabinet Construction Galvanized steel with power-painted finish
Coil Design Copper tube/aluminum fin
Discharge Design Horizontal
Safety Features High/low pressure protection, coil temp protection, power surge protection
Optional Accessories Electric heat kit (5/8/10/15/20kW)

Warranty Information

  • 10 Year Parts Warranty - With registration within 90 days
  • 10 Year Compressor Warranty - With registration within 90 days
  • 5 Year Parts Warranty - Without registration
  • 5 Year Compressor Warranty - Without registration



Manuals & Certifications

Safety Information

PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.



Advanced Technology

The MRCOOL VersaPro™ 48K BTU Package Heat Pump features a high-efficiency scroll compressor and ECM condenser fan motor for optimal performance and energy savings. The copper tube/aluminum fin coil design ensures excellent heat transfer efficiency, while the galvanized steel cabinet provides superior durability and corrosion resistance. The horizontal discharge design contributes to quiet operation, making this 4-ton unit suitable for residential and light commercial applications where noise is a concern.

Installation Advantages

As a complete packaged system, the VersaPro™ 48K BTU unit simplifies installation by combining all components in a single, durable enclosure. The robust construction withstands harsh weather conditions, and the internal safeguards protect the system from various operational extremes. The optional electric heat kit (available in 5kW to 20kW configurations) provides supplemental heating capability when needed, offering flexibility for different climate requirements and ensuring year-round comfort.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
