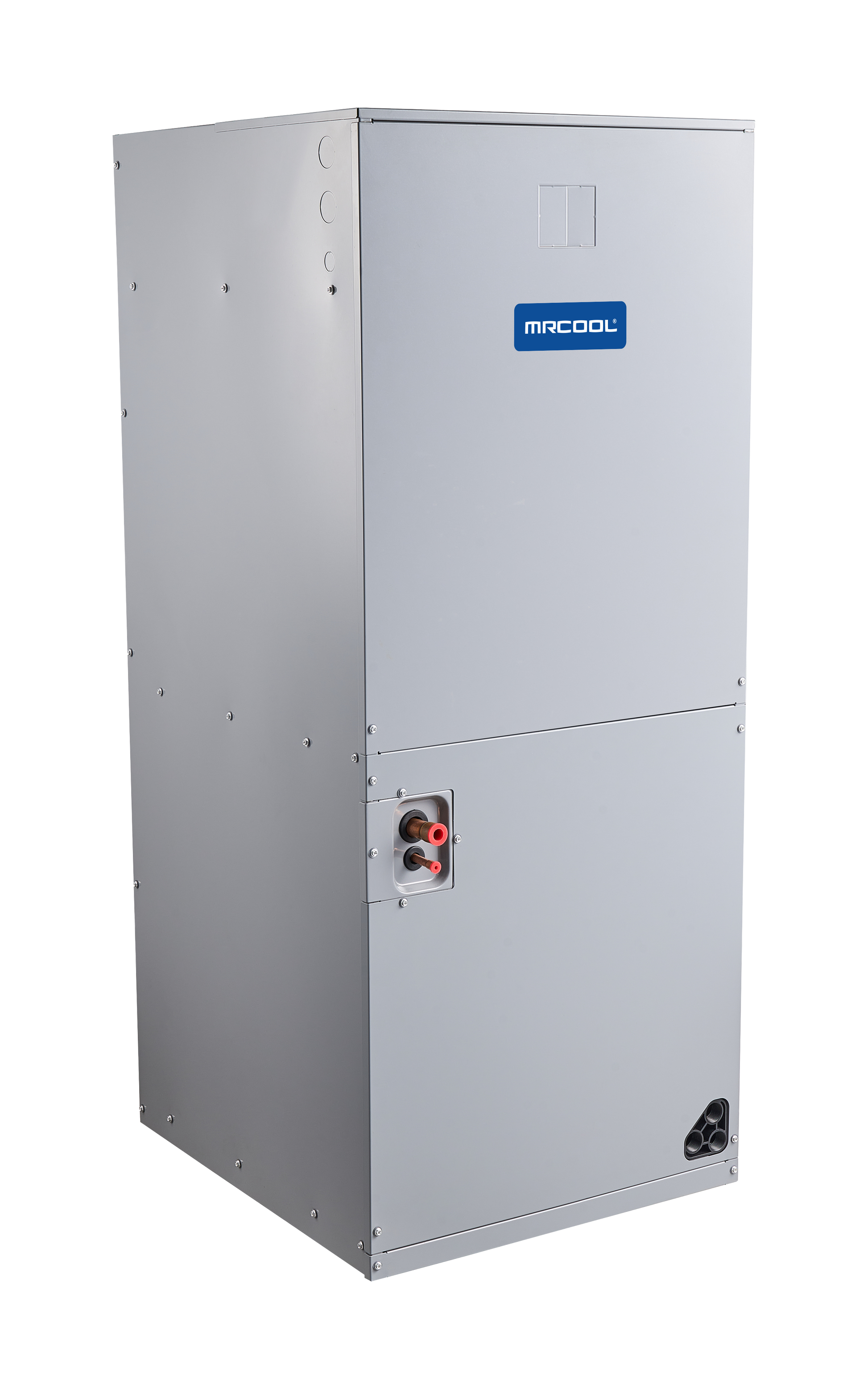

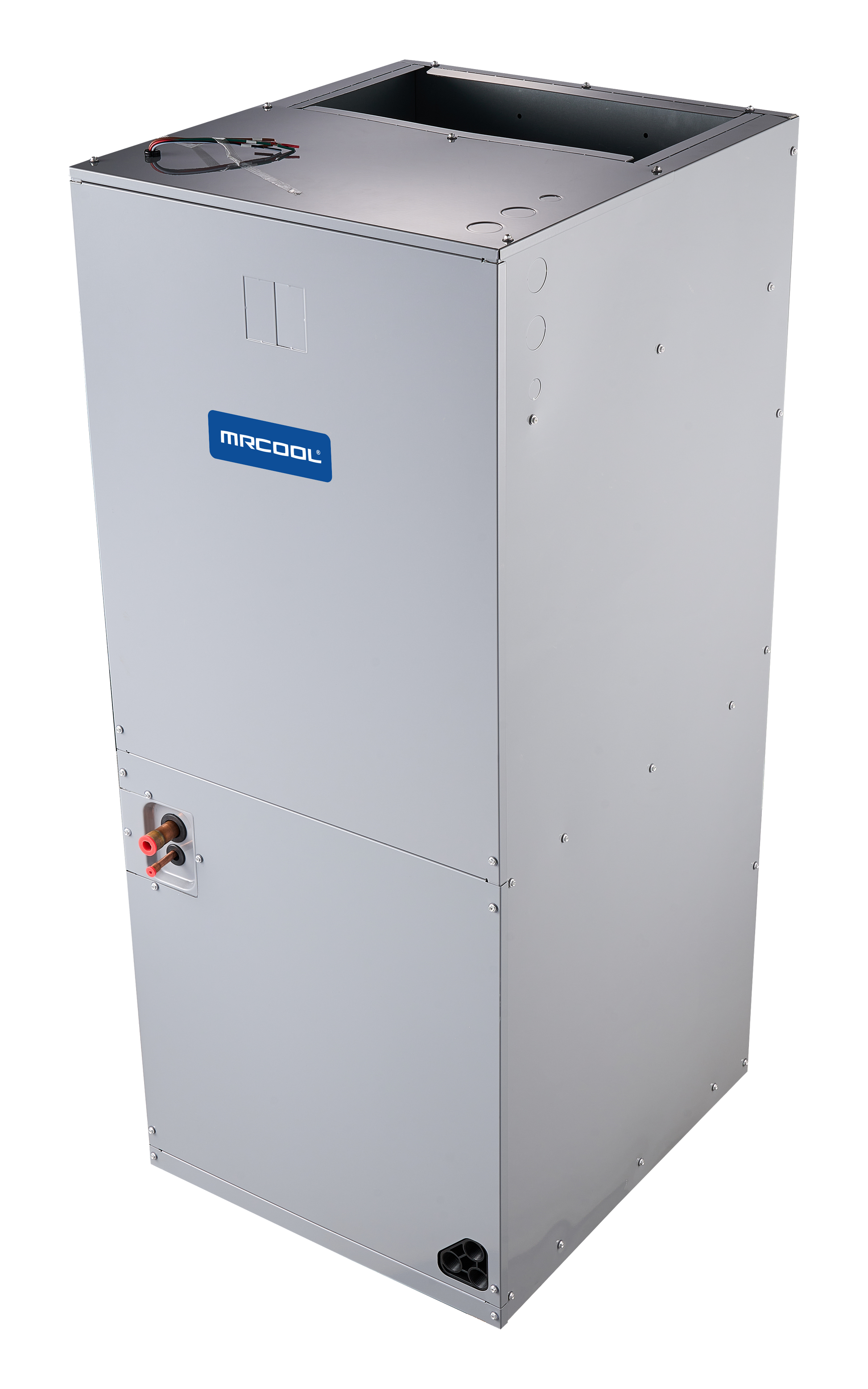

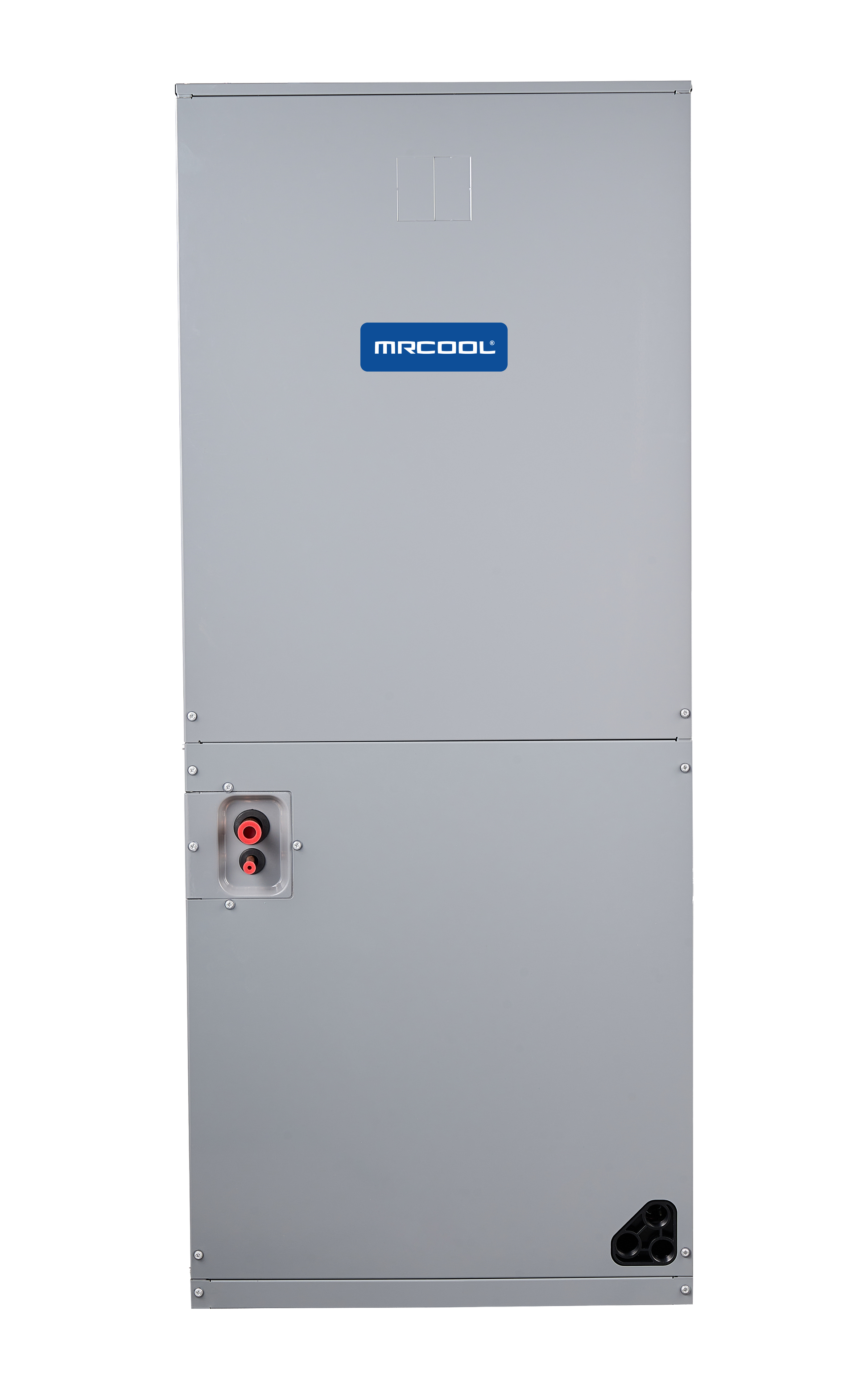

MRCOOL Signature Series 5 Ton Multi-Position Air Handler | MCAEAMPEF60E21AA
Â
Summary
The MRCOOL® Signature Series 60k Multi-Position Air Handler is designed to deliver reliable, efficient comfort all year long. Featuring advanced R-454B refrigerant, it meets modern environmental standards while helping reduce energy use and carbon emissions without sacrificing performance. This unit's multi-position capability allows for installation in upflow, downflow, or horizontal configurations, making it a flexible choice for any home layout. Whether it's placed in a utility closet, attic, or crawl space, its slim, compact design ensures a seamless fit while delivering powerful heating and cooling when paired with a compatible condenser or heat pump. Built for long-lasting performance, this unit is equipped with a galvanized steel cabinet that resists corrosion, dents, and daily wear. Its high-efficiency ECM blower motor delivers consistent, quiet airflow while helping to lower overall energy use. Inside, copper "A" coils and aluminum fins provide excellent heat exchange and effective humidity control. Meanwhile, internal thermal insulation helps minimize condensation and thermal loss, resulting in better comfort, quieter operation, and increased energy savings. Installation is fast and simple, saving time and reducing labor costs. An air filter rack makes routine maintenance easy, and an optional electric heat kit is available to boost cold-weather performance. This system is also compatible with most third-party smart thermostats, giving you the freedom to choose the control platform that works best for your home without proprietary limitations. Backed by a 10-year limited parts warranty, the MRCOOL® Signature Series 60k Multi-Position Air Handler offers dependable performance, energy efficiency, and the flexibility to fit your space and lifestyle with ease.
Â
Important
AHRI certified - meets industry standards. Register your product to activate warranty coverage. This air handler contains R-454B refrigerant, which is classified as an A2L refrigerant. To comply with safety standards, this unit must be paired with an R-454B condenser equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty.
Â
Key Features
- 60,000 BTU capacity (5 Ton)
- Multi-position installation (upflow, downflow, horizontal)
- Advanced R-454B refrigerant technology
- High-efficiency ECM blower motor
- Quiet operation (57 dBA)
- Durable galvanized steel cabinet
- Copper "A" coils with aluminum fins
- Built-in air filter rack for easy maintenance
- Compatible with most third-party smart thermostats
- Optional electric heat kit available
- Internal thermal insulation
- AHRI certified
- 5-speed blower motor for precise airflow control
Â
Complete Technical Specifications
| Brand | MRCOOL |
| Series | Signature Series Multi-Position Air Handler |
| Model | MCAEAMPEF60E21AA |
| UPC | 840255595902 |
| GTIN | 00840255595902 |
| Unit Type | Air Handler |
| Configuration | Multi-Position |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified |
| Capacity | 60,000 BTU (5 Ton) |
| CFM | 1549 |
| Refrigerant | R-454B |
| Electrical | 208/230V 1 Phase 60 Hz |
| Min Circuit Ampacity | 7.2A |
| Max Fuse Breaker | 10A |
| Blower Motor Type | ECM |
| Blower Motor HP | 3/4 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1010 |
| Sound Rating | 57 dBA |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Drain Connection Size | 3/4" |
| Filter Type | Replaceable |
| Filter Size | 20" x 24" x 1" |
| Metering Device | Orifice |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes (5kW, 7.5kW, 10kW) |
| Net Dimensions (HxWxD) | 53.125" x 22" x 24.5" |
| Net Weight | 170 lbs |
| Shipping Dimensions | 54.89" x 27.75" x 25.2" |
| Shipping Weight | 190 lbs |
Performance Features
| Compatible Equipment | Signature Series Top Discharge Condensers |
| Installation Flexibility | Multi-position (upflow, downflow, horizontal) |
| Refrigerant | Advanced R-454B refrigerant for reduced environmental impact |
| Motor Technology | High-efficiency ECM blower motor |
| Noise Reduction | Quiet operation (57 dBA) |
| Coil Technology | Copper "A" coils with aluminum fins |
| Cabinet Construction | Durable galvanized steel resists corrosion and wear |
| Speed Control | 5-speed motor for precise airflow adjustment |
| Airflow Capacity | High-capacity 1549 CFM for maximum performance |
| Smart Home Compatibility | Works with most third-party smart thermostats |
| Heating Options | Optional electric heat kits (5kW, 7.5kW, 10kW) |
Warranty Information
- Registered Warranty: 10 years parts, limited lifetime compressor
- Base Warranty: 10 years parts, limited lifetime compressor
- Registration may be required for full warranty coverage
Â
Manuals & Certifications
Safety Information
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Â
Advanced Technology
The MRCOOL Signature Series 60k Multi-Position Air Handler features advanced ECM motor technology with a powerful 3/4 HP motor that delivers superior energy efficiency and precise airflow control across five speed settings. The copper "A" coils with aluminum fins provide exceptional heat transfer and humidity control for optimal indoor comfort in large residential and commercial applications. The durable galvanized steel cabinet ensures long-lasting performance, resisting corrosion, dents, and daily wear, while comprehensive thermal insulation minimizes energy loss and prevents condensation. Operating at 57 decibels, this 5-ton air handler maintains reasonable noise levels despite its substantial 1549 CFM airflow capacity. The ECM motor's intelligent operation automatically adjusts airflow to maintain optimal system performance, while compatibility with most third-party smart thermostats enables seamless integration into modern home automation systems for complete comfort control in larger spaces.
Installation Advantages
This 5-ton air handler provides exceptional installation versatility with true multi-position capability for upflow, downflow, or horizontal configurations, making it ideal for various residential and commercial applications. The high-efficiency ECM motor delivers superior performance with lower energy consumption while handling the substantial 1549 CFM airflow requirement for large spaces. The built-in air filter rack with larger 20" x 24" x 1" filter simplifies routine maintenance. The unit's larger cabinet accommodates the maximum capacity while maintaining a streamlined design that minimizes installation time and labor costs. Multiple optional electric heat kit sizes (5kW, 7.5kW, or 10kW) provide flexible heating capacity for various climate requirements. With its maximum residential capacity and comprehensive compatibility with Signature Series Top Discharge Condensers, this air handler represents a premium, energy-efficient solution for HVAC systems requiring robust performance in large homes and demanding commercial applications where maximum heating and cooling capacity is essential.
