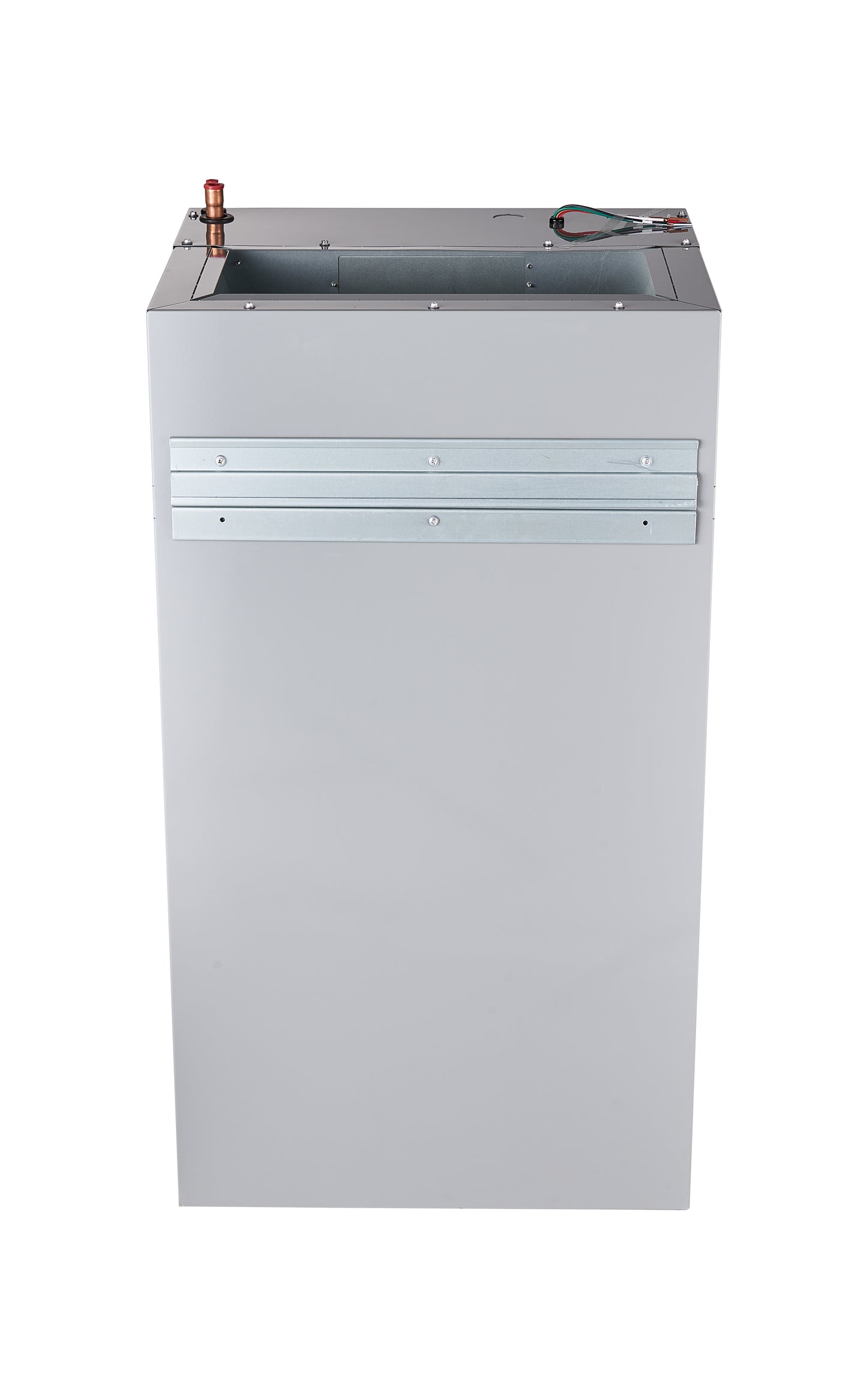

MRCOOL Signature Series 24K BTU Stud Mount Air Handler | MCAEAWPEF24D21AA

MRCOOL Signature Series 24K BTU Stud Mount Air Handler | MCAEAWPEF24D21AA

Summary

Transform your HVAC system with the MRCOOL® Signature Series 24K Stud Mount Air Handler—crafted for maximum flexibility, energy efficiency, and hassle-free installation. Designed to fit cleanly between standard wall studs, this compact unit is perfect for tight spaces where conventional air handlers just won't work, making it a smart choice for a wide range of installations. Despite its slim profile, this powerful unit delivers dependable heating and cooling performance when paired with a compatible heat pump or condenser. With both front and bottom return air options, it adapts easily to your layout and airflow requirements. Built to last, the MRCOOL® Signature Series 24k Stud Mount Air Handler features a tough galvanized steel cabinet and advanced blower technology for quiet, efficient operation. Full insulation throughout the cabinet minimizes energy loss and prevents condensation, while the high-efficiency ECM motor ensures steady airflow and reduced utility bills. Maintenance is simple with an integrated air filter rack for quick filter replacements. For colder climates, optional electric heat kits are available to provide added warmth when needed. Supported by a 10-year limited parts warranty, this unit offers reliability and peace of mind. Whether you're renovating, upgrading, or building new, the MRCOOL® Signature Series 24K Stud Mount Air Handler delivers compact comfort without compromise.

Important

AHRI certified - meets industry standards. Register your product to activate warranty coverage. This air handler is designed for R-454B refrigerant and must be paired with compatible R-454B condensers or heat pumps. Professional installation is required to ensure proper operation and warranty validation.

Key Features

• 24,000 BTU capacity (2 Ton)
• Stud mount design fits between standard wall studs
• Space-saving compact cabinet
• Front and bottom return air configurations
• High-efficiency ECM blower motor
• Quiet operation (54 dBA)
• Designed for R-454B refrigerant systems
• Durable galvanized steel construction
• Full cabinet insulation
• Built-in filter rack for easy maintenance
• Optional electric heat kits available
• AHRI certified
• 797 CFM airflow

Complete Technical Specifications

Performance Features

Warranty Information

• Registered Warranty: 10 years parts, limited lifetime compressor
• Base Warranty: 10 years parts, limited lifetime compressor
• Registration may be required for full warranty coverage

Manuals & Certifications

• Product Brochure
• Installation Manual
• Warranty Information

Safety Information

PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Advanced Technology

The MRCOOL Signature Series 24K Stud Mount Air Handler features advanced ECM motor technology that provides consistent airflow while improving energy efficiency. The high-efficiency blower motor offers five-speed operation with 1010 RPM capability, ensuring optimal performance across various system configurations. The durable galvanized steel construction combined with full cabinet insulation reduces energy loss and prevents condensation. Designed specifically for R-454B refrigerant systems, this air handler delivers reliable performance when paired with compatible condensers. With its ultra-quiet 54 dBA operation and space-saving stud mount design, this unit provides an ideal solution for residential applications where space is limited but performance cannot be compromised.

Installation Advantages

This 2-ton air handler simplifies installation with its unique stud mount design that fits between standard wall studs, making it perfect for retrofits, remodels, and new construction where space is limited. The compact cabinet measures just 15 inches deep, allowing for installation in tight spaces where traditional air handlers won't fit. The unit offers both front and bottom return air configurations, providing flexibility for various installation scenarios. The built-in filter rack accommodates standard 15x19x1 filters for easy maintenance. Optional electric heat kits (5kW, 7.5kW, 10kW) are available to enhance heating performance during colder months. With its accessible service panels and straightforward connections, the MRCOOL Signature Series Stud Mount Air Handler offers a practical and efficient solution for challenging installation environments.
