Summary

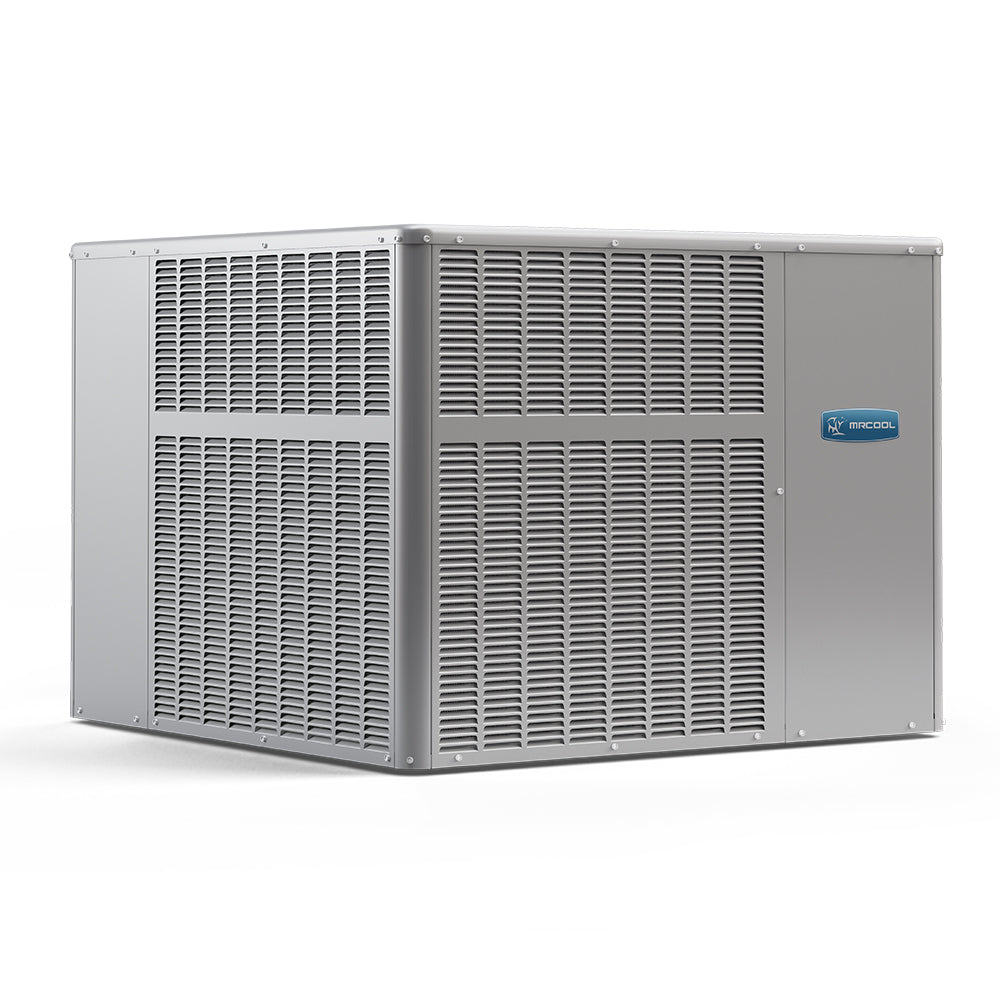

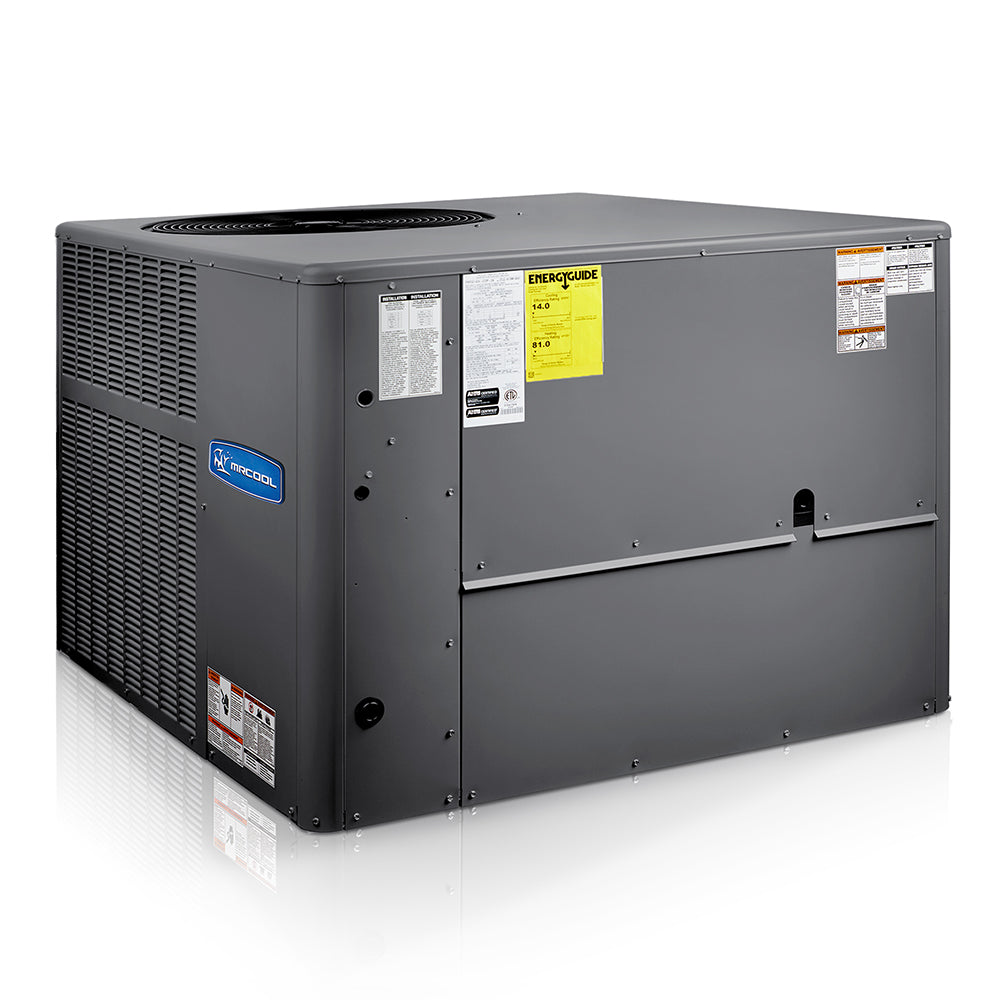

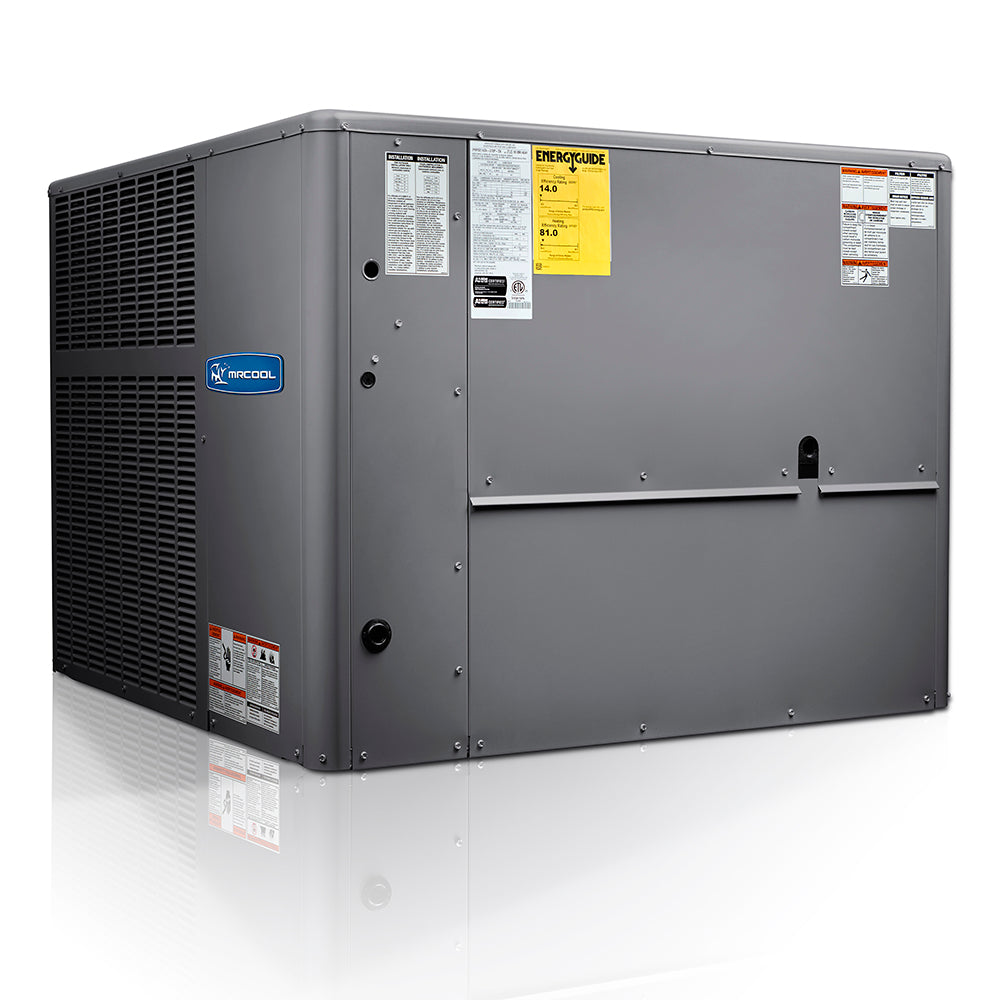

The MRCOOL packaged heat pump is a high-performance system designed to provide both cooling and heating in one easy-to-install unit. With 14 SEER cooling efficiency, it offers an affordable and energy-efficient solution for a wide range of spaces, including suburban homes, commercial offices, condominiums, and seaside villas. This versatile system combines superior product quality, eco-friendly R-410A refrigerant, and quiet operation, making it an ideal choice for anyone seeking reliable climate control. Whether you're dealing with hot summers or chilly winters, the MRCOOL packaged heat pump delivers exceptional performance year-round.
Built for efficiency and long-lasting value, the MRCOOL packaged heat pump is equipped with a high-performance compressor that ensures reliable operation, while its chlorine-free refrigerant minimizes environmental impact. Its quiet performance guarantees a comfortable and peaceful indoor environment, while its competitive pricing offers significant financial value. Whether for residential or commercial use, the MRCOOL packaged heat pump delivers both powerful heating and cooling, providing comfort with minimal environmental footprint.
What's Included
- Packaged Heat Pump Unit
- Installation Manual
- User's Manual
- Manufacturer Warranty
Warranty
- 10-Year on all parts if registered
- 5 years if not registered
Warranty Inquiries are handled through MRCOOL at https://mrcool.com/contact/
Technical Information
Model Number: MPH601M414A
|
BRAND NAME |
MRCOOL |
|
SERIES |
Signature Packaged Heat Pump |
|
MODEL |
MPH601M414A |
|
UNIT TYPE |
Package Heat Pump |
|
COUNTRY OF ORIGIN |
USA |
|
SHORT DESCRIPTION |
5 Ton 57,000 BTU 14 SEER R-410A Multi-Position Packaged Heat Pump |
|
LONG DESCRIPTION |
A MRCOOL packaged heat pump combines high performance cooling and powerful heating in one convenient, easy-to-install system. These units are competitively priced and operate at 14 SEER efficiency. A MRCOOL packaged heat pump will be a great solution for tough air comfort problems in a suburban home, commercial office space, condominium, seaside villa, or wherever you desire. MRCOOL packaged heat pumps combine superior product quality, energy efficiency, quiet operation, and financial value. The units come standard with a high performance compressor and eco-safe, chlorine-free R-410A refrigerant. This is truly an all-in-one packaged unit that will deliver energy efficient air comfort with minimal environmental impact. |
|
FEATURE LIST |
|
|
SEER |
14 |
|
EER |
11 |
|
COP 47 |
3.5 |
|
HSPF |
8 |
|
CFM |
1800 |
|
TONNAGE |
5 |
|
COOLING CAPACITY (BTU) |
57000 |
|
HEATING CAPACITY (BTU) |
56000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
STAGE |
Single |
|
MAX FUSE BREAKER (A) |
60 |
|
MIN CIRCUIT AMPACITY (A) |
39.7 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
27.1 |
|
MAX COVERAGE AREA |
2500 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
161 |
|
DECIBEL RATING (DBA) |
78 |
|
MIN AMBIENT HEAT (F) |
0 |
|
COMPRESSOR MOTOR TYPE |
Scroll |
|
CONDENSER FAN MOTOR TYPE |
ECM |
|
CONDENSER FAN MOTOR HP |
1/4 |
|
BLOWER MOTOR TYPE |
ECM |
|
BLOWER MOTOR HP |
1 |
|
BLOWER MOTOR SPEEDS |
Multi-speed |
|
BLOWER MOTOR RPM |
1120-2090 |
|
FILTER TYPE |
Replaceable |
|
FILTER SIZE |
20x20x1 |
|
METERING DEVICE |
TXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kw, 7.5kw, 10kw, 15kw, 20kw |
|
ETL LISTED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Warranty is 10 years on all parts if registered |
|
BASE WARRANTY |
5 years if not (no licensed tech required) |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH (IN) |
55.27 |
|
NET HEIGHT (IN) |
40.88 |
|
NET WIDTH (IN) |
46.8 |
|
NET WEIGHT (LBS) |
460.00 |
|
INSTALL MANUAL |
|
|
SPECIFICATION SHEET |
|
|
PRODUCT BROCHURE |
|
|
ENERGY GUIDE |
