MRCOOL Signature 5 Ton 60K BTU Cooling Only Central Ducted Split System

SKU MCAESAS4T6021AA + MCAEAMPEF60E21AA AC Air Handler Systems13.8 SEER2208-230V
Leave a Review
$3,902.27
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Rated
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.

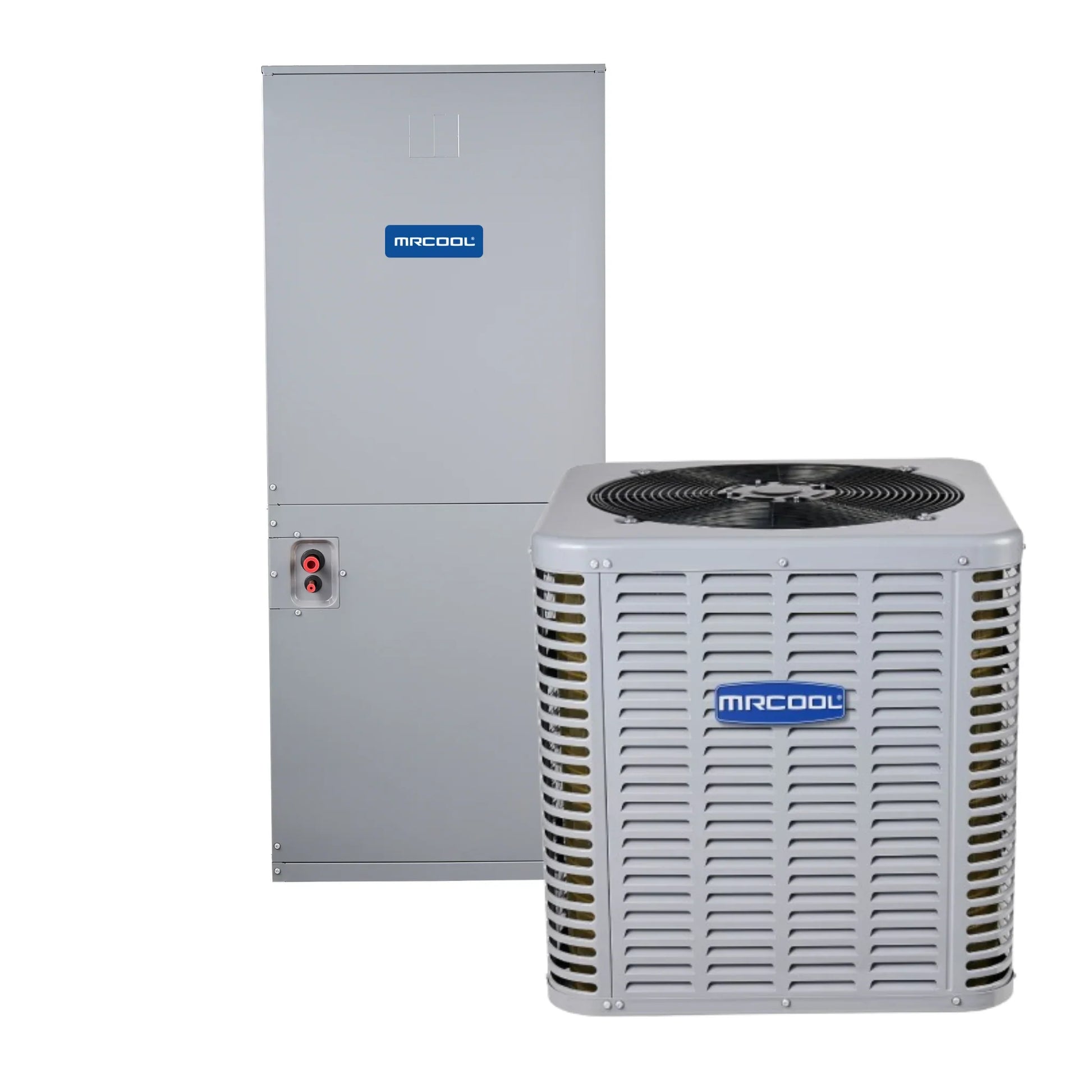

MRCOOL — Signature Series Split System (Air Handler + Cooling-Only Condenser)

MRCOOL® Signature Series 60K (5 Ton) Split AC System — MCAEAMPEF60E21AA + MCAESAS4T6021AA

Overview

60K Class5 TonUp to 13.8 SEER211.2 EER2R-454BCooling OnlyMulti-Position Air HandlerUpflow / Downflow / HorizontalECM BlowerAHRI Certified10-Year Parts Warranty

TheMRCOOL® Signature Series 60Ksplit system pairs amulti-position air handlerwith acooling-only condenserfor high-capacity residential cooling. This 5-ton class setup usesR-454B refrigerantand features larger refrigeration piping with a7/8" suction line. The air handler supportsupflow, downflow, and horizontalinstalls for flexible placement.

Highlights

  • Multi-position install:Air handler supportsupflow, downflow, and horizontalconfigurations for flexible layouts.
  • ECM airflow performance:Air handler uses a high-efficiencyECM blower(5 speeds) for strong, steady airflow and quieter operation.
  • High-capacity cooling:Condenser is rated5 tonwith55,000 BTUlisted cooling capacity.
  • Modern refrigerant platform:System usesR-454B(low-GWP refrigerant).
  • Long-line capable:Condenser lists up to150 ftmaximum line set length.
System Size
5 Ton (60K Class)
Efficiency
Up to 13.8 SEER2
Line Sizes
3/8" Liquid • 7/8" Suction
Max Line Set
150 ft

Sizing and performance depend on installation, duct design, and load. Manual J sizing is recommended.

What’s Included

  • Multi-Position Air Handler:MCAEAMPEF60E21AA
  • Cooling-Only Condenser:MCAESAS4T6021AA
  • Documentation (see Documents & Downloads)

Indoor Specs

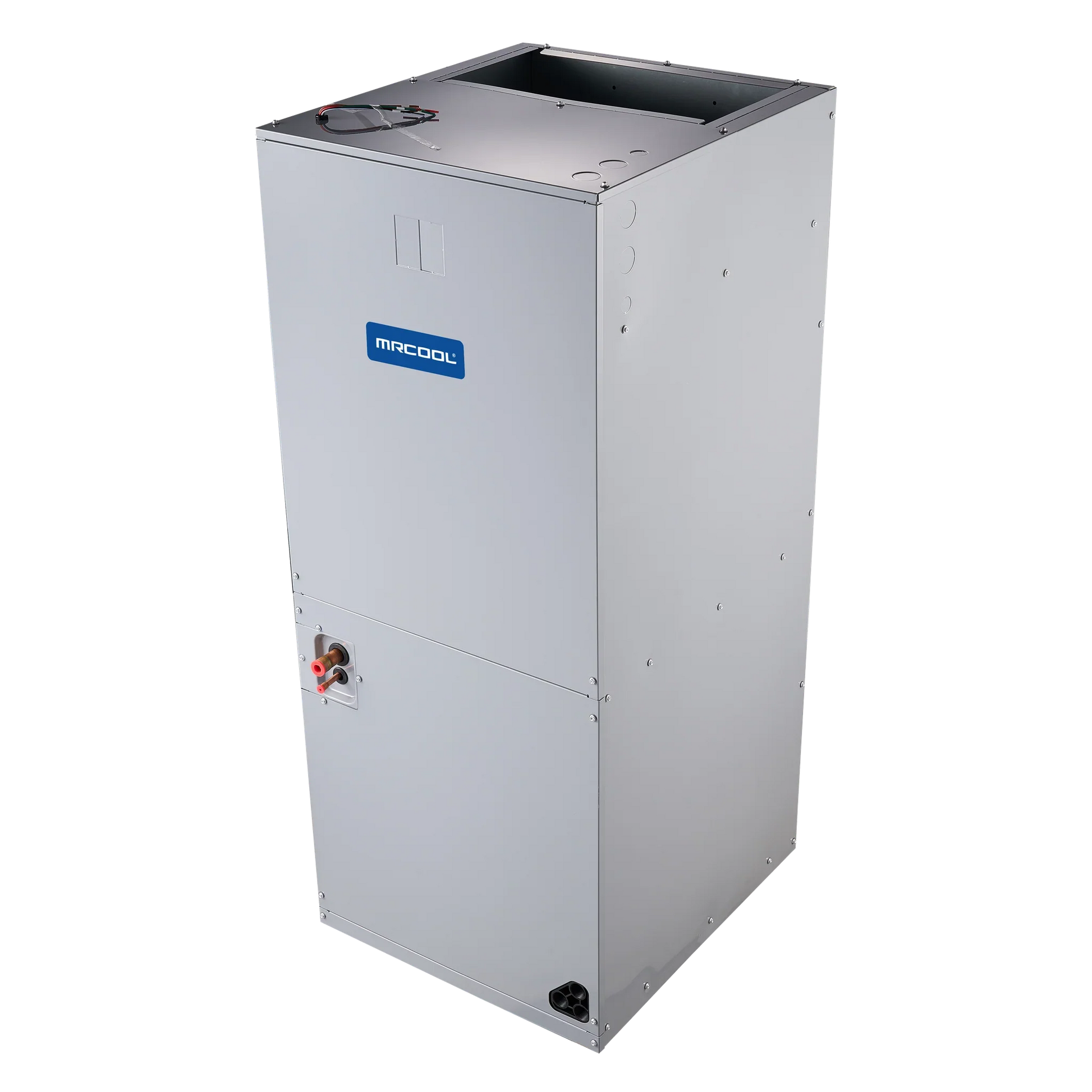

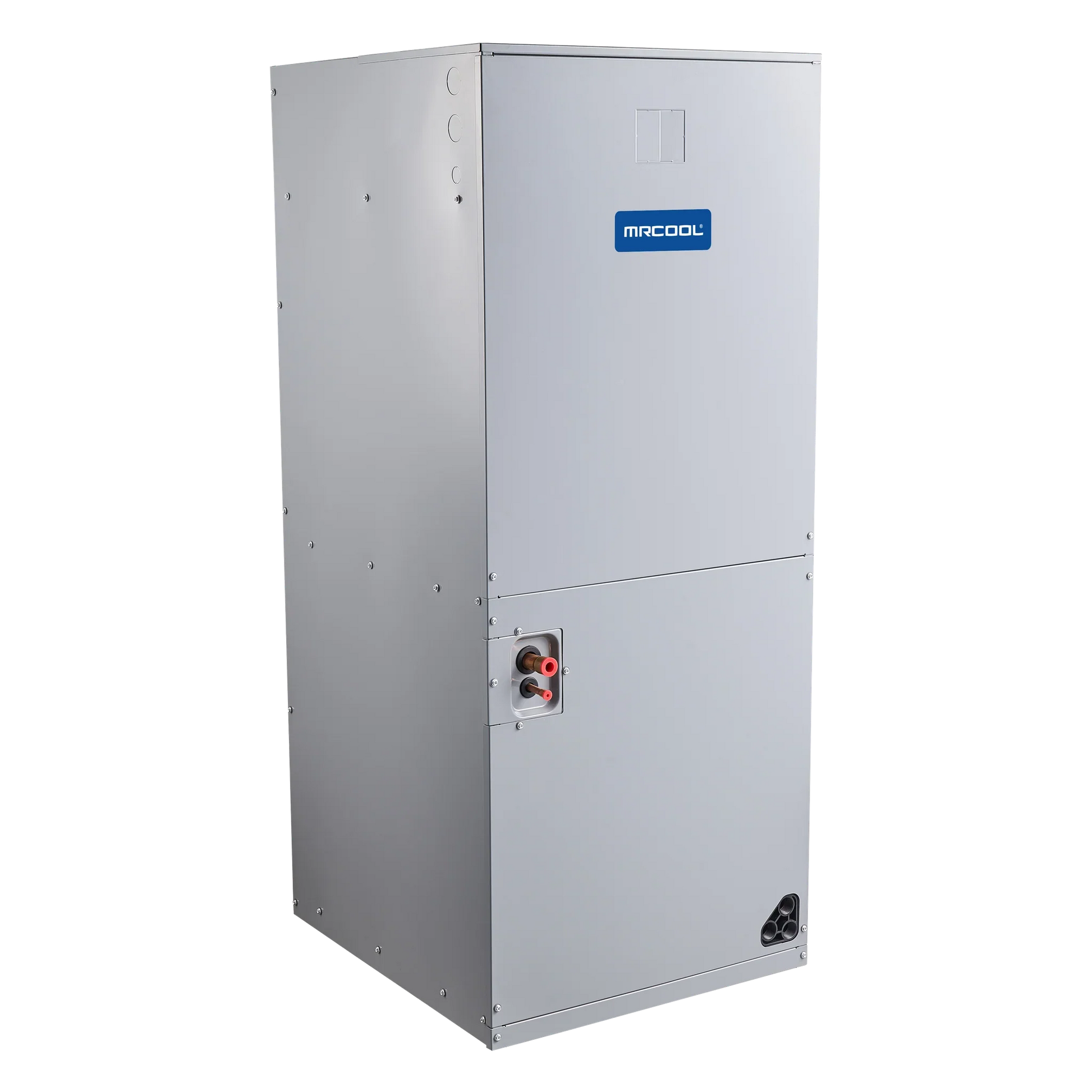

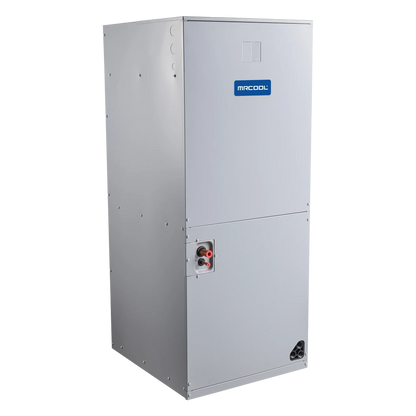

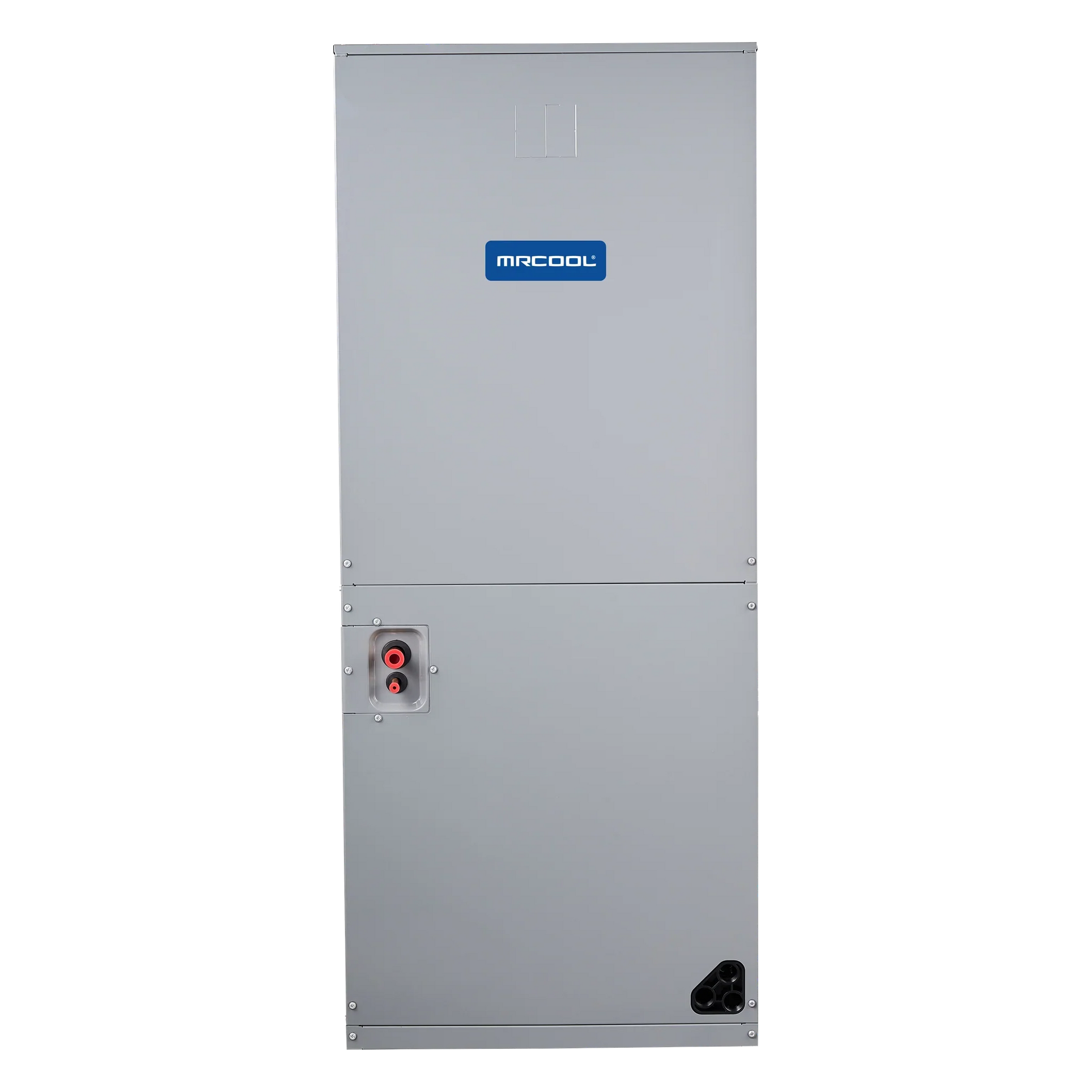

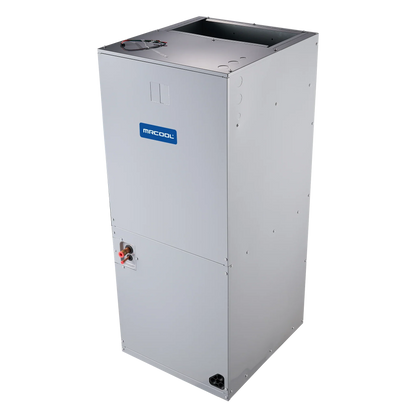

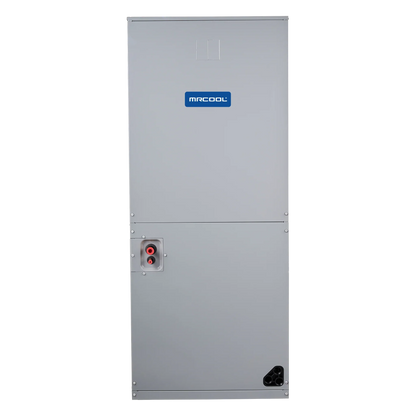

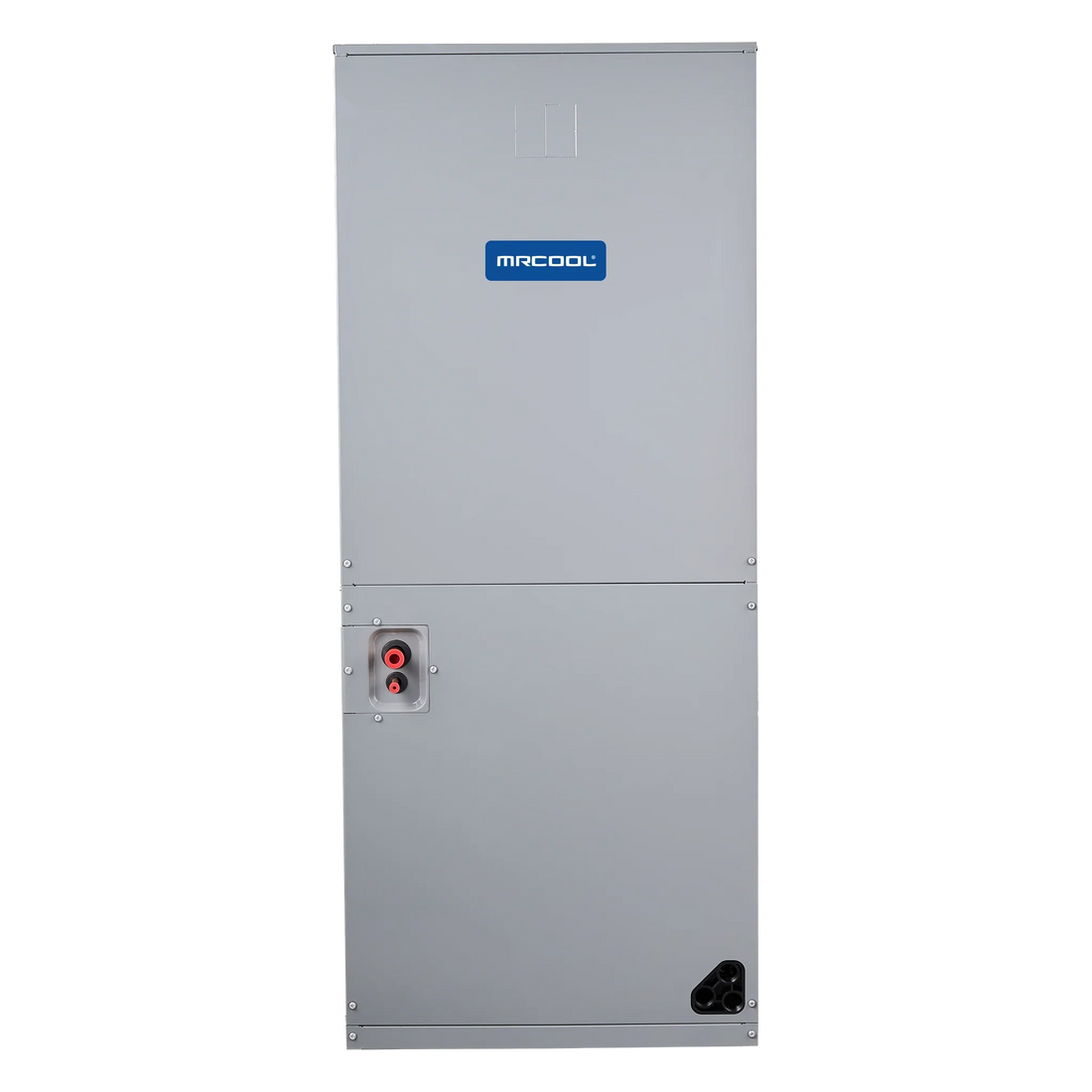

Model:MCAEAMPEF60E21AA (Signature Series Multi-Position Air Handler)

Unit Type Air Handler
Configuration / Mount Multi-Position (Upflow / Downflow / Horizontal)
Tonnage 5 Ton
Airflow (CFM) 1549
Sound 57 dB(A)
Refrigerant R-454B
Metering Device Orifice
Drain Connection Size 3/4"
Line Sizes Liquid 3/8" • Suction 7/8"
Blower Motor Type ECM
Blower Motor 3/4 HP • 5 Speeds • 1010 RPM
Filter Replaceable • 20" × 24" × 1"
Electrical 208/230V • 1-Phase • 60 Hz
Min Circuit Ampacity (MCA) 7.2A
Max Fuse / Breaker 10A
Aux Heat Not included • Optional heat kit available (5 kW, 7.5 kW, 10 kW)
Certifications UL Listed • CSA Listed • ETL Listed • AHRI Certified
Color Grey
Dimensions (W×D×H) 22" × 24.5" × 53.125"
Net Weight 170 lb
GTIN / UPC GTIN 00840255595902 • UPC 840255595902
Proposition 65 Yes

Designed to work withSignature Series top discharge condensersand most third-party thermostats.

Outdoor Specs

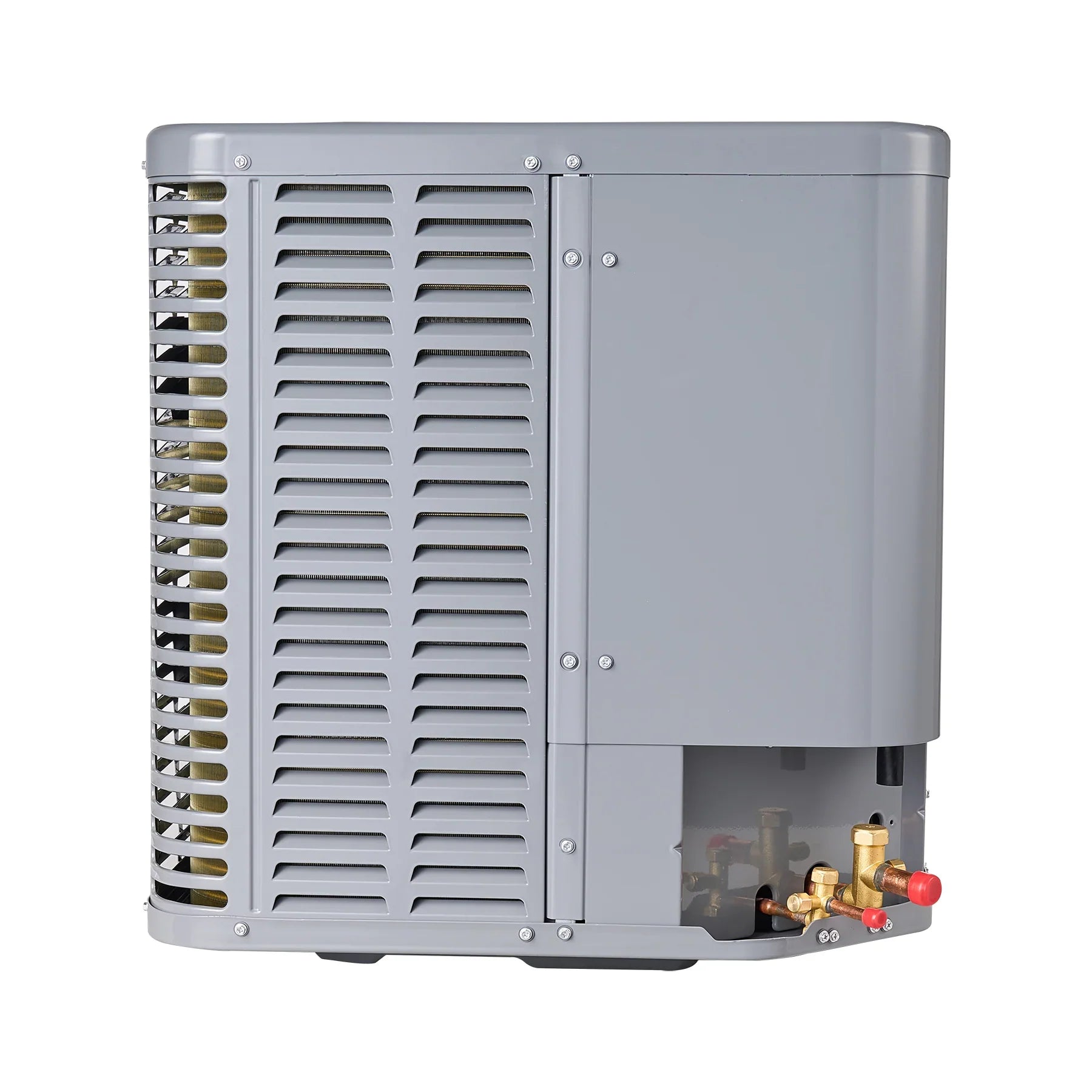

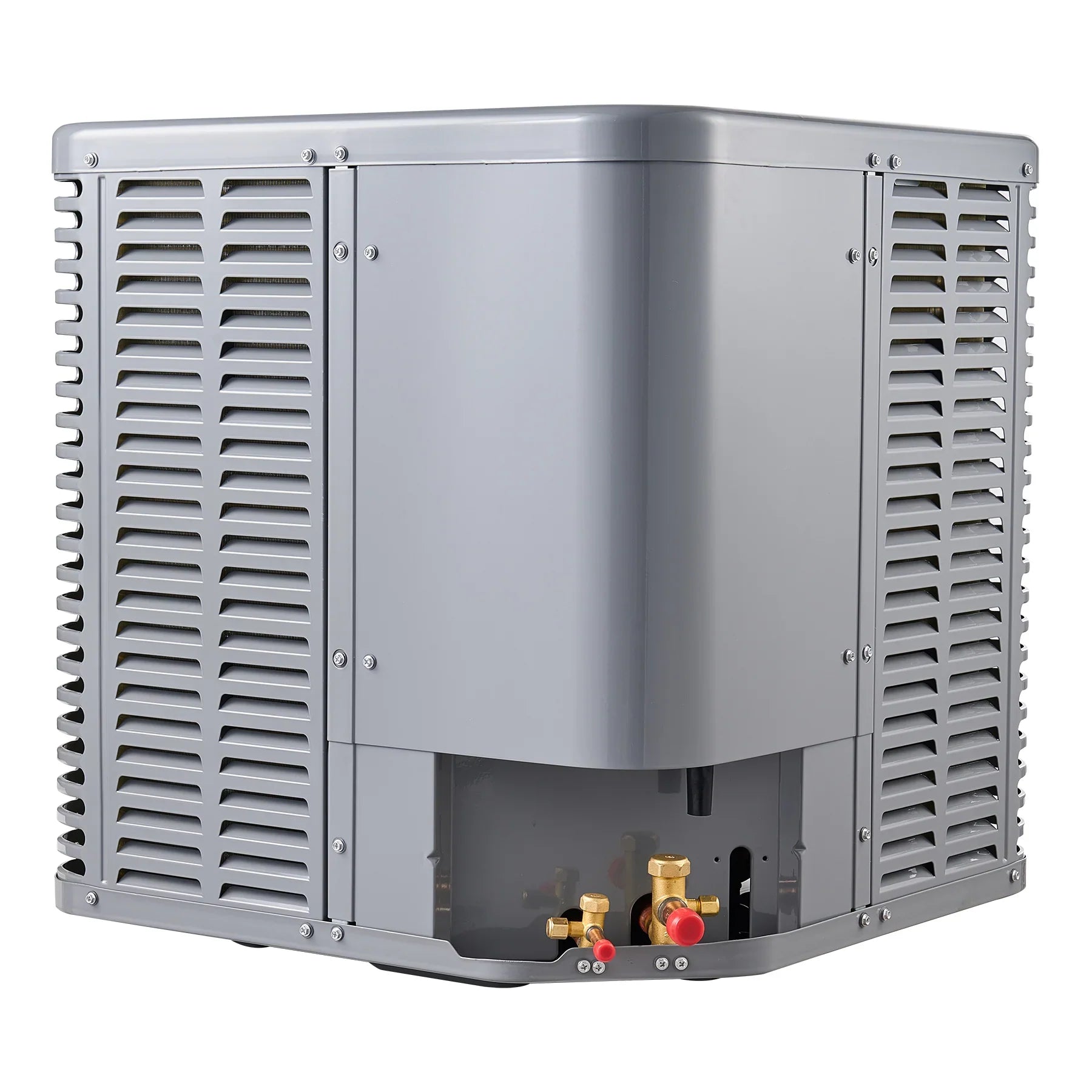

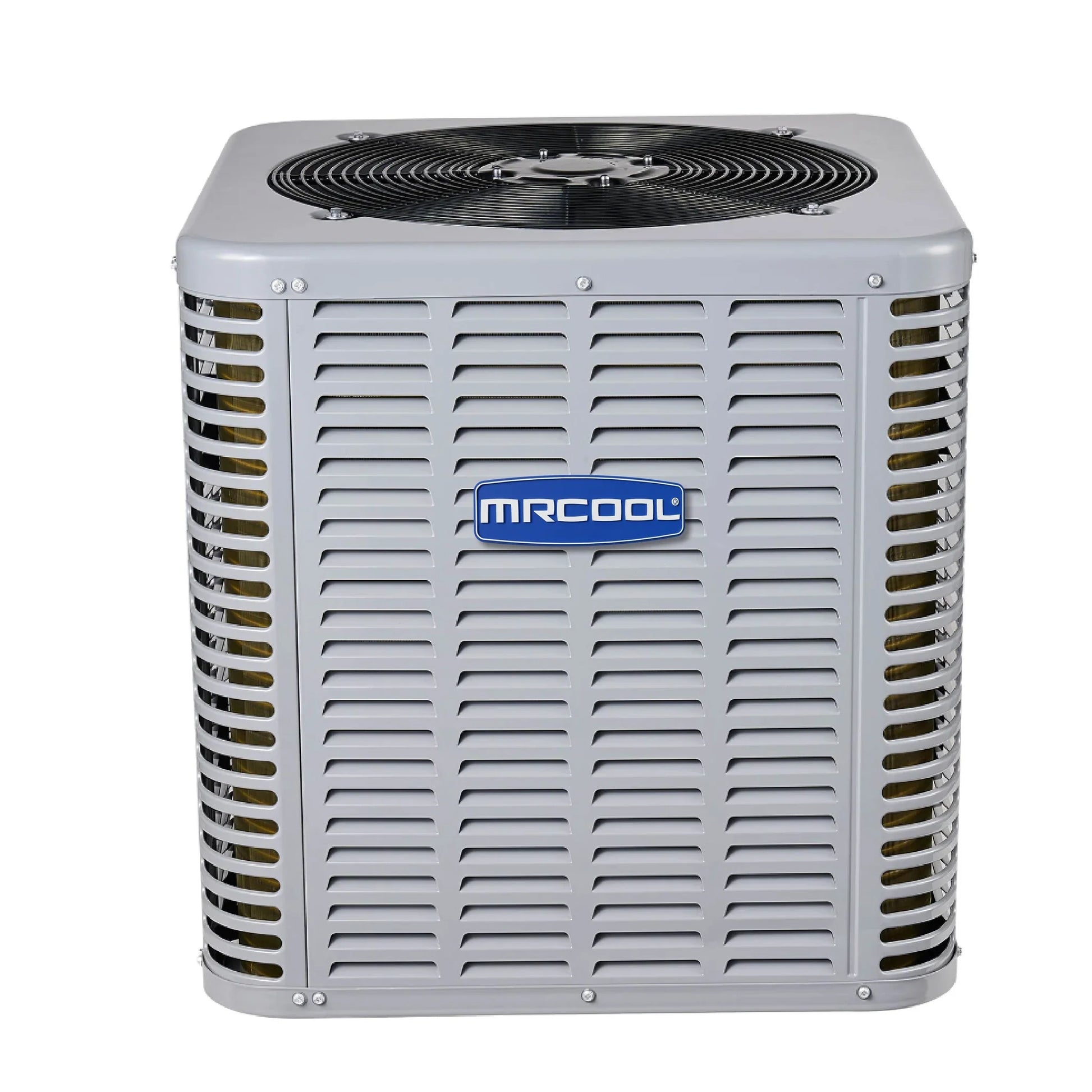

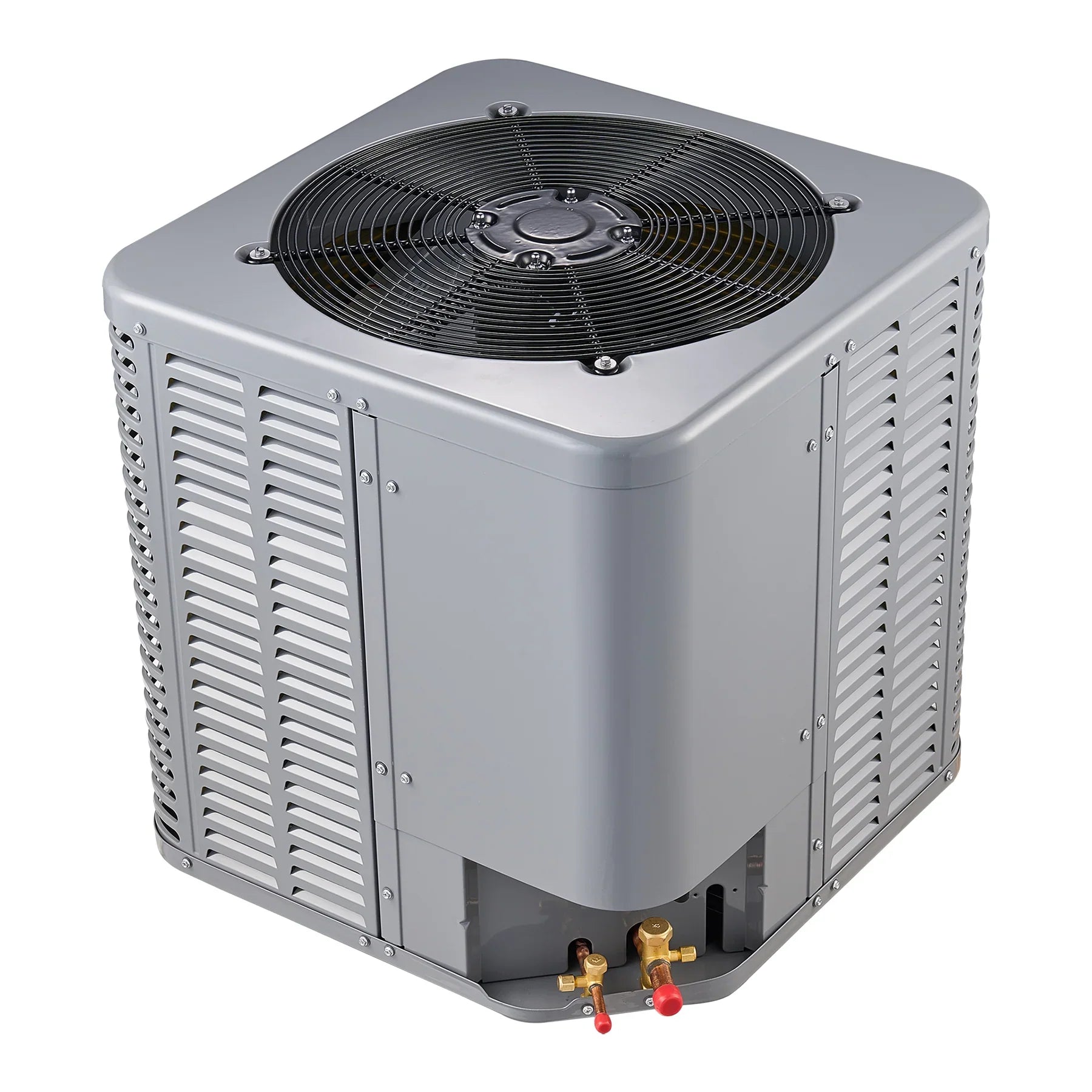

Model:MCAESAS4T6021AA (Signature Series Split System AC Condenser — Cooling Only)

Unit Type Split System AC Condenser (Cooling Only)
Tonnage 5 Ton
Cooling Capacity 55,000 BTU
Efficiency 13.8 SEER2 • 11.2 EER2
Airflow (CFM) 4000
Sound 65 dB(A)
Inverter No
Min Ambient Cooling 59°F
Refrigerant R-454B • 121.7 oz
Max Line Set Length 150 ft
Line Sizes Liquid 3/8" • Suction 7/8"
Compressor Scroll
Condenser Fan Motor PSC • 1/3 HP
Electrical 208/230V • 1-Phase • 60 Hz
Min Circuit Ampacity (MCA) 37A
Max Fuse / Breaker 60A
Certifications UL Listed • CSA Listed • ETL Listed • AHRI Certified
Color Grey
Dimensions (W×D×H) 29.14" × 29.14" × 32.875"
Net Weight 206 lb
GTIN / UPC GTIN 00840255595766 • UPC 840255595766
Proposition 65 Yes

Designed to work withSignature Series Multi-PositionorStud Mountair handlers.

Documents & Downloads

Important

  • Cooling-only outdoor unit:This condenser is listed ascooling only. If you need heating via outdoor equipment, select a compatible heat pump condenser instead.
  • Line sizes:Listed as3/8" liquidand7/8" suction; confirm routing and any long-line requirements in the installation manual.
  • Line set length:Condenser lists up to150 ftmaximum line set length; verify long-line accessories/requirements in the install manual.
  • Electrical:Both components are208/230V, 1-phase, 60 Hz. Verify breaker/fuse sizing per install manual and local code.
  • Air handler orientation:Supportsupflow, downflow, and horizontalinstallation; configure condensate management for the selected position.
  • Optional heat kits:Supported sizes listed as5 kW,7.5 kW, and10 kW(sold separately).

FAQs

Is this a heat pump system?

No. The outdoor unit in this pairing is acooling-onlycondenser. Heating requires a different outdoor unit (heat pump) or an indoor heat source such as an optional electric heat kit.


What installation positions does the air handler support?

The air handler ismulti-positionand supportsupflow, downflow, and horizontalconfigurations.


What refrigerant and line sizes does it use?

Refrigerant is listed asR-454B. Line sizes are3/8" liquidand7/8" suction.


What is the maximum line set length?

The condenser lists a maximum line set length of150 ft.


What warranty coverage is included?

Warranty is listed as10-year limited parts, withlimited compressorcoverage referenced for the outdoor unit.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
