A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

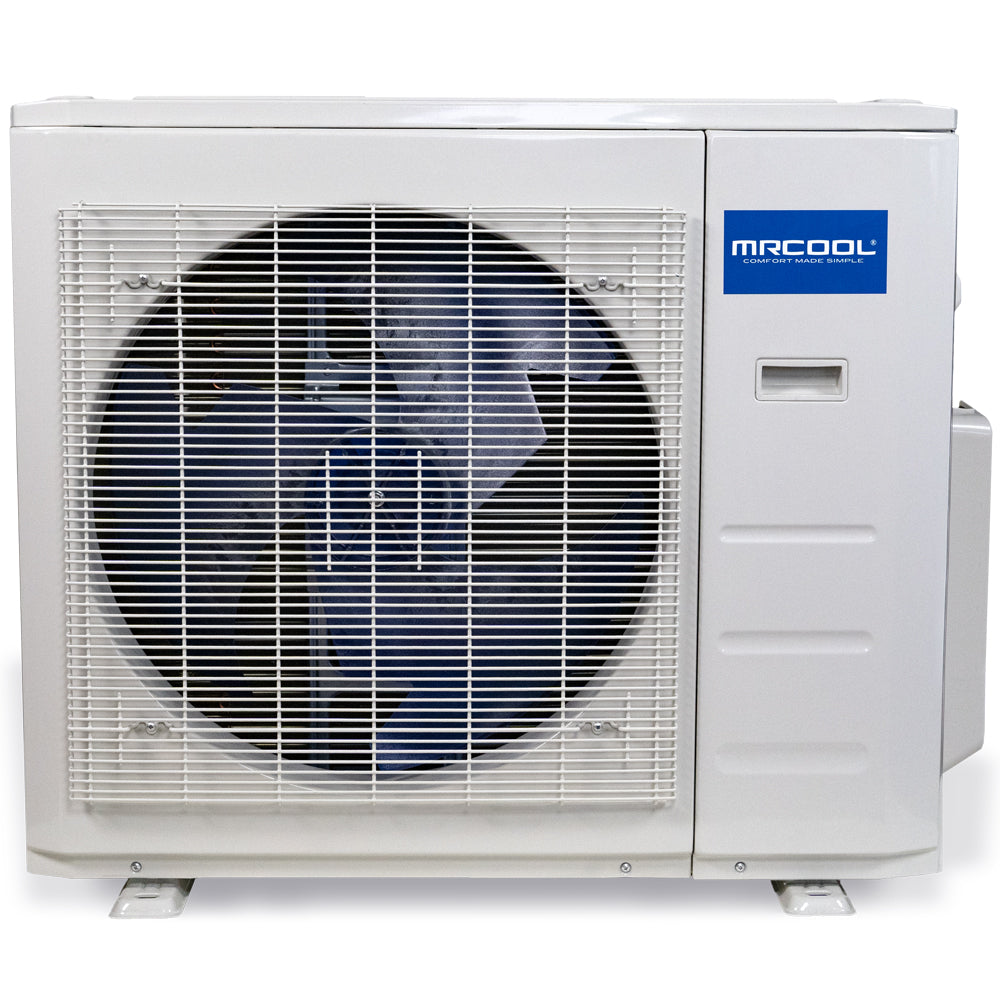

The MRCOOL® Olympus MULTI4-27HP230C-O is a powerful 27,000 BTU multi-zone heat pump condenser capable of supporting up to four indoor units at once. Ideal for homeowners aiming to maintain precise temperature control in multiple areas, this ductless system allows for customized climate settings in each zone, offering a versatile and energy-smart solution for today's homes. Engineered with advanced inverter technology, it boasts impressive energy efficiency—reaching SEER2 ratings up to 25 and HSPF2-4 up to 9.5. Designed to perform in a wide range of outdoor temperatures, this unit remains reliable even in cold weather down to 5°F, delivering year-round comfort. It's also compatible with a variety of MRCOOL indoor unit types, including wall-mounted, ceiling cassette, and concealed duct options, making it easy to tailor the system to your home's design and needs. Convenience is built in, with smart control options like the MRCOOL SmartHVAC app, handheld remotes, or voice control via Amazon Alexa and Google Assistant. Additional features such as sleep mode, auto restart, and refrigerant leak detection provide added safety, ease of use, and peace of mind. Covered by a 7-year compressor warranty and a 5-year parts warranty (when professionally installed), the MRCOOL® Olympus MULTI4-27HP230C-O is a dependable, high-efficiency choice for those seeking flexible, zone-specific heating and cooling.
Installation by a licensed professional required where applicable. Register your product to activate warranty coverage. This condenser contains R-454B refrigerant, which is classified as an A2L refrigerant. Installation must comply with all applicable safety standards and local codes. Failure to comply with these requirements may result in safety hazards and could void the warranty.
| Brand | MRCOOL |
| Series | Olympus 4th Gen Multi-Zone Condensers |
| Model | MULTI4-27HP230C-O |
| UPC | 840255587792 |
| GTIN | 00840255587792 |
| Unit Type | Mini-Split Heat Pump Condenser |
| Certifications | UL Listed, CSA Listed, ETL Listed, AHRI Certified, Energy Star Certified |
| Cooling Capacity | 27,000 BTU (2.25 Ton) |
| Heating Capacity | 27,000 BTU |
| Efficiency Ratings | Up to 25 SEER2, Up to 13 EER2 |
| Heating Efficiency | Up to 9.5 HSPF2-4, Up to 7 HSPF2-5 |
| Refrigerant | R-454B (84.66 oz) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Min Circuit Ampacity | 23A |
| Max Fuse Breaker | 25A |
| Compressor Type | Rotary |
| Condenser Fan Motor | DC, 800/700/650 RPM |
| Sound Rating | 61 dBA |
| Min Ambient Heating | 5°F |
| Max Total Lineset Length | 262.4 ft |
| Liquid Line Size | 4 x 1/4" |
| Suction Line Size | 3 x 3/8" + 1 x 1/2" |
| Line Set Connection | Flare |
| Net Dimensions (HxWxD) | 31.89" x 37.24" x 16.14" |
| Net Weight | 138.89 lbs |
| Shipping Dimensions | 34.84" x 42.91" x 19.68" |
| Shipping Weight | 149.69 lbs |
| Compatible Equipment | Various MRCOOL Olympus indoor units (Wall-mounted, Ceiling Cassette, Concealed Duct) |
| Compressor Technology | Advanced DC Inverter with Rotary compressor |
| Refrigerant | Eco-friendly R-454B with lower global warming potential |
| Noise Reduction | Quiet operation (61 dBA) |
| Smart Features | MRCOOL SmartHVAC App, Amazon Alexa, Google Assistant compatibility |
| Zone Capacity | Supports up to 4 individual indoor zones |
| Extended Installation | Supports up to 262.4 ft total line set length for flexible placement |
| Max Coverage Area | Up to 1,125 sq ft |
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
The MRCOOL Olympus 4th Gen Multi-Zone Condenser features advanced DC inverter technology with a rotary compressor designed for maximum efficiency and reliable operation. The system delivers exceptional energy performance with SEER2 ratings up to 25 and HSPF2 ratings up to 9.5, providing both efficient cooling and heating capabilities. Smart control options including the MRCOOL SmartHVAC app and voice command compatibility with Amazon Alexa and Google Assistant offer modern convenience and precise temperature management. With its multi-zone capability supporting up to four indoor units, this system provides customized comfort solutions for different areas of your home, making it ideal for larger residential applications.
This multi-zone heat pump condenser simplifies installation with its pre-charged R-454B refrigerant system and flare connection fittings. The unit supports extended total line set lengths up to 262.4 feet, providing maximum flexibility for various installation scenarios. The compact cabinet design allows for efficient placement while maintaining the sophisticated technology within. The system is designed to work with various MRCOOL Olympus indoor units including wall-mounted, ceiling cassette, and concealed duct options for complete system compatibility. With its high efficiency ratings, quiet operation at 61 dBA, and ability to heat in temperatures as low as 5°F, this multi-zone condenser is an ideal solution for homeowners seeking comprehensive zoned comfort with modern smart features across multiple rooms.
Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
