MRCOOL DIY 5th Gen OuttaSight 18K BTU 230V One-Way Ceiling Cassette System with 18K Condenser (DIYCASSETTE18HP-230D25-O + DIY-18-HP-C-230D25-O)
Summary
The MRCOOL® DIY® 5th Generation OuttaSight® Ceiling Cassette System combines innovative design with DIY-friendly installation. This complete system includes the 18K BTU ceiling cassette and the matching 18K BTU condenser, providing efficient climate control for areas up to 800 sq. ft.
The ceiling cassette is designed to fit seamlessly between 16" ceiling joists, including pre-manufactured I-joists, ensuring a flush, modern appearance. With pre-charged Quick Connect® line sets and no need for vacuuming, this system eliminates the traditional complexities of mini-split installation. The system uses eco-friendly R-454B refrigerant and offers multiple control options including wireless remote, SmartHVAC app, and compatibility with Amazon Alexa and Google Assistant.
Key Features:
- DIY Installation: No specialized tools or professional help required with pre-charged Quick Connect line sets
- Low Profile Design: Fits between standard 16" ceiling joists for flush installation
- 22.5 SEER2 Efficiency: High efficiency operation for significant energy savings
- Smart Control Ready: Compatible with SmartHVAC app, Amazon Alexa, and Google Assistant
- Quiet Operation: As low as 26 dB(A) for undisturbed comfort
- Advanced Filtration: Improves indoor air quality with reusable filters

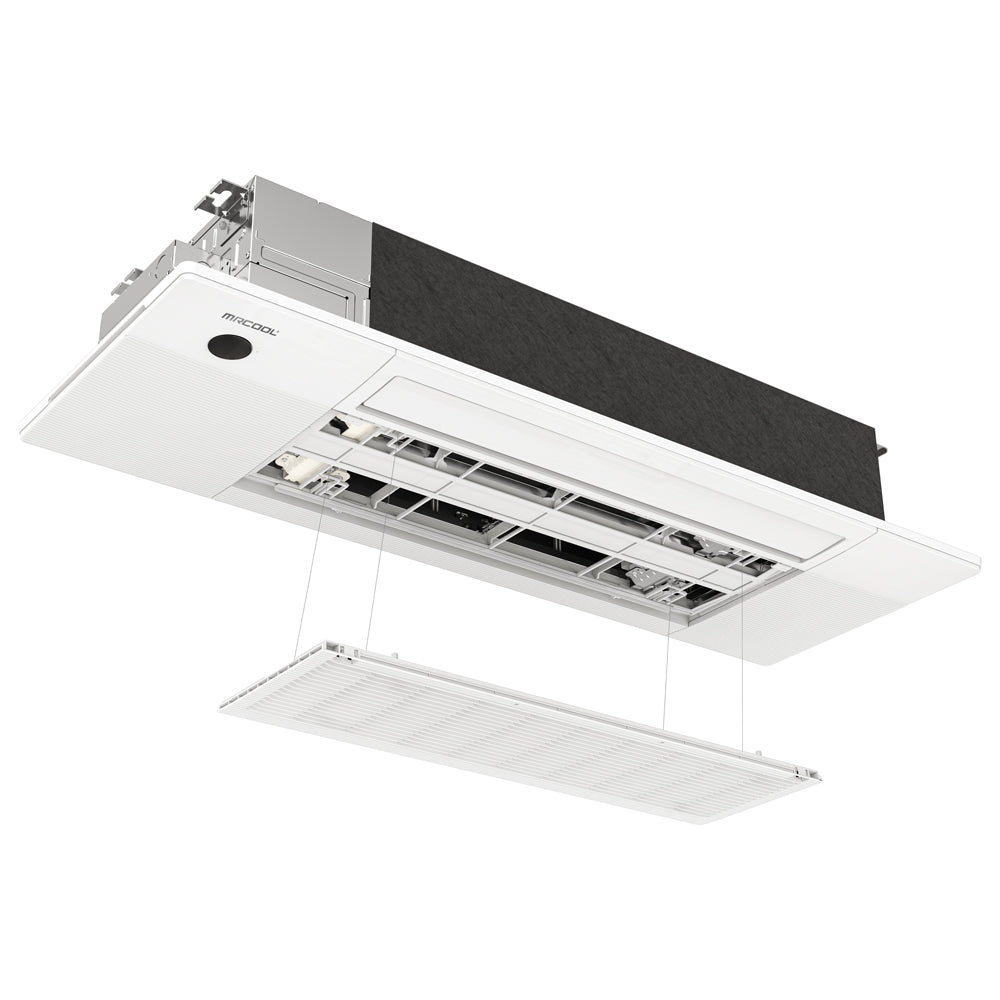

- Elevation Function: Filter panel lowers for easy maintenance and cleaning
- Gold Fin Condenser: Enhanced corrosion resistance for durability
Important
While this is a DIY system, proper installation is crucial for optimal performance. Registration is required for warranty validation. The system comes with a pre-charged 25-ft line set - additional length requires professional assistance.
What's Included

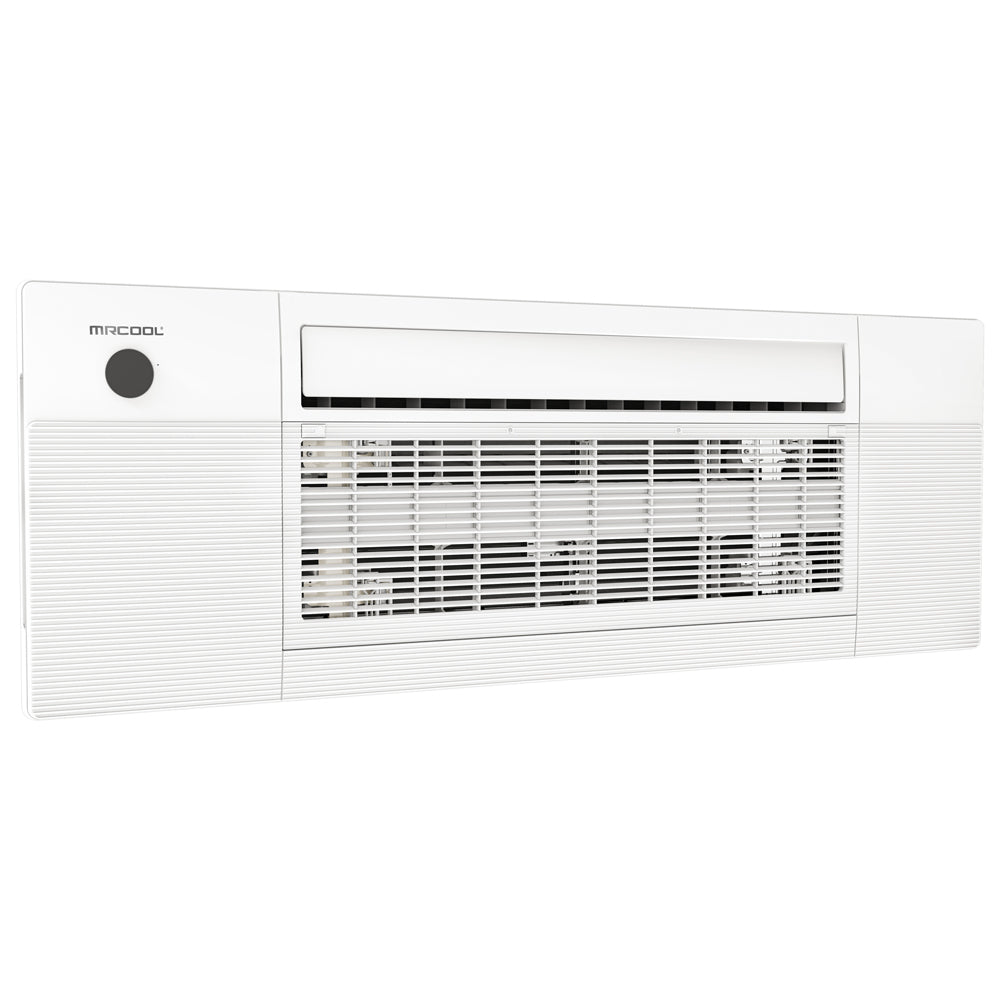

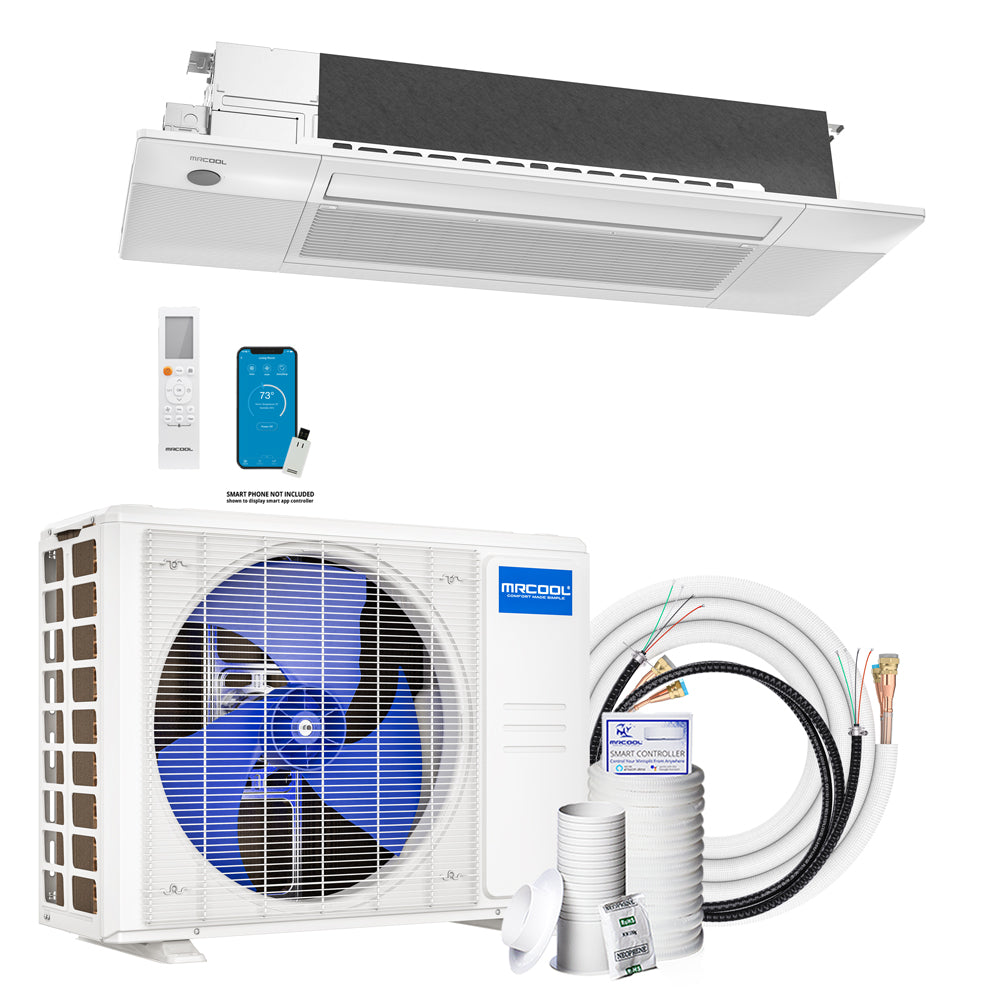

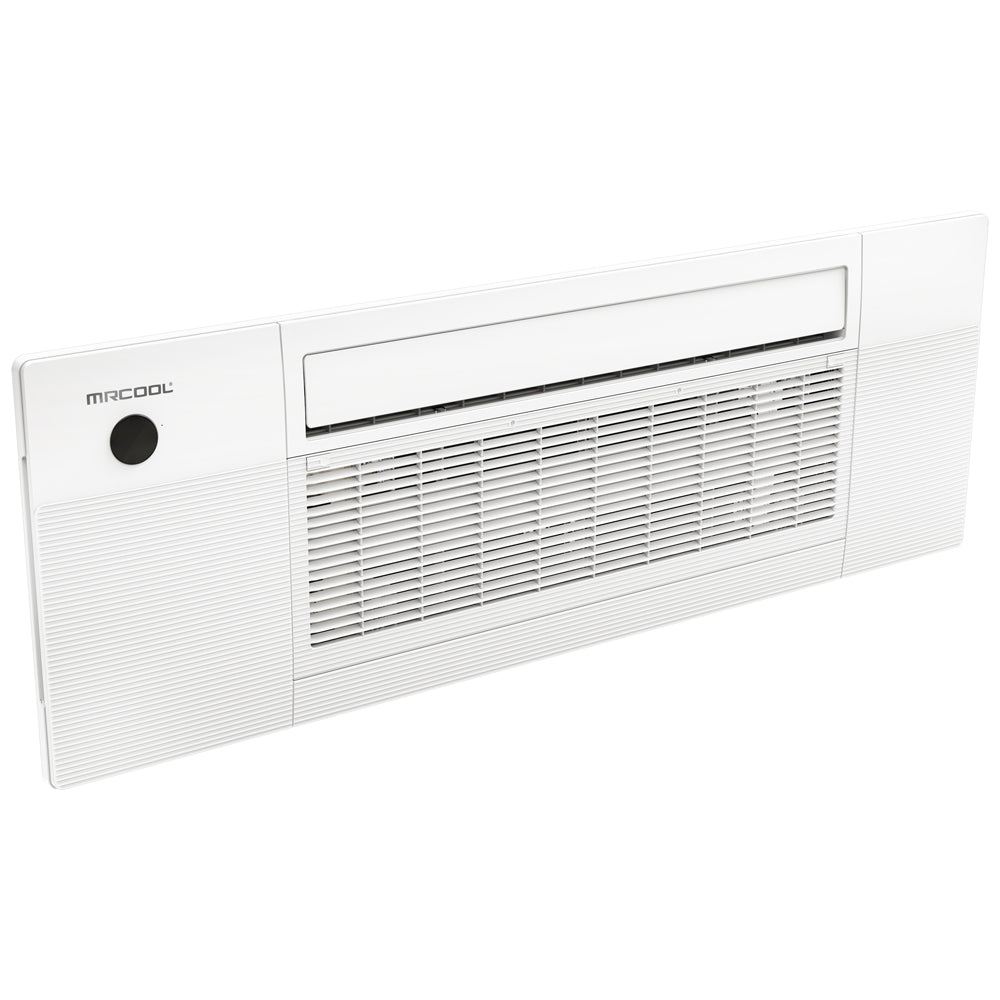

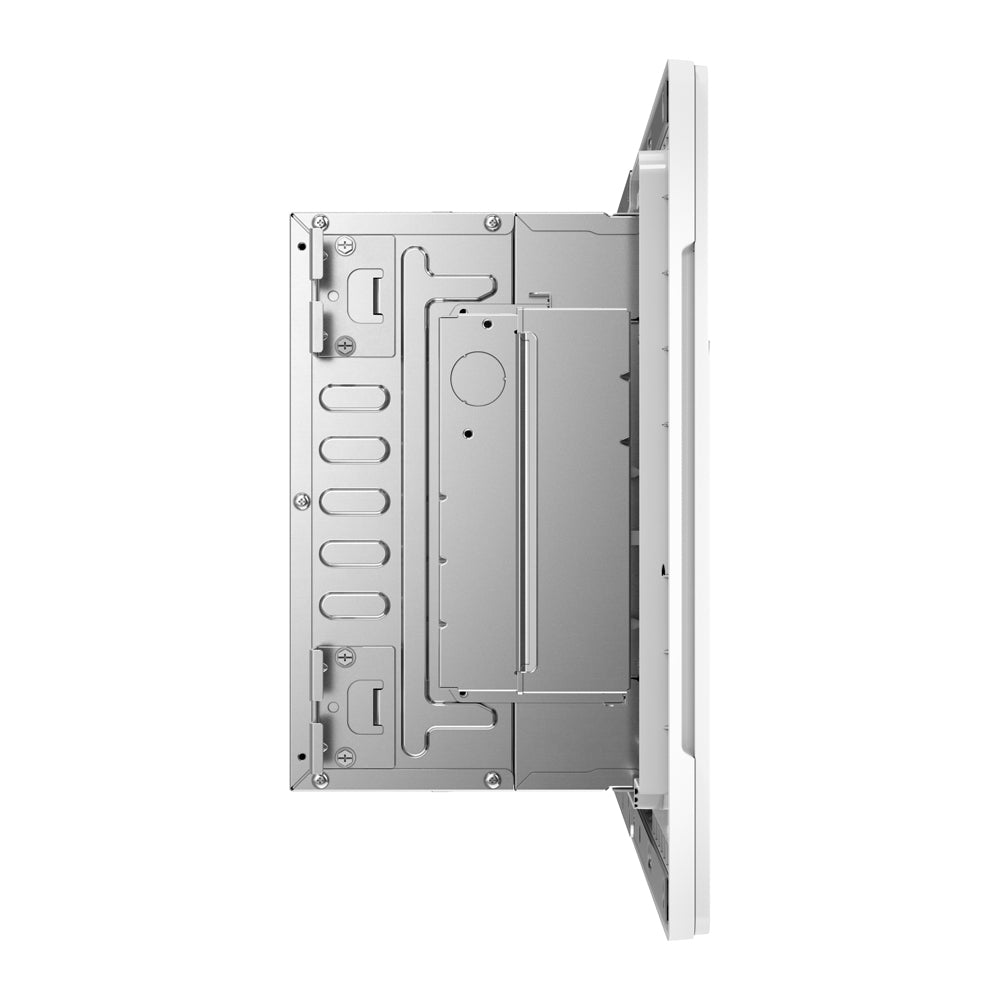

- Indoor Unit: DIYCASSETTE18HP-230D25-O (18,000 BTU OuttaSight One-Way Ceiling Cassette)
-

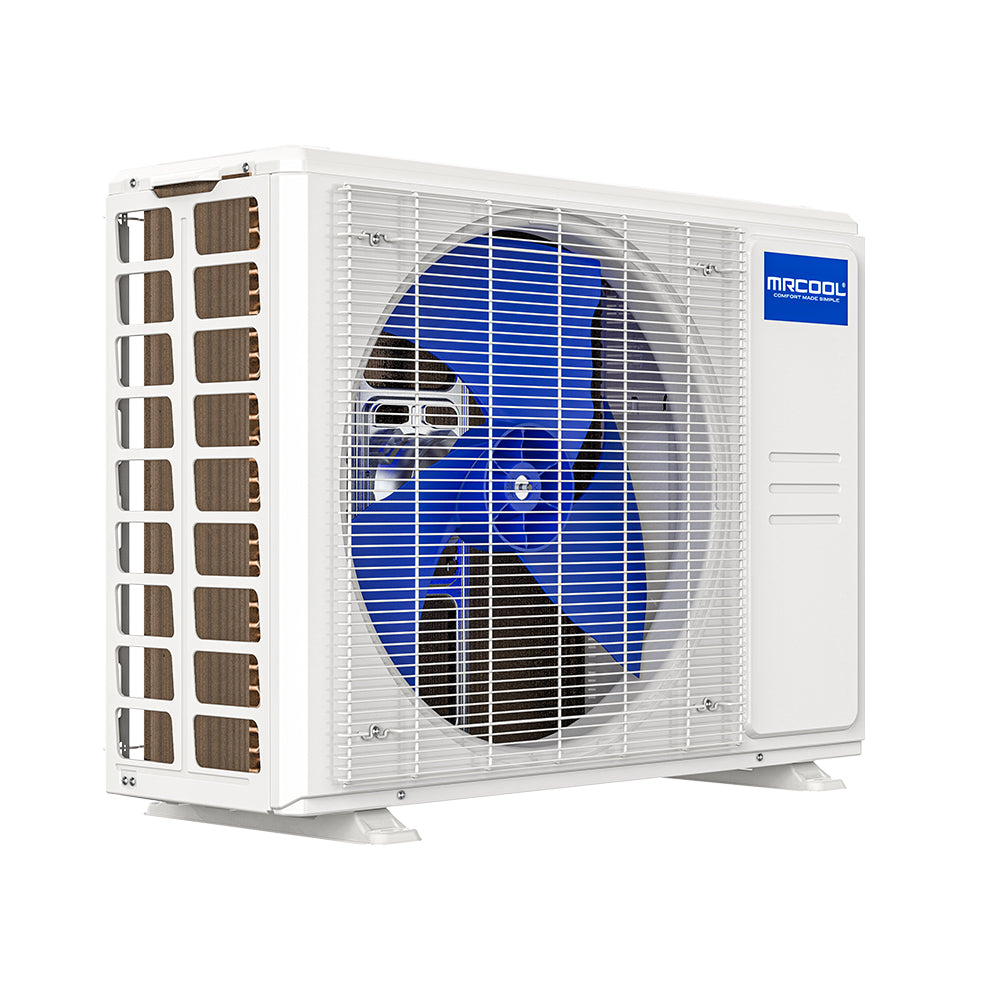

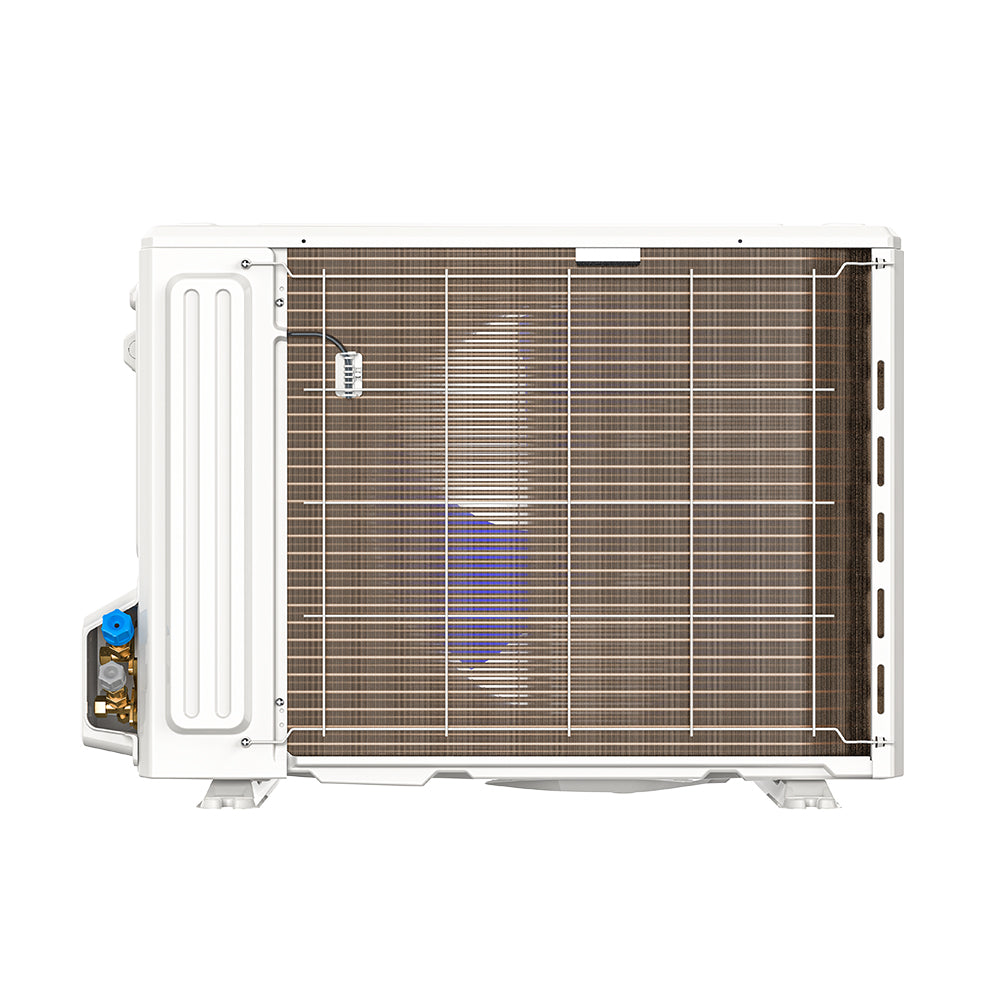

Outdoor Unit: DIY-18-HP-C-230D25-O (18,000 BTU DIY 5th Gen Condenser)
- DIYPRO® Protection Cable
- Wireless Remote Control
- Installation Manual
- User's Manual
- Manufacturer Warranty Documents
Warranty
- Limited Lifetime Compressor Warranty (with registration)
- 7-year compressor limited warranty (base)
- 5-year parts limited warranty
- 1-year remote control warranty
Note: Registration required within 60 days of installation for full warranty benefits.
Technical Information
Indoor Model Number: DIYCASSETTE18HP-230D25-O
| Indoor Model | DIYCASSETTE18HP-230D25-O | ||
| Power Supply | Rated | V, Ph, Hz | 208/230,1,60 |
|
Rated Capacity
|
Cooling | Btu/h | 18,800 |
| Heating | Btu/h | 22,700 | |
| Minimum Circuit Ampacity (MCA) | A | 3 | |
| Max. Fuse | A | 15 | |
| Indoor Air Flow (Hi/Mi/Lo) | CFM | 400/352/300 | |
| Indoor Noise Level (Hi/Lo) | dB(A) | 44/26 | |
|
Indoor
|
Dimensions | inch | 50.31x13.19x8.98 |
| Packing | inch | 57.60x22.48x22.64 | |
| Net/Gross Weight | lbs. | 45/88 | |
|
Room temperature
|
Cooling | °F | 60-90 |
| Heating | °F | 32-86 | |
| Liquid Side/Gas Side | Inch | 1/4"/1/2" | |
Outdoor Model Number: DIY-18-HP-C-230D25-O
| Outdoor Model | DIY-18-HP-C-230D25-O | ||
|
Power Supply
|
Rated | V, Ph, Hz | 208/230,1,60 |
| Voltage Range | V | 187-253 | |
|
Cooling
|
Rated Capacity (Range) | Btu/h | 5,300-18,000 |
| Rated Current | A | 6.1 | |
| EER2 | Btu/h | 13.7 | |
| SEER2 | Btu/h | 22.5 | |
|
Heating at 47°F
|
Rated Capacity (Range) | Btu/h | 7,100-18,000 |
| Rated Current | A | 7.2 | |
| COP | W/W | 3.36 | |
| HSPF2-4 | 11.5 | ||
| HSPF2-5 | 8.5 | ||
| Minimum Circuit Ampacity | A | 18 | |
| Max. Fuse (Outdoor Unit) | A | 20 | |
| Outdoor Air Flow (Max.) | CFM | 1765.8 | |
| Outdoor Noise Level (Sound Pressure) | dB(A) | 58.5 | |
| Dimension (W×D×H) | inch | 35.04x13.46x26.50 | |
| Packing (W×D×H) | inch | 39.17x15.67x29.13 | |
| Net/Gross Weight | lbs. | 93.48/114.2 | |
| Refrigerant Type / Charge | oz. | R-454B/44.8 | |
| Refrigerant Precharge Length | ft. | 25 | |
| Additional Charge for Each ft. | oz/ft | 0.16 | |
| Design Pressure | PSIG | 550/340 | |
| Refrigerant Piping Liquid Side/Gas Side | inch | 1/4"/1/2" | |
| Max. Pipe Length | ft. | 98.4 | |
| Max. Difference in Level | ft. | 65.6 | |
|
Ambient Temperature
|
Cooling | °F | -13-122 |
| Heating | °F | -13-75 | |
|
Certifications
|
ETL | TRUE | |
| AHRI | TRUE | ||
| Energy Star | TRUE | ||
| UL Listed | TRUE | ||
Certifications
Performance Data/Features
- Follow Me® Function - Remote control tracks temperature around you
- Auto-restart after power outage
- Anti-mildew function
- Multiple fan speeds
- Sleep mode
- Timer function
- Quiet mode
- Auto mode operation
- Swing technology for air distribution
- Turbo mode for rapid cooling/heating
- Works with multi and single zone systems
- Two-Stage DC motor for efficient operation
Manuals & Downloads
