DIY 5th Gen Multi-Zone Series
MRCOOL DIY 5th Gen 6-Zone | 55,000 BTU Multi-Zone 230V (R454B) – One-Way Ceiling Cassettes
$12,125.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 9K room setups:
- Small bedrooms
- Home offices
- Nurseries
- Small additions
- 18,000 BTU
- Cooling
- 18,000 BTU
- Heating
- See specs
- Quiet Inside
- High
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
MrCool
- Support Number
- (270)366-0457
- Official Site
- MrCool Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
MRCOOL DIY 5th Gen 6-Zone | 55,000 BTU Multi-Zone, 230V (R454B) – One-Way Ceiling Cassettes
DIY multi-zone comfort for six rooms. One-way ceiling cassettes, Quick-Connect pre-charged lines, smart app control, and up to22 SEER2efficiency.
5th Gen DIY
55,000 BTU
Up to 6 Zones
Up to 22 SEER2
R454B Refrigerant
Quick-Connect Linesets
Alexa & Google
7-yr Compressor / 5-yr Parts*
Why homeowners love it
- True DIY install:No vacuum pump—use MRCOOL DIY Quick-Connect pre-charged lines.
- Whole-home zoning:Six cassette air handlers target rooms individually.
- Smart control:SmartHVAC app plus voice control with Alexa/Google.
- All-season comfort:Efficient cooling, dependable heat, and dehumidify mode.
- Quiet & efficient:DC inverter, washable filters, low-ambient cooling.
At-a-glance
Capacity
55,000 BTU
55,000 BTU
Efficiency
Up to 22 SEER2
Up to 22 SEER2
Zones
Supports up to 6
Supports up to 6
Refrigerant
R454B
R454B
Watch: How DIY works
What’s included

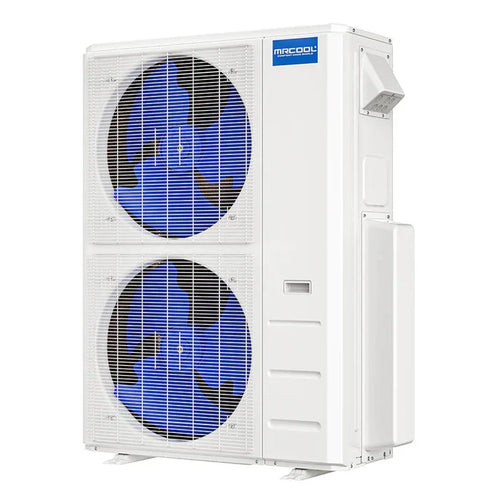

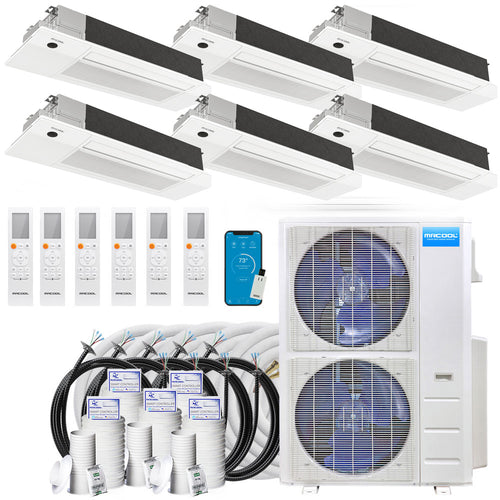

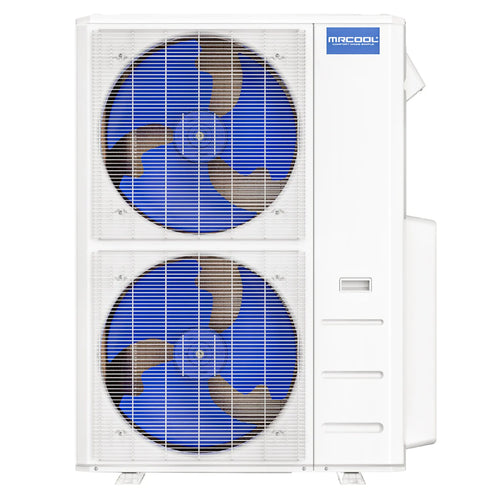

- (1) Outdoor condenser:DIY-MULTI6-55HP230D-O

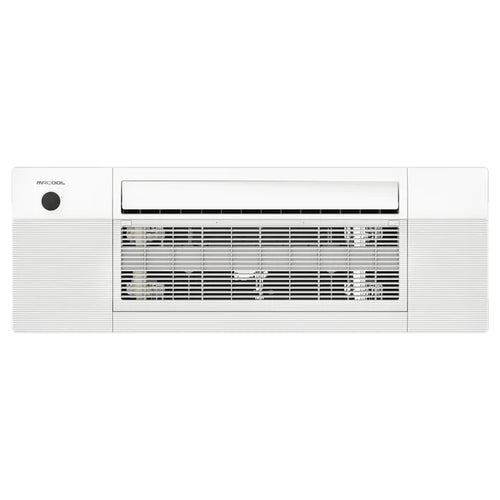

- Indoor cassettes:6k ×2 (DIYCASSETTE06HP-230D25-O), 9k ×1 (…09HP-230D25-O), 12k ×2 (…12HP-230D25-O), 18k ×1 (…18HP-230D25-O)
- (6) Wireless IR remotes with iSense temperature sensor
- DIY Quick-Connect pre-charged line sets(select installation kit to include linesets)
- Mounting accessories & manuals
Compatible with mixing cassette and wall handlers in a DIY multi-zone build.
Key features
- DIYQuick-Connectlines—no vacuum pump
- SmartHVACapp +Alexa/Googlevoice

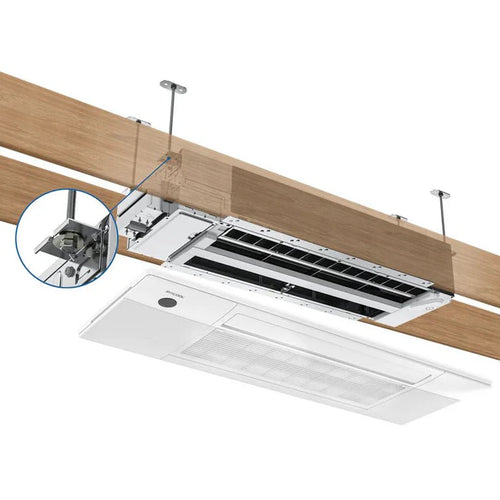

- Directional airflow per cassette for even comfort
- DC inverter,low-ambient cooling,Gold Fincondenser

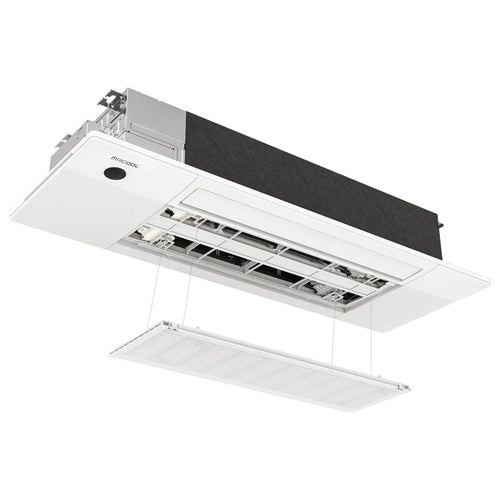

- Quiet operation withmute modeand washable filters
- Front display shows set temp & diagnostic codes
- technical support
Comfort modes
- Auto– system chooses heat/cool to hold your setpoint
- Cool / Heat– direct control for seasonal extremes
- Dry– dehumidify while maintaining temperature
- Sleep– 8-hour energy-saving profile
- Timer– schedule on/off
Warranty
Backed by a7-Year Compressor(optional compressor coverage available) and5-Year Partswarranty.
Registration and terms apply. Optional coverage may require additional registration/conditions.
Tech specs — Indoor cassettes
6,000 BTU — DIYCASSETTE06HP-230D25-O (×2)
| Mount | One-way ceiling cassette (fits 16" joists) |
|---|---|
| Voltage | 208–230V, 1-phase, 60Hz |
| Airflow (CFM) | ~235–341 |
| Sound (dB) | ~24–46 |
| Refrigerant | R454B |
| Line sizes | Liquid 1/4", Suction 3/8" |
| Controls | IR remote (iSense), SmartHVAC app, Alexa/Google |
| Filter | Reusable, washable |
9,000 BTU — DIYCASSETTE09HP-230D25-O (×1)
| Mount | One-way ceiling cassette |
|---|---|
| Voltage | 208–230V, 1-phase, 60Hz |
| Airflow (CFM) | ~235–341 |
| Sound (dB) | ~24–38 |
| Refrigerant | R454B |
| Line sizes | Liquid 1/4", Suction 3/8" |
| Controls | IR remote (iSense), SmartHVAC app, Alexa/Google |
12,000 BTU — DIYCASSETTE12HP-230D25-O (×2)
| Mount | One-way ceiling cassette |
|---|---|
| Voltage | 208–230V, 1-phase, 60Hz |
| Airflow (CFM) | ~177–353 |
| Sound (dB) | ~24–41 |
| Refrigerant | R454B |
| Line sizes | Liquid 1/4", Suction 3/8" |
| Controls | IR remote (iSense), SmartHVAC app, Alexa/Google |
18,000 BTU — DIYCASSETTE18HP-230D25-O (×1)
| Mount | One-way ceiling cassette |
|---|---|
| Voltage | 208–230V, 1-phase, 60Hz |
| Cooling / Heating | ~18,800 / ~22,700 BTU |
| Sound (dB) | ~26–44 |
| Refrigerant | R454B |
| Line sizes | Liquid 1/4", Suction 1/2" |
| Controls | IR remote (iSense), SmartHVAC app, Alexa/Google |
Tech specs — Outdoor condenser (DIY-MULTI6-55HP230D-O)
| Capacity / Zones | 55,000 BTU / up to 6 zones |
|---|---|
| Efficiency | Up to 22 SEER2 (cooling), EER2 ~12; HSPF2 (region dependent) |
| Voltage | 208/230V, 1-phase, 60Hz |
| Min. Circuit Ampacity / Max Fuse | ~43A / ~45A |
| Refrigerant | R454B; factory charge (see install manual for line length allowances) |
| Line connections | Liquid 1/4"; Suction: four × 3/8", two × 1/2" |
| Max combined lineset length | ~221 ft (see manual for per-zone limits) |
| Compressor | DC inverter rotary |
| Sound | ~64 dB(A) |
| Controls | SmartHVAC app (iOS/Android), Alexa/Google |
| Finish | Gold Fin anticorrosion |
Always verify breaker size, wire gauge, and line-length/charge rules in the current MRCOOL installation manual for this model.
