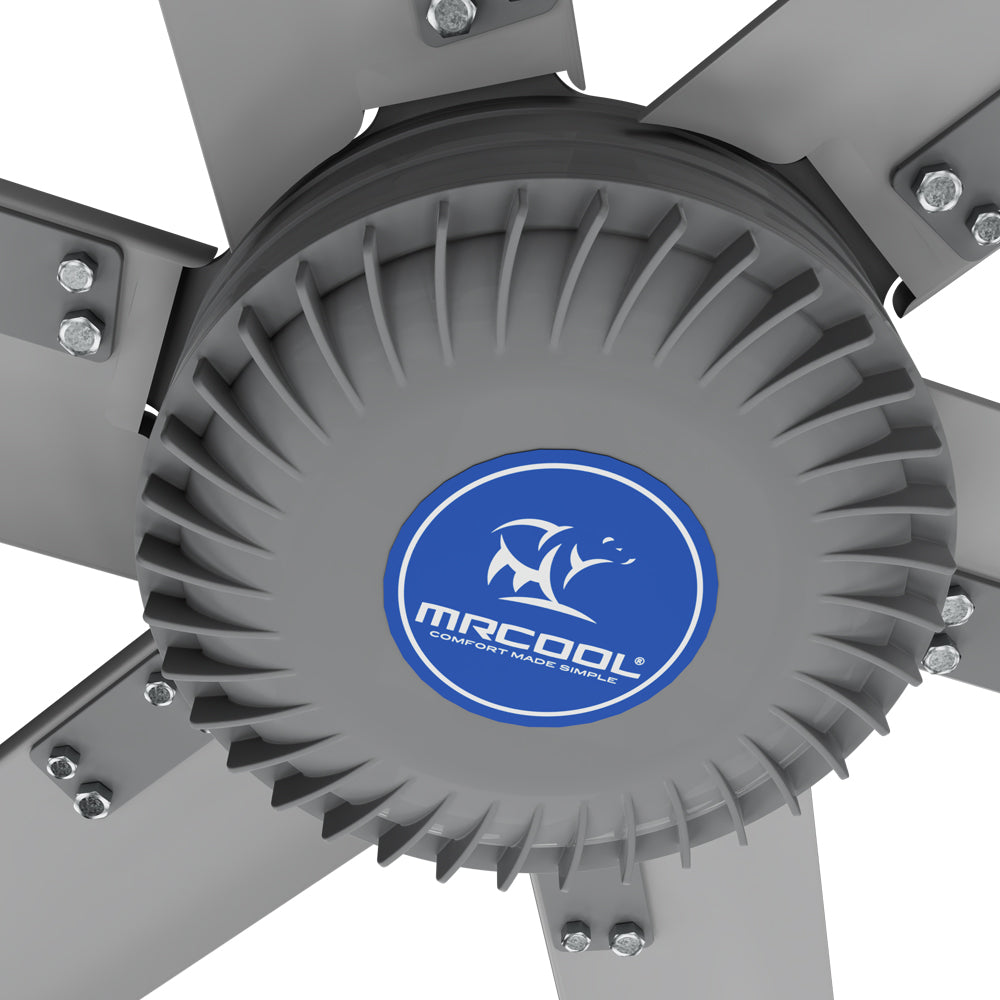

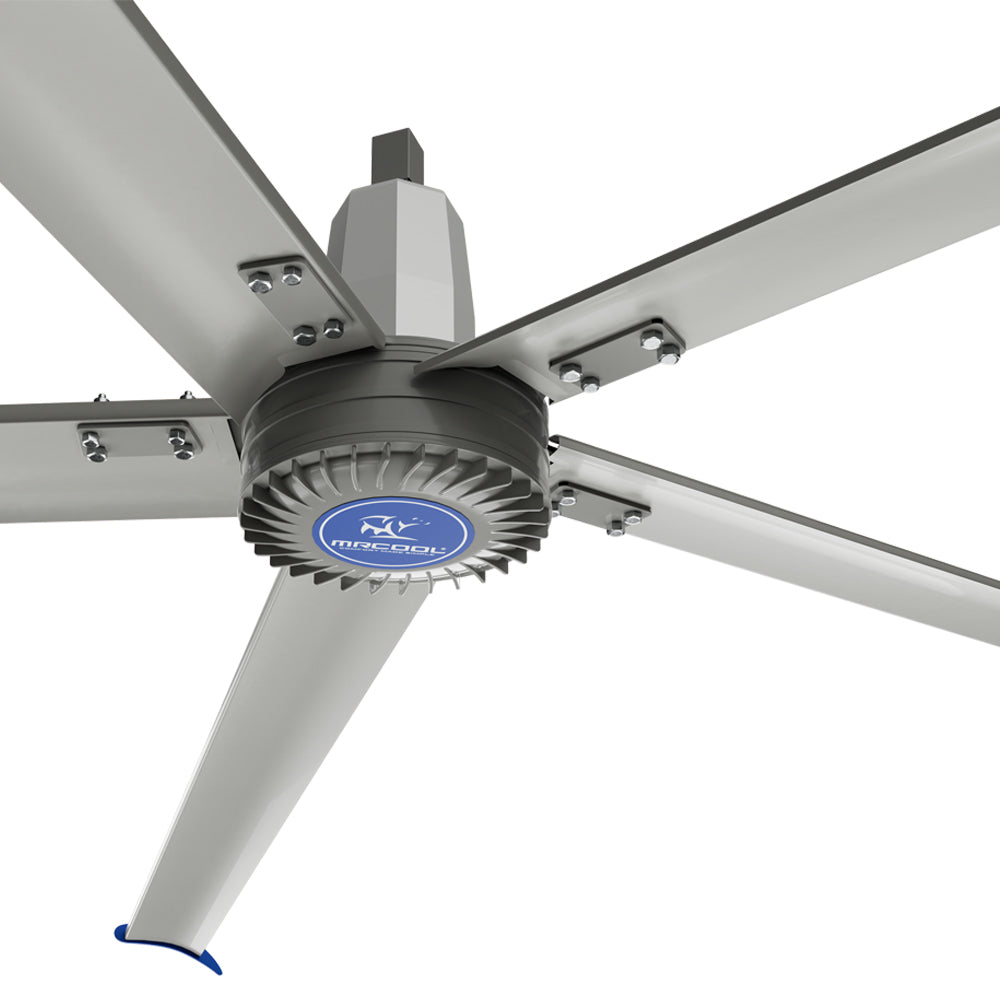

MRCOOL CoolBlade Industrial HVLS Fan | MCFAN24XBGR
Â
Summary
The MRCOOL® CoolBlade Industrial HVLS Fan (Model MCFAN24XBGR) provides exceptional air movement for large industrial, commercial, and recreational spaces. With a maximum coverage area of 5,577 sq. ft., this high-volume, low-speed fan delivers powerful airflow at just 38 dBA for quiet operation. Built with reinforced magnesium alloy blades, an IP66-rated digital control system, and multiple advanced safety features, it offers long-lasting durability and performance in even the most demanding environments. Backed by a 2-year base parts warranty, it’s the ultimate solution for efficient, large-area air circulation.
Important
Professional installation recommended. Compatible with multiple mounting options including I-beam, square steel, and concrete. IP66-rated controls ensure protection against dust and moisture. Follow all safety guidelines and local electrical codes during installation.
What's Included
- CoolBlade Industrial HVLS Fan (Model MCFAN24XBGR)
- Mounting Bracket (I-beam, square steel, or concrete)
- Digital Display Control Box
- Push-Button Speed Controller
- Installation Manual
- Warranty Information
Key Features

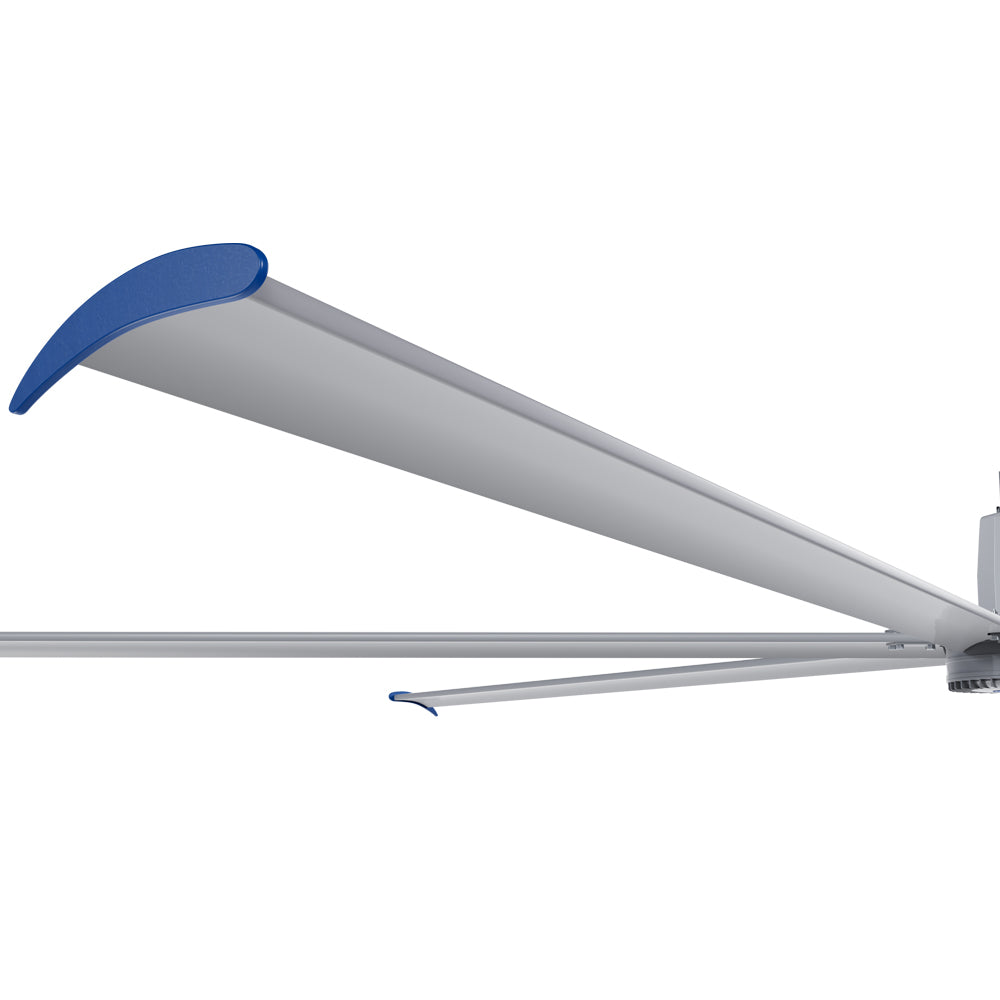

- Reinforced Magnesium Alloy Blades

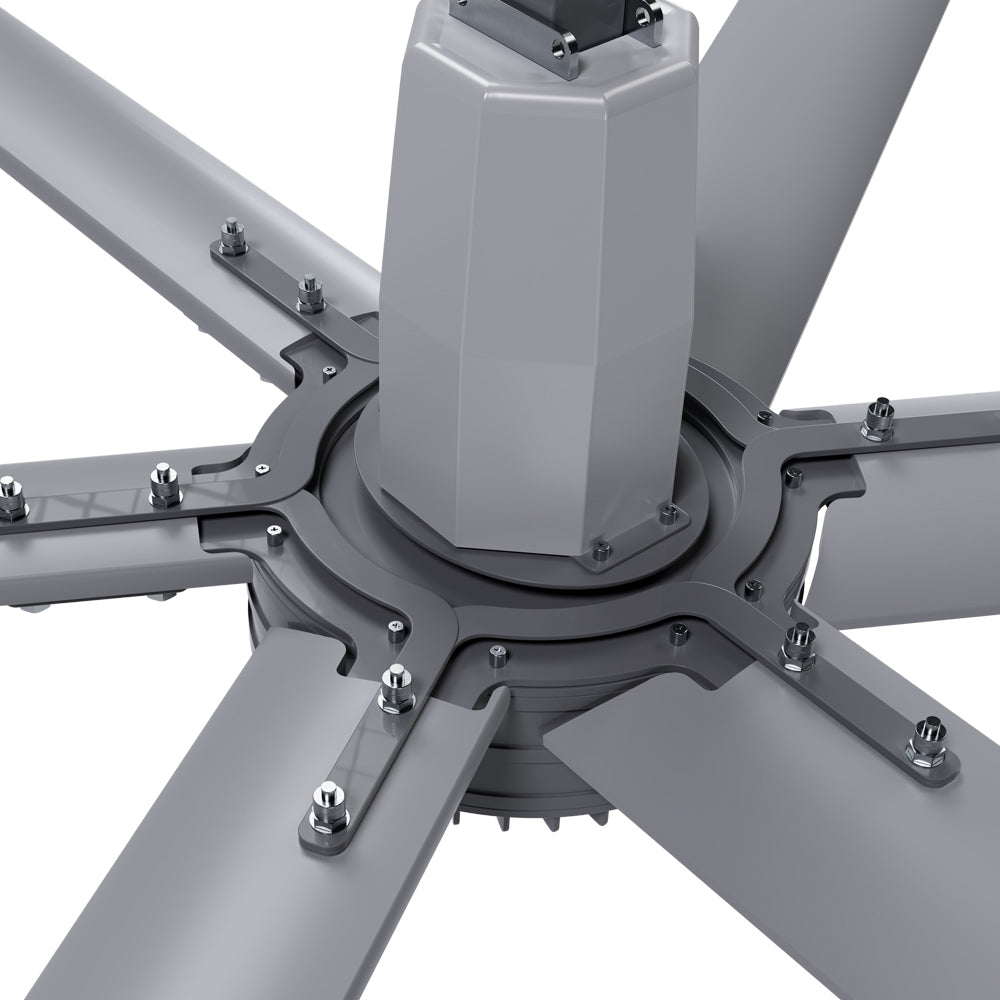

- Integrated Motor Bracket
- Anti-Falling Expansion Sleeve
- Steel Wire Safety Rope
- Electrical Overload Protection
- Locking Control Box with Emergency Stop
- Push-Button Speed Control with Four-Button Operation
- Digital Display with IP66 Protection
- Mounting compatibility – I-beam, square steel, or concrete
- Ultra-quiet performance at just 38 dBA
Complete Technical Specifications
| Brand | MRCOOL |
| Series | CoolBlade Industrial HVLS Fan |
| Model | MCFAN24XBGR |
| UPC | 840255582742 |
| Voltage | 220-240V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Coverage Area | 5,577 sq. ft. |
| Decibel Rating | 38 dBA |

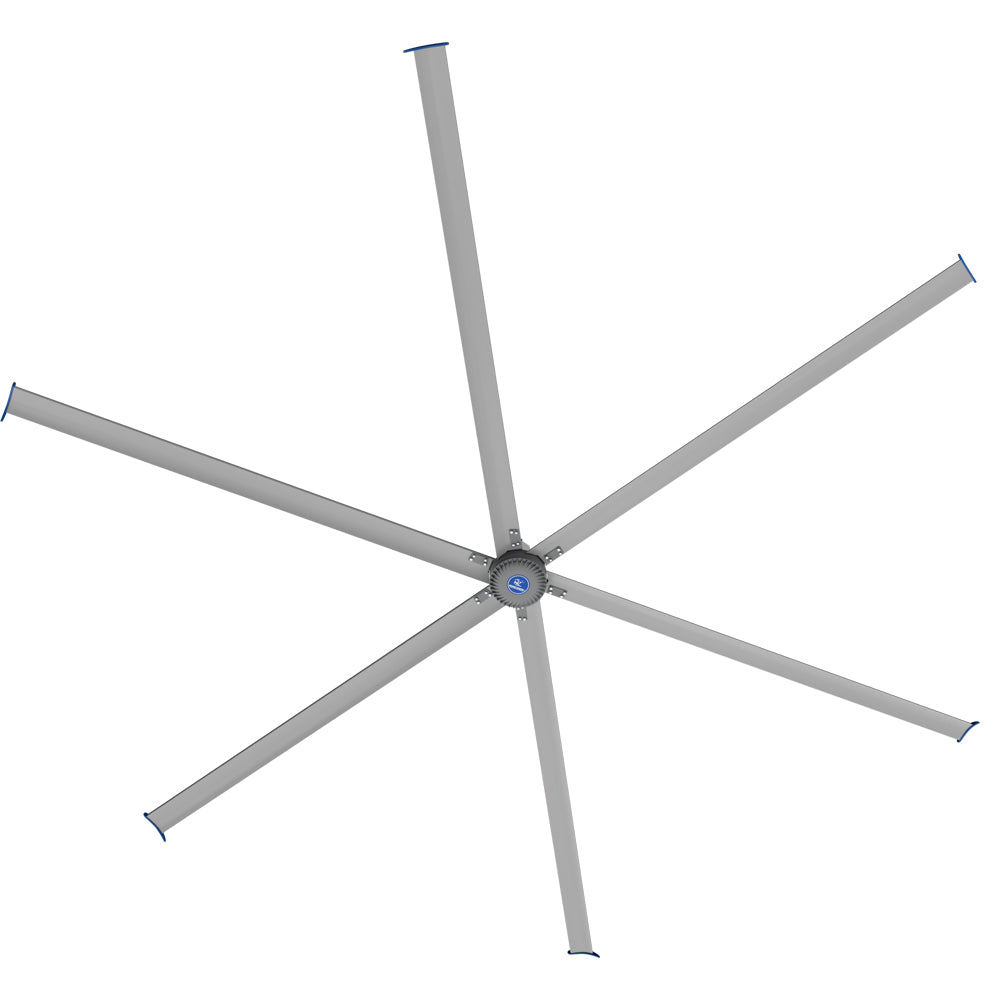

| Number of Blades | 6 |
| Motor Weight | 92.6 lbs |
| Fan Weight | 249.1 lbs |
| Air Volume | 15,500 m³/min |
| Mounting Options | I-beam, square steel, concrete |
Warranty Information
- Base Parts Warranty: 2 Years
Manuals & Certifications
Advanced Design

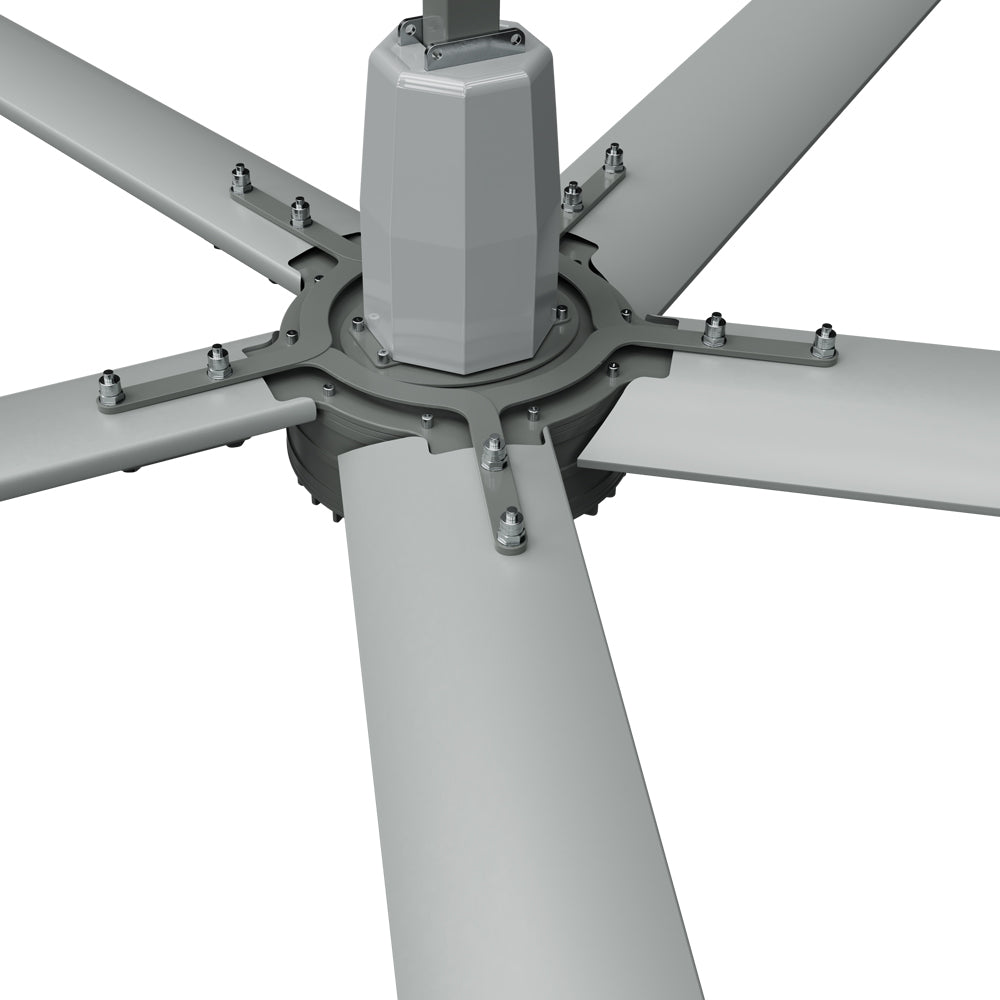

Built with industrial-grade magnesium alloy blades, the CoolBlade HVLS Fan offers both exceptional strength and lightweight performance. Safety is maximized with a steel wire safety rope, anti-falling expansion sleeve, and electrical overload protection.
Control System
The IP66-rated digital display and push-button speed control system allow precise airflow adjustment in any environment. Four-button operation and emergency stop functions provide easy and secure operation for warehouses, gyms, manufacturing facilities, and other large spaces.
