MRCOOL CoolBlade Industrial HVLS 24 Foot Diameter Commercial Fan | MCFAN24XBGR

SKU MCFAN24XBGR Fans220-240V
$4,198.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.
MRCOOL — HVAC Accessories

MRCOOL CoolBlade Industrial HVLS 24 Foot Diameter Commercial Fan | MCFAN24XBGR

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

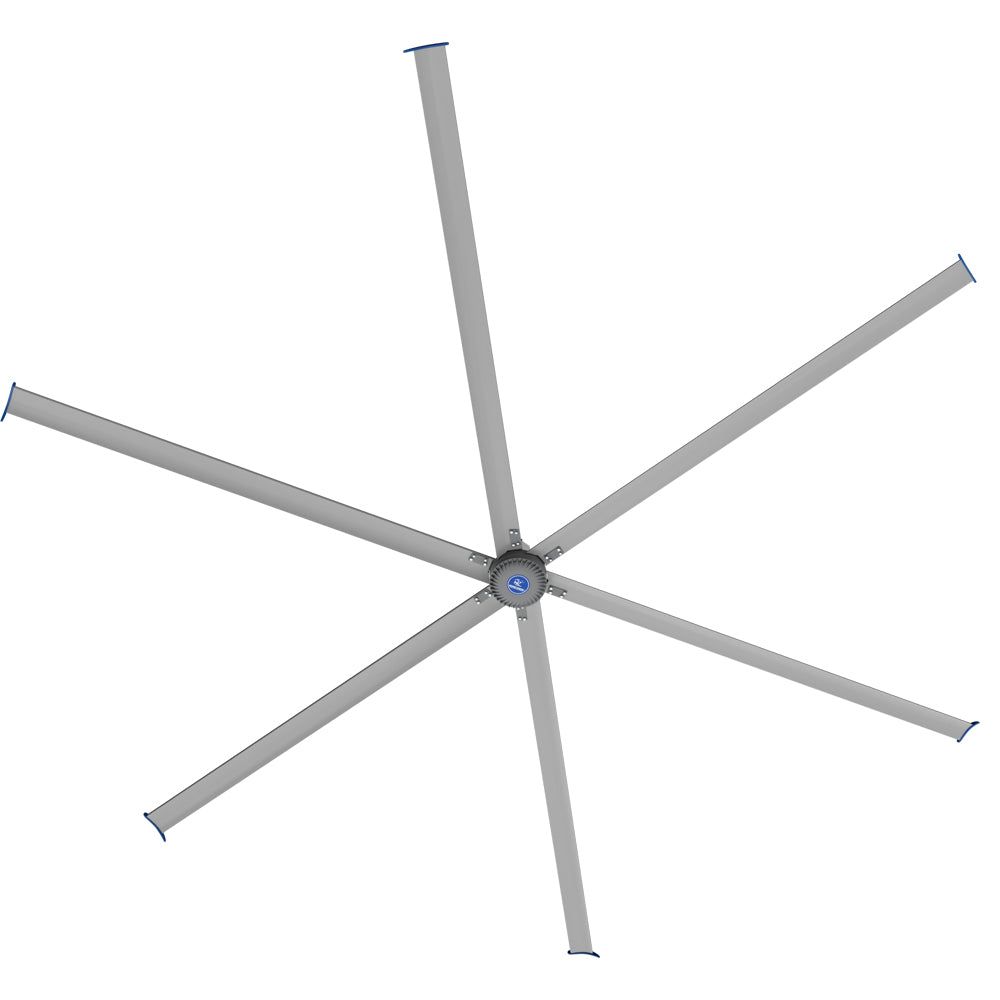

MRCOOL CoolBlade Industrial HVLS Fan | MCFAN24XBGR

Summary

The MRCOOL® CoolBlade Industrial HVLS Fan (Model MCFAN24XBGR) provides exceptional air movement for large industrial, commercial, and recreational spaces. With a maximum coverage area of 5,577 sq. ft., this high-volume, low-speed fan delivers powerful airflow at just 38 dBA for quiet operation. Built with reinforced magnesium alloy blades, an IP66-rated digital control system, and multiple advanced safety features, it offers long-lasting durability and performance in even the most demanding environments. Backed by a 2-year base parts warranty, it’s the ultimate solution for efficient, large-area air circulation.

Important

Professional installation recommended. Compatible with multiple mounting options including I-beam, square steel, and concrete. IP66-rated controls ensure protection against dust and moisture. Follow all safety guidelines and local electrical codes during installation.

What's Included

  • CoolBlade Industrial HVLS Fan (Model MCFAN24XBGR)
  • Mounting Bracket (I-beam, square steel, or concrete)
  • Digital Display Control Box
  • Push-Button Speed Controller
  • Installation Manual
  • Warranty Information

Key Features

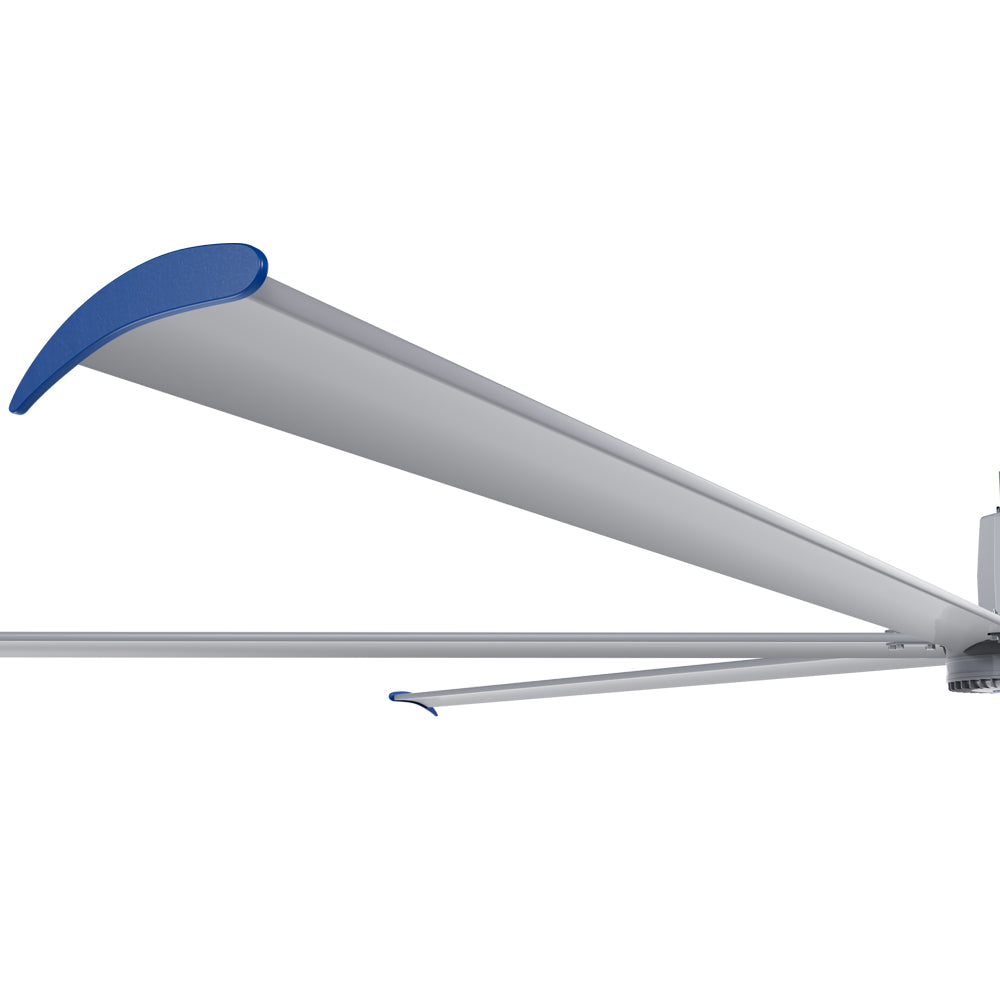

  • Reinforced Magnesium Alloy Blades

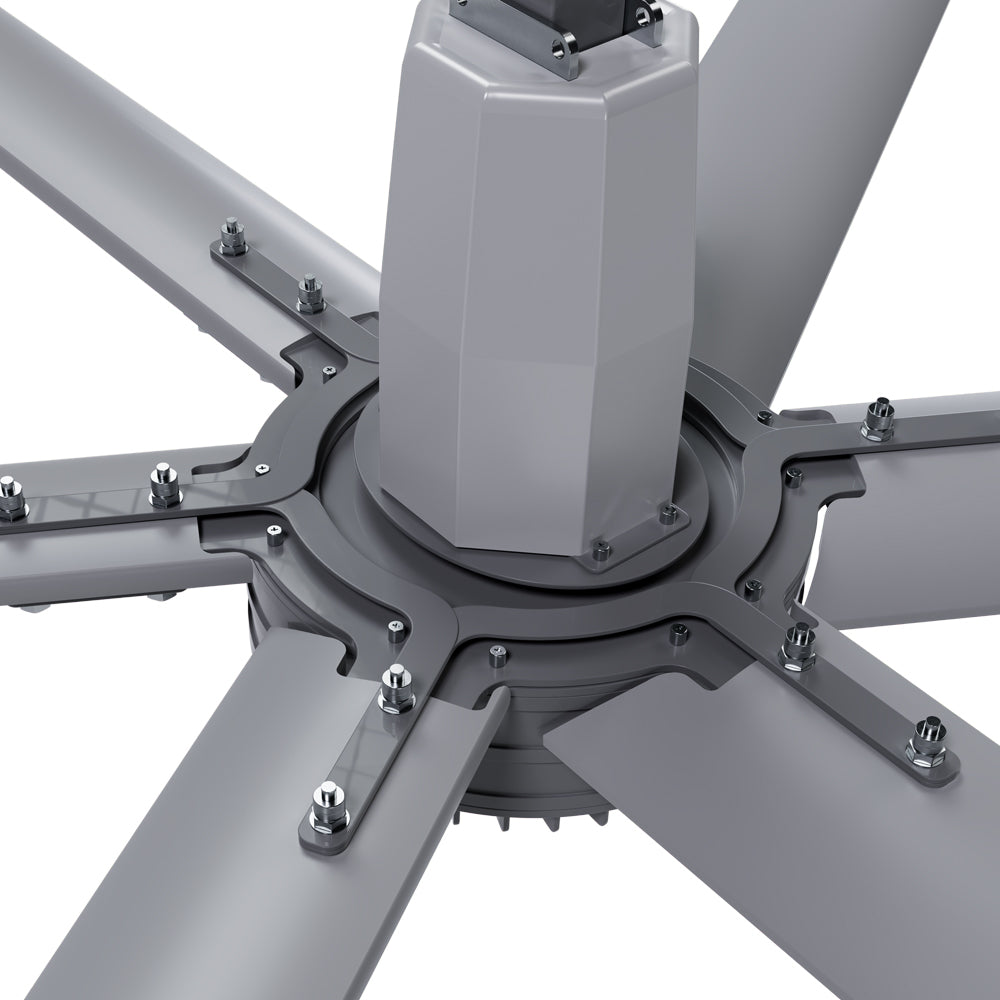

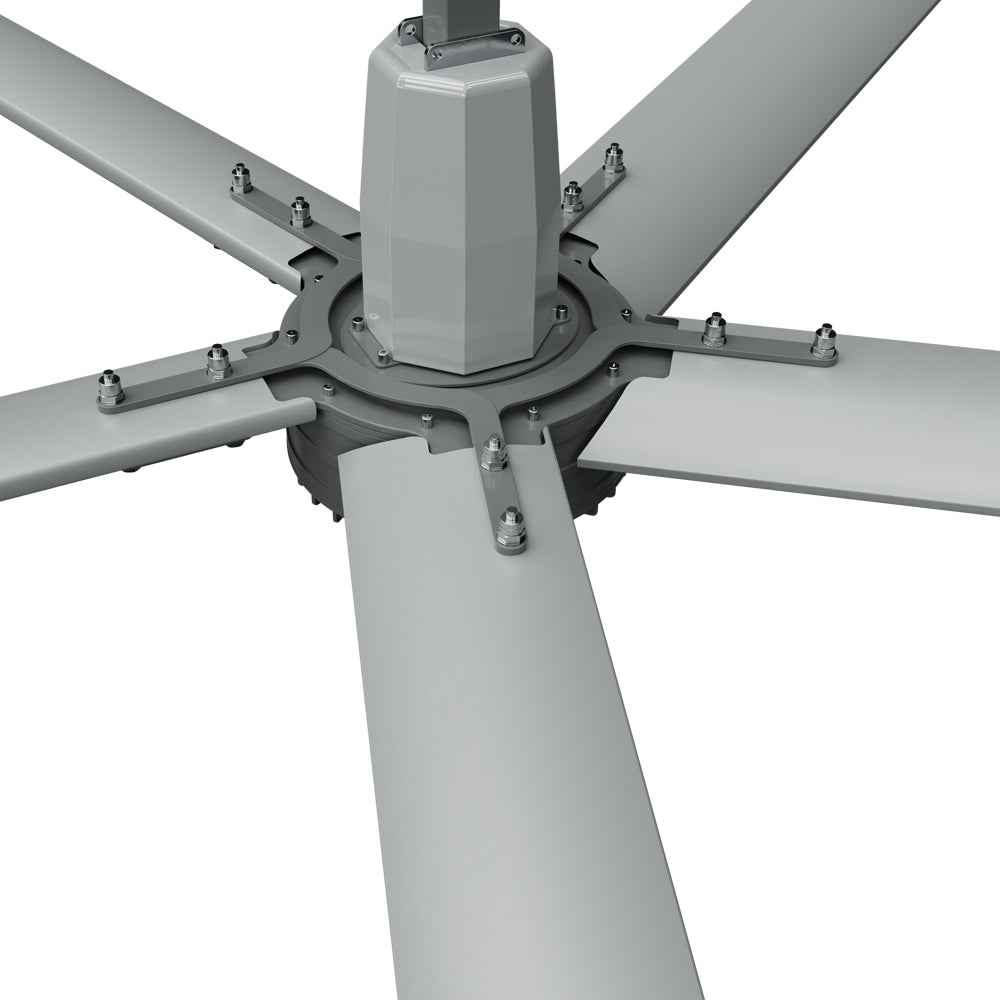

  • Integrated Motor Bracket
  • Anti-Falling Expansion Sleeve
  • Steel Wire Safety Rope
  • Electrical Overload Protection
  • Locking Control Box with Emergency Stop
  • Push-Button Speed Control with Four-Button Operation
  • Digital Display with IP66 Protection
  • Mounting compatibility – I-beam, square steel, or concrete
  • Ultra-quiet performance at just 38 dBA

Complete Technical Specifications

Brand MRCOOL
Series CoolBlade Industrial HVLS Fan
Model MCFAN24XBGR
UPC 840255582742
Voltage 220-240V
Phase 1
Cycle 60 Hz
Max Coverage Area 5,577 sq. ft.
Decibel Rating 38 dBA
Number of Blades 6
Motor Weight 92.6 lbs
Fan Weight 249.1 lbs
Air Volume 15,500 m³/min
Mounting Options I-beam, square steel, concrete

Warranty Information

  • Base Parts Warranty: 2 Years

Manuals & Certifications

Advanced Design

Built with industrial-grade magnesium alloy blades, the CoolBlade HVLS Fan offers both exceptional strength and lightweight performance. Safety is maximized with a steel wire safety rope, anti-falling expansion sleeve, and electrical overload protection.

Control System

The IP66-rated digital display and push-button speed control system allow precise airflow adjustment in any environment. Four-button operation and emergency stop functions provide easy and secure operation for warehouses, gyms, manufacturing facilities, and other large spaces.
