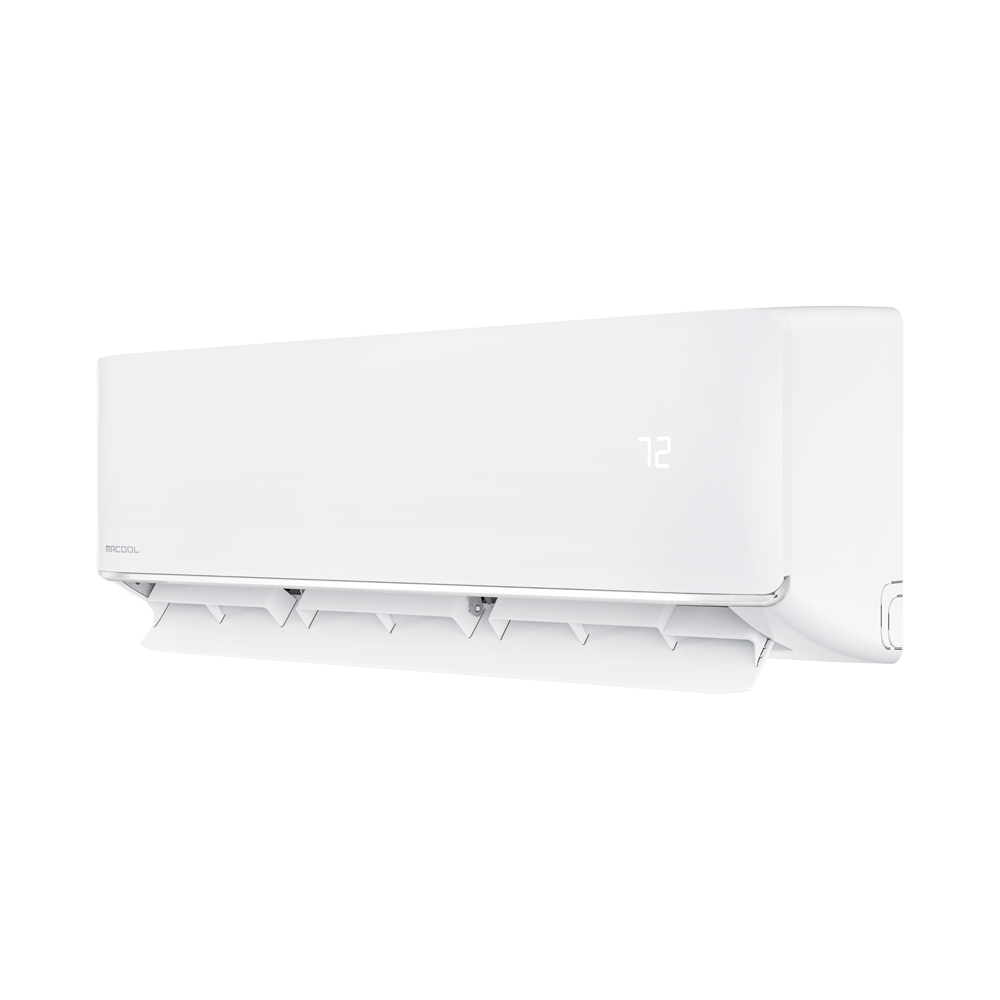

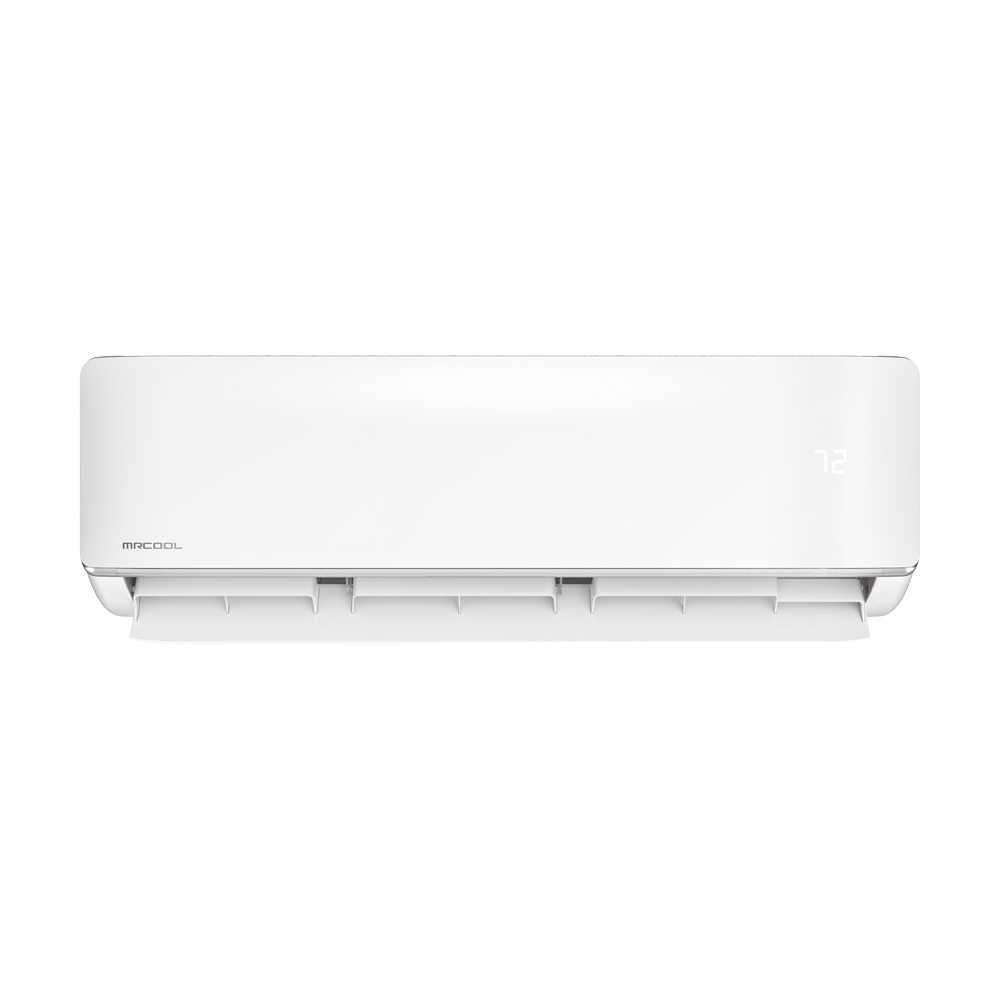

MRCOOL 6k BTU DIY 5th Generation Wall Mounted Multi-Zone Air Handler 230V | DIY-06-HP-WMAH-230D25-O

SKU DIY-06-HP-WMAH-230D25-O Wall Mount208-230V
$457.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
6,000 BTU
Cooling
6,000 BTU
Heating
See specs
Quiet Inside
See specs
High Efficiency

Brand Information

MrCool
Support Number
(270)366-0457
Product Overview Full product description Read the longer product copy, features, and application notes.
MRCOOL — Wall Mount

MRCOOL 6k BTU DIY 5th Generation Wall Mounted Multi-Zone Air Handler 230V | DIY-06-HP-WMAH-230D25-O

CLICK HERE TO CONTACT US FOR CUSTOM QUOTES AND QUESTIONS

CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

MRCOOL 6k BTU DIY 5th Generation Wall Mounted Multi-Zone Air Handler 230V | DIY-06-HP-WMAH-230D25-O

Summary

The MRCOOL® DIY® 5th Generation 6K BTU Ductless Heat Pump Mini-Split Air Handler is designed for easy installation with no special tools or prior experience required. This system effectively heats or cools spaces up to 200 sq. ft. and features the innovative Follow Me function that adjusts airflow temperature based on the remote's location. With SmartHVAC app compatibility and voice control via Amazon Alexa and Google Assistant, this unit offers modern convenience and year-round comfort.

Important

This DIY system is designed for homeowner installation but must be installed according to all local codes and regulations.The pre-charged 25-foot DIY® QuickConnect® line set is sold separately.Registration is recommended to activate your warranty coverage.

What's Included

  • 6,000 BTU Wall Mounted Air Handler (Model DIY-06-HP-WMAH-230D25-O)
  • Wireless Remote Control with Follow Me function
  • DIYPRO® cable (eliminates need for electrical conduit)
  • Installation Manual
  • User's Manual
  • Manufacturer Warranty Documentation

Features

  • True DIY installation with no special tools or vacuum pump required
  • SmartHVAC app compatible (iOS and Android)
  • Voice control via Amazon Alexa and Google Assistant
  • Follow Me function adjusts temperature based on remote location
  • Dry Mode acts as a dehumidifier
  • Gold Fin® Condenser for superior corrosion resistance
  • Quiet operation with multiple fan speeds
  • Auto Cool and Fan Only options

Technical Specifications

SKU DIY-06-HP-WMAH-230D25-O
GTIN/UPC 00840255587013 / 840255587013
Weight 24.47 lbs (Net), 35.05 lbs (Gross)
Cooling BTU 6,000 BTU
Coverage Area Up to 200 sq. ft.
Voltage 208/230V
Phase 1
Frequency 60 Hz
Refrigerant R-454B
Dimensions (HxWxD) 11.69" x 31.57" x 7.44"

Certifications

  • Intertek listed (5031495)
  • UL Listed
  • ETL Listed
  • AHRI Certified

Warranty

  • Limited Warranty*
  • 7-year compressor warranty
  • 5-year parts warranty

*With proper registration

Manuals & Downloads

Safety Information

PROPOSITION 65 WARNING

Smart Control Options

The MRCOOL DIY 5th Generation system offers multiple control options including the included wireless remote with Follow Me technology, the SmartHVAC app for iOS and Android devices, and voice control through Amazon Alexa and Google Assistant. The Follow Me function uses the remote's built-in temperature sensor to adjust airflow based on your exact location in the room, ensuring personalized comfort wherever you are.

Easy Installation

Designed specifically for DIY installation, this system eliminates the need for specialized tools or a vacuum pump. The included DIYPRO® cable provides durable protection against outdoor elements while removing the need for electrical conduit. While the pre-charged 25-foot QuickConnect line set is sold separately, it makes installation faster and more cost-effective by eliminating the need for refrigerant charging during setup.

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
Where should I purchase MRCOOL equipment?

MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.

Can MRCOOL components from different series, generations, or refrigerant platforms be mixed?

Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.

What makes an eligible MRCOOL DIY system different from a conventional mini-split?

Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.

Does MRCOOL send technicians to a home or jobsite?

MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.

Why do I need the exact MRCOOL model and serial number?

The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.

Are all MRCOOL systems designed for do-it-yourself installation?

No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.

Where can I find MRCOOL manuals, specifications, certifications, and installation documents?

MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.

What types of products does MRCOOL offer?

MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.

When should an MRCOOL system be registered?

Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.

Where can I purchase replacement parts for an MRCOOL system?

MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.

How can I contact MRCOOL customer or technical support?

MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.

Can MRCOOL support work with my local HVAC technician?

Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.

Where can I find MRCOOL troubleshooting and error-code information?

MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.

How do I register an MRCOOL product for warranty coverage?

Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.

Does every MRCOOL product have the same warranty?

No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
