Summary

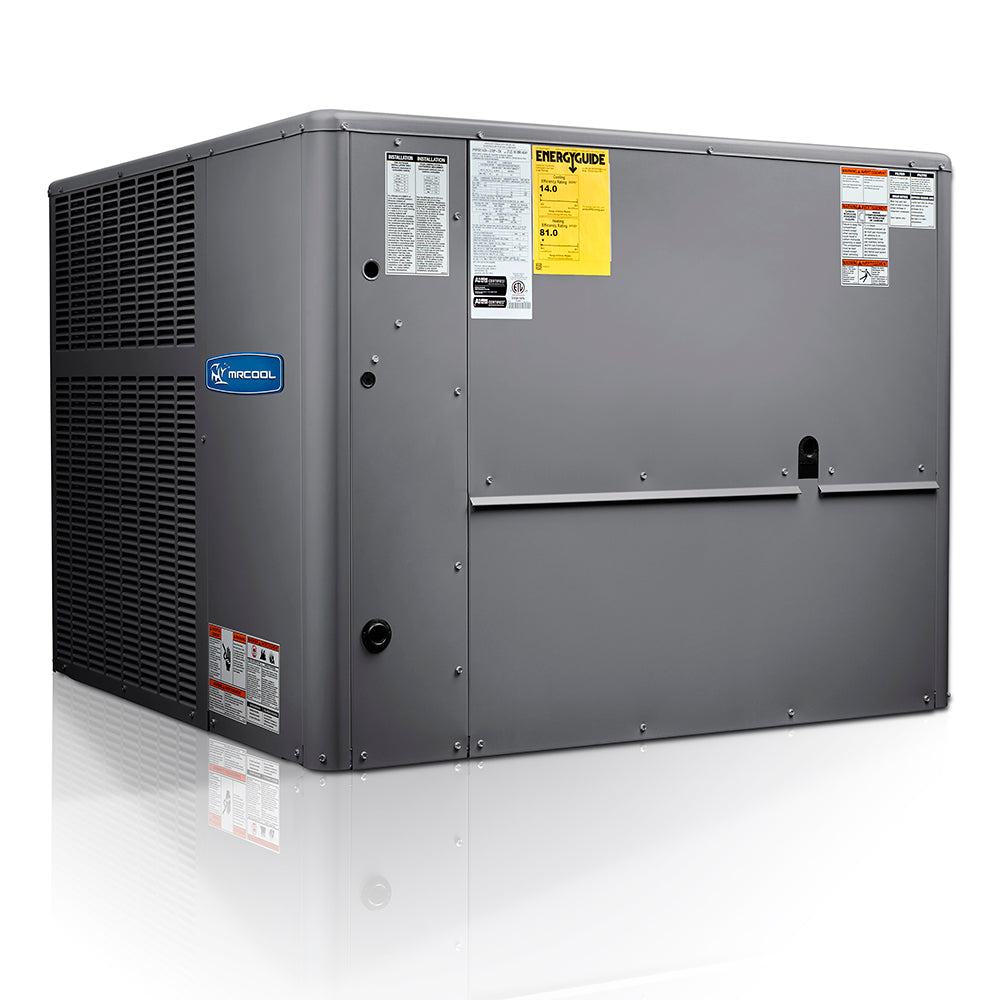

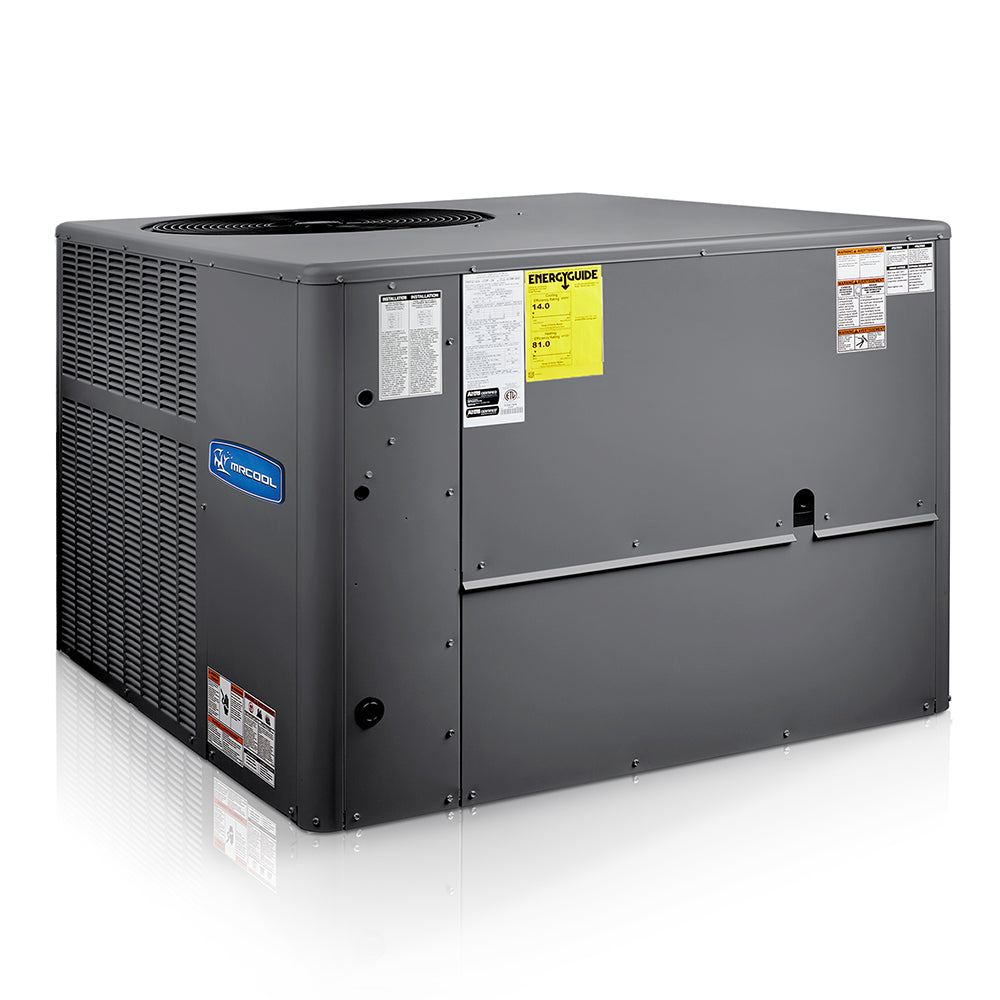

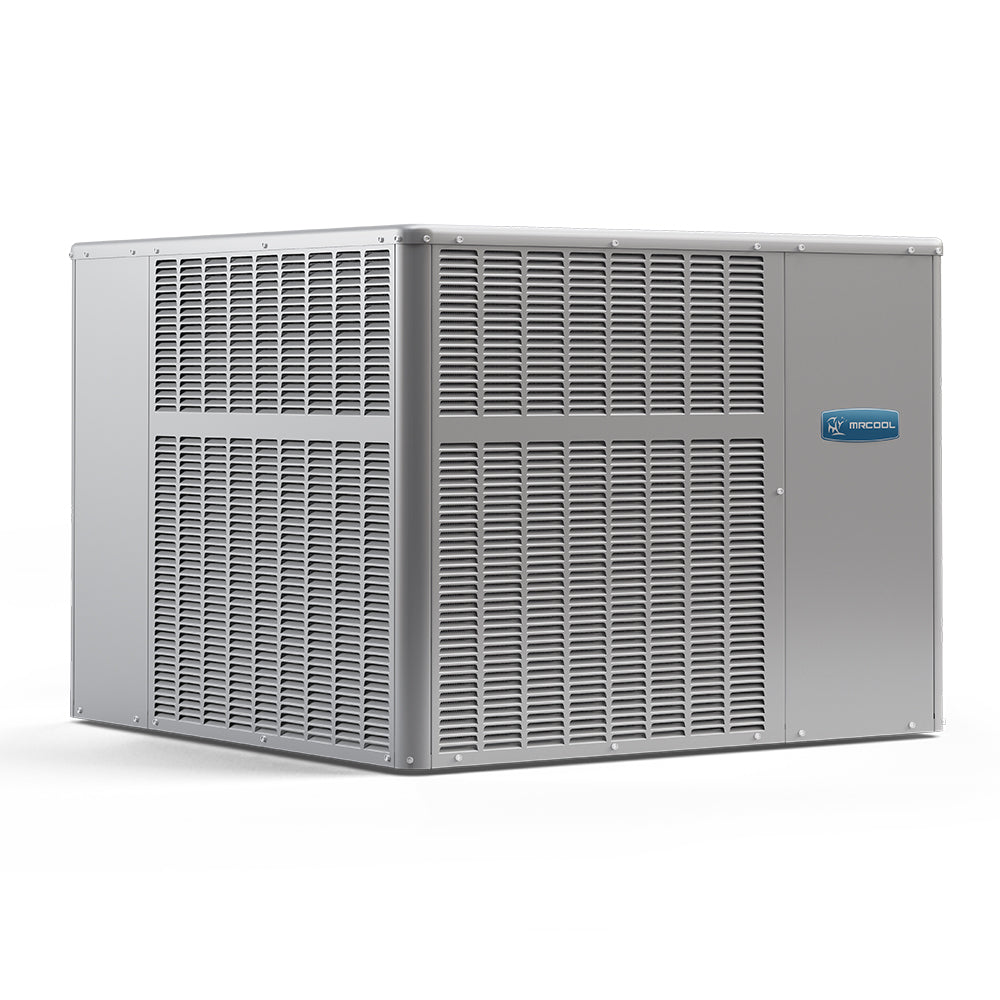

The MRCOOL 5-Ton Packaged Air Conditioner is a high-performance cooling solution designed for efficiency and reliability. This brand-new unit operates on 208-230V power and utilizes R-410A refrigerant, ensuring environmentally friendly and effective cooling. With a 14 SEER seasonal energy efficiency rating, it delivers consistent comfort while optimizing energy use, making it a smart choice for residential and light commercial applications.
This unit is designed exclusively for cooling purposes and is not a heat pump, making it ideal for spaces that require dedicated air conditioning. Engineered for durability and performance, the MRCOOL packaged AC unit provides powerful cooling while maintaining efficiency. Its compact, all-in-one design simplifies installation, offering a dependable solution for maintaining a comfortable indoor environment.
What's Included
- Outdoor Condenser 60000 BTU 230V
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Warranty
- 10-Year on all parts if registered
- 5 years if not registered
Warranty Inquiries are handled through MRCOOL at https://mrcool.com/contact/
Technical Information
Model Number: MPC601M414A
|
BRAND NAME |
MRCOOL |
|
SERIES |
Signature Packaged Air Conditioner |
|
MODEL |
MPC601M414A |
|
GTIN |
00810512032693 |
|
UPC |
810512032693 |
|
UNIT TYPE |
Package AC |
|
COUNTRY OF ORIGIN |
USA |
|
SHORT DESCRIPTION |
14 SEER 5 Ton Louvered Packaged Air Conditioner |
|
LONG DESCRIPTION |
This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump). |
|
FEATURE LIST |
Â
 |
|
SEER |
14 |
|
SEER2 |
13.4 |
|
EER |
11 |
|
EER2 |
10.6 |
|
CFM |
1800 |
|
TONNAGE |
5 |
|
COOLING CAPACITY (BTU) |
57000 |
|
VOLTAGE (V) |
208-230 |
|
PHASE |
1 |
|
CYCLE |
60 |
|
MAX FUSE BREAKER (A) |
60 |
|
MIN CIRCUIT AMPACITY (A) |
38.9 |
|
COLOR |
Gray |
|
COLOR FAMILY |
Gray |
|
RATED LOAD |
26.4 |
|
MAX COVERAGE AREA |
2500 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME (OZ) |
125 |
|
DECIBEL RATING (DBA) |
78 |
|
MIN AMBIENT HEAT (F) |
0 |
|
COMPRESSOR MOTOR TYPE |
Single Stage |
|
CONDENSER FAN MOTOR TYPE |
ECM |
|
CONDENSER FAN MOTOR HP |
1/4 |
|
BLOWER MOTOR TYPE |
ECM |
|
BLOWER MOTOR HP |
1 |
|
BLOWER MOTOR SPEEDS |
Multi-speed |
|
BLOWER MOTOR RPM |
1120-2090 |
|
FILTER TYPE |
Replacable |
|
FILTER SIZE |
20x20 |
|
METERING DEVICE |
TXV |
|
AUXILIARY HEATER INCLUDED |
No |
|
AUXILIARY HEATER AVAILABLE |
Yes |
|
AUXILIARY HEATER SIZES |
5kw, 7.5kw, 10kw, 15kw, 20kw |
|
UL RECOGNIZED |
No |
|
UL LISTED |
No |
|
ETL LISTED |
Yes |
|
ETL CERTIFIED |
No |
|
LEED CERTIFIED |
No |
|
ASHRAE COMPLIANT |
No |
|
ENERGY STAR COMPLIANT |
No |
|
ENERGY STAR CERTIFIED |
No |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
10-Year Parts Limited Warranty |
|
BASE WARRANTY |
5 year base limited parts warranty |
|
HAS BATTERIES |
No |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
No |
|
NET DEPTH (IN) |
47.66 |
|
NET HEIGHT (IN) |
44.89 |
|
NET WIDTH (IN) |
56.13 |
|
NET WEIGHT (LBS) |
445.00 |
|
GROSS DEPTH (IN) |
48.00 |
|
GROSS HEIGHT (IN) |
46.00 |
|
GROSS WIDTH (IN) |
57.50 |
|
GROSS WEIGHT (LBS) |
503 |
|
FREIGHT CLASS |
125 |
|
INSTALL MANUAL |
|
|
REMOTE MANUAL |
Â
