MRCOOL 5 Ton 17.5 SEER2 Universal Series Heat Pump System - R454B
Overview
The MRCOOL 5 Ton Universal Series Heat Pump System delivers maximum-capacity comfort for large residential spaces and demanding climate conditions. Featuring the UHP18060-O DC inverter condenser with an impressive 17.5 SEER2 rating, this system provides superior heating and cooling performance with 54,000 BTU cooling and 55,000 BTU heating capacity. This high-output system is ideal for spacious homes requiring robust, year-round climate control.
This premium system delivers exceptional performance in extreme weather conditions, providing efficient heating down to -22°F and effective cooling up to 122°F outdoor temperatures. The advanced twin-rotary DC inverter technology allows the compressor to continuously adjust output based on real-time demand, ensuring consistent temperatures while maximizing energy efficiency and reducing system wear. Paired with the UAH18060-O multi-positional air handler—supporting vertical, horizontal, and downflow installations—this system offers ultimate flexibility for large home applications.
Backed by a 10-year parts warranty and 2-year labor warranty, this system features extended 246-foot lineset capability and compatibility with optional NO-VAC Quick Connect line sets for simplified installation. The M-shaped aluminum evaporator coil ensures optimal heat exchange and long-term durability, making this the perfect solution for homeowners seeking maximum-capacity climate control for large spaces.
How is it different from a traditional heat pump?
- Maximum-Capacity Twin-Rotary DC Inverter Technology: 54,000 BTU cooling, 55,000 BTU heating
- Enhanced Heating Output: 55,000 BTU capacity for superior cold-weather performance
- Extended Lineset Capability: Supports up to 246-foot installation runs
- NO-VAC Quick Connect Compatibility: Streamlines installation, no vacuuming or flaring required
- 4-Speed Condenser Fan: Multi-speed operation for optimized performance at all levels
- Extreme Climate Performance: Efficient heating down to -22°F and cooling up to 122°F
- High Airflow Capacity: Up to 1,801 CFM for large space comfort
Quick Facts
- Cooling Capacity: 54,000 BTU
- Heating Capacity: 55,000 BTU
- Refrigerant: R454B
- DC Inverter Heat Pump System for Ducted Applications
- SEER2: Up to 17.5
- HSPF2 (Region 4): 9.5
- Multi-Positional Air Handler (Vertical/Horizontal/Downflow)
- Extended Lineset: Up to 246 feet maximum length
- Extreme Temperature Operation: Heating down to -22°F, Cooling up to 122°F
- High Airflow: Up to 1,801 CFM
- Quiet Operation (Condenser: 64.5 dBA; Air Handler: 37-60 dBA)
- 5 Ton, 17.5 SEER2
Use our sizing calculator (BTU Calculator) to determine the demand for your home.

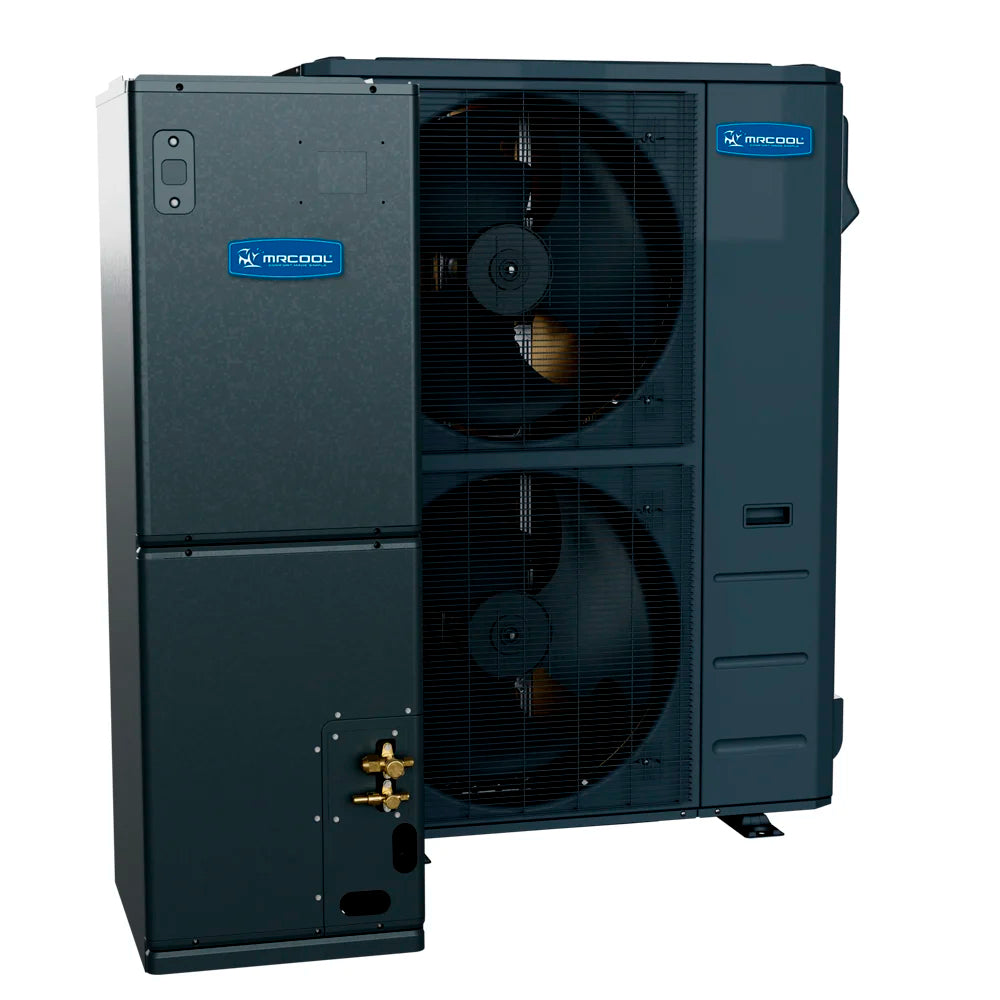

Included in Your Order:
MRCOOL 5 Ton DC Inverter Heat Pump Condenser – Model: UHP18060-O
MRCOOL 5 Ton Universal Series Air Handler – Model: UAH18060-O
NO-VAC Quick Connect Line Set (sold separately; simplifies installation)
Compatible with Standard Thermostats
Installation Manual
Owner's & Service Manuals
Key Features:
- Maximum-Capacity Twin-Rotary DC Inverter Technology
- Enhanced Heating Output (55,000 BTU) for Superior Performance
- 4-Speed Condenser Fan Motor for Optimized Operation
- Extended 246-foot Lineset Capability
- Extreme Climate Performance: Heating to -22°F, Cooling to 122°F
- NO-VAC Quick Connect Line Set Compatible
- Multi-Positional Air Handler (Vertical/Horizontal/Downflow)
- High Airflow Capacity (Up to 1,801 CFM)
- M-Shaped 100% Aluminum Evaporator Coil
- 4-Speed ECM Blower Motor
- Optional Universal Series Heat Kits Available (5KW-20KW)
- Self-Diagnostic Control Board
Technical Specifications

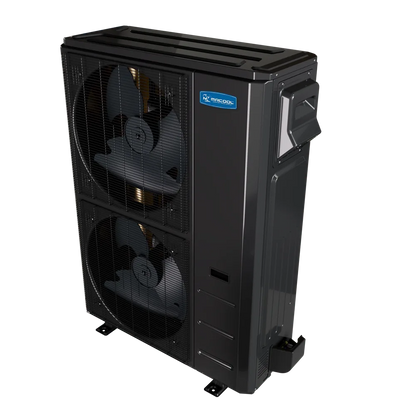

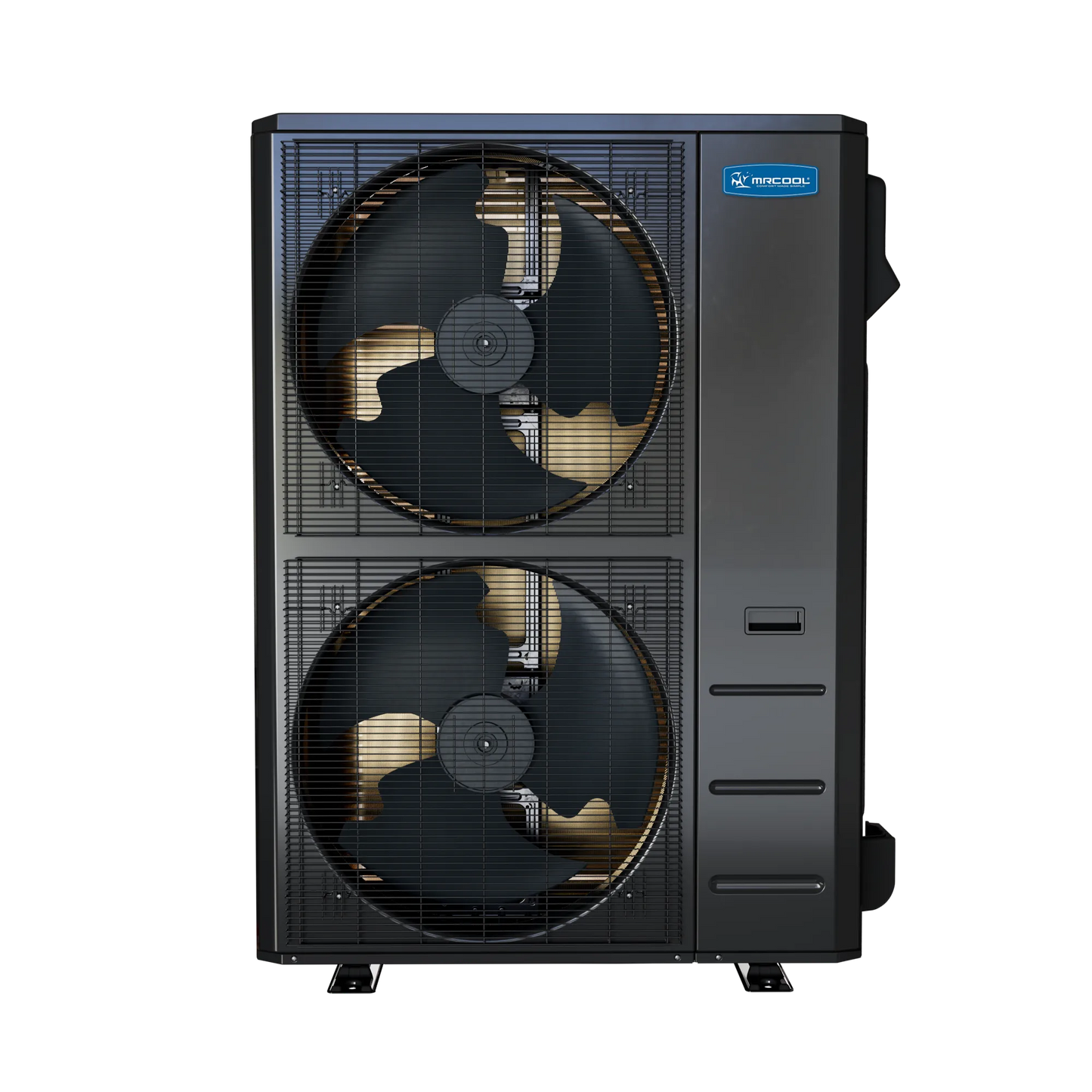

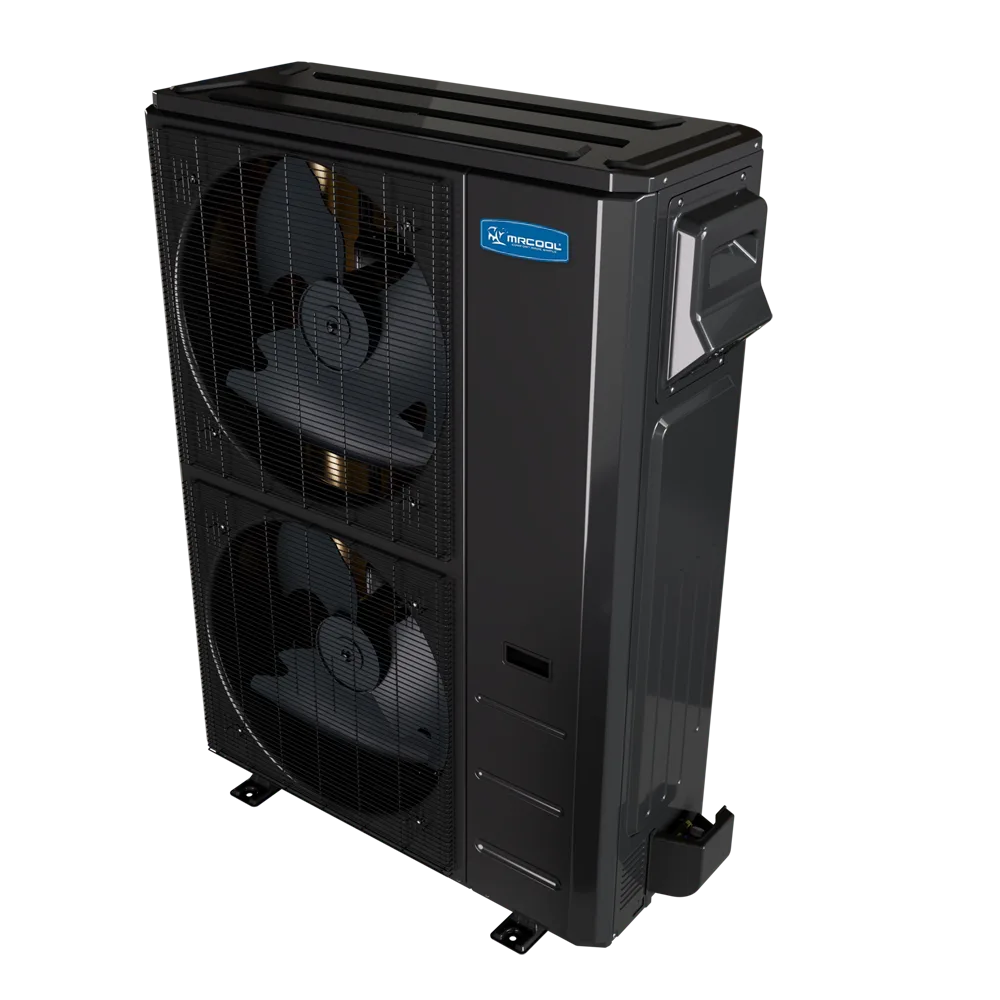

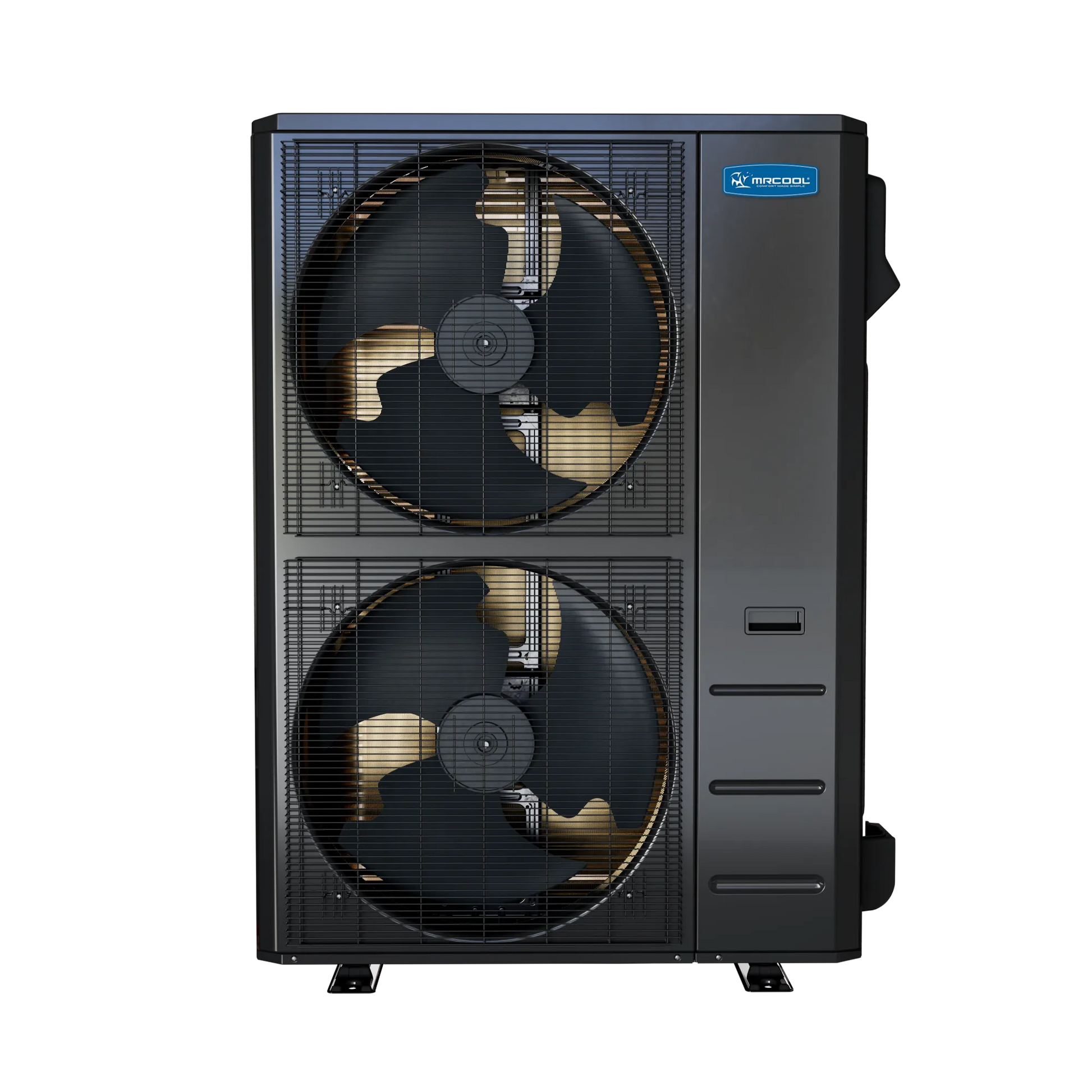

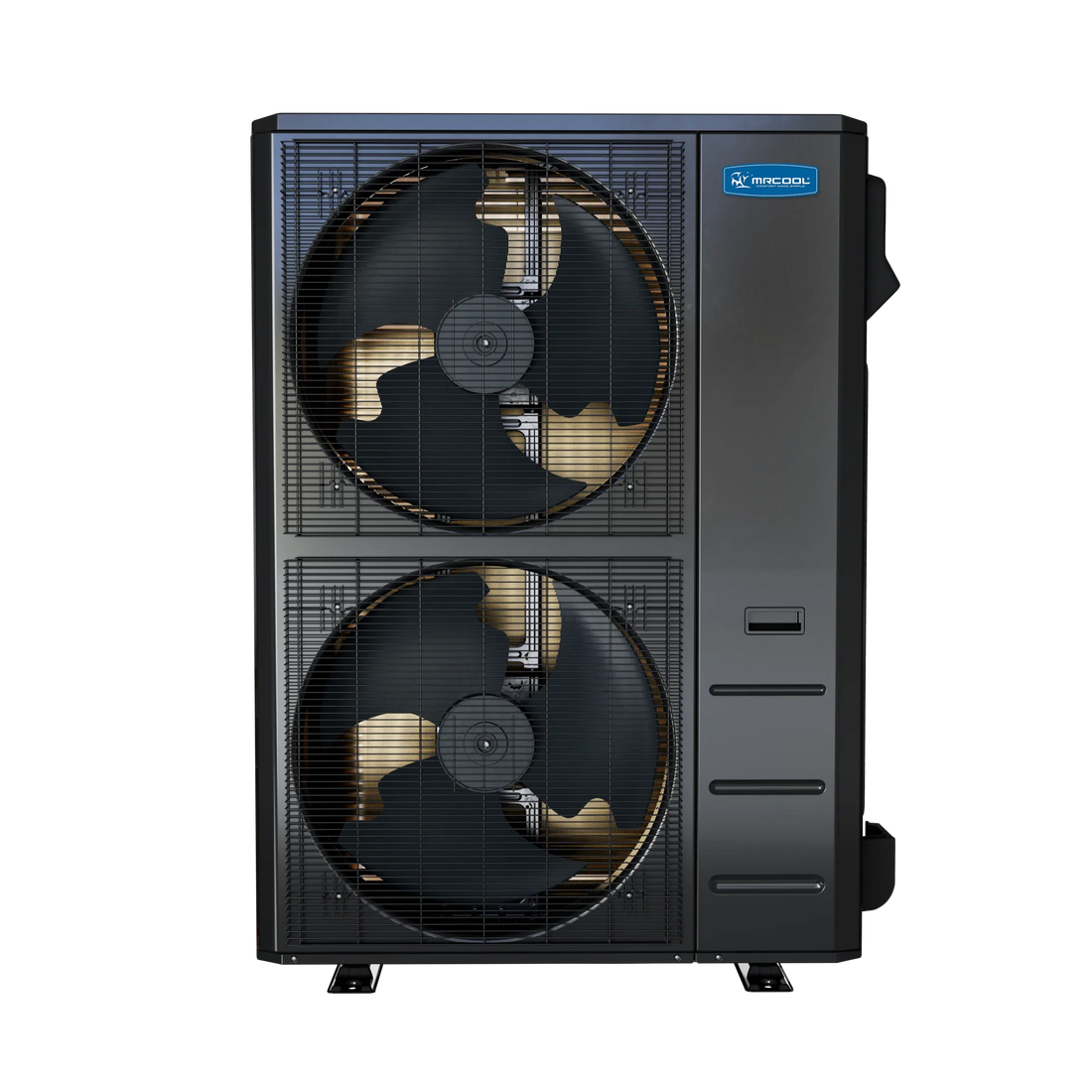

UHP18060-O (Condenser)
| Specification | Details |
|---|---|
| Model Number | UHP18060-O |
| Cooling BTU | 54,000 BTU |
| Heating BTU | 55,000 BTU |
| SEER2 | Up to 17.5 |
| HSPF2 (Region 4) | 9.5 |
| Refrigerant | R454B |
| Refrigerant Volume | 183.42 oz |
| Compressor Type | Twin-Rotary Inverter |
| Electrical | 208/230 V, 1-Phase, 60 Hz |
| Max Breaker Size | 40 Amps |
| Min Circuit Ampacity | 40 Amps |
| Operating Temp (Cooling) | Up to 122°F |
| Operating Temp (Heating) | Down to -22°F |
| Max Lineset Length | 246 feet |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Decibel Rating | 64.5 dBA |
| Weight | 242.95 lbs |

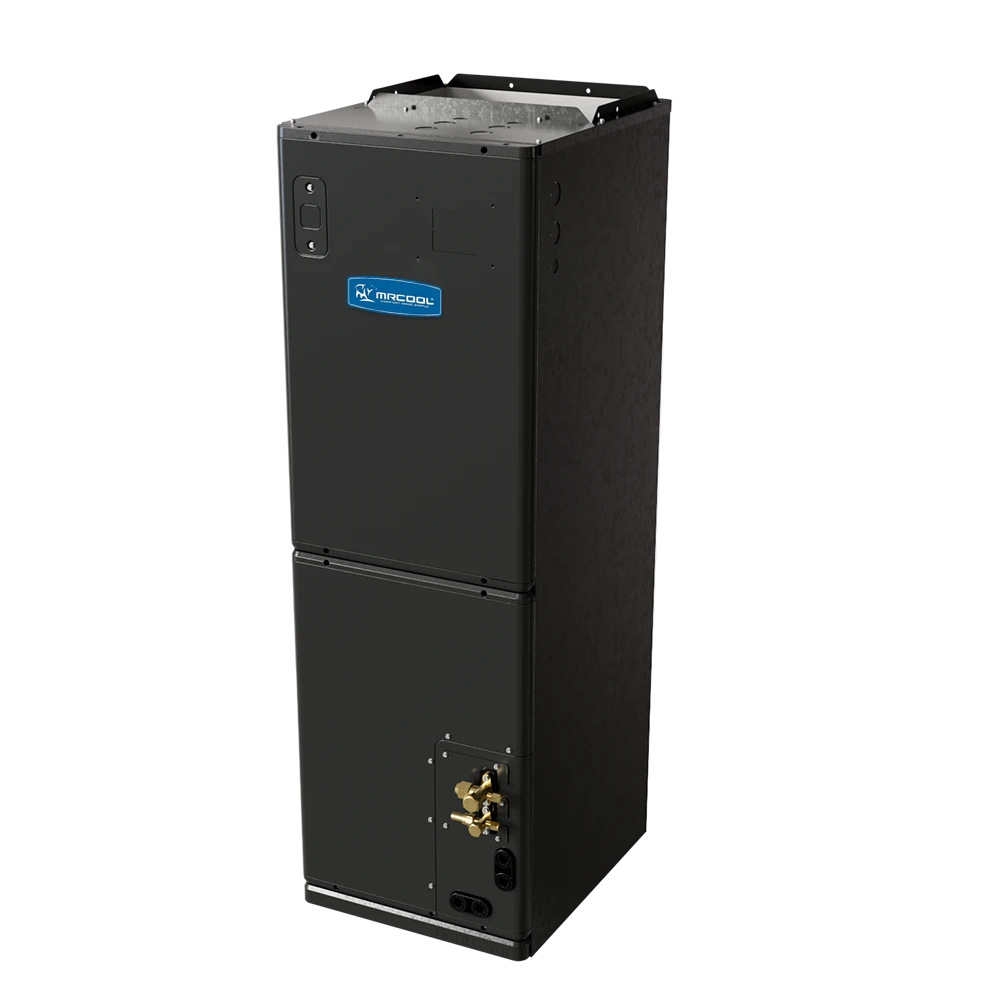

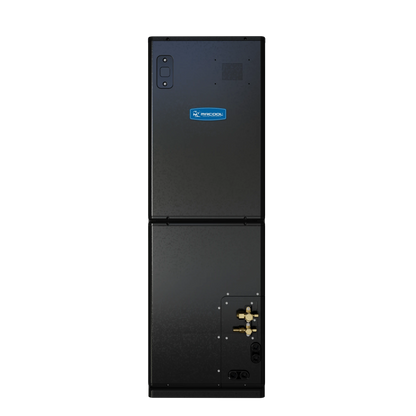

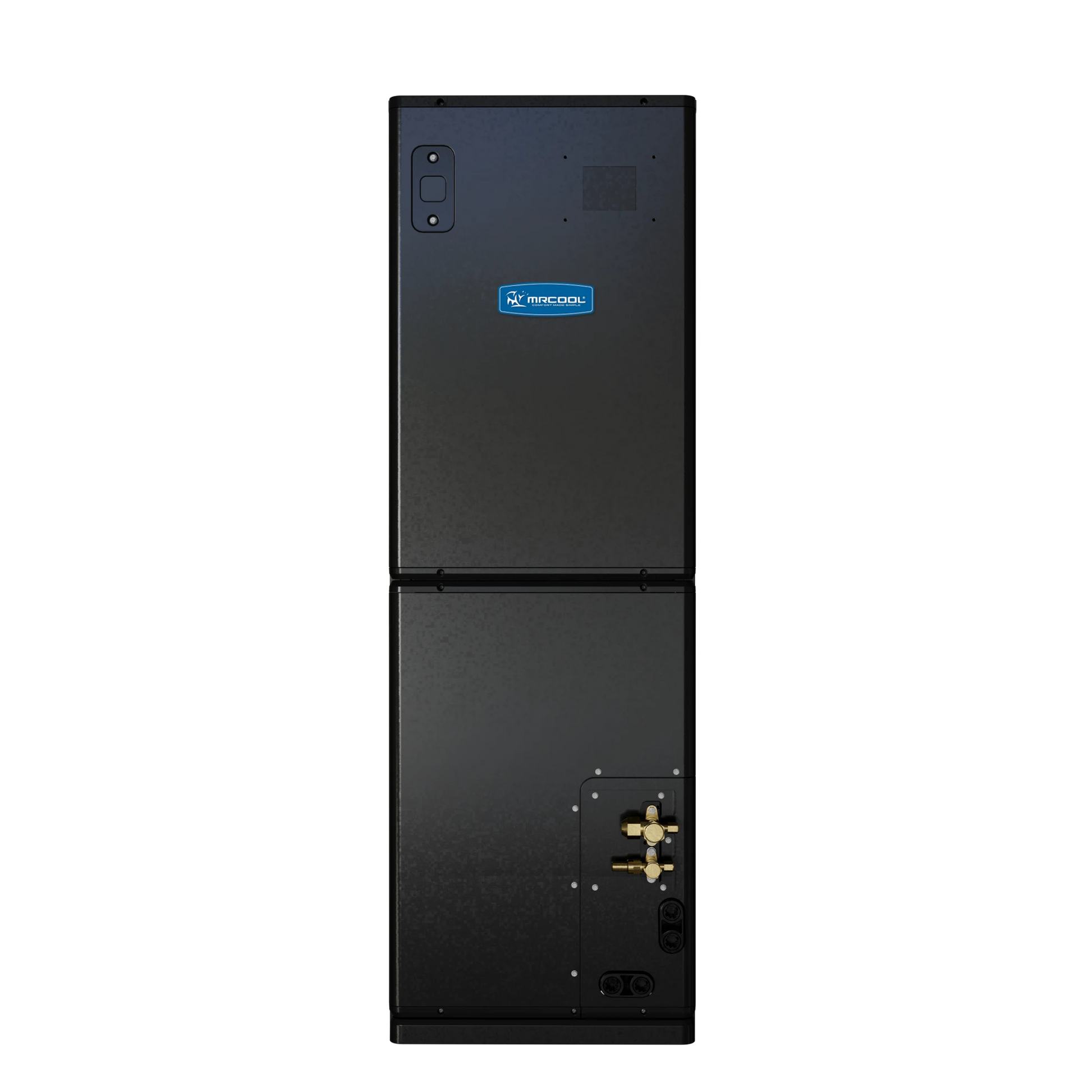

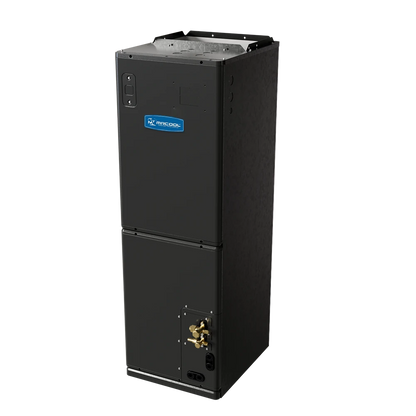

UAH18060-O (Air Handler)
| Specification | Details |
|---|---|
| Model Number | UAH18060-O |
| Airflow (CFM) | 1801.1/1648.1/1500.9/1236.1 (4 Speeds) |
| Decibel Level | 37 dBA (Low) to 60 dBA (High) |
| Refrigerant | R454B |
| Configuration | Multi-Positional (Vertical/Horizontal/Downflow) |
| Electrical | 115/208/230 V, 1-Phase, 60 Hz |
| Max Breaker Size | 15 Amps |
| Min Circuit Ampacity | 10-14.5 Amps |
| Filter Size | 20" x 20" x 1" |
| Dimensions (HxWxD) | 55.94" × 21.5" × 21.5" |
| Weight | 188.05 lbs |
Warranty Information
- 10 Years Parts Limited Warranty
- 2 Years Labor Limited Warranty
Manuals & Downloads
- Universal Series Installation Manual
- Universal Series Brochure
- AHRI Certification
- Energy Guide
- 5 Ton Heat Pump Submittal Data
Please note: The air handler must be installed with a compatible condenser. Optional NO-VAC Quick Connect line set and electric heat kits (5KW-20KW) available separately.
