A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…
CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

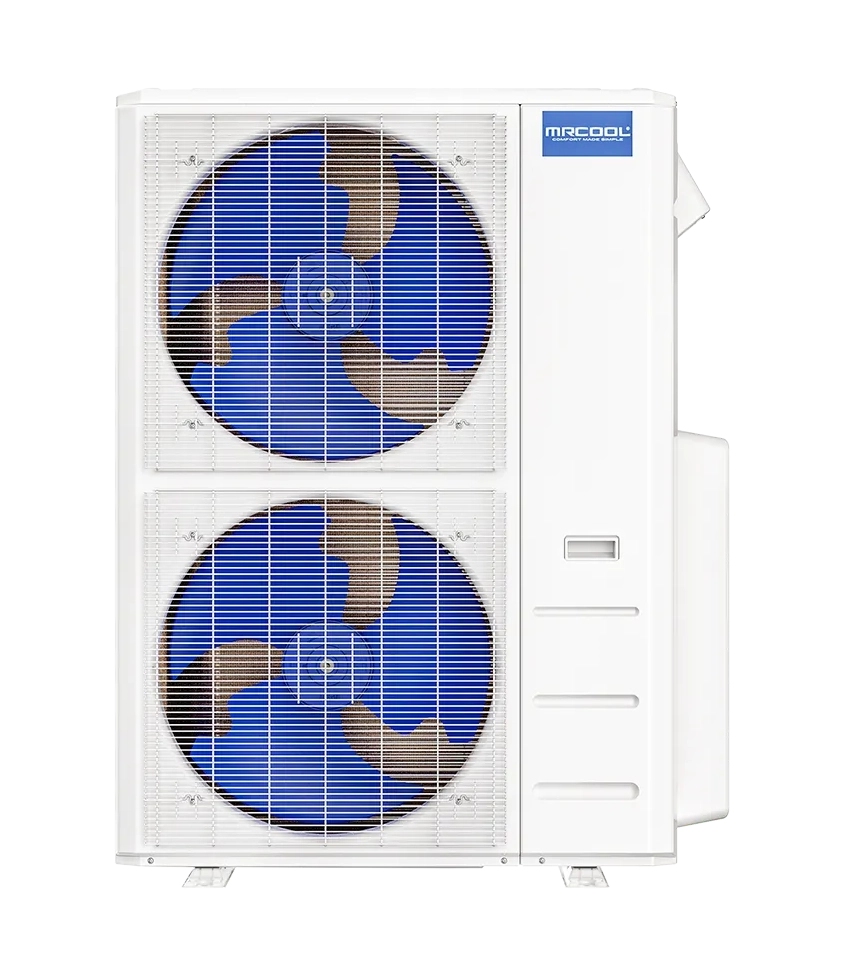

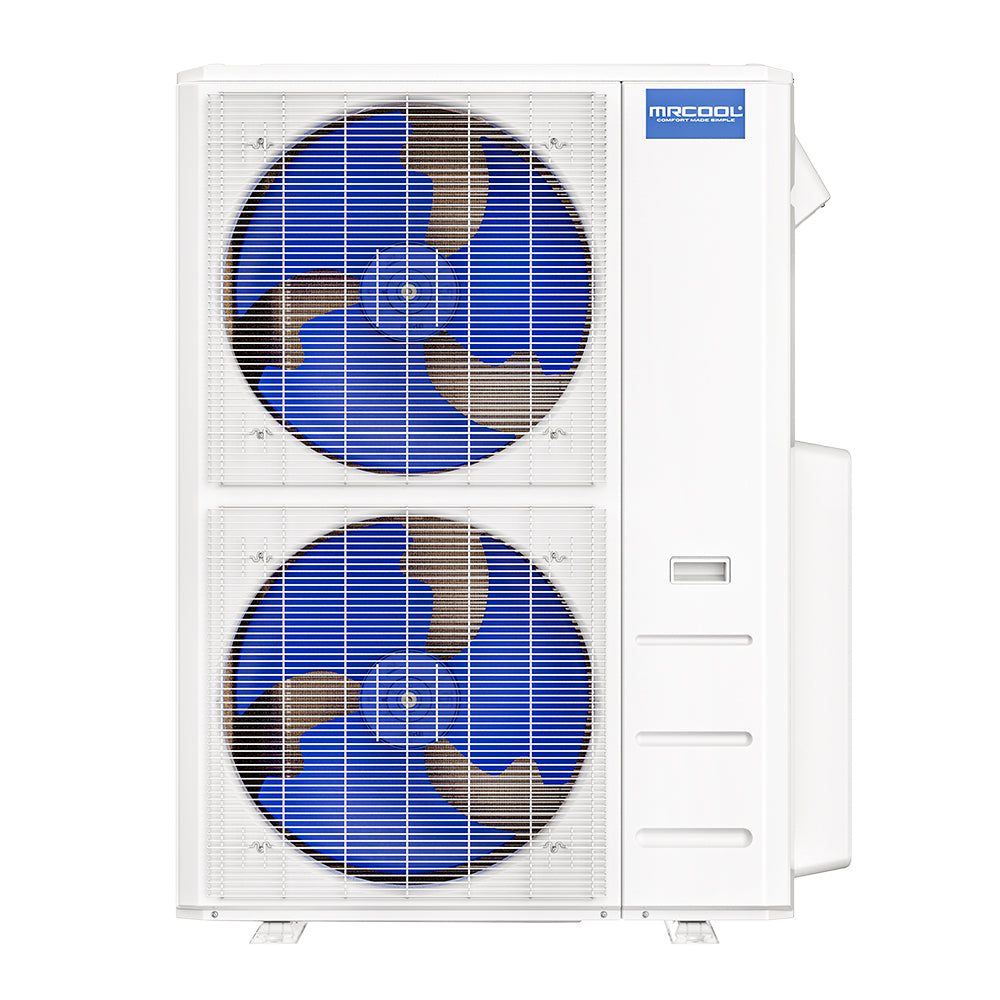

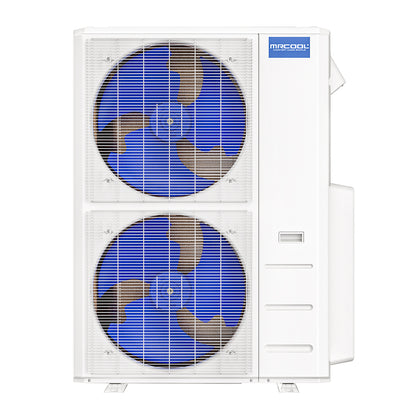

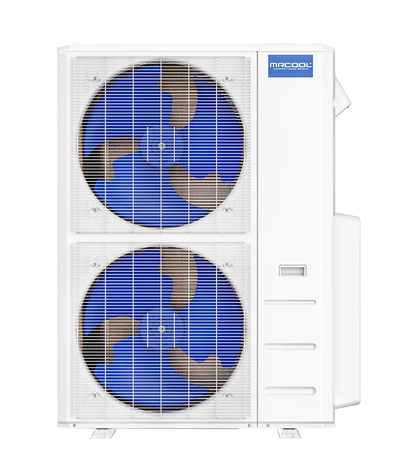

The 5th Generation MRCOOL® DIY® 48K BTU Multi-Zone Condenser delivers premium efficiency with a 21.8 SEER2 rating and 10 HSPF2-4 rating, capable of heating/cooling up to six rooms (2,000 sq. ft. combined). Featuring revolutionary R-454B refrigerant and DIY Quick Connect® line sets (sold separately), this system eliminates the need for professional installation while offering smart controls via Alexa, Google Home, and the Smart HVAC app. With industry-leading warranties including Limited Replacement (with registration), this 4-ton DC inverter system represents the pinnacle of DIY comfort technology for whole-home applications.
Professional installation NOT required - designed for DIY.Registration required for Limited Replacement warranty.Compatible with up to 6 MRCOOL DIY air handlers (sold separately).Quick Connect® line sets required (sold separately) - pre-charged with R-454B refrigerant.
| SKU | DIY-MULTI6-48HP230D-O |
| UPC | 840255587471 |
| GTIN | 00840255587471 |
| Certifications | UL Listed, ETL Listed, Energy Star Certified, AHRI Certified, Intertek Listed (5031495) |
| Cooling Capacity | 43,000 BTU (4 Ton) |
| Heating Capacity | 48,000 BTU |
| Efficiency Ratings | 21.8 SEER2, 12 EER2, 10 HSPF2-4 |
| Refrigerant | R-454B (148.15 oz) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Electrical Details | 40A Min Circuit Ampacity, 45A Max Fuse Breaker |
| Zone Capacity | 6 Zones (up to 6 air handlers) |
| Coverage Area | Up to 2,000 sq. ft. combined |

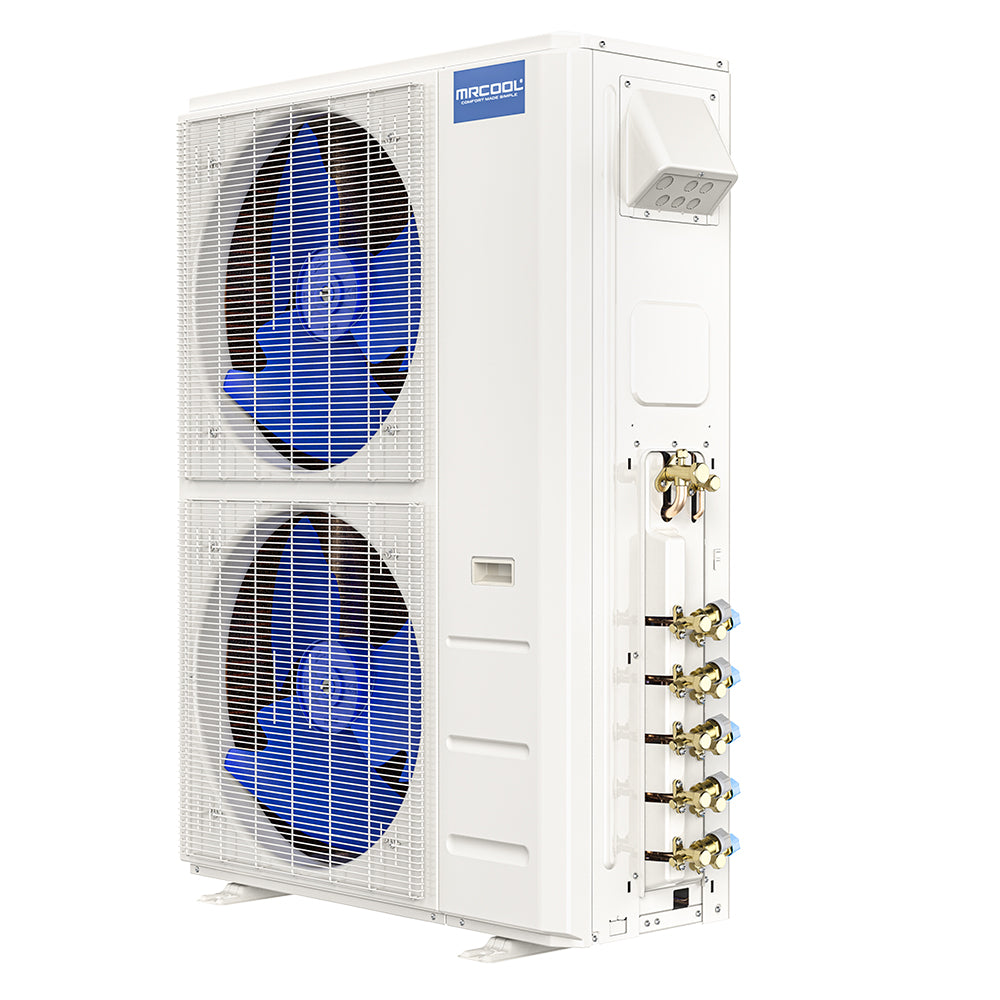

| Line Set Connections | 1/4" Liquid Line, (3/8" x4 + 1/2" x2) Suction Lines |
| Line Set Length | 25 ft (included with Quick Connect® kit, sold separately) |
| Max Line Set Length | 221.4 ft |
| Compressor Type | DC Inverter Rotary |
| Noise Level | 64 dBA |
| Net Dimensions (HxWxD) | 52.48" x 37.48" x 16.34" |
| Net Weight | 223.77 lbs |
| Shipping Dimensions | 58.27" x 43.11" x 19.49" |
| Shipping Weight | 256.39 lbs |
| Smart Controls | Smart HVAC App, Alexa, Google Home, Wireless Remote |
| Operation Modes | Cool, Heat, Fan, Dry, Auto |
| Special Features | Follow Me®, Quiet Mode, Auto Cool, Fan Only Option |
| Connectivity | WiFi, iOS & Android Compatible |
| Construction | Gold Fin® Corrosion Resistant Condenser |
PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
The MRCOOL DIY® 5th Generation Multi-Zone system features DC inverter technology with a rotary compressor for ultra-efficient operation. The R-454B refrigerant offers superior performance with lower environmental impact compared to previous refrigerants. With six independent zones, you can customize temperatures room-by-room while maintaining 21.8 SEER2 efficiency - ideal for whole-home comfort with a single system.
Control your climate from anywhere with the Smart HVAC app for iOS and Android devices. Create custom schedules, monitor energy usage, and adjust temperatures remotely. Voice control integration with Amazon Alexa and Google Home allows hands-free operation. The included wireless remote features Follow Me® technology that ensures optimal comfort by adjusting operation based on the remote's location in your home.
The revolutionary DIY design eliminates the need for professional installation. The system works with pre-charged Quick Connect® line sets (sold separately) that require no vacuuming or special tools. The DIYPRO® cable simplifies electrical connections without requiring conduit. With support for up to 221.4 ft of line set length, you have exceptional flexibility in unit placement. The Gold Fin® condenser coating provides exceptional protection against corrosion, even in coastal environments.
Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
