A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…
CLICK TO CALL US 737-738-6329 FOR ANY QUESTIONS

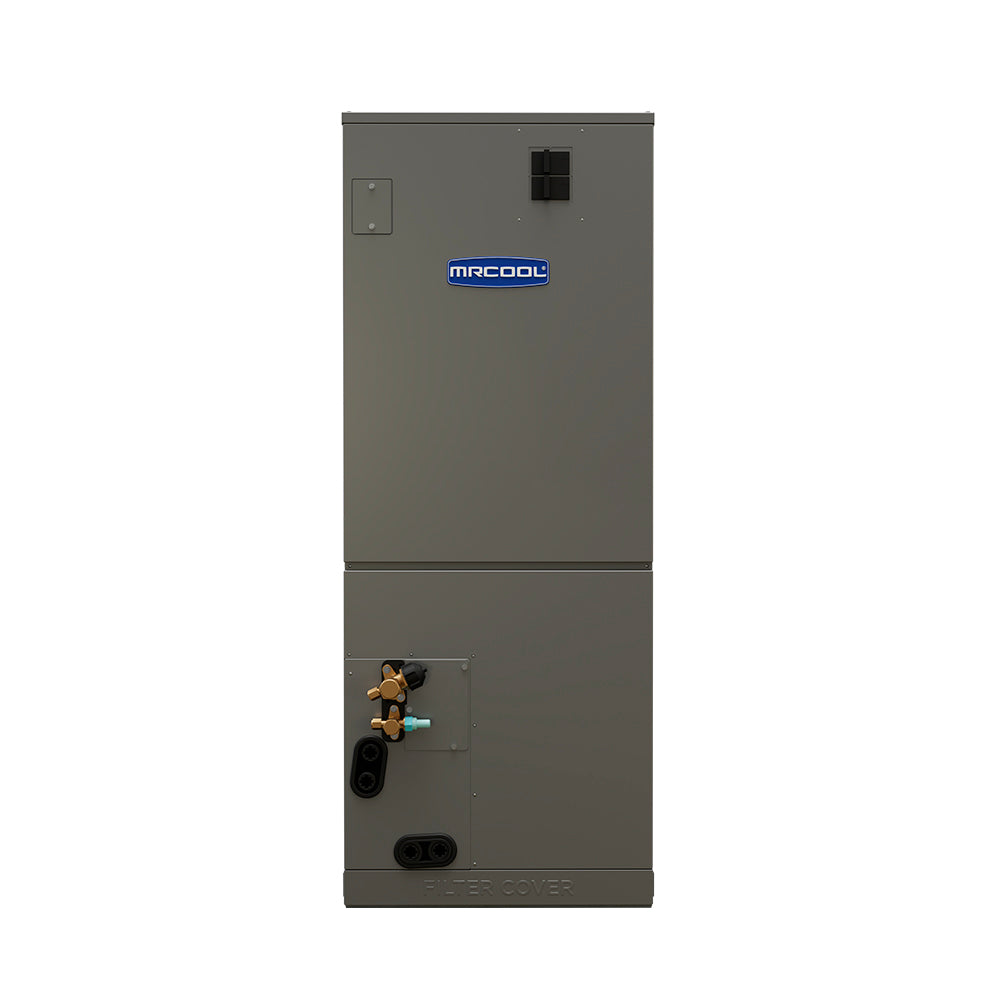

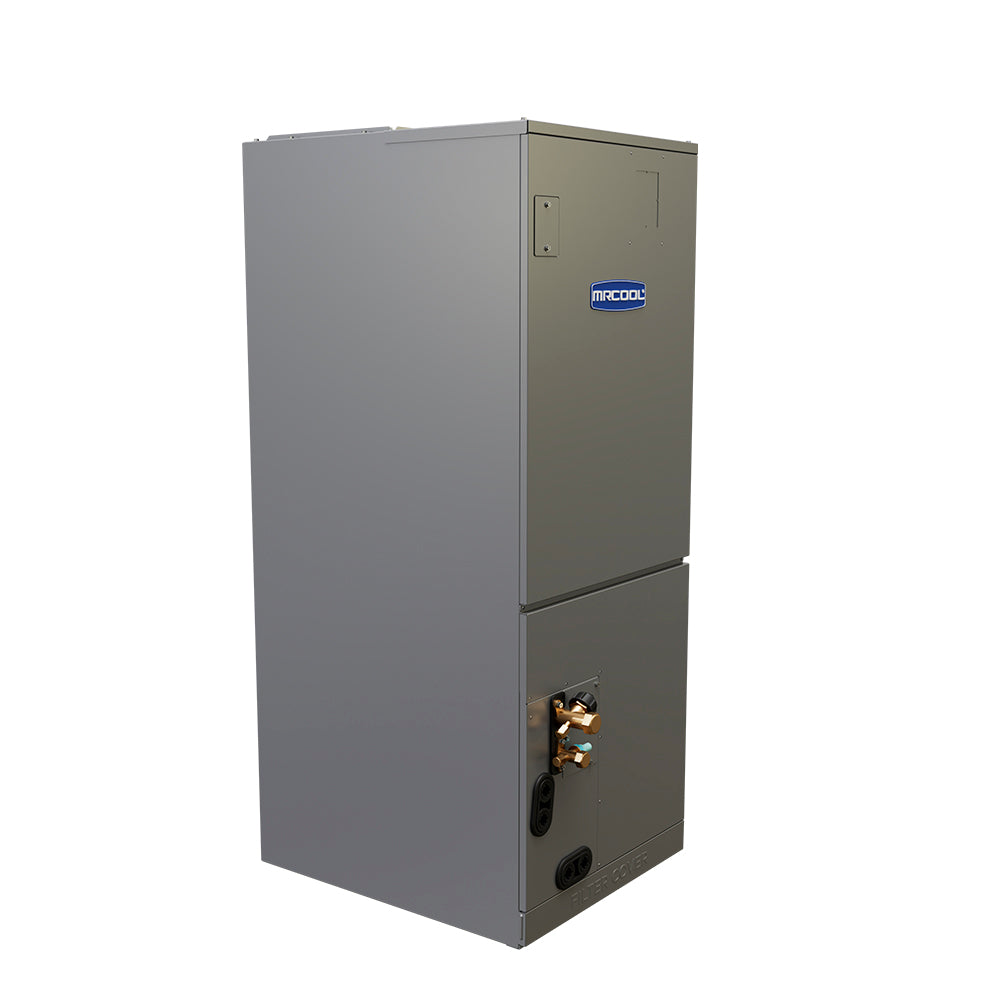

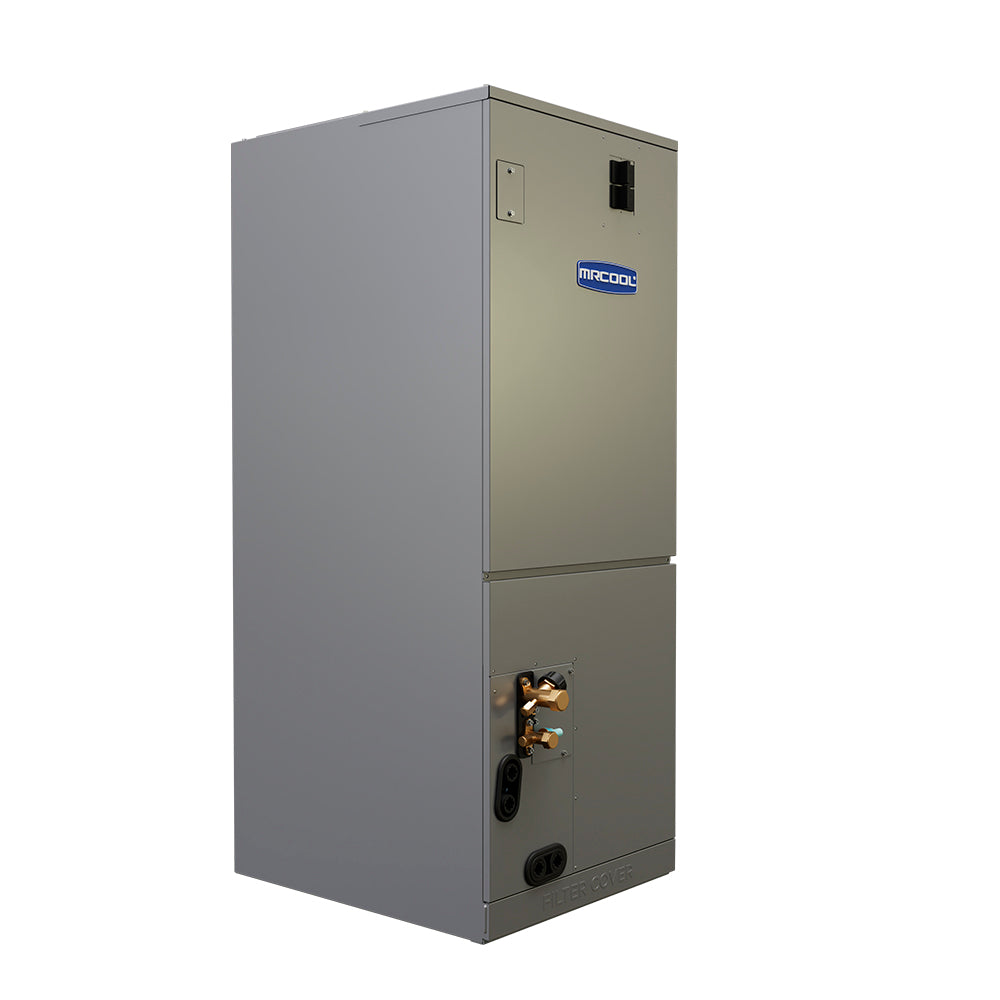

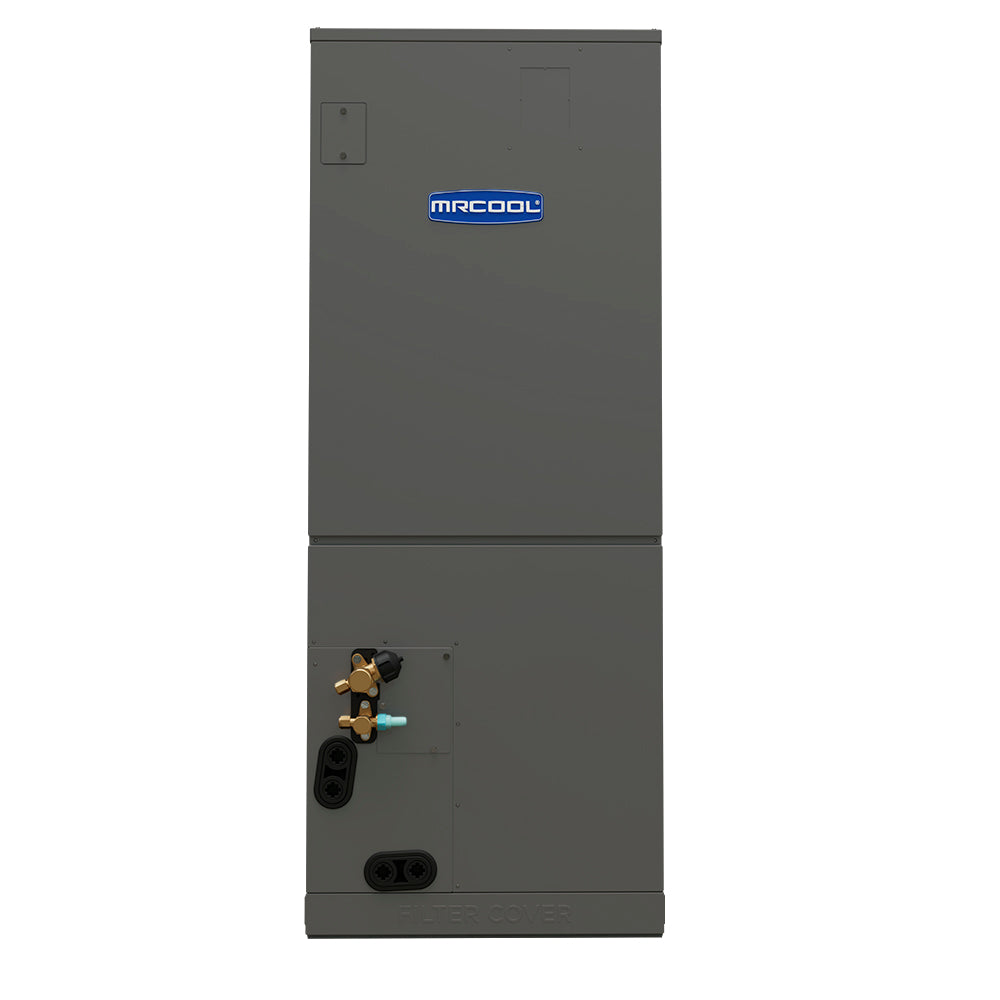

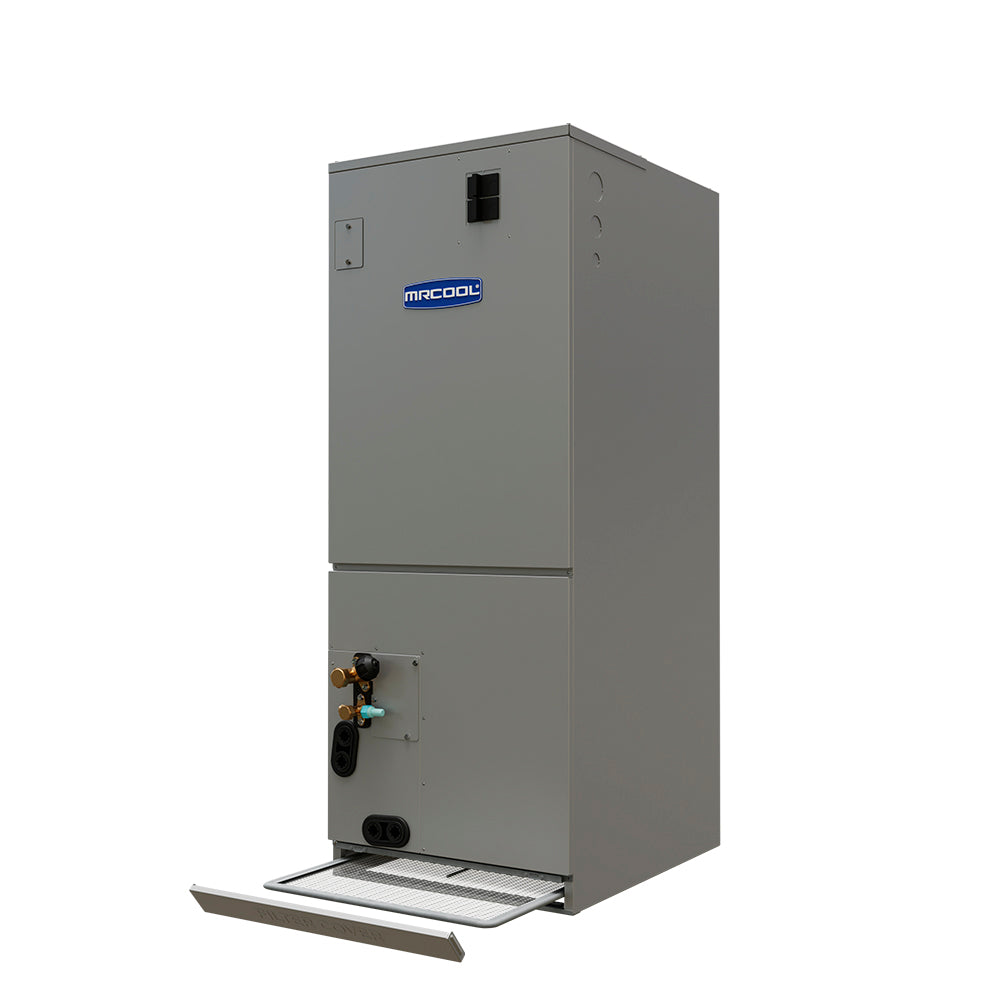

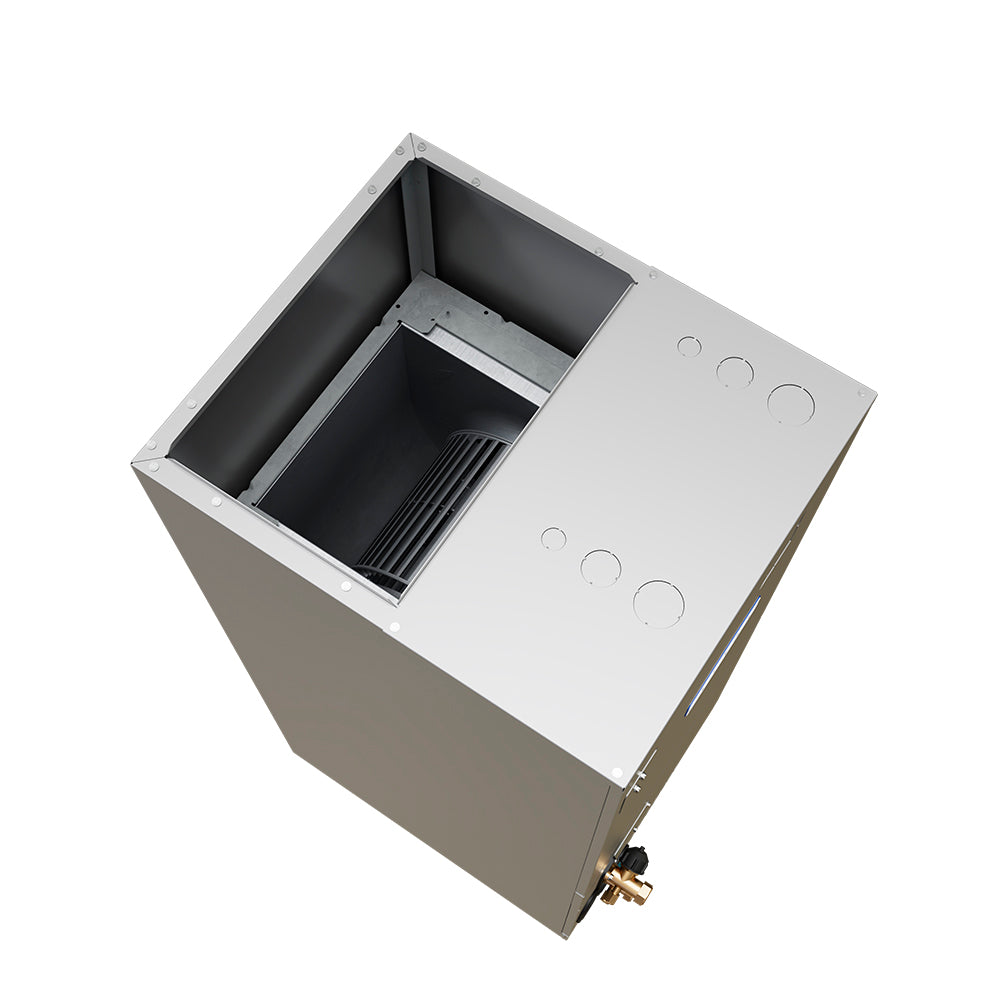

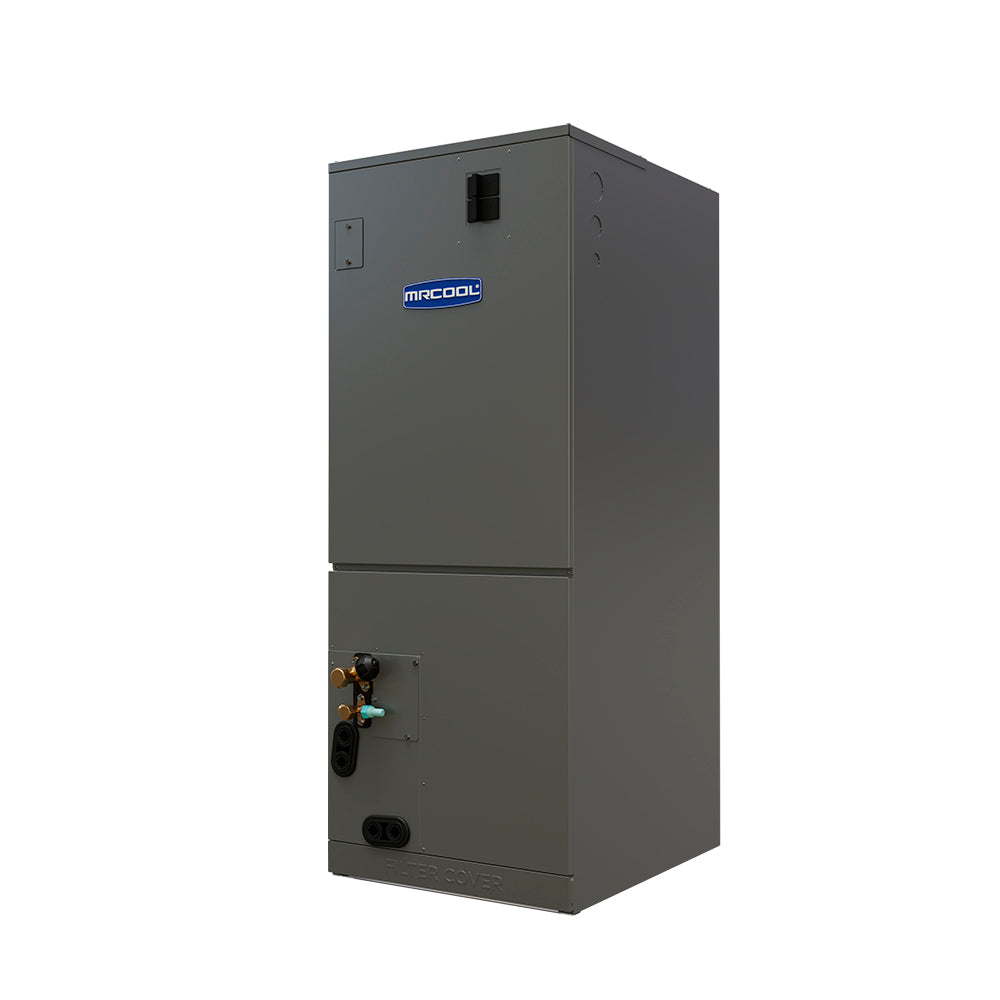

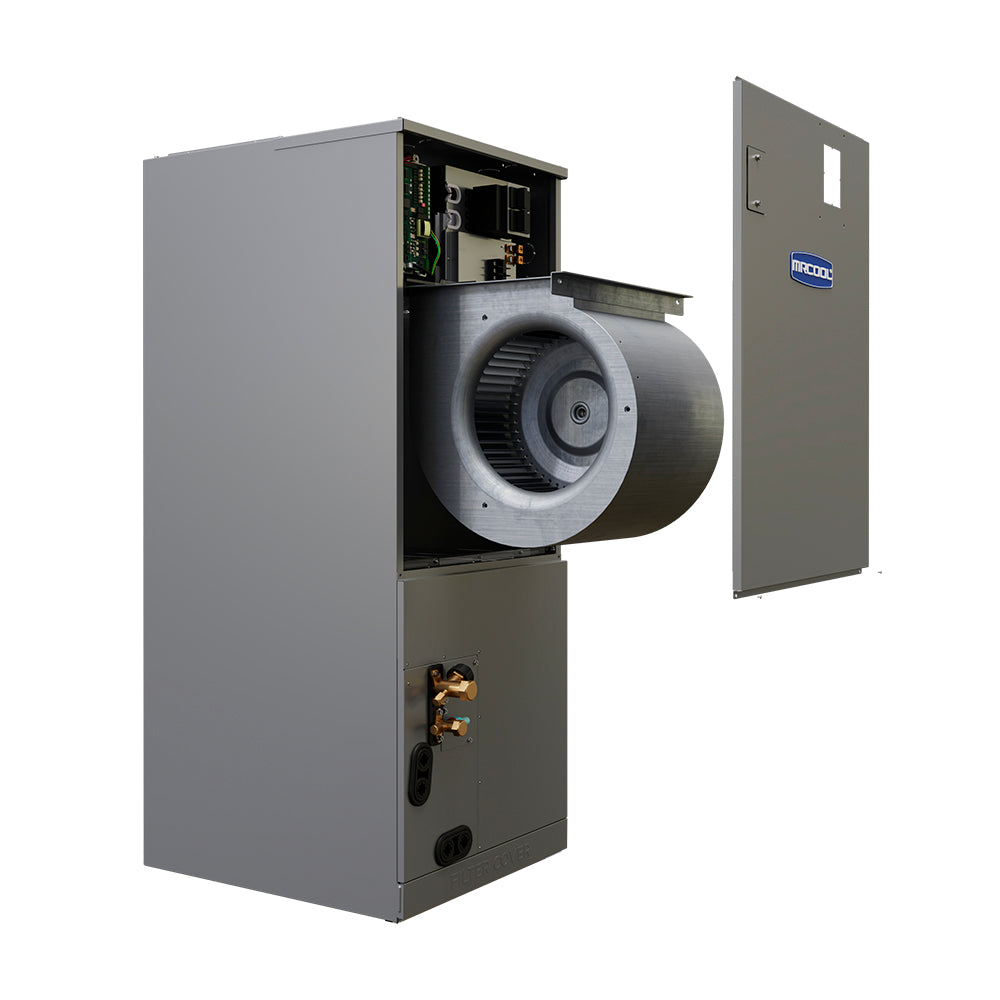

The 24K MRCOOL® DIY Hybrid™ Air Handler is a smart, flexible solution for heating and cooling spaces up to 1,000 square feet. Designed for easy pairing with MRCOOL® DIY condensers, it allows for a seamless, do-it-yourself installation—ideal for replacing older HVAC systems. Its painted galvanized steel exterior ensures durability and long-lasting performance, while the built-in self-diagnostics panel simplifies troubleshooting by quickly identifying error codes and reducing downtime. This air handler supports multiple installation configurations—including upflow, downflow, and horizontal left or right—making it adaptable to a variety of home layouts.
Designed for DIY installation with compatible MRCOOL condensers.Registration activates extended limited warranty.Multi-position installation flexibility (upflow, downflow, horizontal).Works with DIY MZ or 24K DIY Condenser.
| SKU/Model | DIY-24-HP-MUAH-230D25-O |
| UPC | 840255588409 |
| GTIN | 00840255588409 |
| Unit Type | Split System Ducted DIY Air Handler |
| Equipment Type | Air Handler |
| Configuration | Multi-Position |
| Net Weight | 104.72 lbs |
| Gross Weight | 126.76 lbs |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| Maximum Coverage Area | 1,050 sq. ft. |
| Tonnage | 2 Tons |
| Refrigerant | R-454B |
| Electrical Requirements | 208/230V 1 Phase 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 4A |
| Rated Load | 3 |
| Net Dimensions (HxWxD) | 45" x 17.52" x 21.02" |
| Gross Dimensions (HxWxD) | 48.62" x 20.87" x 26.57" |
| Line Sizes | 3/8" (liquid), 5/8" (suction) |
| Line Set Included | Yes |
| Max Line Set Length | 164 ft |
| CFM Range | 824 / 759.3 / 694.5 / 629.8 |
| Number of Speeds | 4 |
| Drain Connection Size | 3/4" |
| Color | Gray |
| Noise Level (Average) | 42.5 dB |
| Noise Level (Low) | 29 dB |
| Noise Level (High) | 44 dB |
| Metering Device | EEV (Electronic Expansion Valve) |
| Filter Type | Replaceable (Refer to Installation Manual for size) |
| Works With | DIY MZ or 24K DIY Condenser |
| WiFi Compatibility | Yes |
| App Compatibility | Yes |
| iOS Compatible | Yes |
| Android Compatible | Yes |
| Adjustable Thermostat | Yes |
| Remote Control Included | No |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | Yes |
| Auxiliary Heater Sizes | 5kW, 8kW, 10kW, 15kW |
| UL Listed | Yes |
| CSA Certified | Yes |
| ETL Certified | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Restricted States | GU; PR; VI |
PROPOSITION 65 WARNING:This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Product Contains:Electronics, Chemicals, Compressed Gas
The MRCOOL DIY Hybrid™ Air Handler comes equipped with the MRCOOL® Smart Wi-Fi Thermostat, allowing easy control via the touchscreen or the MRCOOL® app for iOS and Android devices. This smart feature makes it simple to customize your indoor climate and maintain optimal comfort with minimal effort, whether you're home or away. The unit provides precise temperature control and monitoring capabilities.
This ducted air handler offers exceptional installation flexibility with multi-position capability (upflow, downflow, horizontal left or right), making it adaptable to various home layouts. The built-in self-diagnostics panel simplifies troubleshooting by quickly identifying error codes and reducing downtime. The unit is designed for easy pairing with MRCOOL® DIY condensers for a complete DIY HVAC system solution. The included line set supports installations up to 164 feet.
For added warmth during colder months, optional heat kits are available in multiple sizes (5kW, 8kW, 10kW, 15kW) to provide increased year-round comfort and versatility. The painted galvanized steel exterior ensures durability and long-lasting performance in various environmental conditions. The R-454B refrigerant offers high performance with reduced environmental impact.
This Energy Star certified unit uses R-454B refrigerant, an environmentally conscious option that provides high efficiency performance while minimizing environmental impact. With four fan speeds and electronic expansion valve control, the system optimizes energy usage while maintaining comfort levels throughout your 1,050 sq. ft. space.
Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
