A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

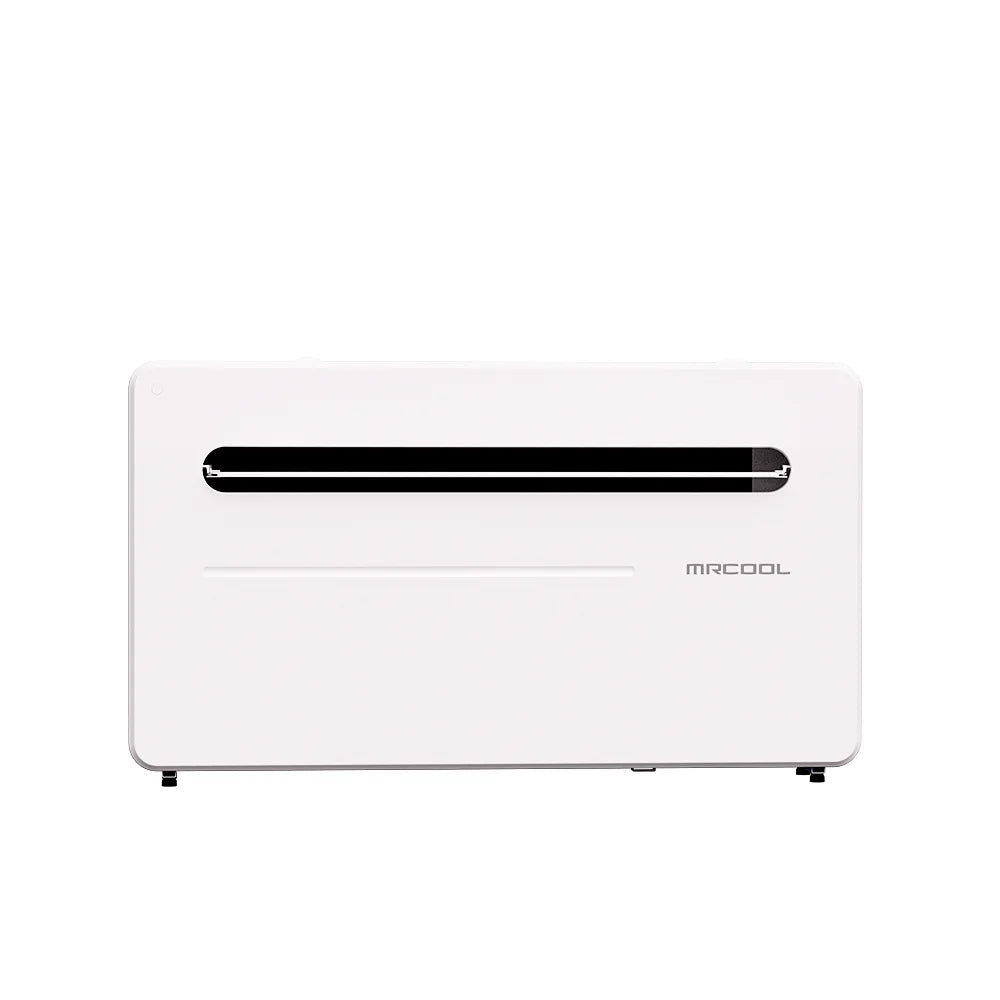

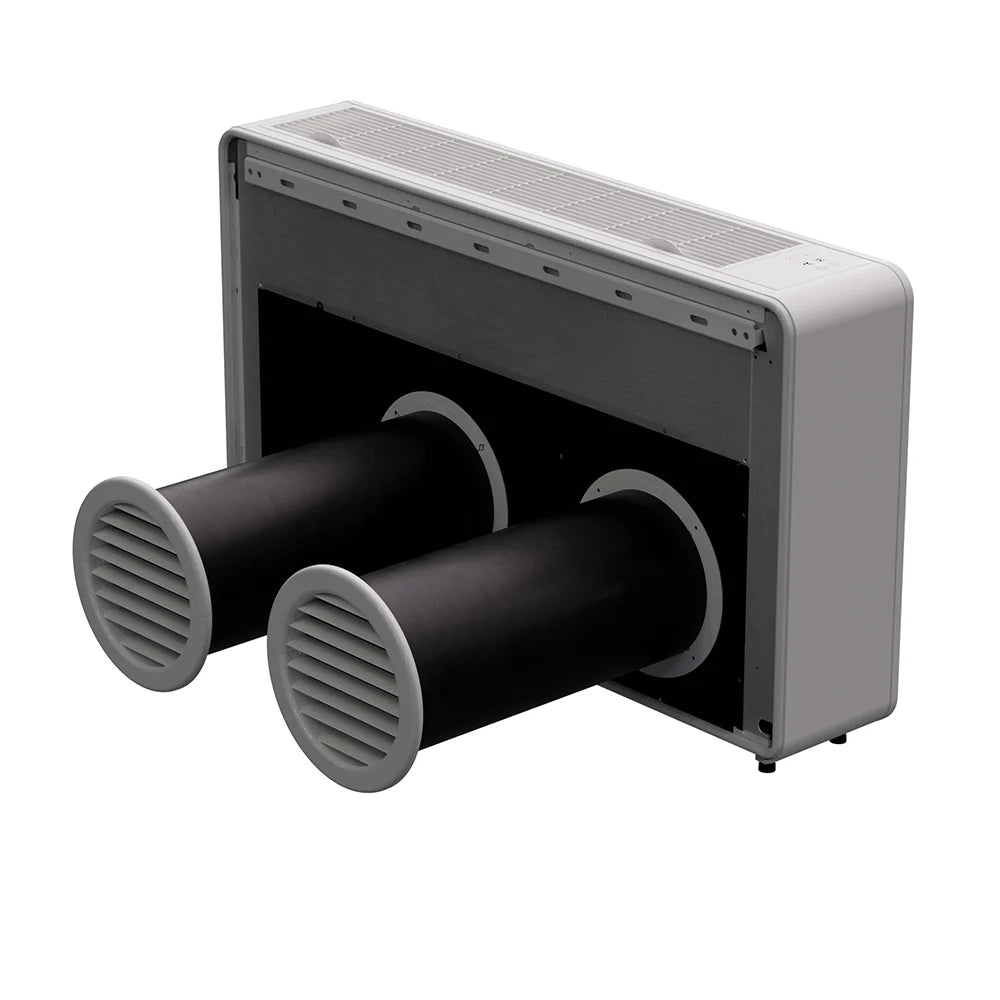

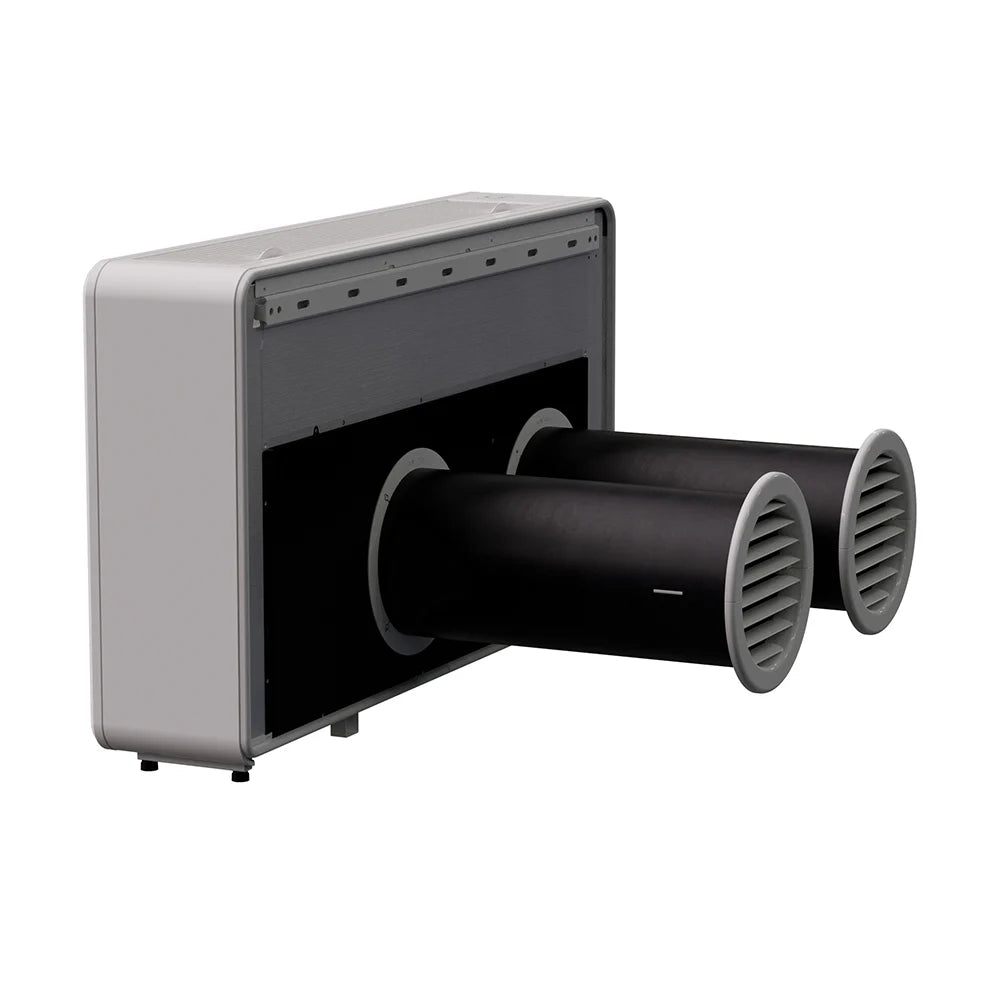

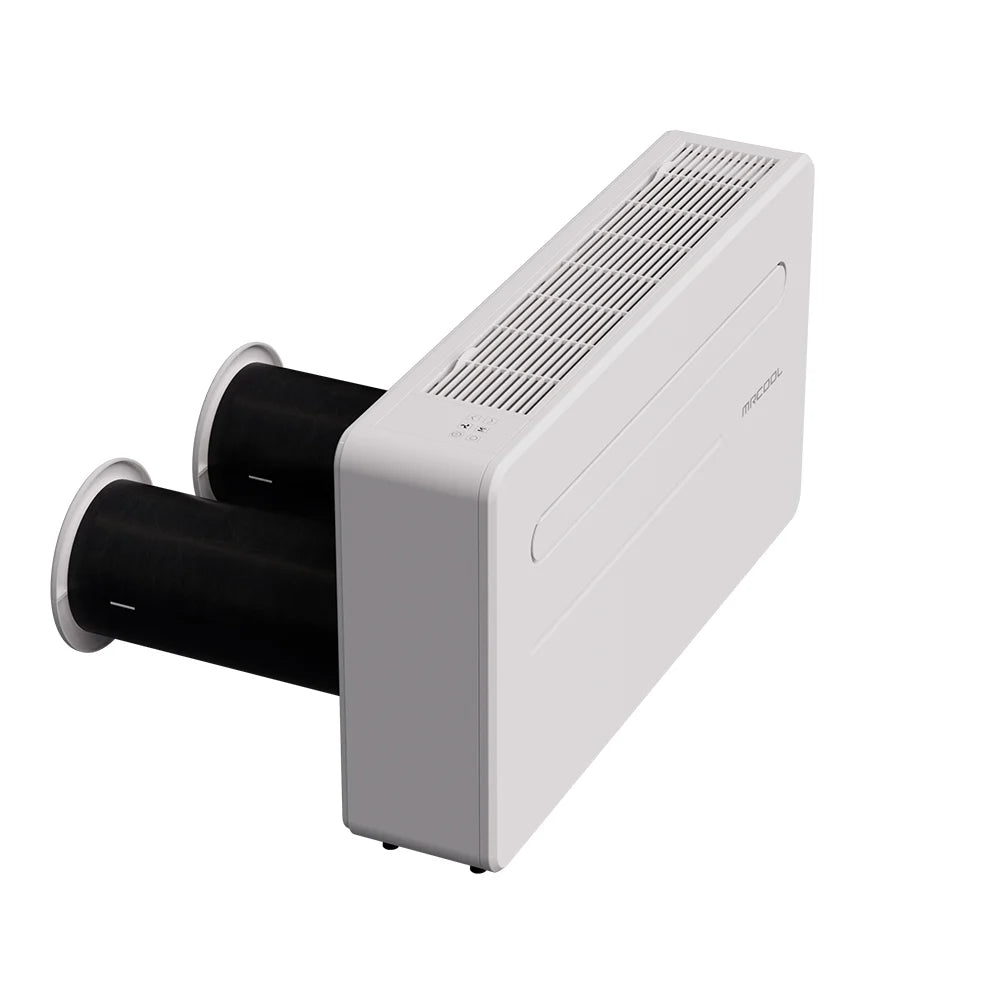

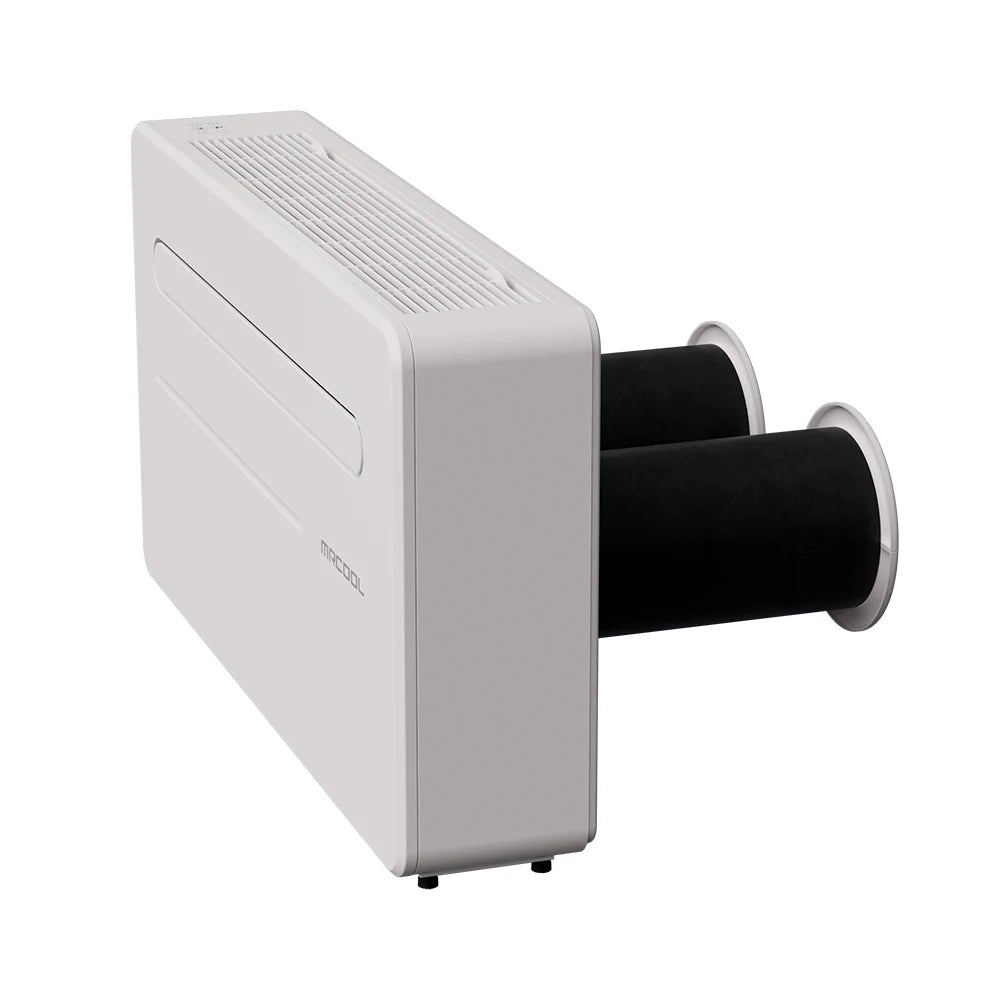

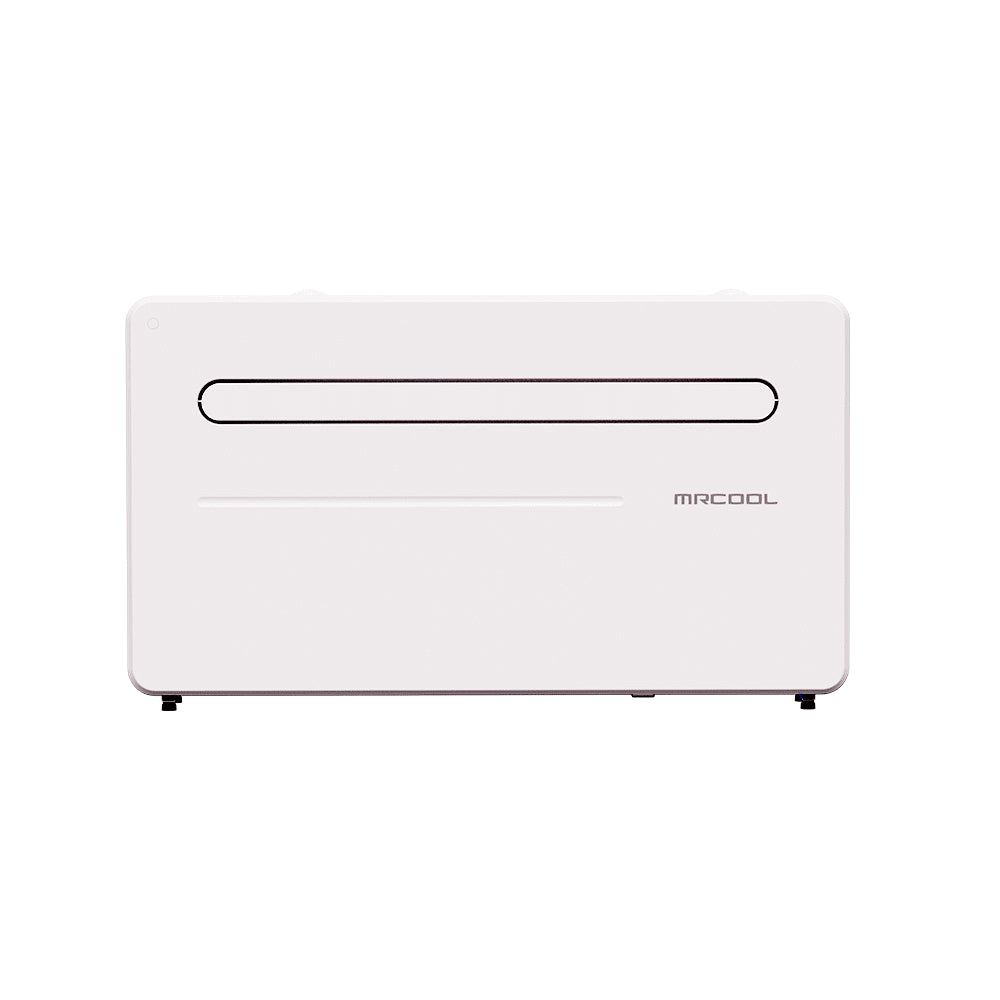

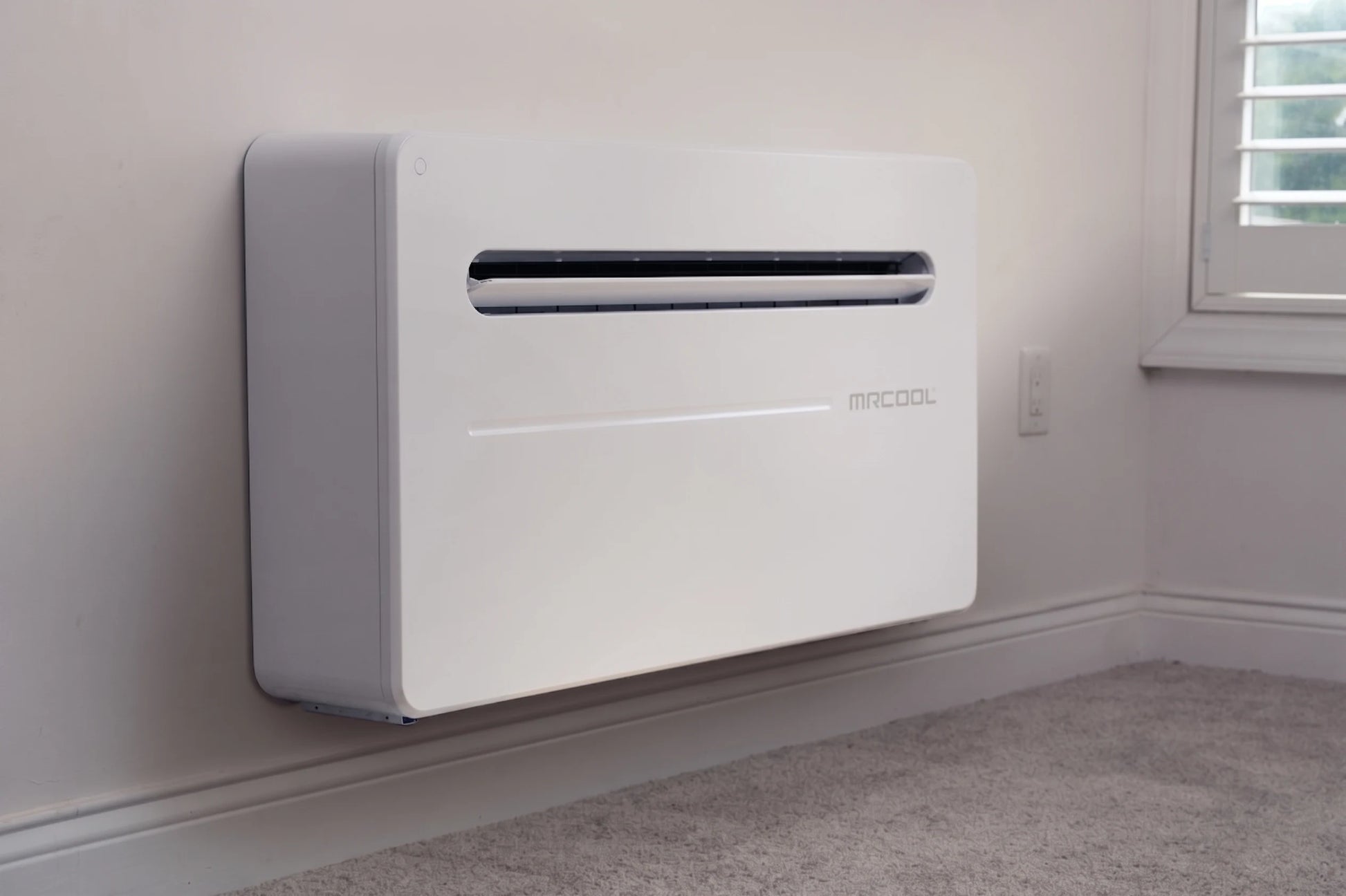

The MRCOOL® Monoblock MTHP Series 10,000 BTU 115V Wall Mounted Heat Pump is a compact all-in-one heating and cooling solution designed for small spaces where traditional mini-split installation may not be practical. Instead of using a separate outdoor condenser, the Monoblock MTHP houses the system components inside one wall mounted indoor unit, helping save space while simplifying installation.
Designed for year-round comfort, this unit provides 10,000 BTU of cooling and 9,000 BTU of heating with DC inverter technology for smoother temperature control, quieter operation, and improved efficiency compared with basic fixed-speed systems. It uses R-32 refrigerant, a modern lower-GWP refrigerant option, and includes cooling, heating, fan, and dry operating modes.

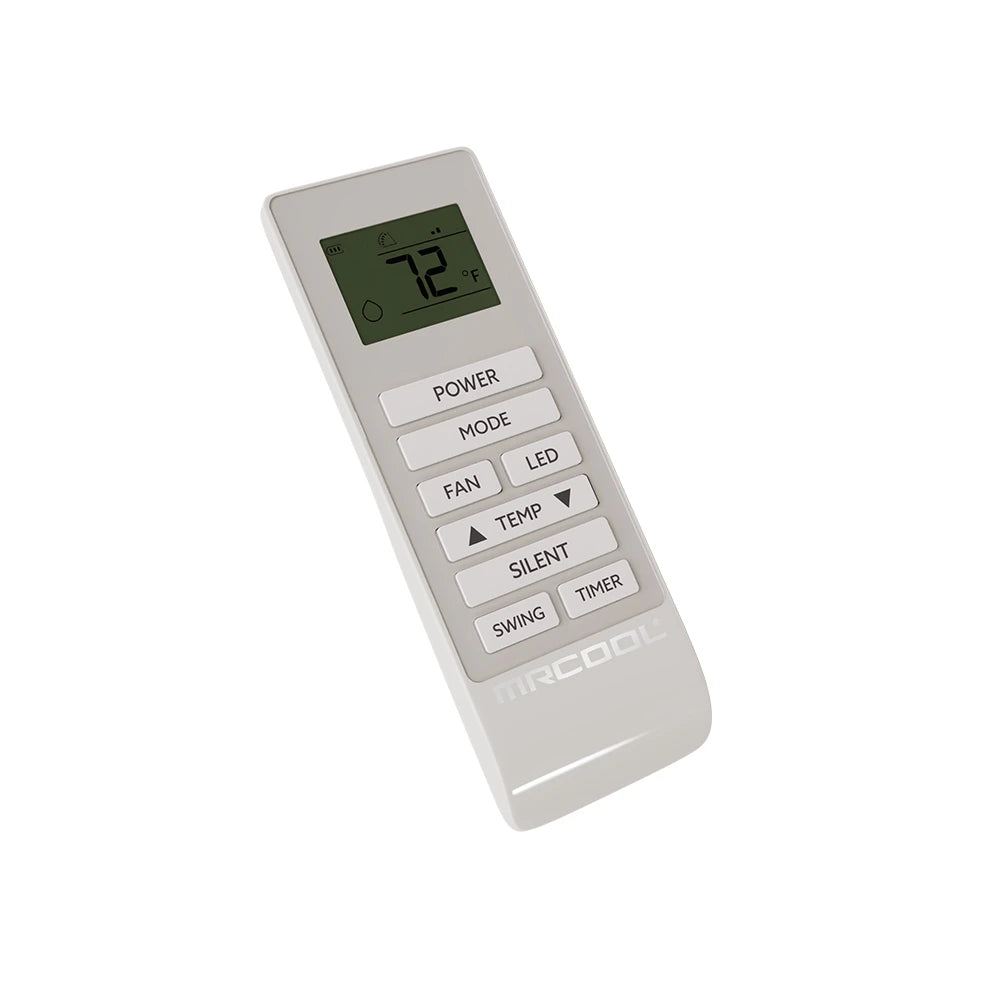

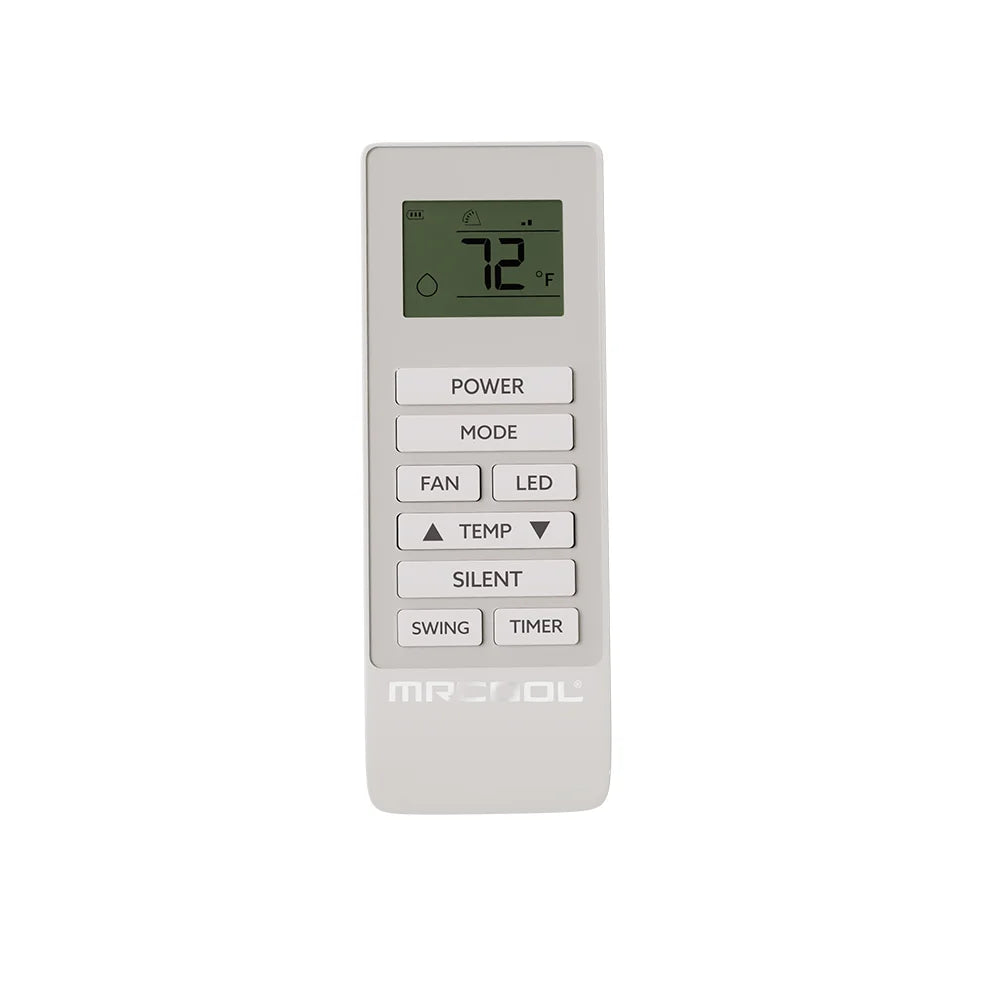

Everyday control is simple through the bright LED display, included remote control, and optional Wi-Fi control through the MRCOOL® Connect app. Features such as swing, silent operation, timer control, reusable filtration, and self-evaporative operation with water-full alarms and auto-stop protection make this a practical choice for apartments, additions, offices, bedrooms, cabins, and other small comfort zones.
```Installation requirements, wall opening details, drainage setup, electrical requirements, and code compliance should be verified in the installation manual and local codes.
```Auxiliary heat is not included and is not listed as available for this model.
Warranty terms, registration requirements, and coverage limitations are controlled by MRCOOL®. Review the warranty document before installation.
Model: MDM10115D | Series: Monoblock MTHP
```| Brand Name | MRCOOL |
| Series | Monoblock MTHP |
| Model | MDM10115D |
| GTIN | 00840433615736 |
| UPC | 840433615736 |
| Unit Type | MTHP |
| Short Description | Monoblock MTHP White, 10,000 BTU, 115V, R32 |
| SEER2 | 15 |
| EER2 | 9.9 |
| HSPF2 | 7.5 |
| Tonnage | 0.83 Ton |
| Cooling Capacity | 10,000 BTU |
| Heating Capacity | 9,000 BTU |
| Voltage / Phase / Cycle | 115V | 1 Phase | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 13A |
| Mount Type | Wall |
| Color | White |
| Refrigerant Type | R-32 |
| Refrigerant Volume | 19.4 oz |
| Sound Rating | 32 to 46 dB(A) |
| Oscillation | Yes |
| Inverter | Yes |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Type | DC |
| Blower Motor Type | DC |
| Filter Type | Reusable |
| Auxiliary Heater Included | No |
| Auxiliary Heater Available | No |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Wi-Fi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Base Warranty | 1 Year |
| Base Parts Warranty | 1 Year |
| Base Remote Warranty | 1 Year |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Net Dimensions | 39.4"W x 23.1"H x 8.07"D |
| Net Weight | 93.5 lbs |
| Gross Dimensions | 44.1"W x 26.19"H x 13.19"D |
| Gross Weight | 106.7 lbs |
| Brochure | Open Brochure |
| Install Manual | Open Install Manual |
| Service Manual | Open Service Manual |
| Warranty Document | Open Warranty Document |
| French Install Manual | Open French Install Manual |
| French Warranty Document | Open French Warranty Document |
| Spanish Install Manual | Open Spanish Install Manual |
| Spanish Warranty | Open Spanish Warranty |
No. This is a monoblock all-in-one system, so the main components are housed in a single wall mounted indoor unit instead of a separate outdoor condenser.
No refrigerant handling is required for normal installation. The system is designed to simplify setup compared with traditional split systems.
This 10,000 BTU cooling and 9,000 BTU heating unit is best suited for small comfort zones such as bedrooms, offices, additions, apartments, cabins, and similar spaces.
Yes. Wi-Fi compatibility and app compatibility are listed, with support for iOS and Android devices through the MRCOOL® Connect app.
No. Auxiliary heat is not included and is not listed as available for this model.
The base warranty, parts warranty, and remote warranty are each listed as 1 year.
Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
