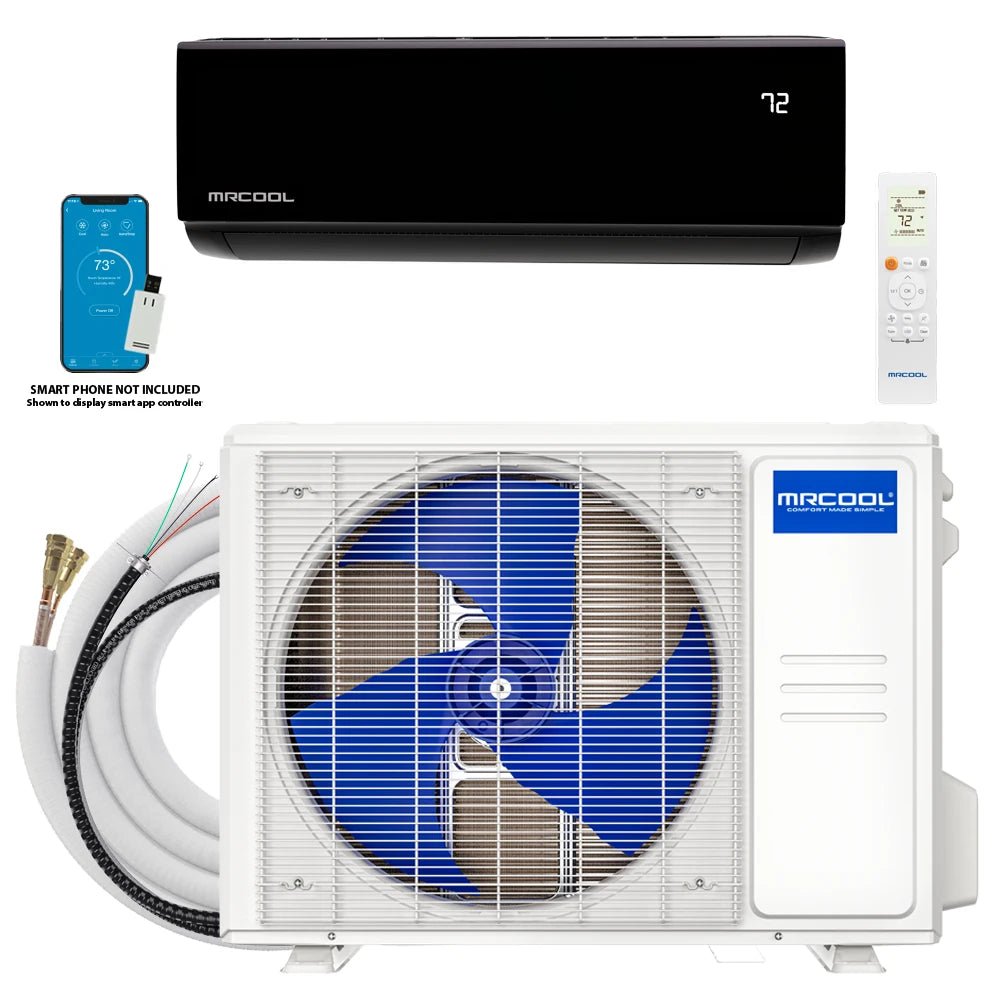

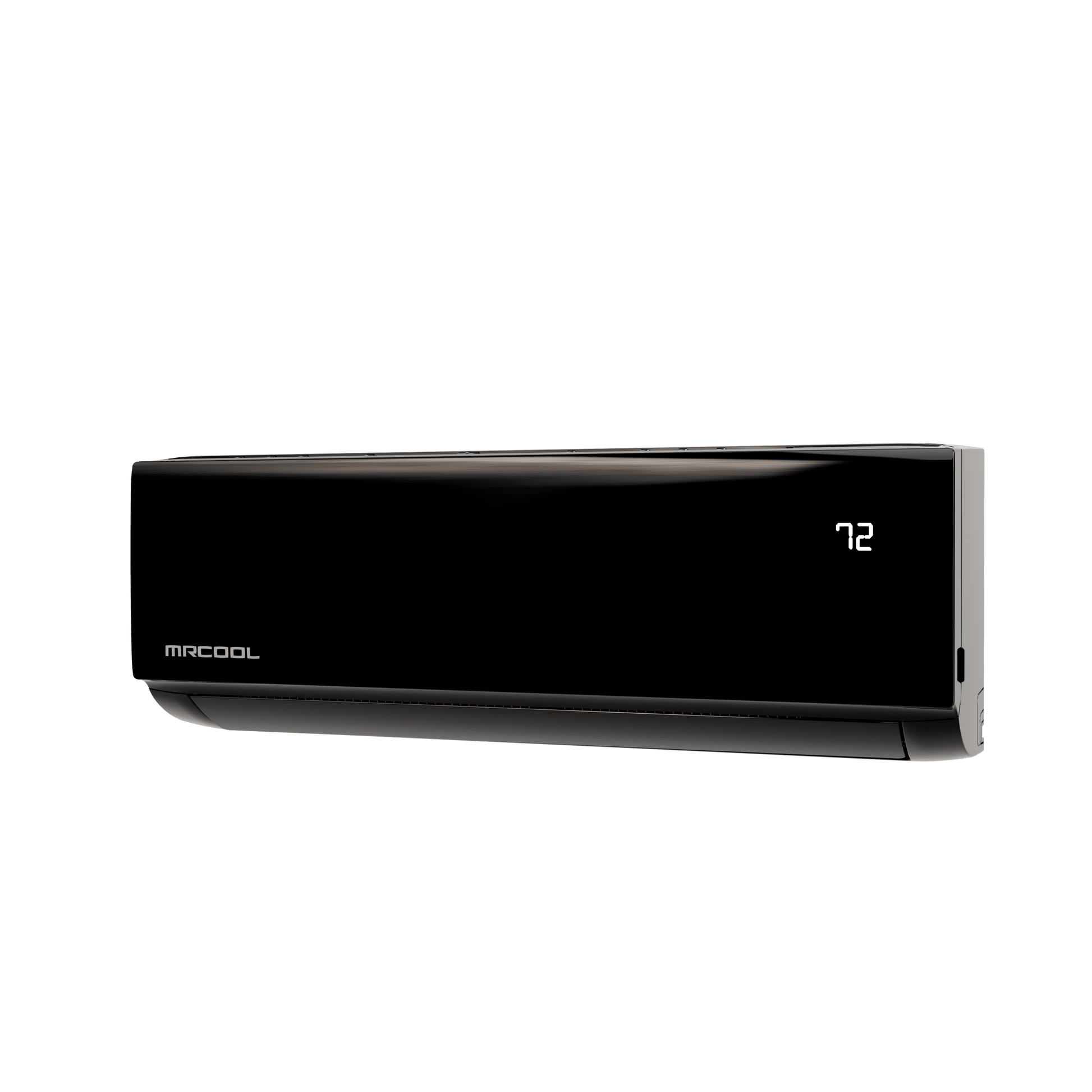

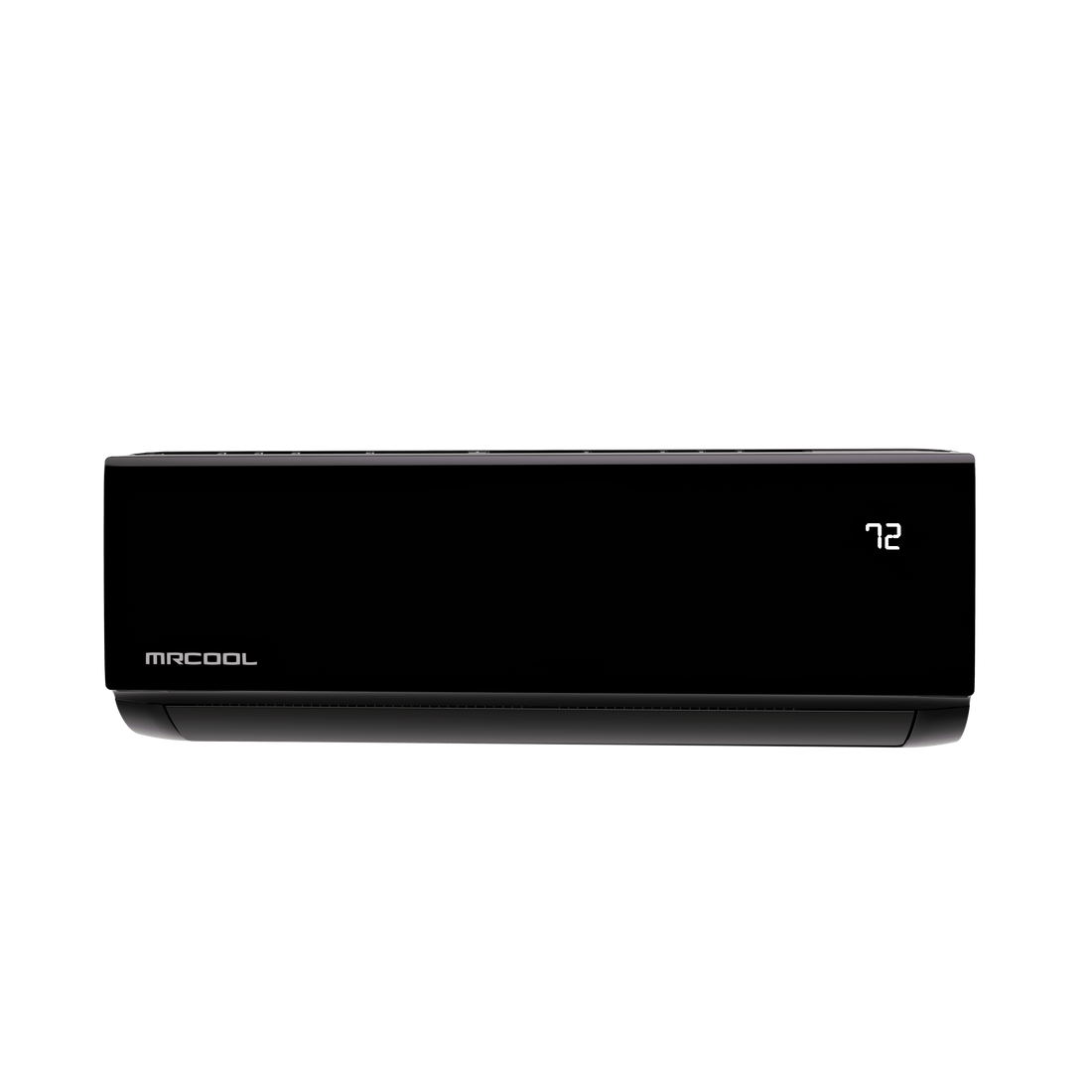

The MRCOOL® DIY® Select 12K BTU 115V Ductless Mini-Split Heat Pump System pairs a sleek black wall mounted air handler with a 115V single-zone condenser for efficient heating and cooling in spaces up to 550 sq. ft. It is a strong fit for attics, garages, home offices, studios, and similar rooms where year-round comfort is needed without bulky ductwork.
Built as part of the MRCOOL® DIY® lineup, this system is designed for true do-it-yourself installation. The compatible Quick Connect® line set arrives factory pre-charged with R-454B refrigerant, helping reduce the need for vacuum pumps, specialized tools, or refrigerant handling. The included 13 ft DIYPRO® communication cable further simplifies setup while helping protect wiring from moisture, pests, and outdoor exposure.
Comfort control is simple with the included wireless remote or the MRCOOL® Comfort app. Users can adjust temperatures, set schedules, and monitor energy usage from anywhere. Compatibility with Amazon Alexa and Google Assistant adds voice-control convenience, while Dry Mode, Sleep Mode, Auto Mode, fan-only operation, and programmable scheduling help maintain a balanced indoor environment while optimizing efficiency.
```Warranty terms, registration requirements, and coverage limitations are controlled by MRCOOL®. Review the warranty document before installation.

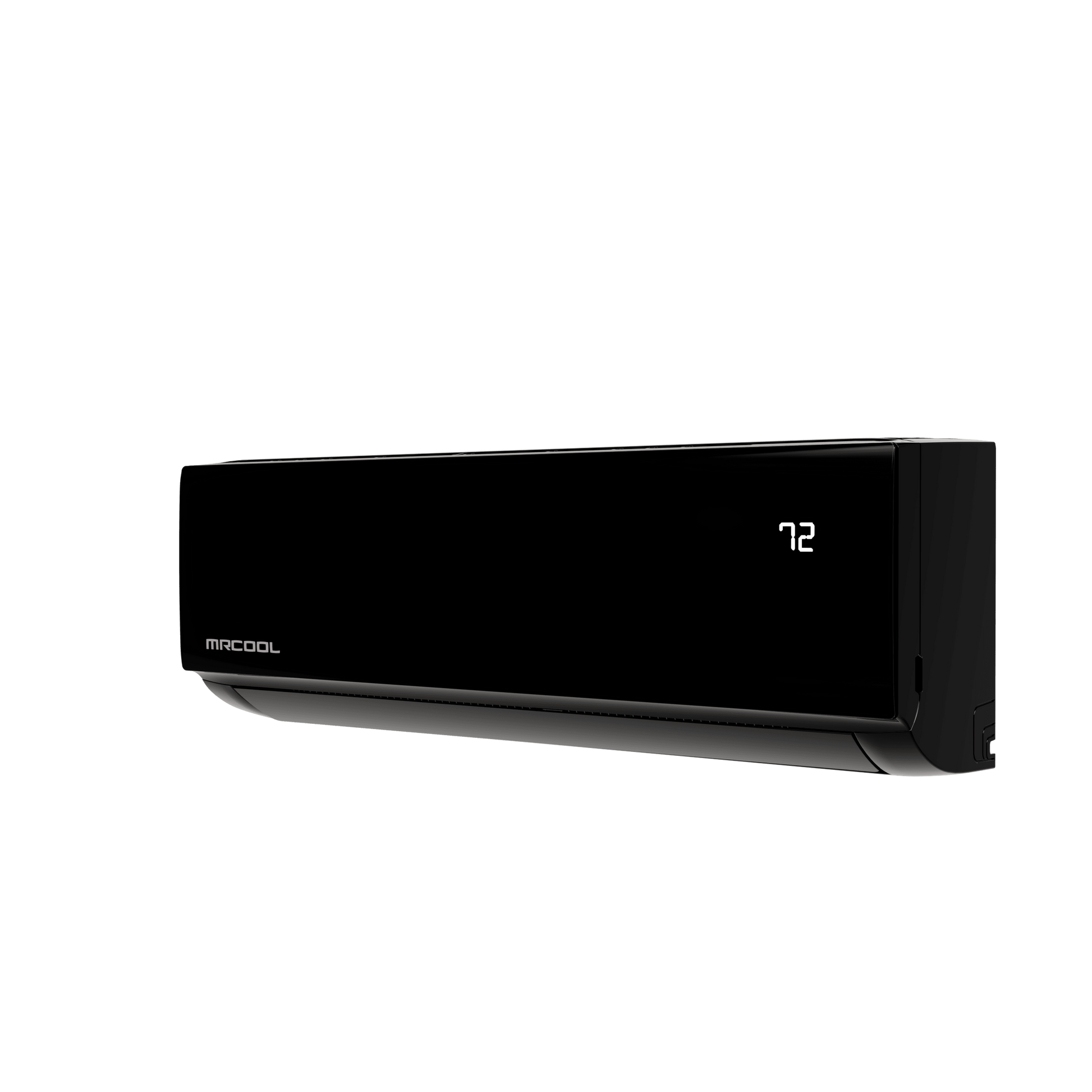

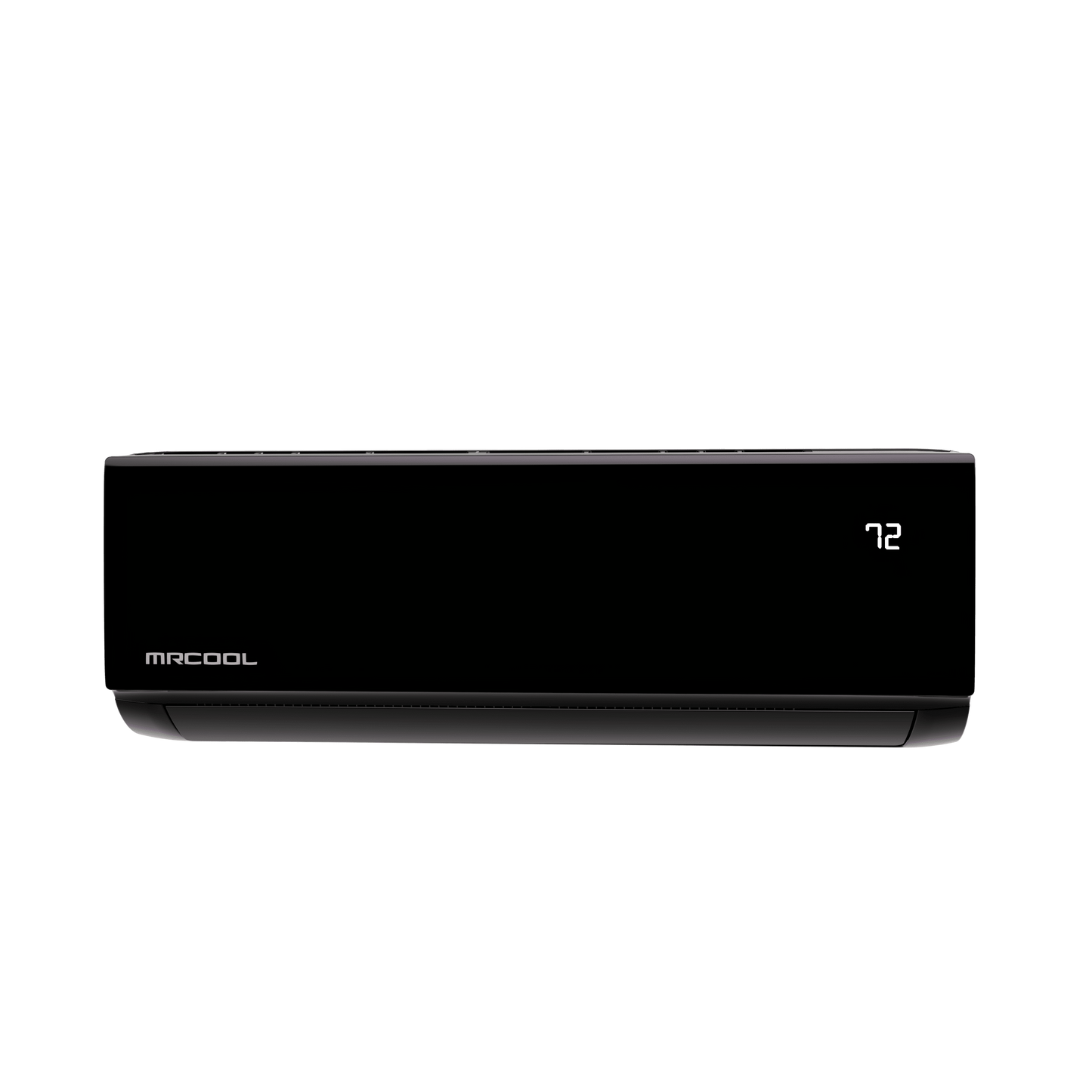

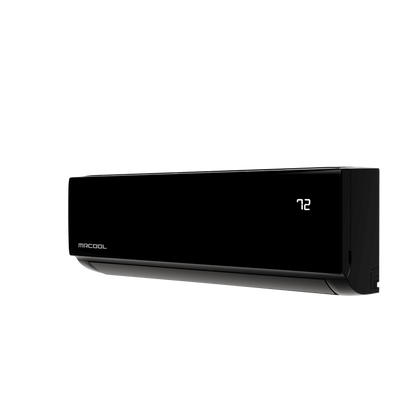

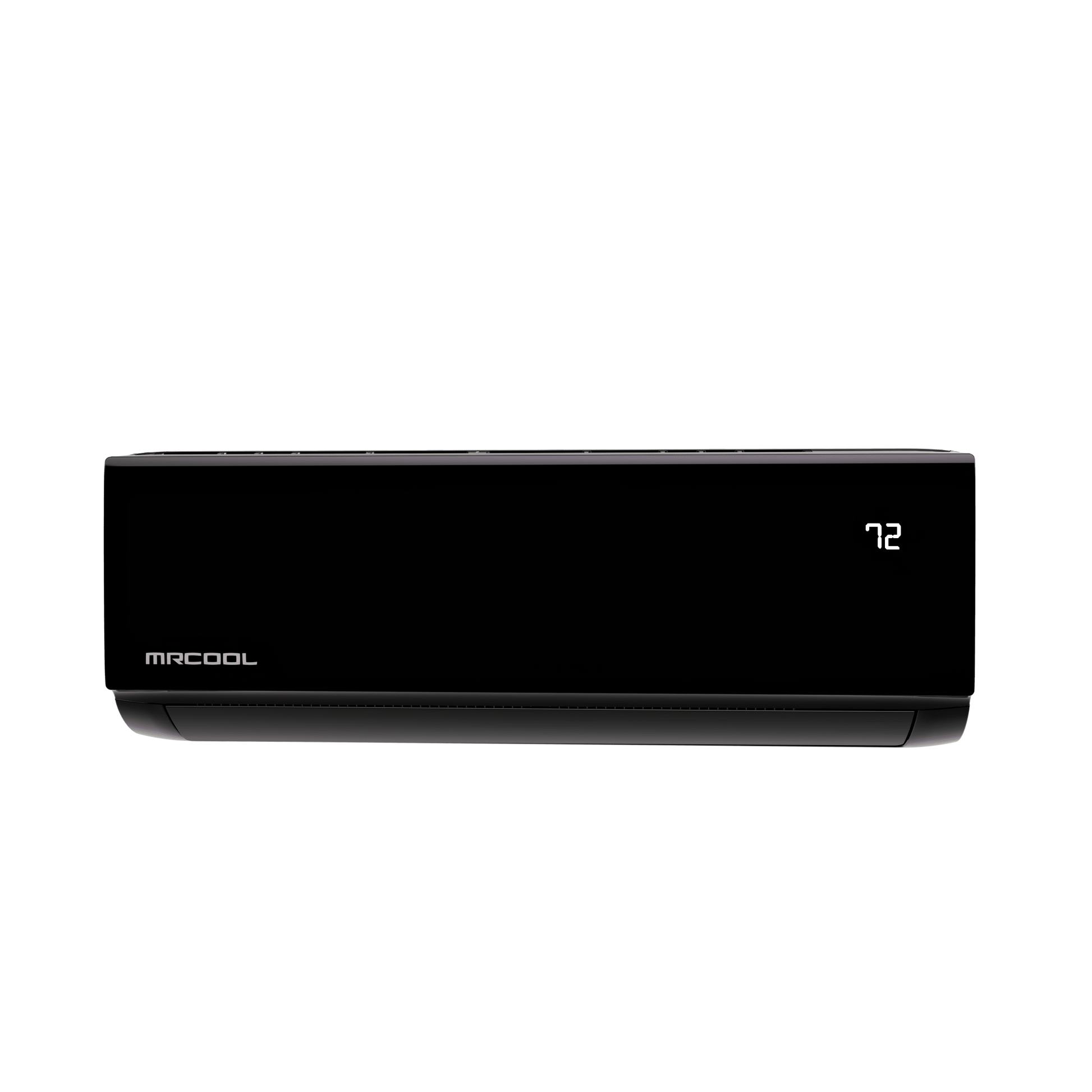

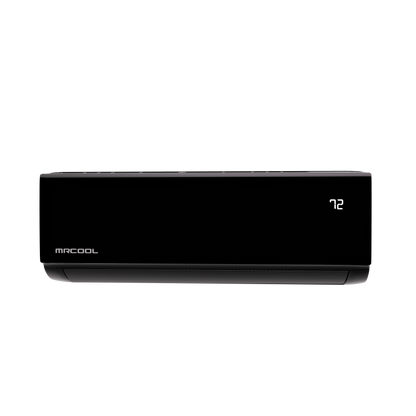

| Brand Name | MRCOOL |
| Series | DIY Select |
| Unit Type | Mini-Split |
| Equipment Type | Air Handler |
| Model | DIYS-12-HP-B-WMAH-115A13-O |
| GTIN | 00840433619925 |
| UPC | 840433619925 |
| Short Description | Coming Soon! DIY Select 1st Gen R454B 12K BTU 115V Black Wall Mounted Air Handler with 13 ft Communication Cable |
| Tonnage | 1 Ton |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Color | Black |
| Max Coverage Area | 550 sq. ft. |
| Zone Capacity | 1 |
| Refrigerant Type | R-454B |
| Decibel Rating Low | 17.5 dB(A) |
| Decibel Rating High | 44.5 dB(A) |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Blower Motor Type | DC |
| Blower Motor RPM | 850 / 750 / 450 |
| Filter Type | Reusable |
| Adjustable Thermostat | Yes |
| Fan Only Option | Yes |
| Sleep Mode | Yes |
| Auto Cool | Yes |
| Wi-Fi Compatibility | Yes |
| App Compatibility | Yes |
| Works with iOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Base Warranty | 1 Year Parts |
| Base Parts Warranty | 1 Year Parts |
| Base Remote Warranty | 1 Year |
| Has Batteries | Yes |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Net Dimensions | 31.57"W x 11.61"H x 7.87"D |
| Net Weight | 24.91 lbs |
| Gross Dimensions | 36.02"W x 16.34"H x 13.97"D |
| Gross Weight | 35.71 lbs |

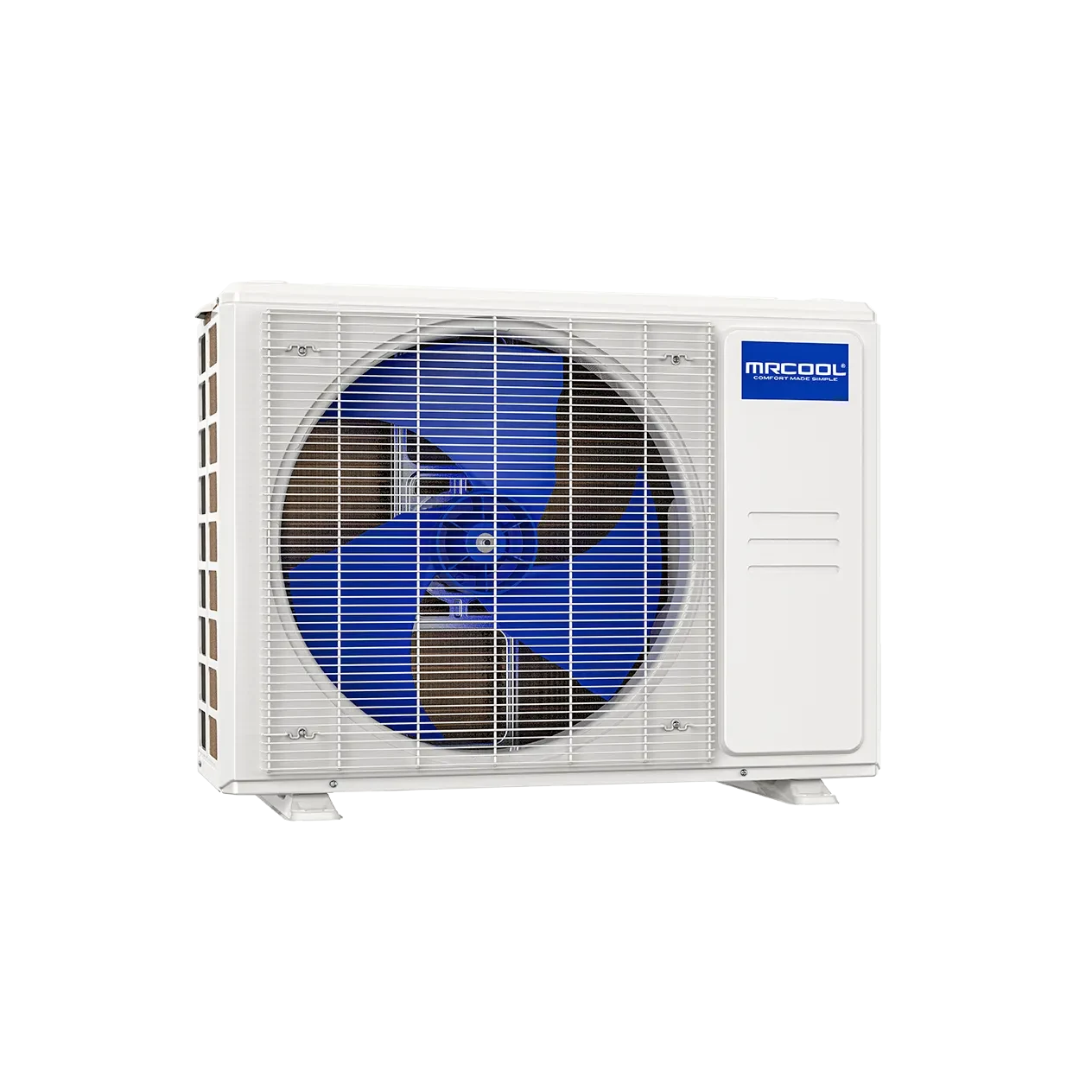

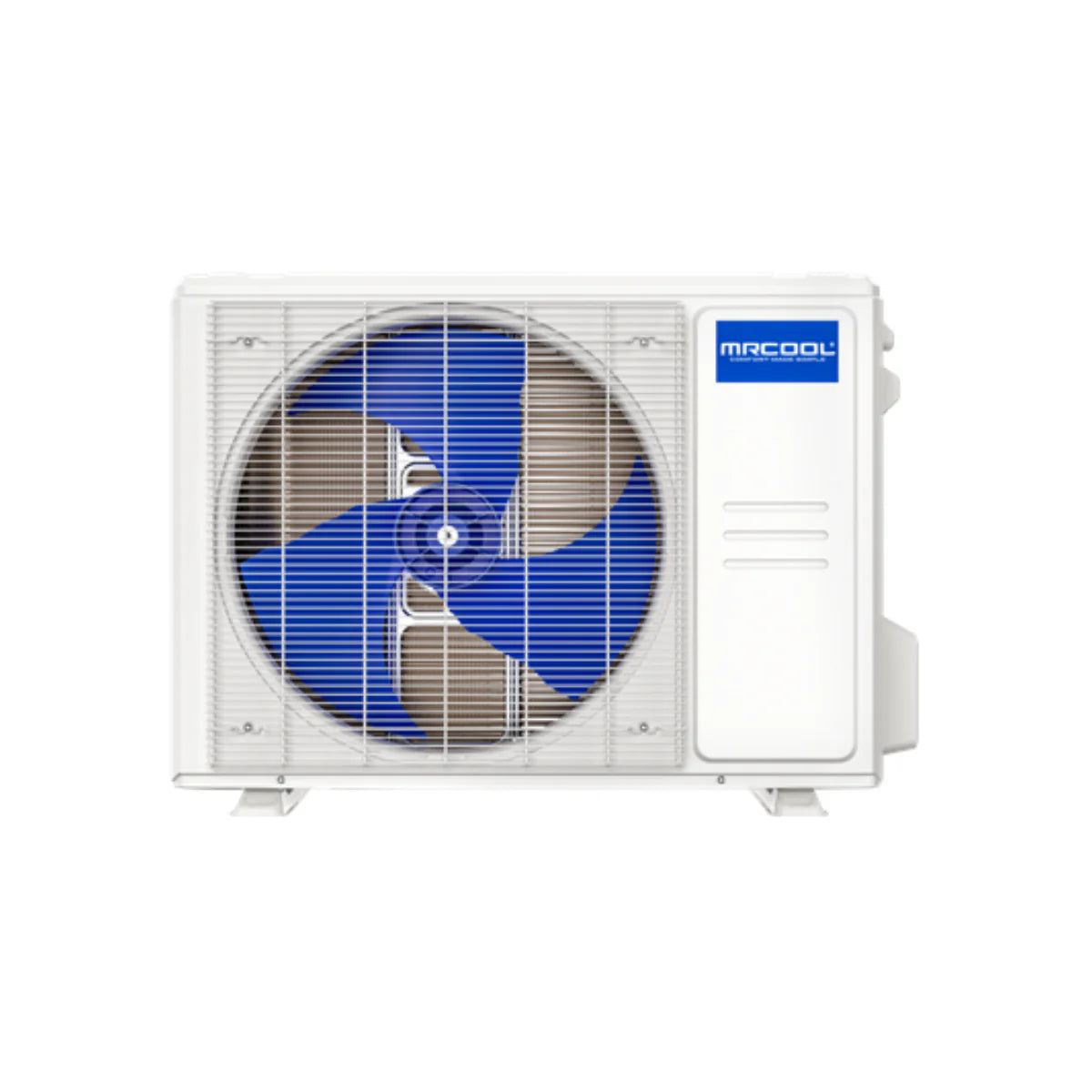

| Brand Name | MRCOOL |
| Series | DIY Select |
| Unit Type | Mini-Split |

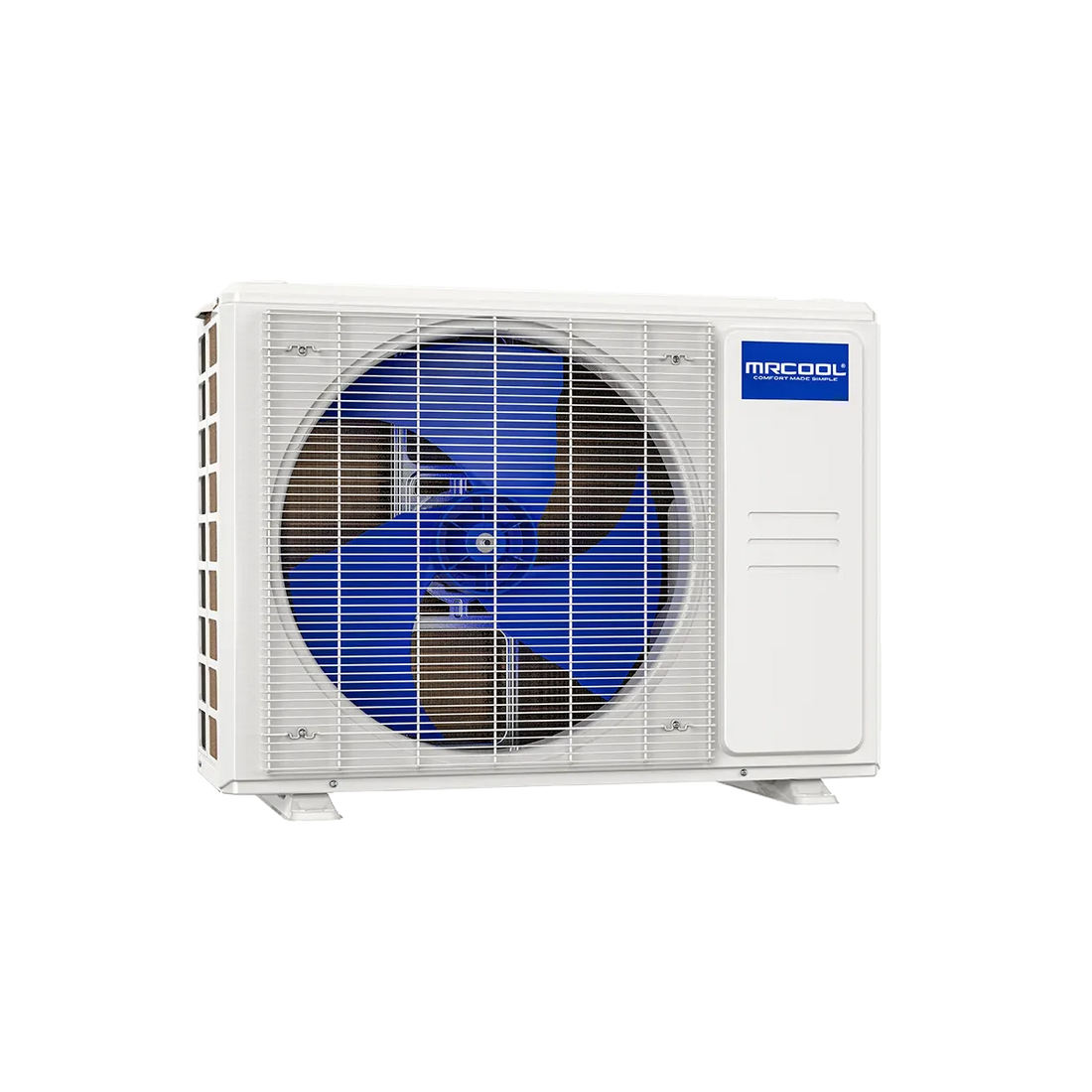

| Equipment Type | Condenser |
| Model | DIYS-12-HP-C-115A11-O |
| GTIN | 00840255595674 |
| UPC | 840255595674 |
| Short Description | DIY Select 1st Gen R454B 12K BTU 115V Condenser with 11 ft Install Kit |
| SEER2 | 17.5 |
| EER2 | 8.5 |
| HSPF2-4 | 9.0 |
| HSPF2-5 | 6.8 |
| Tonnage | 1 Ton |
| Cooling Capacity | 12,000 BTU |
| Heating Capacity | 12,000 BTU |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 20A |
| Min Circuit Ampacity | 19.5A |
| Color | White |
| Zone Capacity | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 21.52 oz |
| Decibel Rating | 54 dB(A) |
| Inverter | Yes |
| Line Set Included | Yes |
| Line Set Length | 11.5 ft |
| Max Line Set Length | 75 ft |
| Liquid Line Size | 1/4" |
| Suction Line Size | 3/8" |
| Compressor Motor Type | Rotary |
| Condenser Fan Motor Type | DC |
| Condenser Fan Motor RPM | 800 / 700 / 600 |
| Metering Device | EEV |
| UL Listed | Yes |
| CSA Listed | Yes |
| ETL Listed | Yes |
| Energy Star Certified | No |
| AHRI Certified | Yes |
| Base Warranty | 1 Year Parts, 2 Years Compressor |
| Base Parts Warranty | 1 Year Parts |
| Base Compressor Warranty | 2 Years Compressor |
| Contains Electronics | Yes |
| Contains Chemicals | Yes |
| Contains Compressed Gas | Yes |
| Proposition 65 Warning | Yes |
| Net Dimensions | 28.35"W x 19.49"H x 10.63"D |
| Net Weight | 54.89 lbs |
| Gross Dimensions | 36.22"W x 27.36"H x 16.54"D |
| Gross Weight | 67.24 lbs |
| Brochure | Open Brochure |
| Install Manual | Open Install Manual |
| Remote Manual | Open Remote Manual |
| Service Manual | Open Service Manual |
| Warranty Document | Open Warranty Document |
| French Install Manual | Open French Install Manual |
| French Remote Manual | Open French Remote Manual |
| French Warranty Document | Open French Warranty Document |
| Spanish Install Manual | Open Spanish Install Manual |
| Spanish Remote Manual | Open Spanish Remote Manual |
| Spanish Warranty | Open Spanish Warranty |
| AHRI Certificates | Open AHRI Certificates |
| Energy Guide Certificates | Open Energy Guide Certificates |
This 12K BTU system is designed for spaces up to 550 sq. ft., such as attics, garages, home offices, studios, and similar-sized rooms.
Yes. The included wall mounted air handler is listed as black, model DIYS-12-HP-B-WMAH-115A13-O.
Yes. This bundle includes an 11.5 ft Quick Connect® install kit with a factory pre-charged R-454B line set.
The Quick Connect® line set is factory pre-charged with R-454B refrigerant, helping simplify installation and reduce the need for traditional vacuum pump and refrigerant handling steps.
Yes. The system is compatible with the MRCOOL® Comfort app for iOS and Android devices. It also works with Amazon Alexa and Google Assistant.
The system includes a 1-year parts warranty and a 2-year compressor warranty. The remote warranty is listed as 1 year.
The condenser is 115V, single phase, 60 Hz, with a 19.5A minimum circuit ampacity and 20A max fuse breaker.
Technical Data
Loading technical data…
Product FAQs
MRCOOL products are sold through authorized retailers and distributors rather than directly by MRCOOL to consumers. Purchasing through an authorized seller helps confirm that the equipment is genuine and that the correct purchase records are available for product and warranty support.
Do not assume that MRCOOL indoor units, outdoor units, line sets, controls, or accessories are interchangeable. Use only manufacturer-approved combinations for the exact model family; in particular, MRCOOL states that R-410A products are not compatible with R-454B products and the refrigerants must never be mixed.
Eligible MRCOOL DIY systems are designed around installation-friendly components such as factory-precharged line sets and compatible connection hardware. The included components vary by generation and package, and electrical work, permits, clearances, and local code requirements still need to be followed.
MRCOOL does not dispatch field technicians. Its in-house team provides phone and email assistance for diagnosis, troubleshooting, and product guidance, while the owner arranges and pays for any local on-site technician unless a specific written warranty program states otherwise.
The model and serial number identify the exact equipment, generation, capacity, and applicable documentation or warranty. Use the identification labels on the equipment and MRCOOL’s registration guidance rather than relying only on a product title or general series name.
No. Only product families specifically identified by MRCOOL as DIY-capable should be treated as do-it-yourself systems. Other lines, including the Advantage Series, require professional HVAC installation, so always follow the installation requirements for the exact model.
MRCOOL maintains a documentation library and a product support center with model-specific installation manuals, owner manuals, technical documents, certifications, warranty information, and troubleshooting resources. Search using the exact model number because documents can differ by series, generation, capacity, and refrigerant.
MRCOOL offers a broad range of comfort products, including ductless mini-splits, central ducted split systems, packaged heat pumps, geothermal systems, water heaters, fans, thermostats, line sets, and HVAC accessories. Available capacities, refrigerants, efficiencies, and features depend on the exact product family and model.
Register the system as soon as possible after purchase and installation. Several MRCOOL residential warranty programs require registration within 60 days of installation, or within 60 days of purchase when the installation date cannot be verified, but the exact requirement is controlled by the warranty document for the specific product.
MRCOOL recommends starting with the original place of purchase because many dealers can special-order replacement parts. If that is not available, use an authorized MRCOOL parts distributor and confirm compatibility with the exact model and serial number before ordering.
MRCOOL provides support by phone at (270) 366-0457, by email at support@mrcool.com, and through its online support-request form. Have the exact model and serial number available so the support team can identify the correct product documentation and next steps.
Yes. If a local technician is scheduled, MRCOOL’s in-house support team can help coordinate troubleshooting and product guidance with that technician. The technician should have the model, serial number, system configuration, measurements, error codes, and a clear description of the issue available.
MRCOOL’s support center provides separate technical-support sections for ductless systems, residential ducted systems, product-specific error codes, wiring guidance, installation procedures, and troubleshooting articles. Use the exact series and model because codes and procedures are not universal across all MRCOOL equipment.
Register the product through MRCOOL’s online warranty-registration page. Be prepared to provide the serial number along with purchase, owner, installation-location, and installer information requested by the registration form.
No. MRCOOL publishes separate warranty terms for different product families, generations, and applications. For example, the current DIY 5th Generation warranty lists 5-year parts and 7-year compressor coverage, but that coverage should not be assumed for another MRCOOL series; always check the exact product warranty document.
