Product Overview

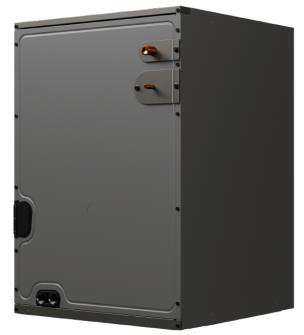

CAHEA3630C3 Cased Upflow/Downflow Evaporator Coil, 2-3 ton, R-32 Electronic Expansion Valve (EEV), 21" Wide, 30" Tall, 7mm coil tubing, for use with S-series All-Climate Heat Pumps, 58 lbs.
Cased Coil (CAHEA) for Amana Brand S-series All-Climate Heat Pumps
CAHEA — Multi-position Cold Climate Indoor Coils
Standard Features
• All-Aluminum evaporator coil
• Optimized for use with R-32 refrigerant including circuits and manifolds
• R-32 sensor designed for the life span of the coil
• CAHEA models feature:
− Factory-installed electronic expansion valve (EEV) for precise refrigerant control
− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment
− Cooling and heat pump applications
− Fault recall of six most recent faults
• Standardized copper suction tube stub length
• Vertical and horizontal models available
• 21" depth for easier attic access
• CAHEA coils include single front access panel
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Rust resistant, thermoplastic drain pans featuring a low water-retention design
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
• UV-resistant drain pan
• AHRI certified; ETL listed
R-32 coils have been equipped with a sensor in the airflow that will interrupt the cooling and heating demand and keep the blower running in the event a leak is detected. It is imperative that an R-32 indoor coil be appropriately matched with an R-32 outdoor unit.
Product Limited Warranty
The coil and functional parts in your CAHEA evaporator coil are covered by a 10-Year Parts Limited Warranty*. For a full description of this warranty, please see the warranty document.
Product Benefits
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faults
- Standardized copper suction tube stub length
- 21" depth for easier attic access
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity
- UV-resistant drain pan
- AHRI certified
- ETL listed
- Multi-position for horizontal, upflow and downflow applications
Cabinet Features
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Technical Specifications - CAHEA3630C3
| sku | CAHEA3630C3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| product family | CAHEA_32 |
| short description | Evaporator Coil, Multi-Position, 3 Ton, R-32 |
| product description | cchp cased coil, 3t |
| cooling btu | 36,000 |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 7/8 in |
| tonnage | 3 |
| btu/tonnage | 36,000 BTU/3 Ton |
| zone compatibility | Multi Zone |
| height | 30 in |
| width | 23.5 in |
| depth | 21 in |
| weight | 58 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Coil |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051738126 |
| item stocking unit of measure uom | EA |
| pallet qty | 8 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 36000 Btu/H |
| produced in us | Yes |
| dimensions unit depth | 21 in |
| dimensions unit height | 30 in |
| dimensions unit width | 23.5 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 58 lb |
| tonnage range | 2;5 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 26.00 in |
| dimensions case height | 32.75 in |
| dimensions case width | 23.50 in |
| dimensions distribution unit depth | 26 in |
| dimensions distribution unit height | 32.75 in |
| dimensions distribution unit width | 23.5 in |
| dimensions pallet depth | 54.00 in |
| dimensions pallet height | 70.00 in |
| dimensions pallet width | 50.00 in |
| dimensions shipping unit depth | 26.00 in |
| dimensions shipping unit height | 32.75 in |
| dimensions shipping unit width | 23.50 in |
| distribution shipping volume unit | 20010.25 in³ |
| shipping volume unit | 20010.250 in³ |
| truck factor | 0.0000 |
| volume case | 20010.250 in³ |
| volume distribution shipping unit | 20010.25 in³ |
| weight case | 61.000 lb |
| weight distribution shipping unit | 66.09 lb |
| weight shipping unit | 61.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
