Product Overview

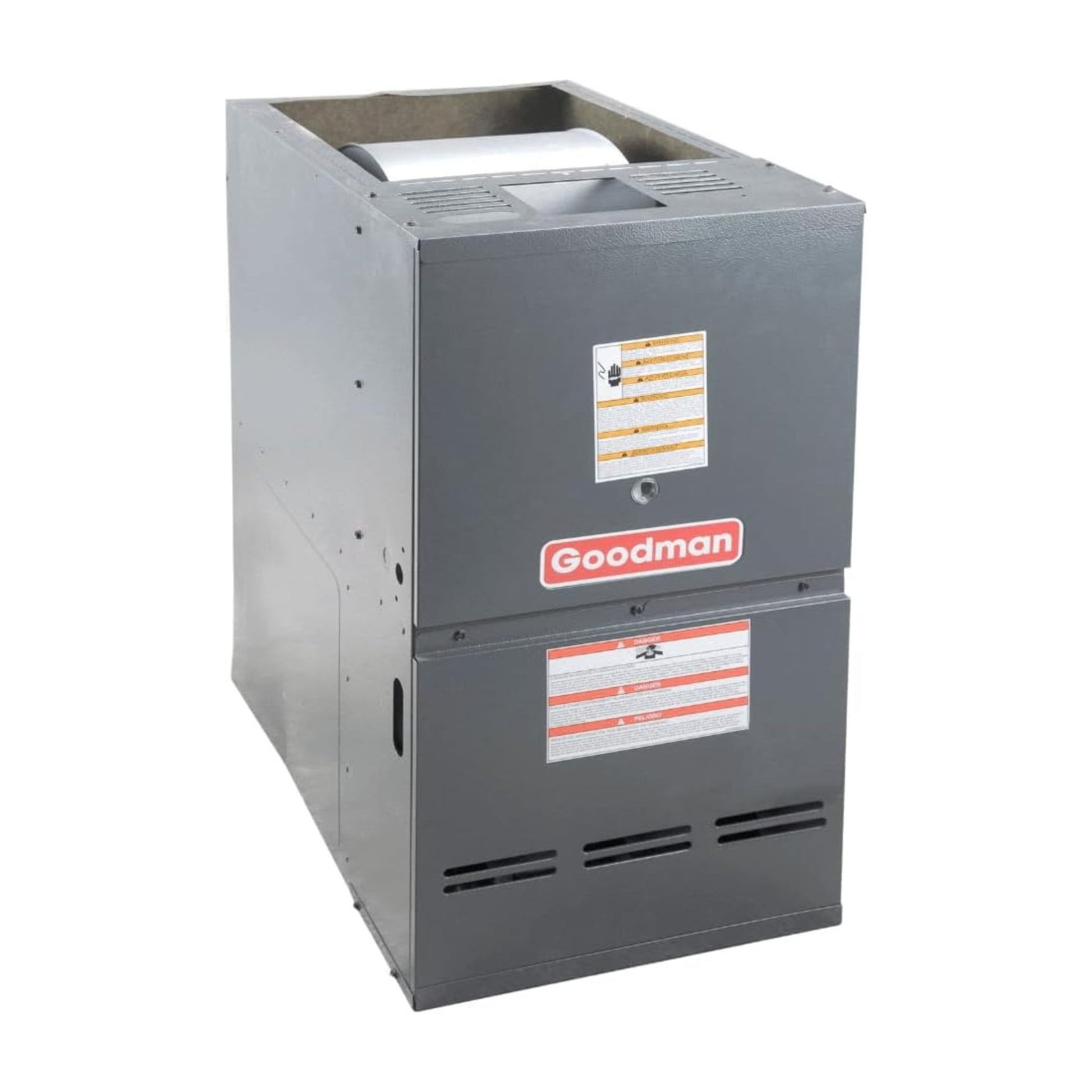

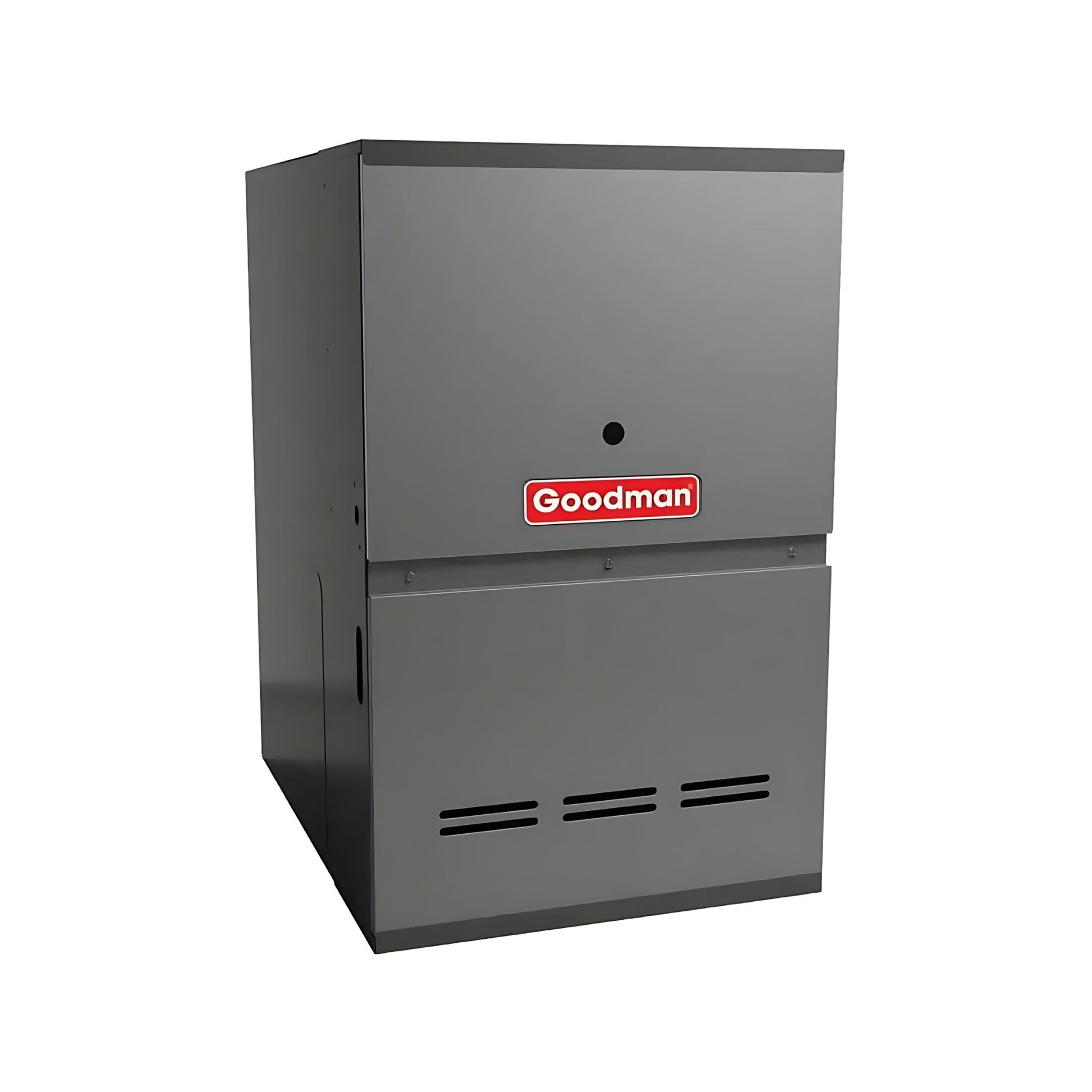

Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX
The Goodman GD9S800603AX is a reliable, high-efficiency furnace offering 60,000 BTU heating capacity and 80% AFUE. Its Low NOx emissions design makes it ideal for homes in California counties with stricter air quality regulations. With a 9-speed ECM blower motor, heavy-gauge steel cabinet, and smart diagnostic controls, this unit delivers dependable performance, quiet operation, and energy savings — all in a compact, flexible installation package.
Key Features
- 60,000 BTU Heating Capacity – Ideal for Small to Medium Homes
- 80% AFUE Efficiency – Requires Metal Flue Venting
- Low NOx Compliant – Meets California Emissions Standards (Exclusions Apply)
- 9-Speed ECM Blower Motor – Enhances Electrical Efficiency & Airflow Control
- Single-Stage Gas Valve – Operates at 100% Output When Active
- Heavy-Gauge Steel Cabinet – Reduces Noise & Heat Loss
- Hot Surface Ignitor – Reliable and Durable Startup Mechanism
- Self-Diagnostic Control Board – Simplifies Maintenance and Troubleshooting
- Flexible Installation – Downflow or Horizontal (Left or Right) Configurations
- Color-Coded Low Voltage Terminals – Eases and Speeds Up Installation
Important California Compliance Note
This model meets California Low NOx requirements , but it cannot be installed in the following counties : Los Angeles, Fresno, San Joaquin, Kern, Kings, Madera, Merced, Orange, Riverside, San Bernardino, Stanislaus, and Tulare. These areas require Ultra-Low NOx models.
Goodman R32 80% AFUE Gas Furnace 60K BTU 14"W Low NOx Downflow/Horizontal GD9S800603AX
| Warranty Type | Residential | Multi-Family | Commercial |
| Standard Warranty | 5 year parts | 5 year parts | 5 year parts |
| Registered Warranty | 10 year parts | 10 year parts | 5 year parts |
Product Benefits
- Higher reliabilitynd quality
- Durablend long igniter life
- Provisions for electronicir cleanernd humidifier
- Energy Efficientnd quiet circulation
- Self-diagnostic control board with constant memory
- Simple installationnd setup
- Quietnd simple operation
Product Features
- Heavy-duty stainless-steel tubular heat exchanger
- "Silicon Nitride igniter"
- Color-coded low-voltage terminals
- Multi-speed ECM blower motor with continuous fan speed
- Fault code LED Output
- Single-Stage gas Valve
- Single-speed inducer draft blower
Technical Specifications - GD9S800603AX
| sku | GD9S800603AX |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GD9S80 |
| short description | Goodman 80% AFUE Gas Furnace Nine Speed ECM, Single Stage |
| family description | Single-Stage Multi-Speed ECM Gas Furnace 80% AFUE |
| product description | fer cf furnace |
| cooling btu | 36,000 |
| electrical | 115 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 8.7 A |
| height | 33-3/8 in |
| width | 14 in |
| depth | 28 in |
| weight | 94 lb |
| warranty | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 0.8 |
| product class pim | Gas Furnace |
| model efficiency | 0.80 |
| installation type | Ducted |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051684751 |
| item stocking unit of measure uom | EA |
| pallet qty | 6 |
| afue | 80 % |
| cooling capacity nominal | 36000 Btu/H |
| installation configuration | Downflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 30-60 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 8.7 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 115 V |
| air flow rate high heating | 1200 ft³/min |
| dimensions blower diameter | 10 in |
| dimensions blower width | 6 in |
| dimensions unit depth | 28 in |
| dimensions unit height | 33-3/8 in |
| dimensions unit width | 14 in |
| etl listed | Yes |
| heat exchanger type | Gas |
| motor speed type | Nine Speed ECM |
| nox burner type | Low NOx |
| number of burners | 3 |
| weight unit | 94 lb |
| blower motor horsepower | 1/2 metric hp |
| high fire input capacity | 60000 Btu |
| high fire output capacity | 48,000 |
| gas valve type | Single Stage |
| vent diameter | 4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 35.50 in |
| dimensions case width | 15.00 in |
| dimensions distribution unit depth | 30 in |
| dimensions distribution unit height | 35.5 in |
| dimensions distribution unit width | 15 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 35.50 in |
| dimensions pallet width | 45.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 35.50 in |
| dimensions shipping unit width | 15.00 in |
| distribution shipping volume unit | 15975 in³ |
| shipping volume unit | 15975.000 in³ |
| truck factor | 0.0000 |
| volume case | 15975.000 in³ |
| volume distribution shipping unit | 15975 in³ |
| weight case | 96.000 lb |
| weight distribution shipping unit | 96 lb |
| weight shipping unit | 96.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
