Product Overview
OVERVIEW

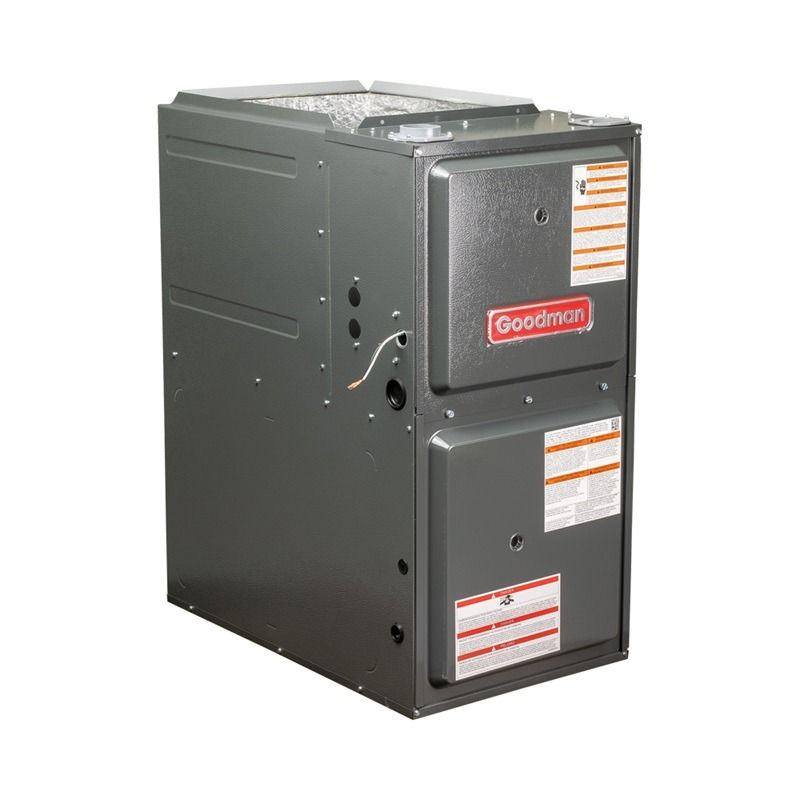

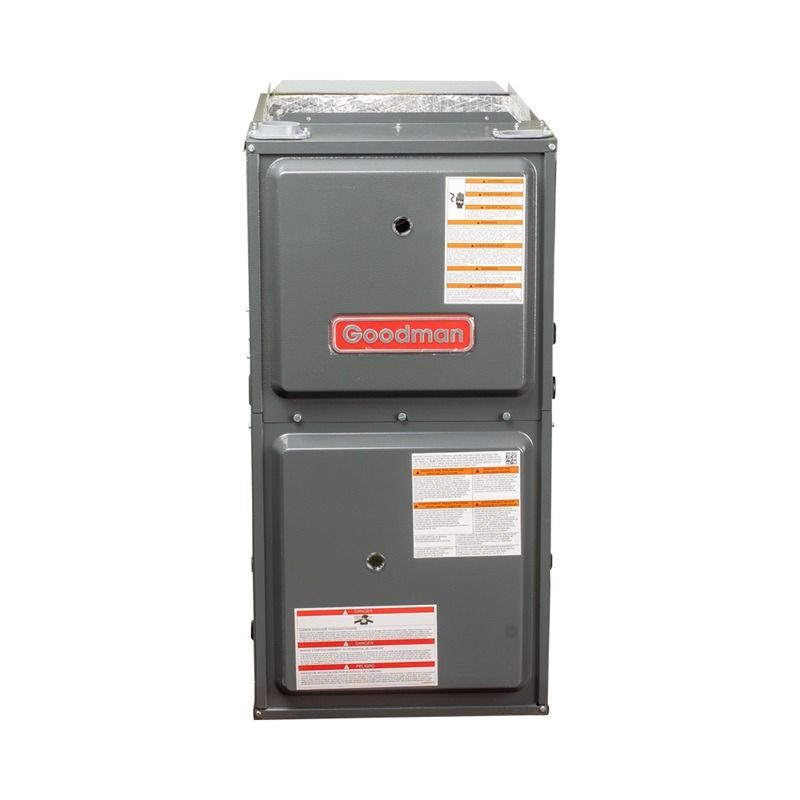

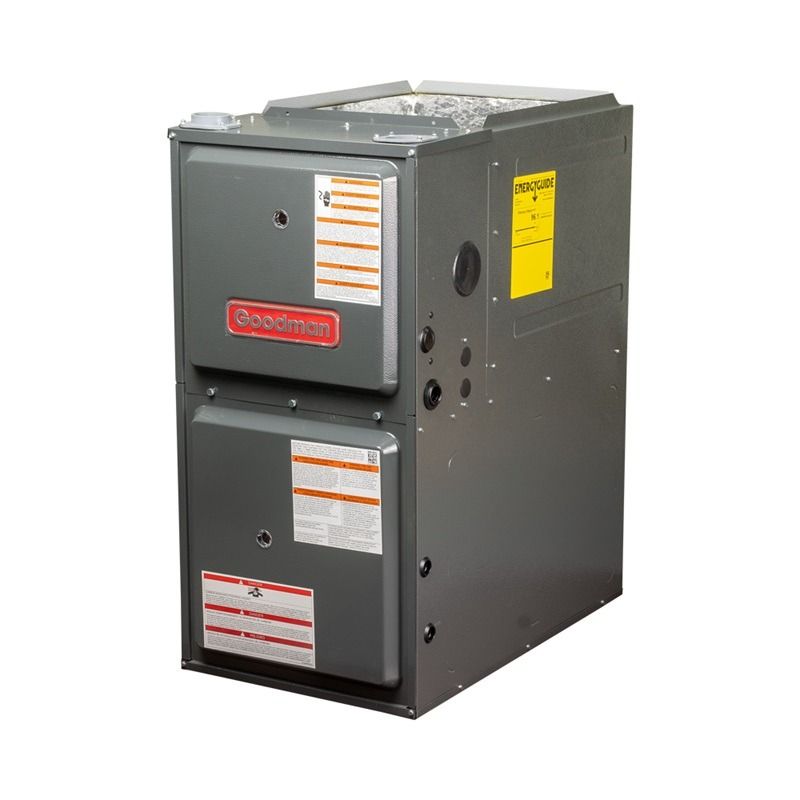

With a 96% efficiency rating, a variable-speed blower motor, and Single stage gas valves, the GRVS960603BU is part of Goodman's top-tier furnace series. If you're looking to reduce your gas bill, the GRVS960603BU is an excellent choice, offering one of the best efficiency levels available on the market.
QUICK FACTS
- Ideal to heat a small to medium house (in an ideal climate)
- 60,000 BTU 96% AFUE modulating variable speed natural gas furnace
- Requires plastic/PVC flue venting
- Can be installed in the upflow or horizontal orientation
- Innovative design for electrical efficiency, safety, and lower sound output
Ultra-Low NOx Compliant
In California, many counties have a lower NOx emission requirement than the rest of the United States. The GRVS960603BU Goodman gas furnace is California Ultra-Low NOx compliant. With a built-in low emission filter and special venting system, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home.
Ultra-Low NOx furnaces are required for gas furnace installations in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare.
60,000 BTU
With an input of 60,000 BTU’s and an efficiency of 96%, the GRVS960603BU has an output of 57,600 BTU’s. This is calculated by taking 60,000 BTU’s times the efficiency of 96%. As such, the GRVS960603BU Goodman gas furnace is designed to be able to cover up to a small to medium house in ideal climate conditions.
96% AFUE
With one of the highest efficiencies possible with today’s technology, Goodman saves you a lot of money in utility bills for the lifetime of the unit. The GRVS960603BU gas furnace is 96% efficient, meaning that a whopping 96% of the gas going into the furnace is used to heat your home, and only 4% of the fuel going into the furnace is lost out of the exhaust. Thanks to its efficiency, the GRVS960603BU is a condensing furnace, meaning that it requires plastic or PVC pipe flue venting.
Single Stage Furnace
The GRVS960603BU Goodman gas furnace is a single stage furnace has only one heat output. Regardless of the indoor temperature, this furnace will burn at 100% output whenever the thermostat calls for it. Like a light switch, this furnace's burner will either be on or off and nothing in between. A single stage furnace is the standard efficient furnace since every time your furnace turns on the furnace uses the same amount of energy.
Warranty
The Goodman brand allows you to protect your investment with a 10 year parts and hassle free replacement warranty. To provide a longer peace-of-mind, Goodman now offers a phenomenal lifetime heat exchanger warranty. Please note that all Goodman warranties require installation that follows your state and local codes, and the unit must be registered online post-installation on the manufacturer’s website.
Durability and Reliability
Not stopping at an enhanced functionality, Goodman designed the GRVS960603BU with a thermally insulated, heavy-gauge cabinet, providing enhanced protection and lowers air leakage to less than 2% to maximize heat transfer and efficiency, as well as to lower the sound output from normal operation. Made of silicon nitride, the ignitor on the GRVS960603BU is more durable and efficient than a pilot light. The heat exchanger on this furnace is made of aluminized steel, resulting in a product that balances reliability, durability, and efficiency in one durable cabinet.
Installation and Maintenance
For a furnace of such prestige, the installation and maintenance may seem daunting, however Goodman has made everything easy for you and your contractor, from the beginning and throughout the unit’s life. To allow for installation in more situations, the GRVS960603BU gas furnace can be installed in the upflow or horizontal orientations. Moreover, the GRVS960603BU is ComfortNet communicating system compatible, providing more advanced diagnostics, automated maintenance alerts, and enhancing furnace performance when implemented. All of these features allow you to keep more money in your pocket and provides a peace of mind throughout the life of your unit, all while still providing the best comfort that Goodman has to offer with this top of the line furnace.
Product Benefits
- Heavy-duty stainless-steel tubular heat exchanger
- Efficient and quiet variable-speed Blower
- Integrated communicating ComfortBridge™ technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
- Stainless-steel sloped secondary heat exchanger
- Silicon Nitride igniter
- Dual 7-segment display
- Color-coded low-voltage terminals
- Single-Stage gas valve
- All models comply with California 14 ng/J
- AHRI Certified, ETL Listed
- Energy Star
- Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifier
Product Features
- Heavy-duty stainless-steel tubular heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Self-diagnostic control board with constant memory fault code history output to a LED
- All models comply with California 14 ng/J
- ultra Low NOx emissions standard
- For installation in California’s South Coast Air
- Quality Management District (SCAQMD) only.
- AHRI Certified
- ETL Listed
Cabinet Features
- Multi-position installation: upflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
- Easy to install top venting with optional side vent
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (Qleak) less than or equal to 2%
- Fully insulated heat exchanger and blower section
- Bottom or side return air applications
- Heavy-gage steel cabinet with durable finish
Technical Specifications - GRVS960603BU
| sku | GRVS960603BU |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Gas Furnace |
| system family | Unitary Split System |
| function category | Heating Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | GRVS96_U |
| series name | GRVS96 |
| short description | Goodman 96% AFUE Gas Furnace Variable Speed ECM, Single Stage |
| family description | ComfortBridge™-Compatible Single-Stage, Variable-Speed ECM Gas Furnace 96% AFUE |
| product description | uln 90 bt furnace |
| cooling btu | 36,000 |
| electrical | 120 V | 60 Hz | 1 Ph |
| max breaker size | 15 A |
| min. breaker size | 8.1 A |
| height | 34-1/2 in |
| depth | 28-7/8 in |
| warranty | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 0.96 |
| product class pim | Gas Furnace |
| model efficiency | 0.96 |
| installation type | Ducted |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051695962 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| afue | 96 % |
| cooling capacity nominal | 36000 Btu/H |
| installation configuration | Upflow/Horizontal |
| produced in us | No |
| temperature rise range high fire | 30-60 °F |
| max overcurrent protection | 15 A |
| min circuit amps | 8.1 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 120 V |
| air flow rate high heating | 1254 ft³/min |
| dimensions blower diameter | 11 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 28-7/8 in |
| dimensions unit height | 34-1/2 in |
| heat exchanger type | Gas |
| motor speed type | Variable Speed ECM |
| nox burner type | Ultra-Low NOx |
| blower motor horsepower | 1/2 metric hp |
| high fire output capacity | 57600 |
| gas valve type | Single Stage |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 1 in |
| dimensions distribution unit height | 1 in |
| dimensions distribution unit width | 1 in |
| dimensions pallet depth | 60.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 30.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 1 in³ |
| shipping volume unit | 21367.500 in³ |
| truck factor | 0.0000 |
| volume case | 21367.500 in³ |
| volume distribution shipping unit | 1 in³ |
| weight case | 119.000 lb |
| weight distribution shipping unit | 1 lb |
| weight shipping unit | 119.000 lb |
| registered parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | HEAT EXCHANGER - 79 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 79 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
| registered unit replacement warranty residential | HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT;HEAT EXCHANGER - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | HEAT EXCHANGER - 20 YEARS PARTS;ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS;HEAT EXCHANGER - 20 YEARS PARTS |
