Product Overview
Goodman 6 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R32 AHVE60DP1300
The Goodman AHVE60DP1300 is a high-capacity 5-ton variable-speed air handler designed to deliver exceptional comfort, energy efficiency, and quiet operation for large residential and commercial spaces. Equipped with ComfortBridge™ communicating technology, this air handler intelligently monitors and adjusts system performance to maintain consistent temperature, precise humidity control, and superior indoor air quality.
Built with a durable, insulated steel cabinet and flexible multi-position installation options, the AHVE60DP1300 seamlessly integrates with Goodman heat pumps and air conditioning systems. Its variable-speed ECM blower motor ensures smooth and efficient airflow while reducing energy consumption and operational noise, providing a reliable and long-lasting HVAC solution.
Key Features
- 6 Ton Cooling Capacity (60,000 BTU) – Ideal for large homes or commercial spaces requiring efficient central air distribution and balanced airflow.
- Variable-Speed ECM Blower Motor – Provides precise airflow control, lowers energy usage, and operates quietly compared to standard motors.
- ComfortBridge™ Communicating Technology – Self-configuring system continuously monitors and optimizes performance for maximum comfort, energy savings, and humidity control.
- Multi-Position Installation – Supports upflow, downflow, and horizontal configurations for versatile placement in various building layouts.
- Enhanced Humidity Management – Maintains balanced indoor moisture levels for improved air quality and comfort.
- Heavy-Gauge Steel Cabinet – Durable, insulated construction reduces noise transmission and ensures long-term reliability.
- Compatible with Goodman Heat Pumps & Air Conditioners – Works seamlessly with high-efficiency split systems to optimize SEER and HSPF performance.
- Factory-Installed Thermal Expansion Valve (TXV) – Ensures proper refrigerant flow for improved cooling efficiency and system longevity.
The Goodman AHVE60DP1300 variable-speed air handler is the perfect choice for homeowners and businesses seeking high-efficiency airflow, reliable performance, and advanced climate control. With ComfortBridge technology and quiet, energy-efficient operation, it is a durable and long-lasting solution for year-round comfort.
Goodman 6 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R32 AHVE60DP1300
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |
Product Details

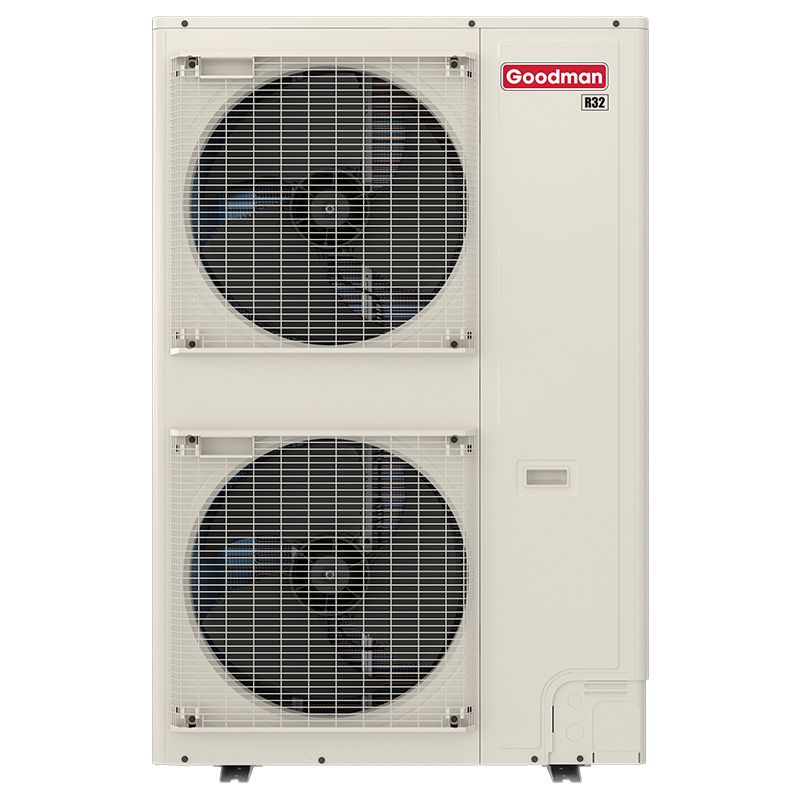

Goodman 5 Ton 19 SEER2 Variable-Speed Side Discharge AC Condenser – R32
Powerful Inverter Technology for Large Homes
Engineered for large homes and demanding climates, the Goodman GXV9SA6010 offers maximum cooling capacity with precise inverter-driven control. It delivers strong performance during extreme heat while dialing back to save energy during lighter loads. Featuring quiet operation, flexible side-discharge installation, and R-32 refrigerant, this system balances power, efficiency, and long-term reliability.
- Up to 19 SEER2 energy efficiency
- High-capacity 5-ton cooling performance
- Variable-speed inverter-driven compressor
- Quiet mode operation for enhanced comfort
- R-32 refrigerant for improved environmental performance
Why Choose This AC Condenser?
- Lower Energy Bills: Variable-speed inverter technology adjusts cooling output as needed, helping reduce energy use compared to traditional single-stage units.
- More Consistent Comfort: The inverter-driven AC condenser runs longer at lower speeds to minimize temperature swings and improve indoor comfort.
- Quiet Outdoor Operation: Advanced sound-reducing design and quiet operation help keep outdoor noise levels low.
- Space-Saving Side Discharge Design: The compact side-discharge condenser allows flexible installation in tight spaces and modern home layouts.
- Environmentally Responsible Cooling: Uses R-32 refrigerant, which offers improved efficiency and a lower environmental impact compared to older refrigerants.
Product Features (AHVE60DP1300)
- Electronic Expansion Valve (EEV) for cooling and heat pump applications
- 7 mm evaporator coil tube size
- Variable-speed ECM blower motor
- Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Thermostat provides adjustable low CFM for efficient fan-only operation
- All-aluminum evaporator coil
- Fault recall of six most recent faults
- Improved humidity and comfort control
- AHRI certified
- ETL listed
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- 3 kW – 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Cabinet Features (AHVE60DP1300)
- Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
- tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
- 3 kW – 25 kW electric heater kits
- Horizontal or vertical configuration capabilities
- 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan
- with secondary drain connections
- Screw-less sides and back helps to reduce
- condensation when installed in humid locations
- Foil-faced insulation covers the internal
- casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
- Glue-less cabinet insulation retention
- Tool-less filter access
Technical Specifications - AHVE60DP1300
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AHVE230V_32 |
| series name | Inverter compatible Air Handler |
| installation type | Ducted Multi-position |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735224 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 60000 Btu/H |
| produced in us | Yes |
| indoor blower fla | 6.9 A |
| max overcurrent protection | 15/15 A |
| max voltage | 253 V |
| min circuit amps | 6.8/6.5 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| dimensions blower diameter | 12 in |
| dimensions blower width | 10.625 in |
| dimensions evap wheel diameter | 12 in |
| dimensions evap wheel width | 10.625 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 58 in |
| dimensions unit width | 24-1/2 in |
| evap coil face area ft | 6.14 |
| evap motor rpm | 1250 r/min |
| expansion device | EEV |
| motor speed type | Variable Speed ECM |
| number of speeds | Variable |
| weight unit | 167 lb |
| blower motor horsepower | 1 metric hp |
| tonnage | 6 |
| tonnage range | 5 |
| factory std refrigerant charge | 0 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 62.00 in |
| dimensions case width | 26.00 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 62 in |
| dimensions distribution unit width | 26 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 62.00 in |
| dimensions pallet width | 52.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 62.00 in |
| dimensions shipping unit width | 26.00 in |
| distribution shipping volume unit | 39494 in³ |
| shipping volume unit | 39494.000 in³ |
| truck factor | 0.0000 |
| volume case | 39494.000 in³ |
| volume distribution shipping unit | 39494 in³ |
| weight case | 164.000 lb |
| weight distribution shipping unit | 163.09 lb |
| weight shipping unit | 164.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Features (GXV9SA6010)
- Variable-speed swing compressors
- Quiet digitally commutated fan motor
- High-density compressor sound blanket
- Compatible with Goodman connected thermostatand other Goodman communicating equipment
- Propietary control algorithmic logic
- In communicating mode, only two lowvoltagewires to outdoor unit required
- Diagnostic indicator lights, seven-segment
- LED display, and fault code storage
- Propietary Inside intelligence for diagnostics
- Quiet-mode- provides enhanced acoustical comfort,up to 3 different sound levels (as low as 45 dBA)
- Field-selectable boost mode increasescompressor speed during unusually high loads
- Field-installed filter drier
- Coil and ambient temperature sensors
- Suction pressure transducer
- Sweat connection service valves witheasy access to gauge ports
Cabinet Features (GXV9SA6010)
- Heavy-gauge galvanized steel cabinet withgrille-style sound control side design
- Custom Ivory white powder-paint finish
- High corrosion-resistant (ZAM®),unpaintedsteel bottom frame and legs
- 500-hour salt-spray tested
- Wire fan discharge grille
- Top and side maintenance access
- When properly anchored, meets the 2023 FloridaBuilding Code unit integrity requirements forhurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GXV9SA6010
| product category | Unitary |
|---|---|
| product class pim | Split Air Conditioner |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GXV9SA |
| series name | GXV9S |
| model efficiency | 19.2 SEER2 |
| communication feature | Yes |
| communication feature type | Goodman GTST Smart Thermostat |
| export control classification number eccn | EAR99 |
| item stocking unit of measure uom | EA |
| pallet qty | 3 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 10 |
| energy star certified | No |
| seer 2 hsvtc | 17 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 95 °F |
| fan compressor drive input | 24.5 A |
| max overcurrent protection | 40 A |
| min circuit amps | 34.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 22.625 in |
| dimensions unit height | 56.3125 in |
| dimensions unit width | 37 in |
| expansion device | EEV |
| sound pressure high cooling | 77 dBA |
| weight unit | 236 lb |
| cooling capacity rated | 57000 Btu/H |
| factory std refrigerant charge | 162 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 38.50 in |
| dimensions case height | 61.50 in |
| dimensions case width | 16.50 in |
| dimensions distribution unit depth | 38.5 in |
| dimensions distribution unit height | 61.5 in |
| dimensions distribution unit width | 16.5 in |
| dimensions pallet depth | 48.00 in |
| dimensions pallet height | 66.50 in |
| dimensions pallet width | 40.00 in |
| dimensions shipping unit depth | 38.50 in |
| dimensions shipping unit height | 61.50 in |
| dimensions shipping unit width | 16.50 in |
| shipping volume unit | 39067.875 in³ |
| truck factor | 0.0000 |
| volume case | 39067.875 in³ |
| volume distribution shipping unit | 39067.875 in³ |
| weight case | 271.000 lb |
| weight distribution shipping unit | 271 lb |
| weight shipping unit | 271.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Inverter compatible Air Handler Air Handler, Variable Speed ECM Motor, 6 Ton
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
- Goodman Split Air Conditioner 19.2 SEER2, Variable
Loading accessories…
We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.
SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.
Shipping & Delivery
We will prepare your order within 24–48 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION
Please be informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery.
To AVOID delays, please make sure the phone number in your order details is accurate and one where you can be reached. You may also contact the carrier directly using your tracking number to schedule your delivery.
It is your responsibility to ensure a safe and secure delivery environment. We are not liable for any packages that are stolen or lost after delivery is confirmed.
Please verify your shipping address carefully. Changes to your shipping address after the freight has been shipped may result in additional fees of 15% or more, depending on freight weight and dimensions.
SMALLWARES INFORMATION
Smaller items such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves may be shipped via FedEx without a signature requirement if ordered individually.
It is your responsibility to ensure a safe delivery location. We are not liable for packages lost or stolen after delivery confirmation. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING
Please inspect your boxes carefully upon delivery. Shipments should arrive shrink-wrapped and on a pallet. If you notice any damage or signs of mishandling (such as a crushed box or forklift puncture), write comments on the delivery receipt before signing, even if the damage appears minor.
Contact us immediately if any issues arise so we can assist you promptly.
SMS Delivery Notifications
If you opted into SMS notifications, we may send you order updates or delivery reminders by text message. Message frequency may vary. Message and data rates may apply. Text STOP to opt out. Text HELP for assistance.
For more details, see our Privacy Policy.
Loading technical data…
