Product Overview
OVERVIEW

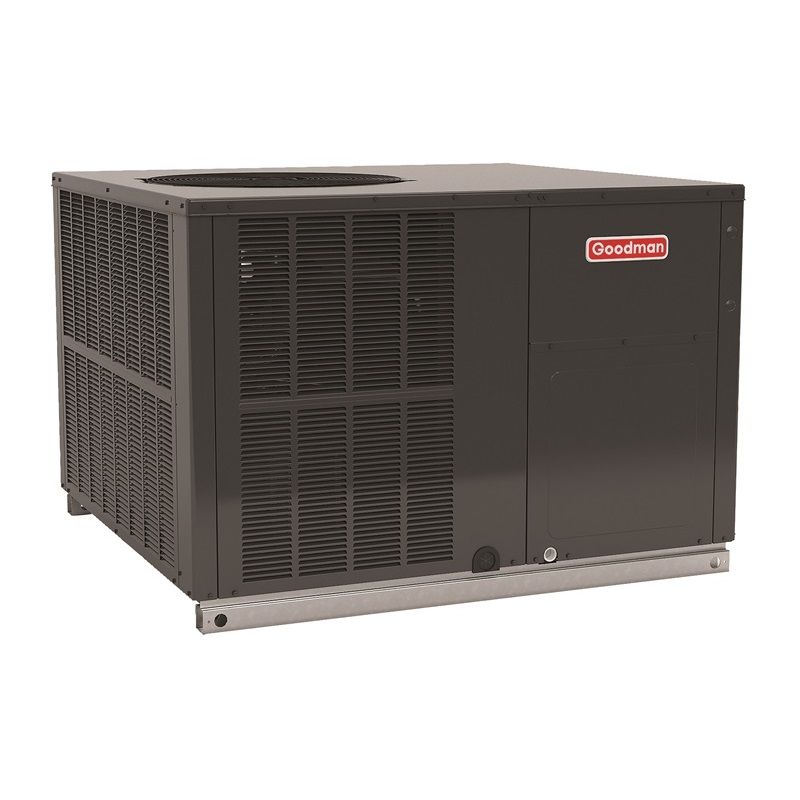

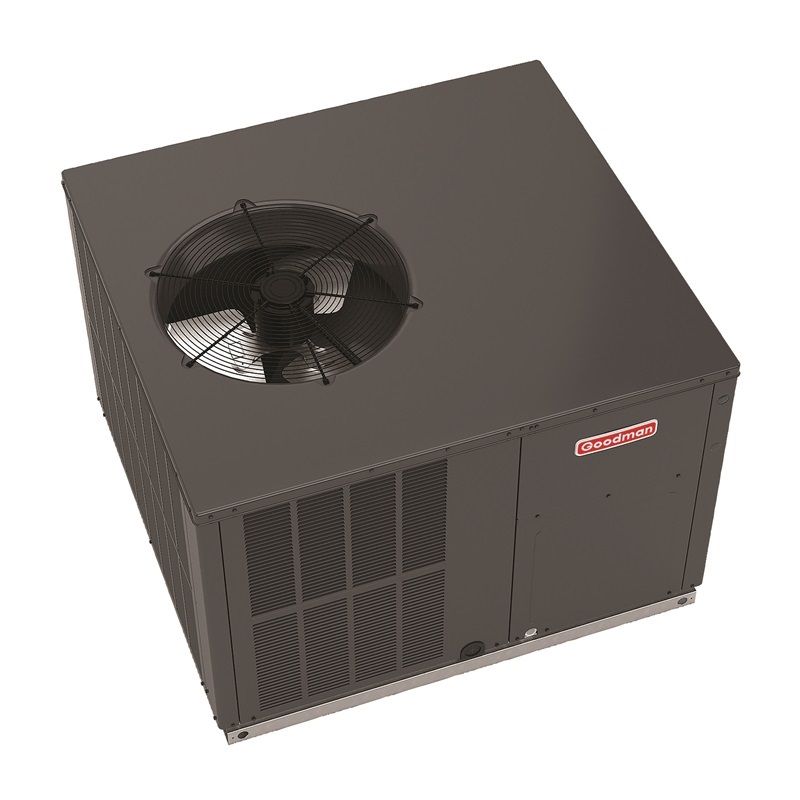

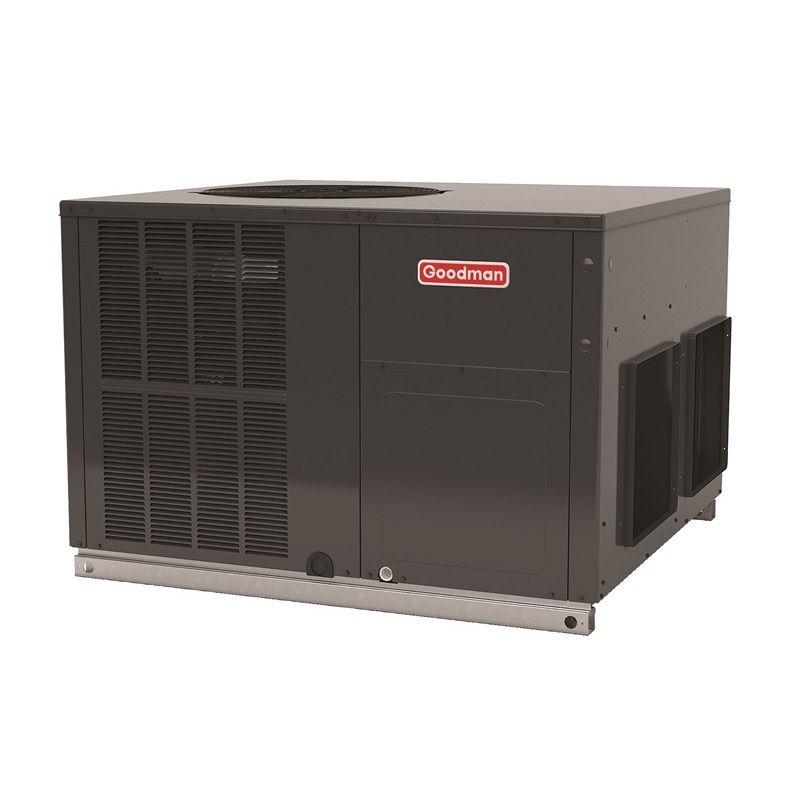

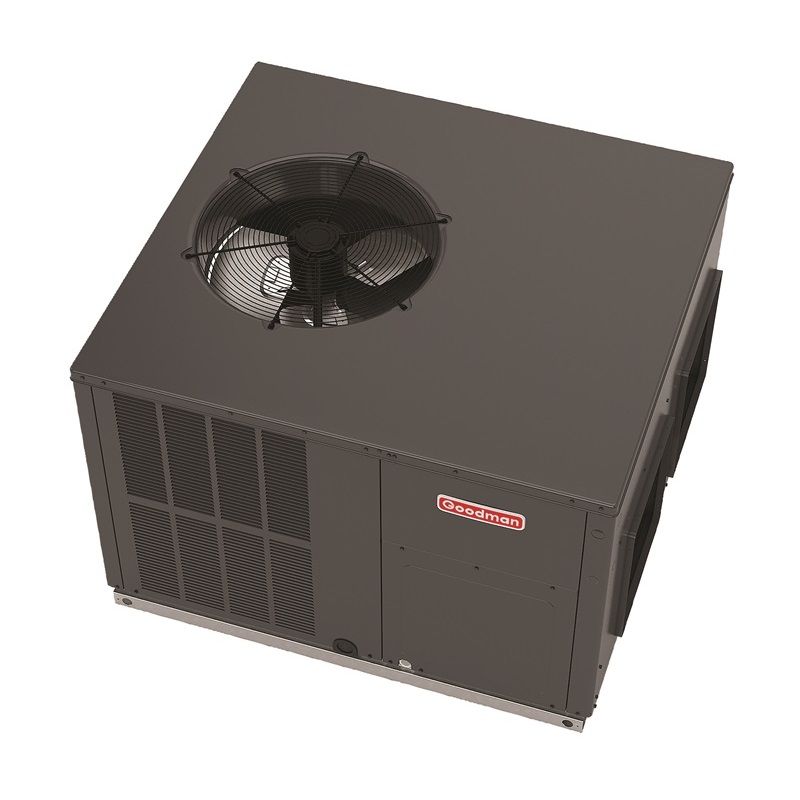

With its quiet horizontal or downflow discharge options and ready-to-install pre-charged refrigerant system, the Goodman GPHM36031 heat pump packaged unit is ready as an inexpensive heating and cooling solution for any all-in-one application. At a basic efficiency rating and a reliability to last a long time, the GPHM36031 lives up to the Goodman name as it offers superior comfort and affordability.
Utilizing advanced technology, the Goodman packaged heat pump efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Can normally cover a larger house in average climates
- 5 ton, 13.4 SEER2 heat pump packaged unit
- Multi-positional discharge - downflow or horizontal
- Fully charged
- Low sound output
5 Ton
The Goodman GPHM36031 heat pump packaged unit is rated for 5 tons. This size of unit is generally suitable to cover a larger house in many climates. Please note that the heating output of this unit cuts out at 30°F. For heating below this temperature, a backup heating kit is required, as a field-installable accessory provided at an additional cost.
13.4 SEER2
At 13.4 SEER2, the Goodman GPHM36031 heat pump has the standard efficiency on the market today, making it installable in all mainland US states. If you would prefer a higher efficiency, a 15.2 SEER2 unit would be around 12% more efficient than this one.
Warranty
Goodman offers a 10 year parts warranty on the GPHM36031 heat pump packaged unit when its installation follows state and local codes of the installation address and when the unit is registered online through the manufacturer.
Durability and Reliability
The GPHM36031 is designed to be durable and sturdy, with its cabinet made of heavy-gauge galvanized-steel and its enhanced coil protection. For reliability, the fan motor is fully enclosed and permanently lubricated to allow for a long-lasting unit, as well as to prevent the need to re-lubricate the fan motor, lowering maintenance costs.
Installation and Maintenance
All Goodman packaged units come fully charged and tested as the factory standard, lowering heat pump installation costs since additional refrigerant is not required. On the GPHM36031 heat pump, the unit is designed to function in any packaged unit application, from your roof to the side of your house, in any application where an indoor furnace or air handler is not ideal. Moreover, the fully-insulated blower compartment has convenient access panels for easier maintenance.
Comfort in Mind
Goodman is always determined to provide the best comfort possible to its customers, all while staying at a convenient price and keeping the unit quiet, efficient, and dependable. The GPHM36031 lives up to Goodman's expectations.
Packaged Unit Buyers Guide
- How packaged units work for residential and commercial use
- The different types of packaged units
- Figuring out the right size unit for your needs
- The importance of a custom curb adapter
- And much more!
Product Benefits
- Meets the 2023 M1 Test Standards
Product Features
- Energy-efficient compressor with internal relief valve
- Two-stage cooling on 5-ton units
- All-aluminum evaporator coil
- Multi-Speed ECM blower motor
- Liquid-line filter drier
- Convertible airflow: horizontal or downflow
- Copper tube/aluminum fin condenser coils
- Totally enclosed, permanently lubricated condenser fan motor
- Electric heat kit available as a field-installed option
Cabinet Features
- Heavy-gauge galvanized-steel cabinet with attractive two-tone Nickel Gray powder-paint finish
- Fully insulated air-handling compartment with convenient access panels
- Compressor sound blanket
- Louvered condenser coil protection
- One footprint
- two heights
Technical Specifications - GPHM36031
| sku | GPHM36031 |
|---|---|
| manufacturer | Goodman |
| product category | Unitary |
| product class | Packaged Heat Pump |
| system family | Unitary Packaged System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GPHM3_32 |
| series name | GPHM3 |
| short description | Goodman Packaged Heat Pump 13.4 SEER2, Two Stage, Downflow/Horizontal, 5 Ton |
| family description | Packaged Heat Pump Up to 13.4 SEER2 / 6.7 HSPF2 2 to 5 Tons |
| product description | 5.0t m-pkgd 13.4 seer2 hp R-32 |
| cooling btu | 55,000 |
| heating btu | 54,000 |
| seer2 | 13.4 |
| decibel level (dba) | 80 dBA |
| refrigerant | R-32 |
| compressor type | Scroll |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| electrical | 208-230 V | 60 Hz | 1 Ph |
| max breaker size | 60 A |
| min. breaker size | 42.84 A |
| tonnage | 5 |
| btu/tonnage | 55,000 BTU/5 Ton |
| height | 42-3/4 in |
| width | 47 in |
| weight | 470 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Packaged Heat Pump |
| model efficiency | 13.4 SEER2 |
| installation type | Ducted Multi-position |
| communication feature | No |
| doe regional compliance | Southwest;Southeast;North |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051741140 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| cooling capacity nominal | 55000 Btu/H |
| cop17 hsvtc | 2.38 |
| cop47 hsvtc | 3.5 |
| eer hsvtc | 10.6 |
| eer2 hsvtc | 10.6 |
| energy star certified | No |
| heating capacity nominal | 54000 Btu/H |
| hspf hsvtc | 6.7 |
| hspf 2 hsvtc | 6.7 |
| seer hsvtc | 13.4 |
| seer 2 hsvtc | 13.4 |
| installation configuration | Downflow/Horizontal |
| produced in us | No |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated cooling condition room wb | 67 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| rated heating condition room wb | 60 °F |
| compressor lra | 178 A |
| compressor rla | 27.07 A |
| electric heat range | 19 kW |
| evap motor rla | 7 A |
| indoor blower fla | 7 A |
| max overcurrent protection | 60 A |
| max voltage | 253 V |
| min circuit amps | 42.84 A |
| min voltage | 197 V |
| outdoor fan fla | 2 A |
| outdoor fan lra | 4.4 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208-230 V |
| total unit amps | 36.07 A |
| air flow rate high cooling | 1750 ft³/min |
| air flow rate high heating | 1750 ft³/min |
| compressor stages | Two Stage |
| condenser coil metal type | Copper |
| condenser coil rows | 2 |
| condenser fan blade count | 3 |
| condenser fan diameter | 22 in |
| condenser fan rpm | 1122 r/min |
| condenser fin density fins per inch | 16 |
| dimensions blower diameter | 10 in |
| dimensions blower width | 9 in |
| dimensions evap wheel diameter | 10 in |
| dimensions evap wheel width | 9 in |
| dimensions unit height | 42-3/4 in |
| dimensions unit width | 47 in |
| energy source | Electric |
| etl listed | Yes |
| evap coil metal type | Aluminum |
| evap coil rows | 4 |
| evap fin density fins per inch | 14 |
| evap motor rpm | 1050 r/min |
| expansion device | TXV |
| external static pressure rated | 0.8 |
| heat exchanger type | Air Cooled |
| motor speed type | Multi Speed ECM |
| number of speeds | 5 |
| sound pressure high cooling | 80 dBA |
| weight unit | 470 lb |
| blower motor horsepower | 1 metric hp |
| condenser fan horsepower | 1/3 metric hp |
| cooling capacity rated | 55000 Btu/H |
| cooling capacity sensible | 39600 Btu/H |
| evap motor horsepower | 1 metric hp |
| heating capacity rated | 54000 Btu/H |
| sensible heat ratio s t | 0.72 |
| factory std refrigerant charge | 129 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 52.00 in |
| dimensions case height | 46.50 in |
| dimensions case width | 48.00 in |
| dimensions distribution unit depth | 52 in |
| dimensions distribution unit height | 44 in |
| dimensions distribution unit width | 48 in |
| dimensions pallet depth | 52.00 in |
| dimensions pallet height | 46.50 in |
| dimensions pallet width | 48.00 in |
| dimensions shipping unit depth | 52.00 in |
| dimensions shipping unit height | 46.50 in |
| dimensions shipping unit width | 48.00 in |
| distribution shipping volume unit | 109824 in³ |
| shipping volume unit | 116064.000 in³ |
| truck factor | 0.0000 |
| volume case | 116064.000 in³ |
| volume distribution shipping unit | 109824 in³ |
| weight case | 489.000 lb |
| weight distribution shipping unit | 500.09 lb |
| weight shipping unit | 489.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
