Home Goodman

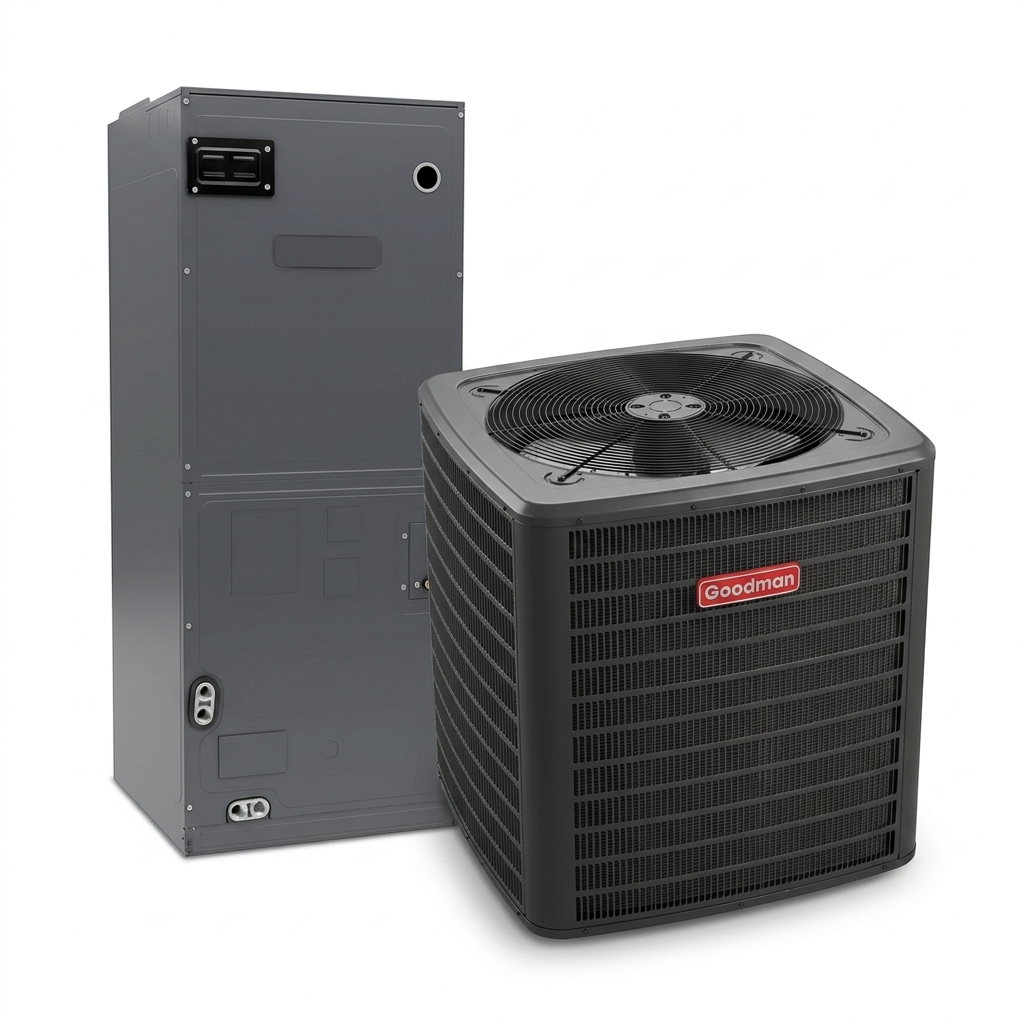

Goodman 42,000 BTU 15.2 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V

Click image to zoom

Goodman 42,000 BTU 15.2 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V

SKU AMST42CU1300 + GLZS5BA4210 Air Handler15.2 SEER2208-240V, 208-230V
Leave a Review
$5,876.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Rated
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Visit brand site
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 42,000 BTU 15.2 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V

Product Overview

OVERVIEW

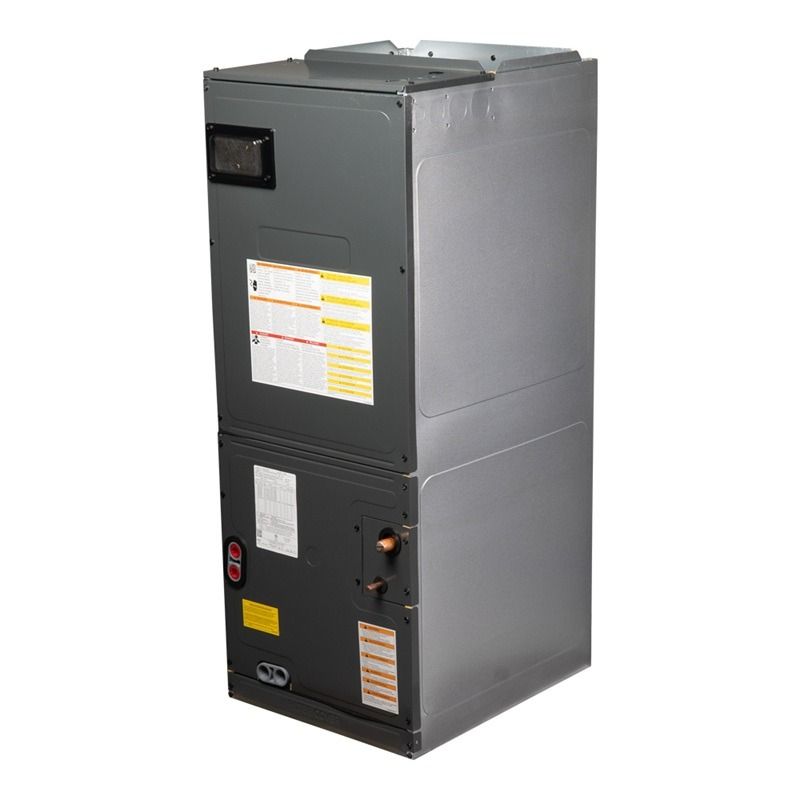

The Goodman AMST42CU1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.

QUICK FACTS

  • 3.5 ton air handler
  • Electric heat compatible
  • Optimized for use with R-32 refrigerant
  • Multi-speed, direct drive ECM blower motor
  • Multi-positional (upflow, downflow, or horizontal)

3.5 Tons

The Goodman AMST42CU1300 air handler is rated for an output of 3.5 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.

Warranty

The AMST42CU1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.

Durability and Reliability

With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMST42CU1300 air handler is durable in design, making it a reliable solution for your home.

Installation and Maintenance

The Goodman AMST42CU1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.

Enhanced Comfort

The AMST42CU1300 air handler lives up to Goodman's comfort expectations with its multi-speed ECM motor, which provides a more precise and efficient temperature control.

OVERVIEW

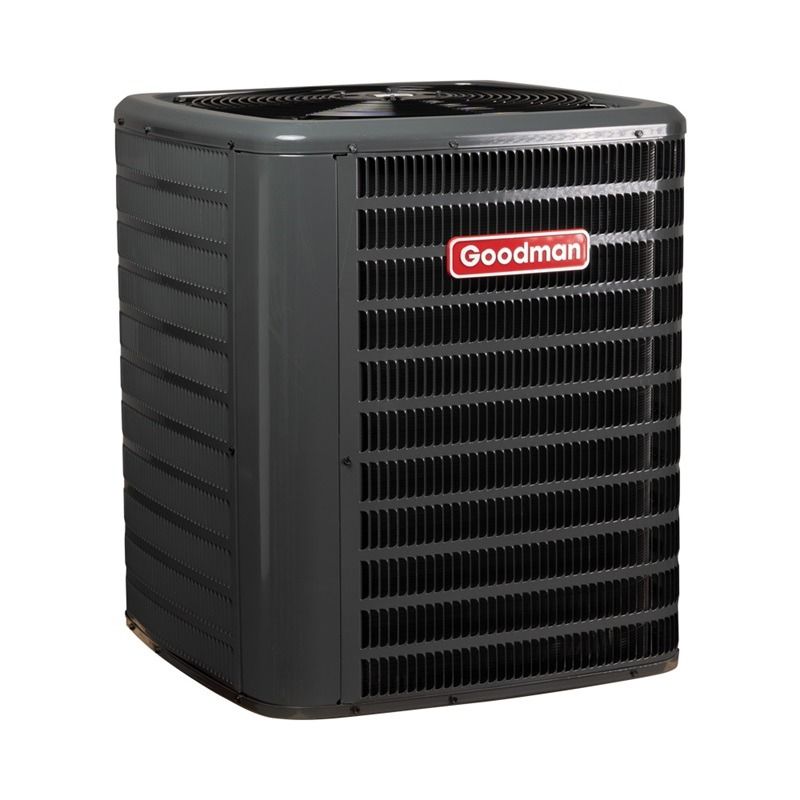

At one of the higher efficiencies on the market, the Goodman GLZS5BA4210 heat pump condenser is designed to save you money both up front and in energy bills over time. With its high-quality construction, the GLZS5BA4210 is considered a good all-around choice for many applications.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Designed to cover a medium house in average climates
  • 3.5 Ton, 15.2 SEER2 heat pump condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Low sound output
  • Fully charged for up to 15' of line set
  • Factory-installed bi-flow filter drier

3.5 Ton

The Goodman GLZS5BA4210 heat pump is rated for 3.5 tons, which is normally enough to cover a medium house in average climates. A heat pump coil or air handler is required for this condenser to function, and some indoor units will be larger in tonnage than this condenser in some bundles to maintain the unit's overall efficiency.

15.2 SEER2

With its high-end 15.2 SEER2 efficiency rating, the GLZS5BA4210 is designed to save you money over the entire life of the unit. 15.2 SEER2 units will save you about 12% more in energy bills over a 14.3 SEER2 condenser, making this upgrade a smart upgrade to save you money over time with a small increase in your initial investment in the condenser.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 39% efficiency, making it a good fit for warmer climates where moderate heating is sufficient.

Warranty

The GLZS5BA4210 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

The cabinet on the GLZS5BA4210 heat pump is designed to be durable in harsh conditions. With its baked-on polyester coat of paint, the unit is approved for up to 500 hours of salt spray. The enhanced durability and paint coat makes the GLZS5BA4210 compliant with 2010 Florida building codes for unit integrity for hurricane-like winds when the unit is properly anchored. For reliability, there is also a built-in bi-flow filter drier that lowers general wear-and-tear on the internals of the unit.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GLZS5BA4210 heat pump is factory-installed with pressure switches, a high-capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels - one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.

Comfort in Mind

The Goodman company has always promoted enhanced comfort, higher efficiency, and lower cost to all of its units. With SmartShift technology and an enhanced sound insulation structure, the GLZS5BA4210 is whisper-quiet, allowing Goodman to continue to follow its goals in achieving the best comfort levels possible at a low cost.

Why Buy at

is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.

Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.

Product Benefits (AMST42CU1300)

  • All-Aluminum tube/aluminum fin coil
  • Direct-drive, resilient-mount, 9-speed ECM motor
  • Available without heat or with sequence-controlled and rust-resistant nickel chromium heating elements of 5, 6, 8 or 10 kW
  • High-efficiency evaporator coil
  • Quiet operation
  • Primary/secondary drain connection in a high-temperature plastic drain pan
  • Suitable for free-return installation (non-ducted return air)
  • Galvanized-steel construction
  • Factory-installed pull-type disconnect
  • Easy service access
  • AHRI Certified
  • ETL Listed

Product Features (AMST42CU1300)

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, 9-speed ECM blower motor
  • Factory installed 7mm AlumaFin7™ Evaporator Coil on 1½ to 3½ Ton models and 3/8 in. Evaporator Coil on 4 to 5 Ton models
  • All-aluminum evaporator coil with high-performance coated fin stock
  • Coil mounting track for quick repositioning
  • Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • AHRI certified
  • ETL listed

Cabinet Features (AMST42CU1300)

  • Rigid SmartFrame cabinet
  • Horizontal or vertical configuration capabilities
  • 21” depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Technical Specifications - AMST42CU1300

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AMST_32
series name AMST
family description Multi-Position, Multi-Speed, ECM-Based Air Handler with Internal TXV 1½ to 5 Tons
installation type Ducted Multi-position
communication feature No
export control classification number eccn EAR99
universal product code upc 663051689190
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8085
canadian hts code 8415.90.90.00
cooling capacity nominal 42000 Btu/H
produced in us Yes
indoor blower fla 5.7 A
max overcurrent protection 15 A
max voltage 253 V
min circuit amps 5.9 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10 in
dimensions blower width 8 in
dimensions unit depth 21 in
dimensions unit height 53-7/16 in
dimensions unit width 21-1/8 in
evap motor rpm 1345 r/min
expansion device TXV
motor speed type Nine Speed ECM
number of speeds 9
weight unit 153 lb
blower motor horsepower 3/4 metric hp
tonnage 3.5
tonnage range 2;5
factory std refrigerant charge 0.5 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 23.00 in
dimensions case height 57.50 in
dimensions case width 22.00 in
dimensions distribution unit depth 23 in
dimensions distribution unit height 57.5 in
dimensions distribution unit width 22 in
dimensions pallet depth 46.00 in
dimensions pallet height 57.50 in
dimensions pallet width 44.00 in
dimensions shipping unit depth 23.00 in
dimensions shipping unit height 57.50 in
dimensions shipping unit width 22.00 in
distribution shipping volume unit 29095 in³
shipping volume unit 29095.000 in³
truck factor 0.0000
volume case 29095.000 in³
volume distribution shipping unit 29095 in³
weight case 140.000 lb
weight distribution shipping unit 140 lb
weight shipping unit 140.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Benefits (GLZS5BA4210)

  • Meets the 2023 M1 Test Standards

Product Features (GLZS5BA4210)

  • High-efficiency scroll compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin with coil-5mm diameter copper tubes in 1.5T-3.5T
  • Enhanced aluminum fin coil with 7mm diameter copper tubes 4.0-5.0 ton
  • Single-speed PSC condenser fan motor
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contactor
  • Ground lug connection
  • Capacitor with extended life

Cabinet Features (GLZS5BA4210)

  • Removable grille style top design compliant with UL 60335-2-40
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLZS5BA4210

product category Unitary
product class pim Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZS5B
series name GLZS5B
model efficiency 15.2 SEER2
family description High-Effciency, Communication, Split System Heat Pump Up to 16 SEER2 & 8.2 HSPF2
installation type Ducted
communication feature No
communication feature type Non-Communicating
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051737679
item stocking unit of measure uom EA
pallet qty 1
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 12.5
energy star certified Yes
heating capacity nominal 42000 Btu/H
hspf 2 hsvtc 7.8
hspf ducted 7.8
seer 2 hsvtc 15.2
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 35 A
min circuit amps 21.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
rated load amps 16.1 A
compressor stages Single Stage
compressor type Scroll
dimensions unit depth 35.5 in
dimensions unit height 35.75 in
dimensions unit width 35-1/2 in
expansion device TXV
sound pressure high cooling 72 dBA
weight unit 257 lb
heating capacity rated 39500 Btu/H
tonnage 3.5
additional refrigerant charge oz ft 0.64 lb
factory std refrigerant charge 139 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 200 ft
standard line set length vertical 79 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 37.00 in
dimensions case height 38.50 in
dimensions case width 37.00 in
dimensions distribution unit depth 37 in
dimensions distribution unit height 38.5 in
dimensions distribution unit width 37 in
dimensions pallet depth 37.00 in
dimensions pallet height 38.50 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 37.00 in
dimensions shipping unit height 38.50 in
dimensions shipping unit width 37.00 in
distribution shipping volume unit 52706.5 in³
shipping volume unit 52706.500 in³
truck factor 0.0000
volume case 52706.500 in³
volume distribution shipping unit 52706.5 in³
weight case 287.000 lb
weight distribution shipping unit 287 lb
weight shipping unit 287.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.

Customer Reviews Reviews & ratings Open verified customer feedback for this product.
