Home Goodman

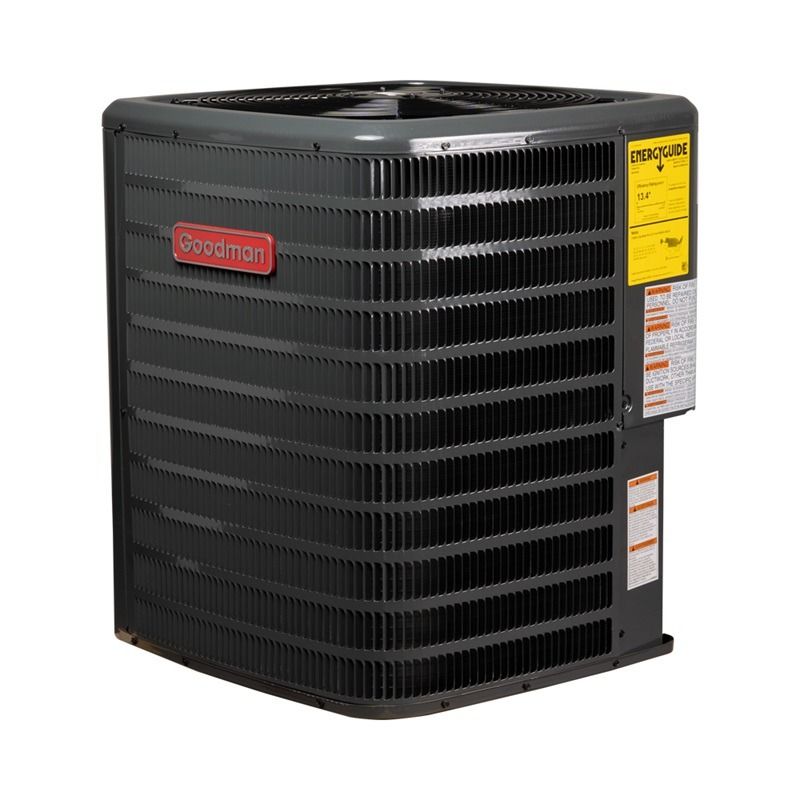

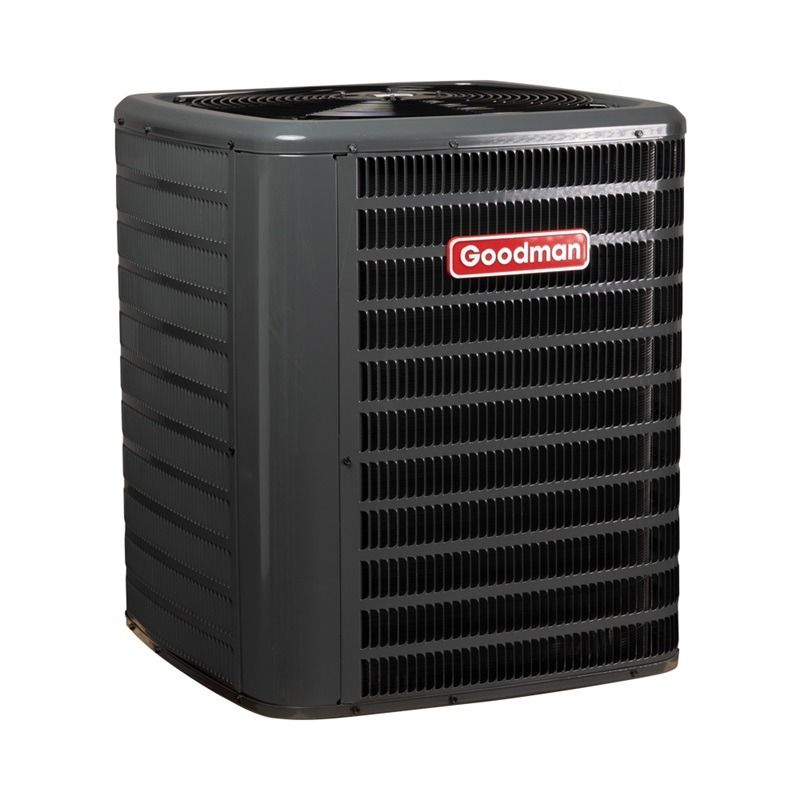

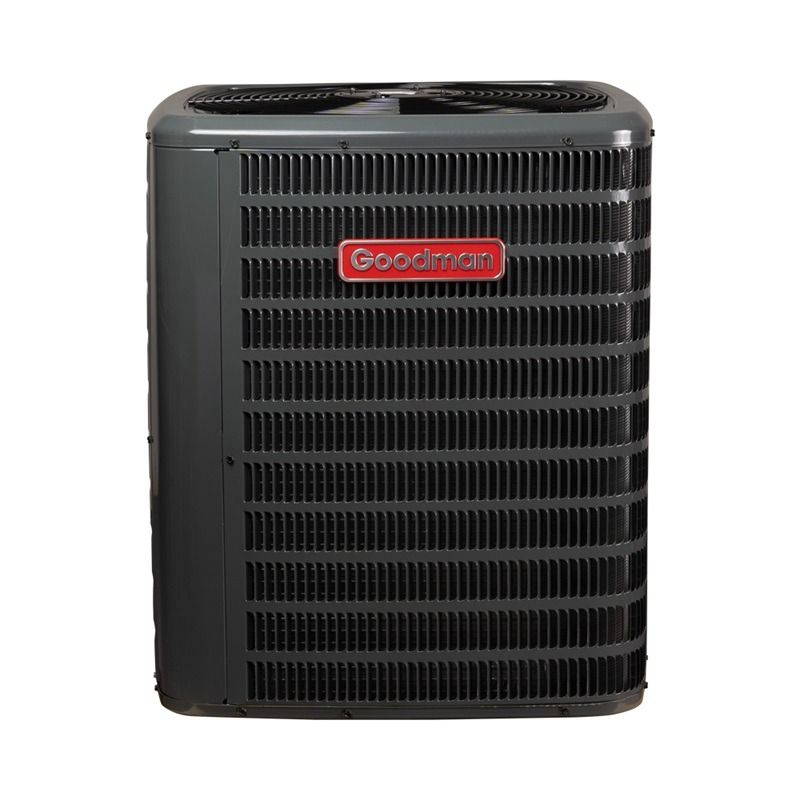

Goodman 4 Ton 17 SEER2 High Efficiency Heat Pump Condenser - R32 Two Stage

SKU GLZT7CA4810 Air Conditioner Condenser Units17.2 SEER2208-230V
$5,880.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Efficient
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 4 Ton 17 SEER2 High Efficiency Heat Pump Condenser - R32 Two Stage

Product Overview

OVERVIEW

Considered part of the highest quality series offered by Goodman, the GLZT7CA4810 heat pump condenser is superior to any other series made by Goodman. With all of its features, the GLZT7CA4810 continues to promote Goodman's goals to provide enhanced comfort at a high efficiency while staying under budget.

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.

QUICK FACTS

  • Designed to cover a larger house in average climates
  • 4 ton, 17 SEER2 heat pump condenser
  • R32: Complies with Clean Air Act New Refrigerant Requirements
  • Two stage compressor
  • Low sound output
  • Fully charged for up to 15 ft of line set
  • Factory installed bi-flow filter drier

4 Ton

At 4 tons, the GLZT7CA4810 heat pump by Goodman is suitable for a larger house in average climate conditions. Please note that for this unit to function, a compatible air handler or coil is required. Sometimes, the air handler or coil that is paired in a system bundle will be larger than the heat pump condenser in tonnage to maintain the unit's overall efficiency.

17 SEER2

At 17 SEER2, the GLZT7CA4810 condenser is manufactured to be the highest possible efficiency made by Goodman today. The GLZT7CA4810 can save you around 25% in energy bills in comparison to a 17 SEER2 standard efficiency condenser, saving you a significant amount of money over time to spend on the things you care about most instead of on your energy bills.

Efficiency Choices for Every Climate

Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 90% efficiency, making it a good fit for maximizing efficiency in the coldest climates.

Two Stage Compressor, Designed with Comfort in Mind

The Goodman GLZT7CA4810 heat pump is built with a two stage compressor, allowing for a more stable temperature output. With its built-in compressor muffler, noise blanket, and superior cabinet insulation, the noise output is decreased to make it almost whisper quiet, along with the two stage compressor that decreases operation noise output when on the lower stage.

Warranty

The GLZT7CA4810 heat pump condenser comes standard with a 10 year parts warranty. To provide a peace of mind on its two stage compressor, Goodman also offers a lifetime heat exchanger warranty when paired with a new air handler or coil. All of these warranties require an installation that follows your state and local codes and the unit must be registered online through the manufacturer.

Durability and Reliability

With its durable structure designed for harsh conditions and its paint layer that makes it approved for up to 500 hours of salt spray, the Goodman GLZT7CA4810 heat pump condenser is compliant with Florida 2010 integrity building codes when properly anchored. For enhanced reliability, the liquid line is fitted with a bi-flow filter drier, lowering general wear and tear by filtering out impurities and system contaminants. All of these features provide peace of mind to system owners, lowering the costs of equipment upkeep.

Installation and Maintenance

In order to provide a faster and less expensive installation, the Goodman GLZT7CA4810 heat pump is factory installed with pressure switches, a high capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.

Product Benefits

  • Meets the 2023 M1 Test Standards

Product Features

  • Two-Stage Copeland® UltraTech scroll compressor
  • High-density foam compressor sound blanket
  • Integrated communicating ComfortBridge™ technology
  • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application
  • ComfortAlert™ built in diagnostics
  • Copper tube/enhanced aluminum fin coil- 5mm on 2.0-3.0T
  • Copper tube/enhanced aluminum fin coil - 7mm on 4.0-5.0T
  • Efficient, two-speed ECM condenser fan motor
  • Simple low-voltage wiring to outdoor unit in communicating mode
  • Diagnostic indicator lights and storage of six fault codes
  • Color-coded terminal strip for non-communicating set-up
  • High- and low-pressure switches
  • Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • Factory-installed coil and ambient temperature sensors
  • AHRI Certified
  • ETL Listed

Cabinet Features

  • Grille-style sound control top design
  • Custom Nickel Gray powder-paint finish
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Steel louver coil guard
  • Single panel access to controls with space provided for field-installed accessories
  • Sweat connection service valves with easy access to gauge ports
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GLZT7CA4810

sku GLZT7CA4810
manufacturer Goodman
product category Unitary
product class Split Heat Pump
system family Unitary Split System
function category Heat Pump
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GLZT7C
series name GLZT7C
short description Goodman Split Heat Pump 17.2 SEER2, Two Stage
family description High-Effciency, Communication, Split System Heat Pump Up to 17.2 SEER2 & 8.2 HSPF2
product description 17.2 SEER2 HP R32, 4 ton
cooling btu 47,000
heating btu 48,500
seer2 17.2
decibel level (dba) 75 dBA
refrigerant R-32
compressor type Scroll
liquid line 3/8 in
suction line 3/4 in
electrical 208/240 V | 60 Hz | 1 Ph
max breaker size 50 A
min. breaker size 31.6 A
tonnage 4
btu/tonnage 47,000 BTU/4 Ton
min/max outdoor temp for heating -20 °F to 70 °F
min/max outdoor temp for cooling 55 °F to 125 °F
height 35.5 in
width 35-1/2 in
depth 41.625 in
weight 308 lb
warranty COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
safety information Proposition 65 Label: Yes
product class pim Split Heat Pump
model efficiency 17.2 SEER2
installation type Ducted
communication feature Yes
communication feature type Goodman GTST Smart Thermostat
export control classification number eccn EAR99
iso certified Yes
product notes R32 Outdoor
universal product code upc 663051747678
item stocking unit of measure uom EA
pallet qty 1
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 12.5
energy star certified Yes
heating capacity nominal 48000 Btu/H
hspf 2 hsvtc 8.2
hspf ducted 8.2
seer 2 hsvtc 17.2
produced in us Yes
cooling operation range std max 125 °F
cooling operation range std min 55 °F
heating operation range std max 70 °F
heating operation range std min -20 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
rated heating condition ambient db 47 °F
rated heating condition ambient wb 43 °F
max overcurrent protection 50 A
min circuit amps 31.6 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/240 V
rated load amps 23.3 A
compressor stages Two Stage
dimensions unit depth 41.625 in
dimensions unit height 35.5 in
dimensions unit width 35-1/2 in
energy source Electric
expansion device TXV
sound pressure high cooling 75 dBA
weight unit 308 lb
cooling capacity rated 47000 Btu/H
heating capacity rated 48500 Btu/H
additional refrigerant charge oz ft 0.64 lb
factory std refrigerant charge 229 oz
pipe size gas 3/4 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 150 ft
standard line set length vertical 80 ft
valve size suction o d 1-1/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 37.00 in
dimensions case height 44.00 in
dimensions case width 37.00 in
dimensions distribution unit depth 37 in
dimensions distribution unit height 44 in
dimensions distribution unit width 37 in
dimensions pallet depth 37.00 in
dimensions pallet height 44.00 in
dimensions pallet width 37.00 in
dimensions shipping unit depth 37.00 in
dimensions shipping unit height 44.00 in
dimensions shipping unit width 37.00 in
distribution shipping volume unit 60236 in³
shipping volume unit 60236.000 in³
truck factor 0.0000
volume case 60236.000 in³
volume distribution shipping unit 60236 in³
weight case 324.000 lb
weight distribution shipping unit 318.09 lb
weight shipping unit 324.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS
Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
