Goodman 36,000 BTU 17.2 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V
$7,139.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for 36K room setups:
- Open floor plans
- Large garages
- Light commercial
- Multi-room areas
- 36,000 BTU
- Cooling
- 36,000 BTU
- Heating
- See specs
- Quiet Inside
- Efficient
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
Goodman
- Support Number
- 8772544729
- Official Site
- Goodman Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
Goodman
Goodman 36,000 BTU 17.2 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V
Product Overview
OVERVIEW
The Goodman AMVT42CP1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 3.5 ton air handler
- Electric heat compatible
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Variable speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
3.5 Tons
The Goodman AMVT42CP1300 air handler is rated for an output of 3.5 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AMVT42CP1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMVT42CP1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The Goodman AMVT42CP1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AMVT42CP1300 air handler lives up to Goodman's comfort expectations with its variable speed ECM motor, which provides a more precise and efficient temperature control.
OVERVIEW
Considered part of the highest quality series offered by Goodman, the GLZT7CA3610 heat pump condenser is a superior to any other series made by Goodman. With all of its features, the GLZT7CA3610 continues to promote Goodman's goals to provide enhanced comfort at a high efficiency while staying under budget.

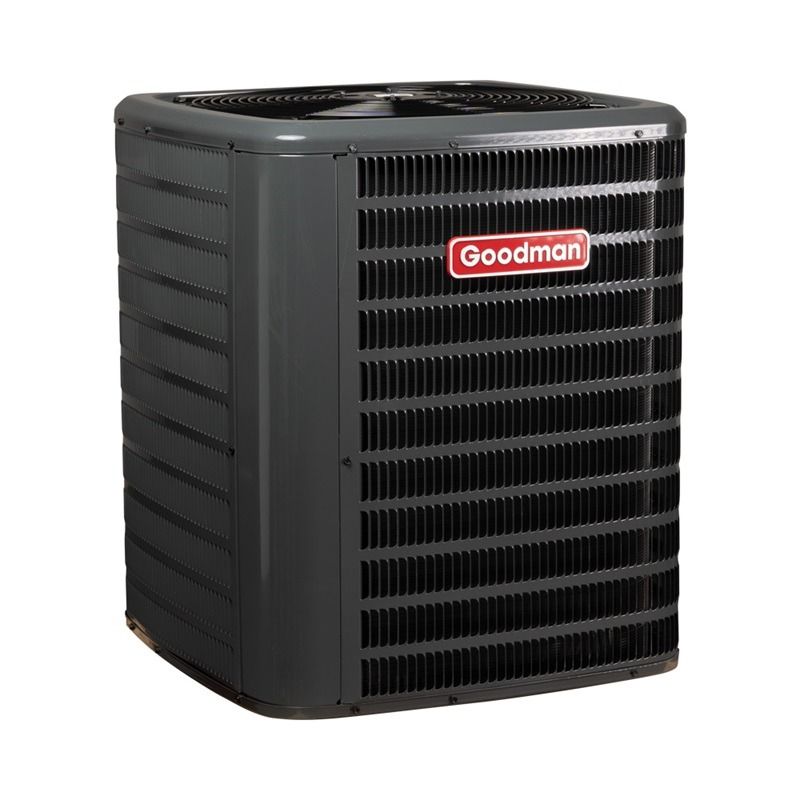

Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Designed to cover a larger house in average climates
- 2 ton, 17 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Two stage compressor
- Low sound output
- Fully charged for up to 15 ft of line set
- Factory installed bi-flow filter drier
2 Ton
At 2 tons, the GLZT7CA3610 Goodman Heat Pump is suitable for a larger house in average climate conditions. Please note that for this unit to function, a compatible air handler or coil is required. Sometimes, the air handler or coil that is paired in a system bundle will be larger than the heat pump condenser in tonnage to maintain the units overall efficiency.
17 SEER2
At 17 SEER2, the GLZT7CA3610 condenser is manufactured to be the highest possible efficiency made by Goodman today. The GLZT7CA3610 can save you around 25% in energy bills in comparison to a 14.3 SEER2 standard efficiency condenser, saving you a significant amount of money over time to spend on the things you care about most instead of on your energy bills.
Efficiency Choices for Every Climate
Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 82% efficiency, making it a good fit for maximizing efficiency in the coldest climates.
Two Stage Compressor, Designed with Comfort in Mind
The Goodman GLZT7CA3610 heat pump is built with a two stage compressor, allowing for a more stable temperature output. With its built in compressor muffler, noise blanket, and superior cabinet insulation, the noise output is decreased to make it almost whisper quiet, along with the two stage compressor that decreases operation noise output when on the lower stage.
Warranty
The GLZT7CA3610 heat pump condenser comes standard with a 10 year parts warranty. To provide a peace of mind on its two stage compressor, Goodman also offers a lifetime heat exchanger warranty when paired with a new air handler or coil. All of these warranties require an installation that follows your state and local codes and the unit must be registered online through the manufacturer.
Durability and Reliability
With its durable structure designed for harsh conditions and its paint layer that makes it approved for up to 500 hours of salt spray, the Goodman GLZT7CA3610 heat pump condenser is compliant with Florida 2010 integrity building codes when properly anchored. For enhanced reliability, the liquid line is fitted with a bi-flow filter drier, lowering general wear and tear by filtering out impurities and system contaminants. All of these features provide peace of mind to system owners, lowering the costs of equipment upkeep.
Installation and Maintenance
In order to provide a faster and less expensive installation, the Goodman GLZT7CA3610 heat pump is factory installed with pressure switches, a high capacity muffler, easily accessible gauge ports, and service valves with sweat connections. The cabinet of the unit is also fitted with dual access panels one on the side and one on the top - to allow for a much easier maintenance procedure should the need for maintenance arise.
Why Buy at
is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensure long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.
Product Benefits (AMVT42CP1300)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridgeâ„¢ Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- All-aluminum evaporator coil
- AHRI certified; ETL listed
- Rigid SmartFrameâ„¢ cabinet
- Horizontal or vertical configuration capabilities
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Field Installed 3 kW – 25 kW electric heater kits available
Product Features (AMVT42CP1300)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features (AMVT42CP1300)
- Rigid SmartFrameâ„¢ cabinet
- Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities;5. 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish;10 .Glue-less cabinet insulation retention
Technical Specifications - AMVT42CP1300
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AMVT_32 |
| series name | R-32 AMVT |
| installation type | Ducted Multi-position |
| communication feature | No |
| communication feature type | ComfortBridge Technology compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736405 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 42000 Btu/H |
| produced in us | Yes |
| indoor blower fla | 5.2 A |
| max overcurrent protection | 50/60 A |
| max voltage | 253 V |
| min circuit amps | 6.5/6.5 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| dimensions blower diameter | 10 in |
| dimensions blower width | 8 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 53-7/16 in |
| dimensions unit width | 21-1/8 in |
| expansion device | TXV |
| motor speed type | Variable Speed ECM |
| weight unit | 158 lb |
| blower motor horsepower | 3/4 metric hp |
| tonnage | 3.5 |
| tonnage range | 2.0;5.0 |
| factory std refrigerant charge | 0.5 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 57.50 in |
| dimensions case width | 22.50 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 57.5 in |
| dimensions distribution unit width | 22.5 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 57.50 in |
| dimensions pallet width | 45.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 57.50 in |
| dimensions shipping unit width | 22.50 in |
| distribution shipping volume unit | 31696.875 in³ |
| shipping volume unit | 31696.875 in³ |
| truck factor | 0.0000 |
| volume case | 31696.875 in³ |
| volume distribution shipping unit | 31696.875 in³ |
| weight case | 142.000 lb |
| weight distribution shipping unit | 142 lb |
| weight shipping unit | 142.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GLZT7CA3610)
- Meets the 2023 M1 Test Standards
Product Features (GLZT7CA3610)
- Two-Stage Copeland® UltraTech scroll compressor
- High-density foam compressor sound blanket
- Integrated communicating ComfortBridgeâ„¢ technology
- Commissioning and diagnostics via indoor board Bluetooth with the CoolCloudâ„¢ phone and tablet application
- ComfortAlertâ„¢ built in diagnostics
- Copper tube/enhanced aluminum fin coil- 5mm on 2.0-3.0T
- Copper tube/enhanced aluminum fin coil - 7mm on 4.0-5.0T
- Efficient, two-speed ECM condenser fan motor
- Simple low-voltage wiring to outdoor unit in communicating mode
- Diagnostic indicator lights and storage of six fault codes
- Color-coded terminal strip for non-communicating set-up
- High- and low-pressure switches
- Time-delay technology with short-cycle protection to ensure quiet, reliable defrost
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- Factory-installed coil and ambient temperature sensors
- AHRI Certified
- ETL Listed
Cabinet Features (GLZT7CA3610)
- Grille-style sound control top design
- Custom Nickel Gray powder-paint finish
- 500-hour salt-spray tested
- Wire fan discharge grille
- Steel louver coil guard
- Single panel access to controls with space provided for field-installed accessories
- Sweat connection service valves with easy access to gauge ports
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Technical Specifications - GLZT7CA3610
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLZT7C |
| series name | GLZT7C |
| model efficiency | 17.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 17.2 SEER2 & 8.2 HSPF2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Goodman GTST Smart Thermostat |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747661 |
| item stocking unit of measure uom | EA |
| pallet qty | 1 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 12.5 |
| energy star certified | Yes |
| heating capacity nominal | 36000 Btu/H |
| hspf 2 hsvtc | 8.1 |
| hspf ducted | 8.1 |
| seer 2 hsvtc | 17.2 |
| produced in us | Yes |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -20 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 35 A |
| min circuit amps | 20.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 14.6 A |
| compressor stages | Two Stage |
| compressor type | Scroll |
| dimensions unit depth | 35.75 in |
| dimensions unit height | 35.5 in |
| dimensions unit width | 35-1/2 in |
| energy source | Electric |
| expansion device | TXV |
| sound pressure high cooling | 71 dBA |
| weight unit | 262 lb |
| cooling capacity rated | 34800 Btu/H |
| heating capacity rated | 34400 Btu/H |
| tonnage | 3 |
| additional refrigerant charge oz ft | 0.58 lb |
| factory std refrigerant charge | 129 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 150 ft |
| standard line set length vertical | 80 ft |
| valve size suction o d | 7/8 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 37.00 in |
| dimensions case height | 38.50 in |
| dimensions case width | 37.00 in |
| dimensions distribution unit depth | 37 in |
| dimensions distribution unit height | 38.5 in |
| dimensions distribution unit width | 37 in |
| dimensions pallet depth | 37.00 in |
| dimensions pallet height | 38.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 37.00 in |
| dimensions shipping unit height | 38.50 in |
| dimensions shipping unit width | 37.00 in |
| distribution shipping volume unit | 52706.5 in³ |
| shipping volume unit | 52706.500 in³ |
| truck factor | 0.0000 |
| volume case | 52706.500 in³ |
| volume distribution shipping unit | 52706.5 in³ |
| weight case | 270.000 lb |
| weight distribution shipping unit | 266.09 lb |
| weight shipping unit | 270.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | COMPRESSORS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- R-32 AMVT Air Handler, Variable Speed ECM Motor, 3.5 Ton
- Goodman Split Heat Pump 17.2 SEER2, Two Stage
- Goodman Split Heat Pump 17.2 SEER2, Two Stage
- Goodman Split Heat Pump 17.2 SEER2, Two Stage
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.How can I contact Goodman about product or warranty questions?
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Are labor, freight, and service charges automatically included in Goodman warranty coverage?
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Where are the Goodman model and serial numbers located?
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Can Goodman equipment purchased online qualify for warranty coverage?
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
How do I register Goodman equipment?
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Where can I find Goodman specifications, manuals, brochures, and warranty certificates?
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
What types of HVAC products does Goodman offer?
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
Why should Goodman equipment be registered within 60 days?
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
What information is needed to register a Goodman system?
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
Do I have to use the original Goodman installing dealer for warranty service?
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
What does a Goodman manufacturer limited warranty generally cover?
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
What should I do if a technician cannot diagnose a Goodman system?
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
What types of issues are commonly excluded from Goodman limited warranty coverage?
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
How can I check the warranty coverage on installed Goodman equipment?
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
Does every Goodman product have the same warranty?
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
