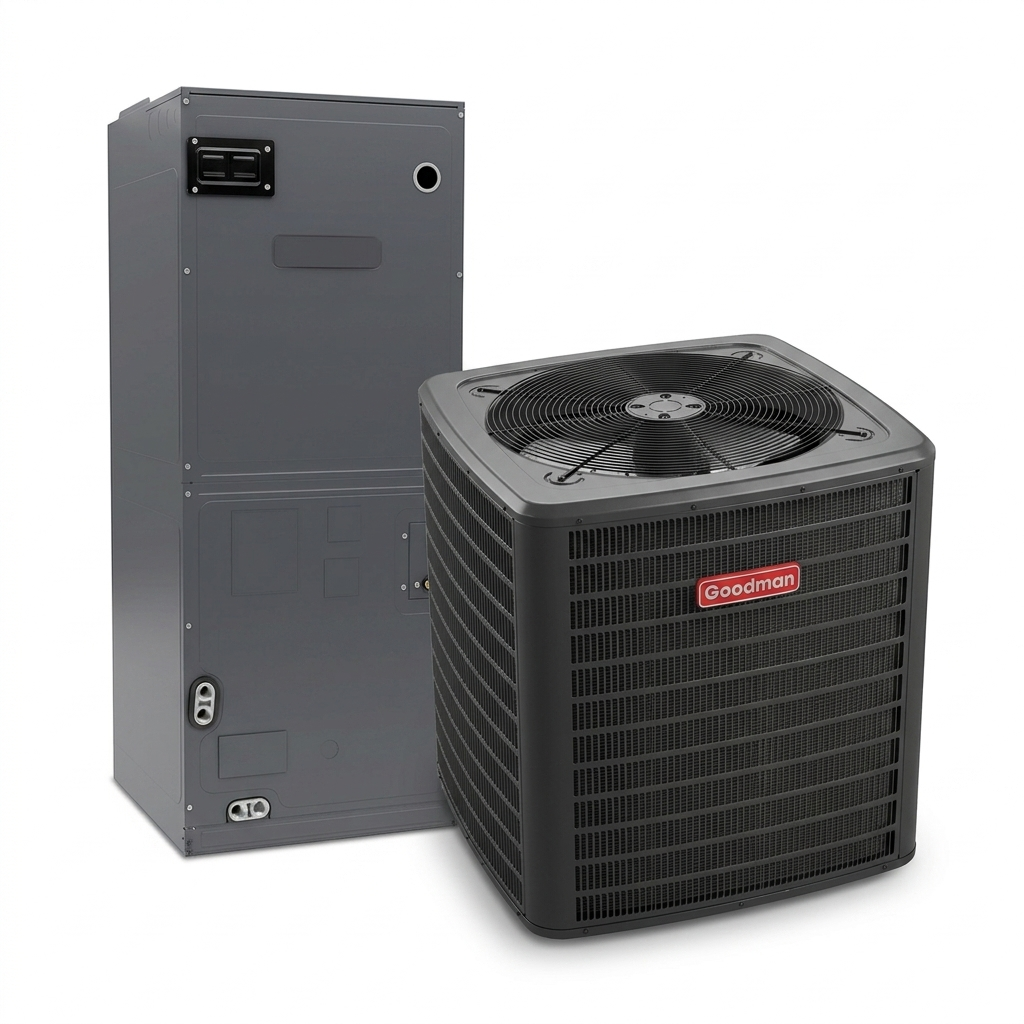

Goodman 30,000 BTU 14.5 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V
$4,945.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.
A smart, reliable choice for year-round comfort.
Best for:
- Bedrooms
- Home Offices
- Additions
- Garages
- See specs
- Cooling
- See specs
- Heating
- See specs
- Quiet Inside
- Rated
- High Efficiency
Recommended Add-Ons
Compatible accessories for this system
Must haves for best Installation
Loading recommended accessories…
Brand Information
Goodman
- Support Number
- 8772544729
- Official Site
- Goodman Official Site
Product Overview Full product description Read the longer product copy, features, and application notes. +
Goodman
Goodman 30,000 BTU 14.5 SEER2 High Efficiency Multi Position Air Handler Unit Ducted Heat Pump Split System R32 230V
Product Overview
OVERVIEW
The Goodman AMVT36BP1300 air handler is designed with an energy-saving, direct drive ECM blower motor and durable cabinet with multiple features that provide an easy installation. With this model, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
QUICK FACTS
- 3 ton air handler
- Electric heat compatible
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Variable speed, direct drive ECM blower motor
- Multi-positional (upflow, downflow, or horizontal)
3 Tons
The Goodman AMVT36BP1300 air handler is rated for an output of 3 tons. In many cases, the tonnage of the air handler will be larger than the condenser that it is naturally paired with. This is intentional, and is to maintain the overall efficiency of the unit. While the unit does require a condenser to function as part of a heat pump or air conditioner, heat strips may be installed in the air handler to provide straight electric heating, which can be used as an electric furnace on its own or as a backup heat option for a heat pump setup.
Warranty
The AMVT36BP1300 comes with Goodman's standard 10 year parts warranty when registered online through the manufacturer. Please note that in order for the warranty to be upheld, the installation must be compliant to all related local and state codes, as well as the unit must be paired with an approved condenser.
Durability and Reliability
With its heavy-gauge cabinet structure and its all-aluminum evaporator to prevent general wear-and-tear, the Goodman AMVT36BP1300 air handler is durable in design, making it a reliable solution for your home.
Installation and Maintenance
The Goodman AMVT36BP1300 utilizes SmartFrame technology in its sub-structure. This, along with special mounting features on the cabinet, allows for the unit to be easily installed almost anywhere it fits, as it is multi-positional in that it can be installed in the upflow, downflow, or horizontal orientations. For easier maintenance, there are two panels on the front to access vital areas on the air handler.
Enhanced Comfort
The AMVT36BP1300 air handler lives up to Goodman's comfort expectations with its variable speed ECM motor, which provides a more precise and efficient temperature control.
OVERVIEW

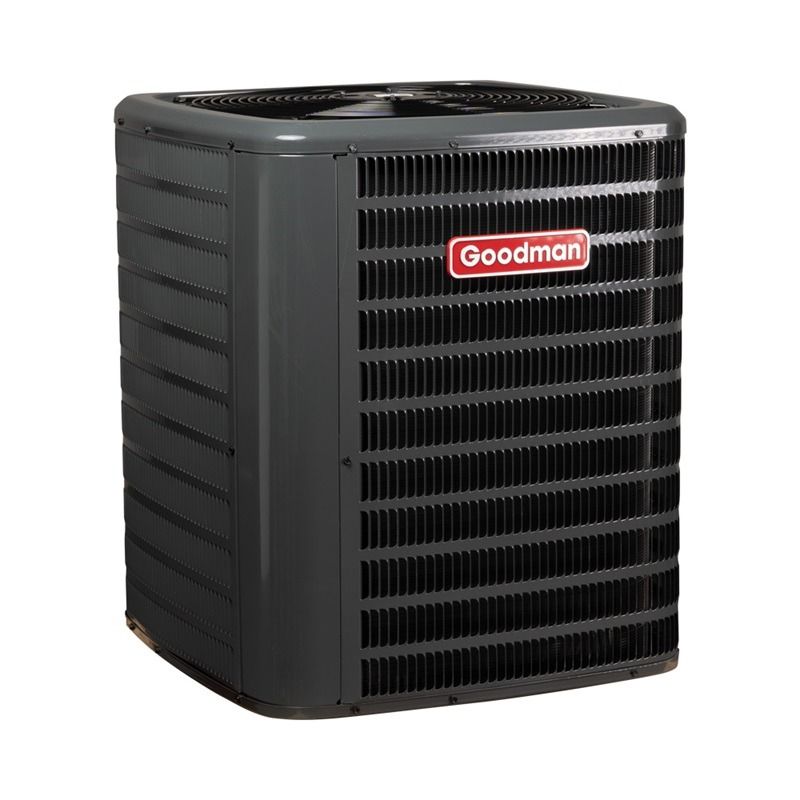

The Goodman GLZS4BA3010 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman's equipment, the GLZS4BA3010 is manufactured with high-quality materials to provide a superior comfort in your home.
Utilizing advanced technology, the Goodman heat pump condenser efficiently transfers heat between the indoors and outdoors, providing both heating and cooling functionalities in a single unit for year-round comfort. With its straightforward installation process, it not only ensures convenience but it's also cost-efficient, making it an ideal choice for those seeking an energy-efficient and hassle-free heating and cooling solution.
QUICK FACTS
- Ideal size to cover a small to medium house in ideal climates
- 2.5 ton, 14.3 SEER2 heat pump condenser
- R32: Complies with Clean Air Act New Refrigerant Requirements
- Low sound output
- Fully charged for up to 15' of line set
- Factory-installed bi-flow filter drier
2.5 Ton
The Goodman GLZS4BA3010 heat pump has a capacity of 2.5 tons. In an ideal climate, this tonnage will normally cover up to a small to medium house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit's overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.
14.3 SEER2
At 14.3 SEER2, the GLZS4BA3010 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER2 ratings. If you are replacing an existing heat pump, in most cases this SEER2 rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.
Efficiency Choices for Every Climate
Not all heat pumps are built the same. Depending on the climate of where you live, your best fit can depend dramatically on the efficiency of the heat pump at lower temperatures. The right fit saves you money by reducing energy bills. At 0°F, this heat pump operates at 44% efficiency, making it a good fit for warmer climates where not much heating is needed.
Warranty
The GLZS4BA3010 condenser comes with Goodman's standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
Durability and Reliability
The Goodman GLZS4BA3010 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.
Installation and Maintenance
The Goodman GLZS4BA3010 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn't have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.
Comfort in Mind
With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GLZS4BA3010 heat pump has some of the lowest sound outputs on a single stage unit on the market today.
Why Buy at
is one of the leading and reliable sources for top-quality heat pump systems. With its superior energy efficiency, our heat pumps not only provide significant upfront cost savings but also ensures long-term economic benefits through reduced energy consumption. Known for delivering heat pump package units that excel in both performance and durability, we are a trusted choice for various heating and cooling needs. Our customers can confidently rely on the efficiency and effectiveness of our heat pump systems, making us a preferred destination for those seeking high-performance solutions in the HVAC industry and a trusted choice for various heating and cooling needs.
Disclaimer: This condenser contains R32 refrigerant, classified as an A2L refrigerant, and requires a refrigerant leakage detection system to be installed. To comply with safety standards, this unit must be paired with an R32 air handler or evaporator coil already equipped with a leakage detection system. Failure to comply with these requirements may result in safety hazards and could void the warranty. Please call us at 1-737-738-6329 if you have any questions.
Product Benefits (AMVT36BP1300)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridgeâ„¢ Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- All-aluminum evaporator coil
- AHRI certified; ETL listed
- Rigid SmartFrameâ„¢ cabinet
- Horizontal or vertical configuration capabilities
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Field Installed 3 kW – 25 kW electric heater kits available
Product Features (AMVT36BP1300)
- Internal factory-installed thermal expansion valves for cooling and heat pump applications
- Variable-speed ECM blower motor
- Integrated communicating ComfortBridge Technology
- Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
- Auto configuration of the airflow and tonnage in communicating mode
- Provides constant CFM over a wide range of static pressure conditions independent of duct system
- CFM indicator
- Fault recall of six most recent faults
- Provides adjustable low CFM for efficient fan-only operation
- Improved humidity and comfort control
- Built-in compatibility with multi-stage heat pump and cooling applications
- Optimized for R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features (AMVT36BP1300)
- Rigid SmartFrameâ„¢ cabinet
- Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard 193
- Horizontal or vertical configuration capabilities;5. 21" depth for easier attic access
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Screw-less sides and back helps to reduce condensation when installed in humid locations
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish;10 .Glue-less cabinet insulation retention
Technical Specifications - AMVT36BP1300
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AMVT_32 |
| series name | R-32 AMVT |
| installation type | Ducted Multi-position |
| communication feature | No |
| communication feature type | ComfortBridge Technology compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051736382 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8085 |
| canadian hts code | 8415.90.90.00 |
| produced in us | Yes |
| expansion device | TXV |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 57.50 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 57.5 in |
| dimensions distribution unit width | 18.5 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 57.50 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 57.50 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 26061.875 in³ |
| shipping volume unit | 26061.875 in³ |
| truck factor | 0.0000 |
| volume case | 26061.875 in³ |
| volume distribution shipping unit | 26061.875 in³ |
| weight case | 130.000 lb |
| weight distribution shipping unit | 132.09 lb |
| weight shipping unit | 130.000 lb |
| registered parts warranty commercial | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 10 YEARS PARTS |
Product Benefits (GLZS4BA3010)
- Meets the 2023 M1 Test Standards
Product Features (GLZS4BA3010)
- High-Efficiency Compressor
- SmartShift technology to ensure quiet reliable defrost
- Factory-installed bi-flow liquid line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- Enhanched aluminum fin coil with 5mm diameter coper tubes in 1.5 -to 3.5 ton
- Enhanched aluminum fin coil with 7mm diameter coper tubes in 4.0 -to 5.0 ton
- High and low-pressure switches
- Fully charged for 15’ of tubing length
- Service valves with sweat connections and easy-to-access gauge ports
- Fully enclosed contactor with lug connection
- Ground lug connection
- Single-speed PSC condenser fan motor
- Capacitor with extended life
- AHRI Certified
- ETL Listed
Cabinet Features (GLZS4BA3010)
- Removable grille style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available
Technical Specifications - GLZS4BA3010
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLZS4B |
| series name | GLZS4B |
| model efficiency | 14.3 SEER2 |
| family description | Energy-Efficient Standard Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 5Tons |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051689640 |
| item stocking unit of measure uom | EA |
| pallet qty | 2 |
| country of origin | USA |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| eer2 hsvtc | 12 |
| energy star certified | No |
| heating capacity nominal | 30000 Btu/H |
| hspf 2 hsvtc | 7.8 |
| seer 2 hsvtc | 14.5 |
| produced in us | No |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -20 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 25 A |
| min circuit amps | 15 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 11.2 A |
| compressor stages | Single Stage |
| compressor type | Rotary |
| dimensions unit depth | 29 in |
| dimensions unit height | 39.5 in |
| dimensions unit width | 29 in |
| expansion device | TXV |
| sound pressure high cooling | 77 dBA |
| weight unit | 174 lb |
| cooling capacity rated | 28400 Btu/H |
| heating capacity rated | 28400 Btu/H |
| additional refrigerant charge oz ft | 0.55 lb |
| factory std refrigerant charge | 81 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.50 in |
| dimensions case height | 42.00 in |
| dimensions case width | 30.00 in |
| dimensions distribution unit depth | 30.5 in |
| dimensions distribution unit height | 42 in |
| dimensions distribution unit width | 30 in |
| dimensions pallet depth | 30.50 in |
| dimensions pallet height | 42.00 in |
| dimensions pallet width | 60.00 in |
| dimensions shipping unit depth | 30.50 in |
| dimensions shipping unit height | 42.00 in |
| dimensions shipping unit width | 30.00 in |
| distribution shipping volume unit | 38430 in³ |
| shipping volume unit | 38430.000 in³ |
| truck factor | 0.0000 |
| volume case | 38430.000 in³ |
| volume distribution shipping unit | 38430 in³ |
| weight case | 194.000 lb |
| weight distribution shipping unit | 194 lb |
| weight shipping unit | 194.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
Leaflets & Manuals
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- R-32 AMVT Air Handler, Motor, Ton
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
Specs & Documents Product details Open technical specs, manuals, videos, and product documents. +
Product FAQs
Product FAQs
Helpful answers matched to this product, brand, specs, and configuration.How can I contact Goodman about product or warranty questions?
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Are labor, freight, and service charges automatically included in Goodman warranty coverage?
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Where are the Goodman model and serial numbers located?
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Can Goodman equipment purchased online qualify for warranty coverage?
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
How do I register Goodman equipment?
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Where can I find Goodman specifications, manuals, brochures, and warranty certificates?
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
What types of HVAC products does Goodman offer?
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
Why should Goodman equipment be registered within 60 days?
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
What information is needed to register a Goodman system?
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
Do I have to use the original Goodman installing dealer for warranty service?
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
What does a Goodman manufacturer limited warranty generally cover?
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
What should I do if a technician cannot diagnose a Goodman system?
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
What types of issues are commonly excluded from Goodman limited warranty coverage?
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
How can I check the warranty coverage on installed Goodman equipment?
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
Does every Goodman product have the same warranty?
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
