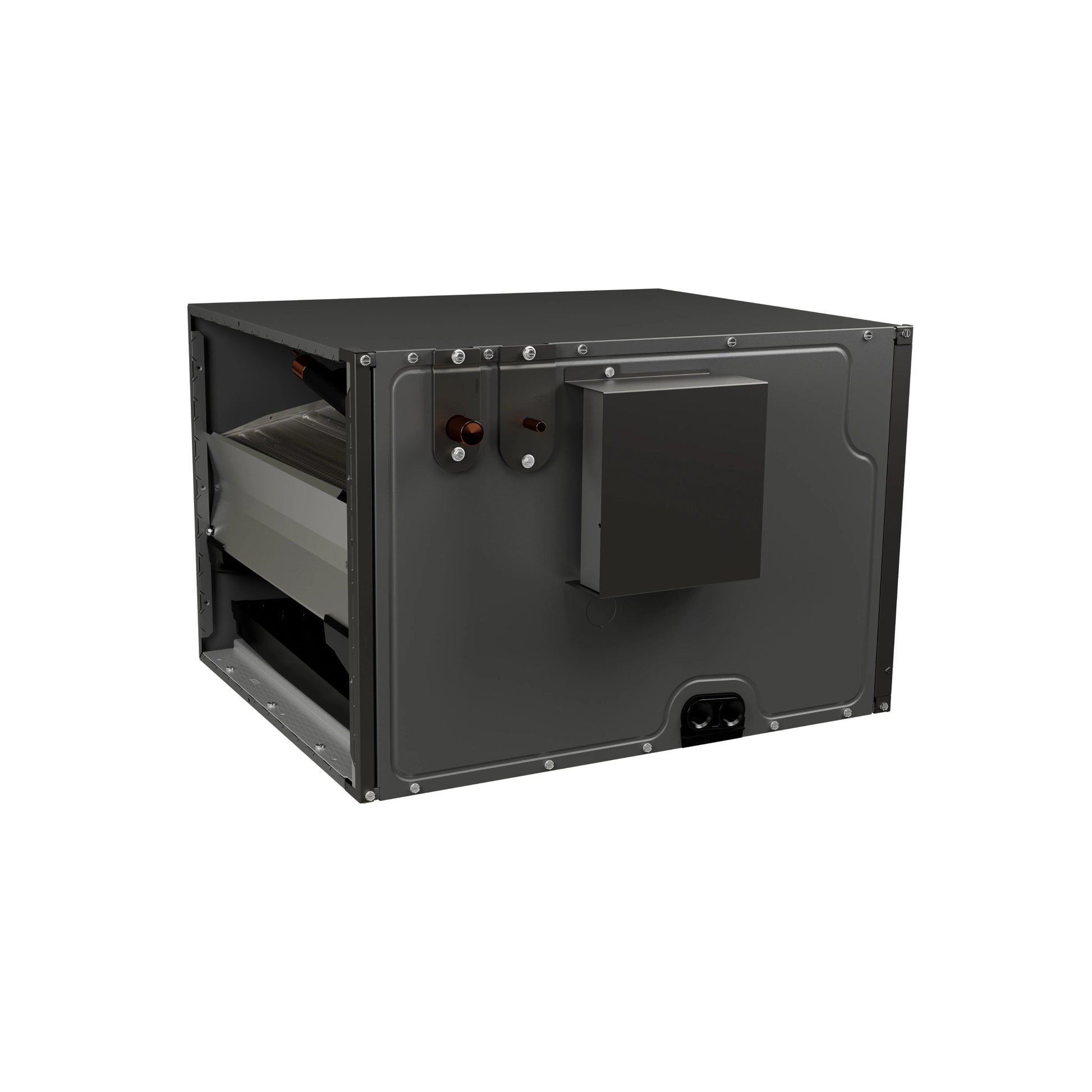

Goodman 3 Ton Evaporator Coil Cased Horizontal 21" Cabinet With EEV R32 CHPEA3626C3
Upgrade your HVAC system with this high-performance all-aluminum evaporator coil, engineered for optimized efficiency and long-term durability. Specifically designed for use with R-32 refrigerant, this advanced coil system ensures reliable cooling and heat pump operation while supporting modern smart HVAC integrations. Built with corrosion-resistant materials and service-friendly features, it delivers consistent performance for residential and light commercial applications.
- All-aluminum evaporator coil design for enhanced corrosion resistance and long-lasting HVAC performance
- Optimized for R-32 refrigerant systems with precision-engineered circuits and manifolds
- Integrated R-32 leak detection sensor designed to last the lifespan of the coil
- Factory-installed electronic expansion valve (EEV) for accurate refrigerant flow control and improved energy efficiency (CHPEA models)
- Compatible with Daikin One+ smart thermostat and other communicating HVAC systems for smart climate control integration
- Supports both cooling and heat pump applications for year-round comfort solutions
- Fault recall memory stores up to six recent system faults for easier HVAC diagnostics and maintenance
- CAPFA models equipped with optimized piston metering devices for reliable refrigerant regulation
- Standardized copper suction tube stub length for simplified installation and system compatibility
- Available in vertical and horizontal configurations to fit various HVAC installation requirements
- Compact 21-inch depth design for easier attic access and space-saving installation
- Single front access panel (CHPEA models) for convenient service and maintenance access
- Foil-faced internal insulation reduces cabinet condensation and improves thermal efficiency
- Durable galvanized steel cabinet with leather grain-embossed, rust-resistant finish
- High-strength thermoplastic drain pans with low water-retention design for improved drainage and hygiene
- DecaBDE-free, environmentally friendly drain pan construction with secondary drain connections
- Reinforced drain pan rails for easy coil removal and repositioning without compromising structural integrity
- UV-resistant drain pan for added durability in varying environmental conditions
- AHRI certified and ETL listed for verified performance, safety, and quality assurance
Goodman 3 Ton Evaporator Coil Cased Horizontal 21" Cabinet With EEV R32 CHPEA3626C3
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |
Product Benefits
- Factory-installed electronic expansion valve (EEV) for precise refrigerant control
Product Features
- All-Aluminum evaporator coilOptimized for use with R-32 refrigerant including circuits and manifoldsR-32 sensor designed for the life span of the coilFactory-installed electronic expansion valve (EEV) for precise refrigerant control− Compatibility with Daikin One+ smart thermostat and other Daikin communicating equipment− Cooling and heat pump applications− Fault recall of six most recent faultsStandardized copper suction tube stub length21" depth for easier attic accessFoil-faced insulation covers the internal casing to reduce cabinet condensation Galvanized, leather grain-embossed finish Rust resistant, thermoplastic drain pans featuring a low water-retention design DecaBDE-free thermoplastic drain pan with secondary drain connections Drain pan rails designed to remove and reposition coils with ease without compromising structural integrity UV-resistant drain pan AHRI certified
- ETL listed
Cabinet Features
- 21" depth for easier attic access
- Single front access panel
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Galvanized, leather grain-embossed finish
Technical Specifications - CHPEA3626C3
| sku | CHPEA3626C3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CHPEA |
| series name | CHPEA |
| short description | CHPEA Evaporator Coil, Horizontal A, 3 Ton, R-32 |
| family description | Cased Horizontal "A" with Internal EEV |
| product description | 3.0T Cased Horizontal R-32 Coil with EEV |
| cooling btu | 36,000 |
| refrigerant | R-32 |
| liquid line | 1/4 in |
| suction line | 7/8 in |
| tonnage | 3 |
| btu/tonnage | 36,000 BTU/3 Ton |
| height | 21 in |
| width | 26.5 in |
| depth | 21 in |
| weight | 69 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| seer2 | 17 |
| product class pim | Coil |
| model efficiency | 17 SEER |
| installation type | Ducted |
| communication feature | Yes |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051737006 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | USA |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 36000 Btu/H |
| produced in us | Yes |
| cabinet finish | Galvanized, leather grain-embossed finish, Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 21 in |
| dimensions unit height | 21 in |
| dimensions unit width | 26.5 in |
| expansion device | EEV |
| indoor orifice size | 0.157 in |
| weight unit | 69 lb |
| tonnage range | 2.0;3 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 7/8 in |
| pipe size liquid | 1/4 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 28.00 in |
| dimensions case height | 23.50 in |
| dimensions case width | 26.50 in |
| dimensions distribution unit depth | 28 in |
| dimensions distribution unit height | 23.5 in |
| dimensions distribution unit width | 26.5 in |
| dimensions pallet depth | 58.50 in |
| dimensions pallet height | 75.50 in |
| dimensions pallet width | 54.00 in |
| dimensions shipping unit depth | 28.00 in |
| dimensions shipping unit height | 23.50 in |
| dimensions shipping unit width | 26.50 in |
| distribution shipping volume unit | 17437 in³ |
| shipping volume unit | 17437.000 in³ |
| truck factor | 0.0000 |
| volume case | 17437.000 in³ |
| volume distribution shipping unit | 17437 in³ |
| weight case | 71.000 lb |
| weight distribution shipping unit | 71 lb |
| weight shipping unit | 71.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
