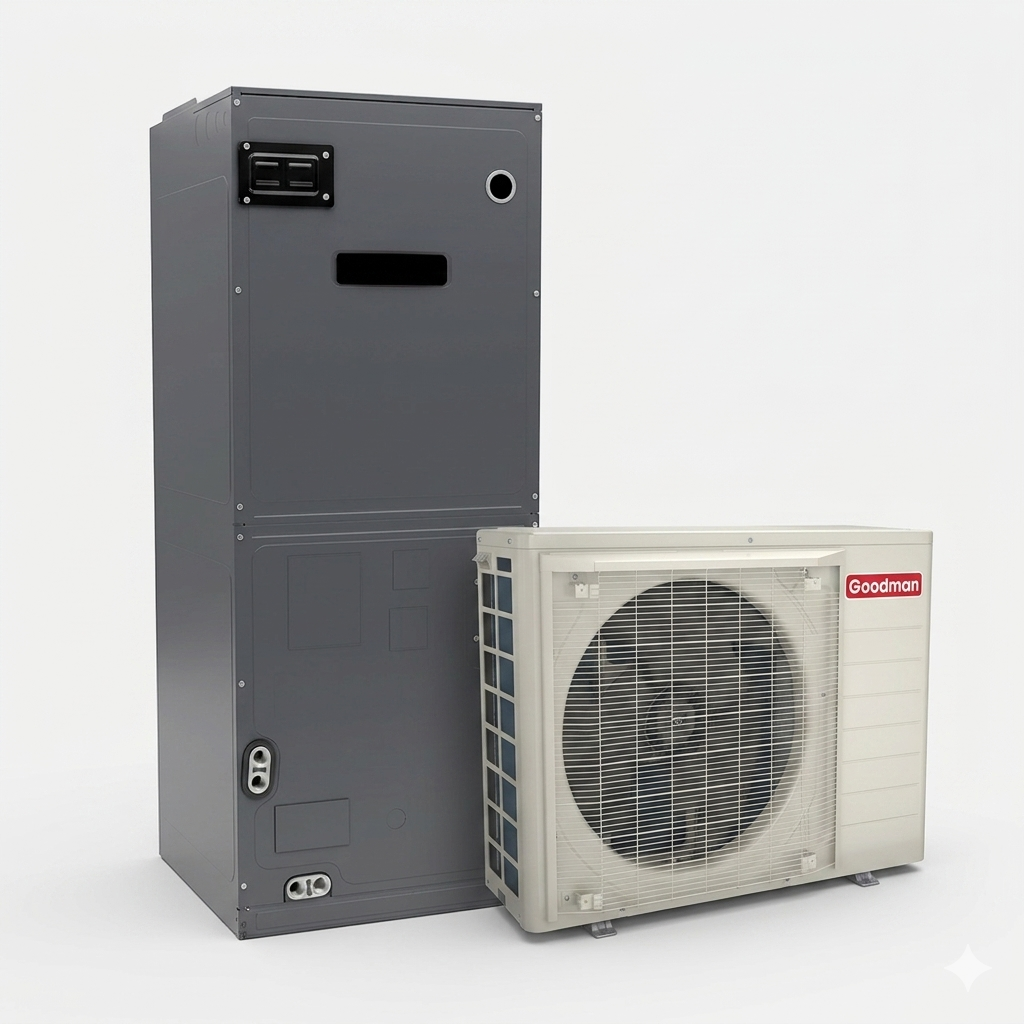

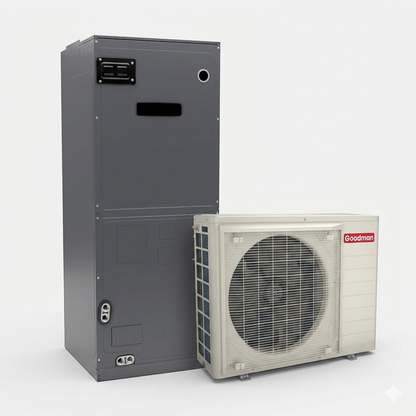

Goodman 3 Ton 16.6 SEER2 R32 Air Conditioner Split System - Multi-Positional

Click image to zoom

Goodman 3 Ton 16.6 SEER2 R32 Air Conditioner Split System - Multi-Positional

SKU AHVE36CP1300 + GXV6SS3610 AC Air Handler Systems16.6 SEER2208-230V
Leave a Review
$5,002.00
In StockShips in 1-2 business days
High efficiency. Quiet performance. Easy installation.

A smart, reliable choice for year-round comfort.

Best for:
  • Bedrooms
  • Home Offices
  • Additions
  • Garages
See specs
Cooling
See specs
Heating
See specs
Quiet Inside
Efficient
High Efficiency

Brand Information

Goodman
Support Number
8772544729
Visit brand site
Product Overview Full product description Read the longer product copy, features, and application notes.
Goodman
Goodman 3 Ton 16.6 SEER2 R32 Air Conditioner Split System - Multi-Positional

Product Overview

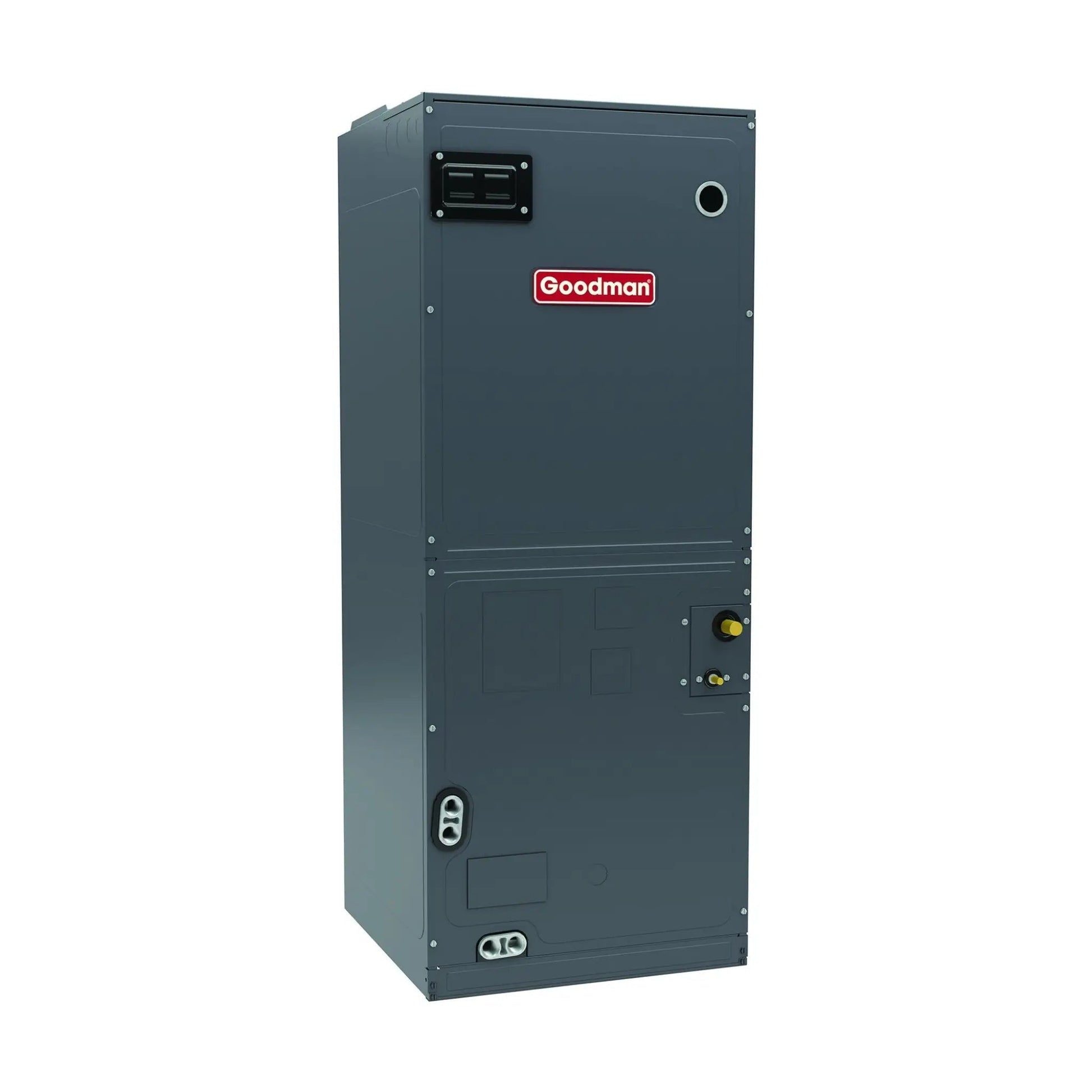

Goodman 3 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R32 AHVE36CP1300

The Goodman AHVE36CP1300 is a high-efficiency 3-ton variable-speed air handler engineered to deliver superior indoor comfort, improved energy savings, and quiet HVAC performance. Designed for use with compatible Goodman heat pumps and air conditioning systems, this advanced air handler features integrated ComfortBridgeâ„¢ communicating technology to automatically optimize system performance for enhanced temperature control and humidity management.

Built with a durable cabinet and multi-position installation capability, the AHVE36CP1300 is ideal for residential HVAC applications requiring reliable airflow, energy efficiency, and consistent year-round comfort. Its variable-speed ECM motor provides precise airflow control while reducing energy consumption and operational noise.

Key Features & Benefits

  • 3 Ton Cooling Capacity (36,000 BTU) – Designed for medium-sized homes requiring efficient central air distribution and balanced airflow.
  • Variable-Speed ECM Blower Motor – Enhances energy efficiency, reduces electrical consumption, and delivers quieter operation compared to standard PSC motors.
  • ComfortBridgeâ„¢ Communicating Technology – Advanced self-configuring system that continuously monitors performance for optimized HVAC efficiency and indoor comfort.
  • Multi-Position Installation – Suitable for upflow, downflow, and horizontal applications, offering flexible installation options for various home layouts.
  • Enhanced Humidity Control – Improves indoor air quality by maintaining balanced moisture levels for greater comfort.
  • Heavy-Gauge Steel Cabinet – Durable, insulated construction reduces sound transmission and increases long-term reliability.
  • Compatible with Goodman Heat Pumps & Air Conditioners – Seamlessly integrates with high-efficiency split systems for optimized SEER performance.
  • Factory-Installed Thermal Expansion Valve (TXV) – Ensures proper refrigerant flow for improved cooling efficiency and system longevity.

The Goodman AHVE36CP1300 variable-speed air handler is an ideal solution for homeowners seeking improved airflow performance, lower energy bills, and advanced climate control. Whether upgrading an existing HVAC system or installing a new high-efficiency central air system, this Goodman air handler delivers dependable performance and long-term value.

Goodman 3 Ton Ducted Air Handler Multi-Position Variable-Speed 230V R32 AHVE36CP1300

Warranty Type Parts
Standard Warranty 5 years
Registered Warranty 10 years

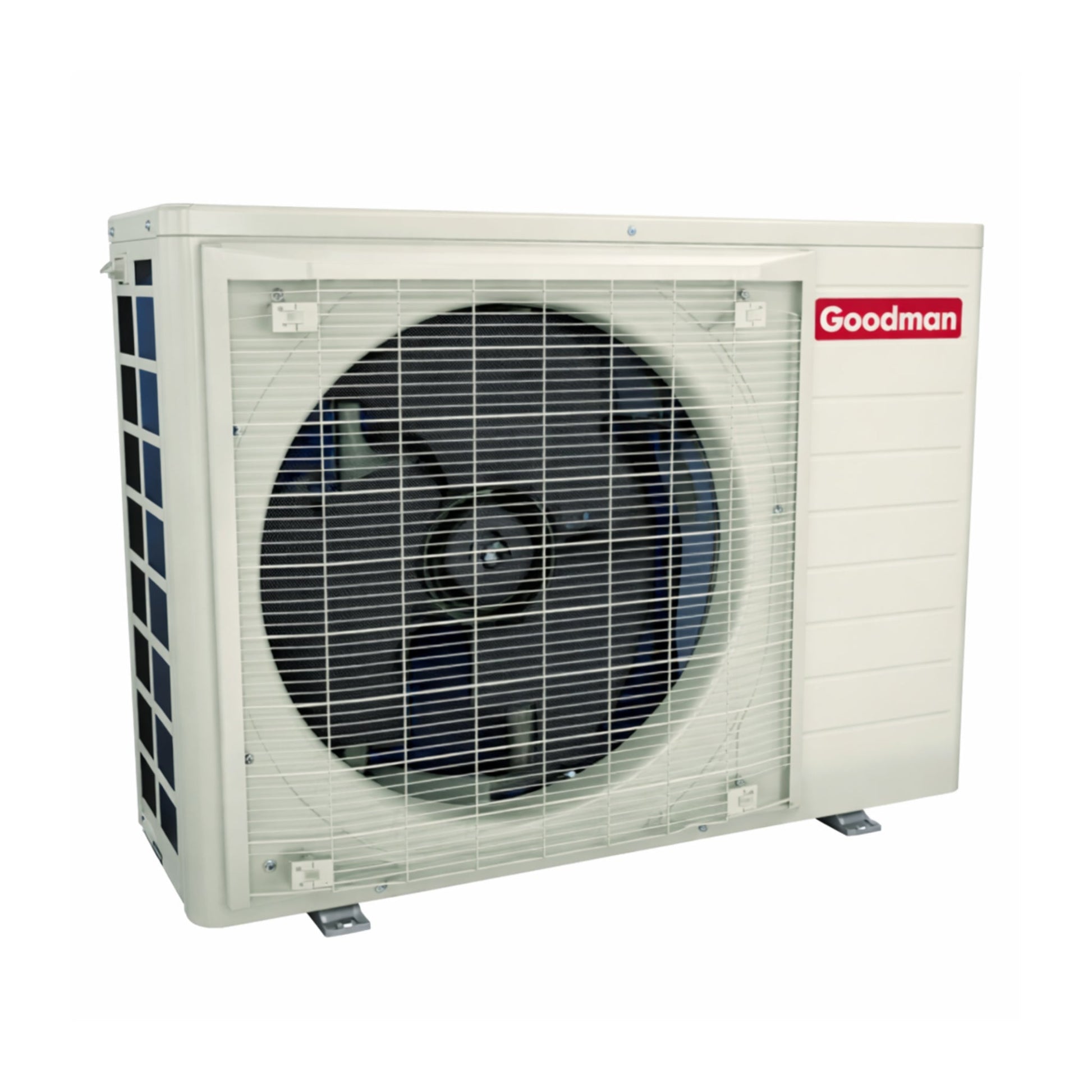

Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS3610

This high-performance Goodman outdoor air conditioning unit is designed to deliver exceptional energy efficiency, quiet operation, and advanced system intelligence. Equipped with variable-speed swing compressor technology and proprietary control logic, it provides precise temperature control, reduced energy usage, and reliable comfort for residential and light commercial HVAC applications.

Standard Features

  • Variable-speed swing compressors for improved energy efficiency and consistent cooling performance
  • Quiet digitally commutated (ECM) fan motor for low-noise operation and efficient airflow
  • High-density compressor sound blanket for enhanced sound reduction
  • Compatible with Goodman connected thermostats and other Goodman communicating HVAC equipment
  • Proprietary control algorithmic logic for optimized system performance and reliability
  • Communicating mode requires only two low-voltage wires to the outdoor unit for simplified installation
  • Diagnostic indicator lights with seven-segment LED display and onboard fault code storage
  • Proprietary inside intelligence technology for advanced diagnostics and service troubleshooting
  • Quiet Mode operation with up to three selectable sound levels, as low as 45 dBA
  • Field-selectable boost mode increases compressor speed during unusually high cooling loads
  • Field-installed bi-flow filter drier for enhanced refrigerant system protection
  • Integrated coil and ambient temperature sensors for accurate system monitoring
  • Suction pressure transducer for improved compressor protection and performance tracking
  • Sweat connection service valves with easy access to gauge ports for streamlined maintenance
  • AHRI Certified and ETL Listed for verified performance, efficiency, and safety compliance

Cabinet & Durability Features

  • Heavy-gauge galvanized steel cabinet with grille-style side panels for sound control
  • Custom ivory white powder-coated finish for long-lasting durability and corrosion resistance
  • High corrosion-resistant ZAM® unpainted steel bottom frame and legs for coastal and harsh environments
  • 500-hour salt spray tested to ensure superior corrosion protection
  • Wire fan discharge grille for added safety and structural integrity
  • Top and side maintenance access panels for easier installation and serviceability
  • When properly anchored, meets 2023 Florida Building Code unit integrity requirements for hurricane-type winds
  • Optional anchor bracket kits available for high-wind and severe weather installations

Goodman 3 Ton 17.2 SEER2 AC Inverter Condenser Cooling Side Discharge R32 GXV6SS3610

Warranty Type Parts Compressor
Manufacturer Warranty 10 Years Limited Lifetime

Product Features (AHVE36CP1300)

  • Electronic Expansion Valve (EEV) for cooling and heat pump applications
  • 7 mm evaporator coil tube size
  • Variable-speed ECM blower motor
  • Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Thermostat provides adjustable low CFM for efficient fan-only operation
  • All-aluminum evaporator coil
  • Fault recall of six most recent faults
  • Improved humidity and comfort control
  • AHRI certified
  • ETL listed
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW – 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Cabinet Features (AHVE36CP1300)

  • Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when
  • tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when
  • 3 kW – 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan
  • with secondary drain connections
  • Screw-less sides and back helps to reduce
  • condensation when installed in humid locations
  • Foil-faced insulation covers the internal
  • casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access

Technical Specifications - AHVE36CP1300

product category Unitary
product class pim Air Handler
system family Unitary Split System
function category Air Handler
product type Equipment
unit type Indoor
market type Residential-Single Family
product family AHVE230V_32
series name Inverter compatible Air Handler
installation type Ducted Multi-position
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051735187
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
cooling capacity nominal 36000 Btu/H
produced in us Yes
indoor blower fla 5.2 A
max overcurrent protection 15/15 A
max voltage 253 V
min circuit amps 6.5/6.5 A
min voltage 197 V
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
dimensions blower diameter 10.625 in
dimensions blower width 10.625 in
dimensions evap wheel diameter 10.625 in
dimensions evap wheel width 10.625 in
dimensions unit depth 21 in
dimensions unit height 53.4375 in
dimensions unit width 21 in
evap coil face area ft 4.59
evap motor rpm 1250 r/min
expansion device EEV
motor speed type Variable Speed ECM
number of speeds Variable
weight unit 140 lb
blower motor horsepower 3/4 metric hp
tonnage 3
tonnage range 3
factory std refrigerant charge 0 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant type R-32
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 24.50 in
dimensions case height 57.50 in
dimensions case width 22.50 in
dimensions distribution unit depth 24.5 in
dimensions distribution unit height 57.5 in
dimensions distribution unit width 22.5 in
dimensions pallet depth 49.00 in
dimensions pallet height 57.50 in
dimensions pallet width 45.00 in
dimensions shipping unit depth 24.50 in
dimensions shipping unit height 57.50 in
dimensions shipping unit width 22.50 in
distribution shipping volume unit 31696.875 in³
shipping volume unit 31696.875 in³
truck factor 0.0000
volume case 31696.875 in³
volume distribution shipping unit 31696.875 in³
weight case 141.000 lb
weight distribution shipping unit 142.09 lb
weight shipping unit 141.000 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential ALL PARTS - 10 YEARS PARTS
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Product Features (GXV6SS3610)

  • Variable-speed swing compressors
  • Quiet digitally commutated fan motor
  • High-density compressor sound blanket
  • Compatible with Goodman connected thermostat and other Goodman communicating equipment
  • Propietary control algorithmic logic
  • In communicating mode, only two low- voltage wires to outdoor unit required
  • Diagnostic indicator lights, seven-segmentLED display, and fault code storage
  • Propietary Inside intelligence for diagnostics
  • Quiet-mode- provides enhanced acoustical comfort, up to 3 different sound levels (as low as 45 dBA)
  • Feild-selectable boost mode increases compressor speed during unusually high loads
  • Field-installed bi-flow filter drier
  • Coil and ambient temperature sensors
  • Suction pressure transducer
  • Sweat connection service valves with easy access to gauge ports

Cabinet Features (GXV6SS3610)

  • Heavy-gauge galvanized steel cabinet with grille-style sound control side design
  • Custom Ivory white powder-paint finish
  • High corrosion-resistant (ZAM®), unpainted steel bottom frame and legs
  • 500-hour salt-spray tested
  • Wire fan discharge grille
  • Top and side maintenance access
  • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

Technical Specifications - GXV6SS3610

product category Unitary
product class pim Split Air Conditioner
system family Unitary Split System
function category Cooling Only
product type Equipment
unit type Outdoor
market type Residential-Single Family
product family GXV6SS
series name GXV6SS
model efficiency 16.2 SEER2
communication feature Yes
communication feature type ComfortNet Compatible
export control classification number eccn EAR99
universal product code upc 663051747012
item stocking unit of measure uom EA
pallet qty 4
country of origin USA
us hts code 8415.90.8065
canadian hts code 8415.90.90.00
eer2 hsvtc 9
energy star certified No
seer 2 hsvtc 16.6
produced in us Yes
cooling operation range std max 115 °F
cooling operation range std min 0 °F
rated cooling condition ambient db 95 °F
rated cooling condition ambient wb 75 °F
fan compressor drive input 17.6 A
max overcurrent protection 25 A
min circuit amps 22.4 A
power frequency 60 Hz
power phase 1 Ph
power voltage 208/230 V
compressor stages Variable
compressor type Inverter
dimensions unit depth 13.75 in
dimensions unit height 27.375 in
dimensions unit width 36-5/8 in
expansion device EEV
sound pressure high cooling 68 dBA
weight unit 133 lb
cooling capacity rated 34200 Btu/H
tonnage 3
factory std refrigerant charge 83 oz
pipe size gas 7/8 in
pipe size liquid 3/8 in
refrigerant pre charged line length 15 ft
refrigerant type R-32
standard line set length max 100 ft
standard line set length vertical 90 ft
valve size suction o d 7/8 in
proposition 65 label Yes
carton type CTN
case qty 1
dimensions case depth 17.50 in
dimensions case height 30.00 in
dimensions case width 39.00 in
dimensions distribution unit depth 17.5 in
dimensions distribution unit height 30 in
dimensions distribution unit width 39 in
dimensions pallet depth 35.50 in
dimensions pallet height 64.50 in
dimensions pallet width 39.00 in
dimensions shipping unit depth 17.50 in
dimensions shipping unit height 30.00 in
dimensions shipping unit width 39.00 in
distribution shipping volume unit 20475 in³
shipping volume unit 20475.000 in³
truck factor 0.0000
volume case 20475.000 in³
volume distribution shipping unit 20475 in³
weight case 136.090 lb
weight distribution shipping unit 136.09 lb
weight shipping unit 136.090 lb
registered parts warranty commercial ALL PARTS - 5 YEARS PARTS
registered parts warranty multi family ALL PARTS - 10 YEARS PARTS
registered parts warranty residential COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS
registered unit replacement warranty residential COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT
standard parts warranty commercial ALL PARTS - 5 YEARS PARTS
standard parts warranty multi family ALL PARTS - 5 YEARS PARTS
standard parts warranty residential ALL PARTS - 5 YEARS PARTS

Submittals

Leaflets & Manuals

Certificates

Specs & Documents Product details Open technical specs, manuals, videos, and product documents.

Technical Data

Specs, manuals, videos, and product documents

Loading technical data…

Product FAQs

Product FAQs

Helpful answers matched to this product, brand, specs, and configuration.
How can I contact Goodman about product or warranty questions?

Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.

Are labor, freight, and service charges automatically included in Goodman warranty coverage?

Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.

Where are the Goodman model and serial numbers located?

Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.

Can Goodman equipment purchased online qualify for warranty coverage?

Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.

How do I register Goodman equipment?

Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.

Where can I find Goodman specifications, manuals, brochures, and warranty certificates?

Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.

What types of HVAC products does Goodman offer?

Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.

Why should Goodman equipment be registered within 60 days?

For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.

What information is needed to register a Goodman system?

Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.

Do I have to use the original Goodman installing dealer for warranty service?

No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.

What does a Goodman manufacturer limited warranty generally cover?

The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.

What should I do if a technician cannot diagnose a Goodman system?

The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.

What types of issues are commonly excluded from Goodman limited warranty coverage?

Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.

How can I check the warranty coverage on installed Goodman equipment?

Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.

Does every Goodman product have the same warranty?

No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.

Customer Reviews Reviews & ratings Open verified customer feedback for this product.
