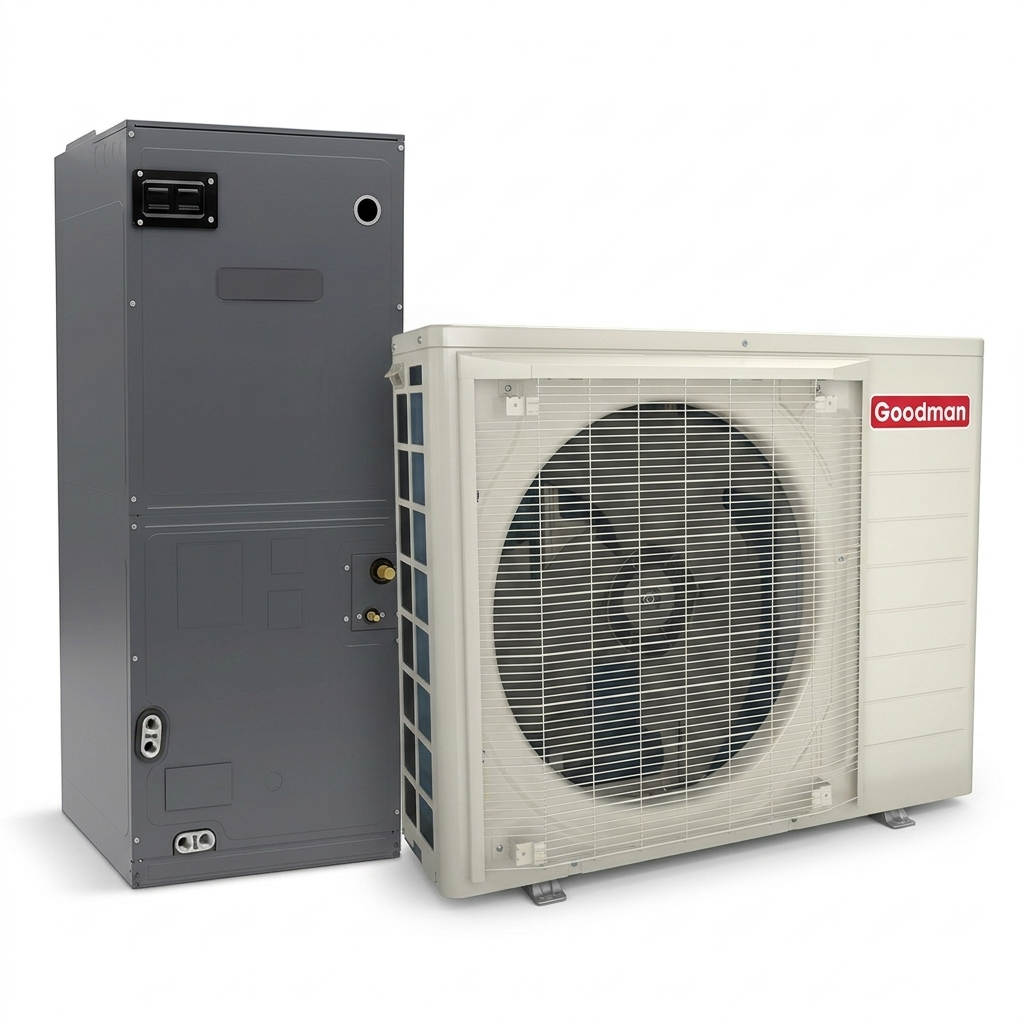

A smart, reliable choice for year-round comfort.
Recommended Add-Ons
Loading recommended accessories…

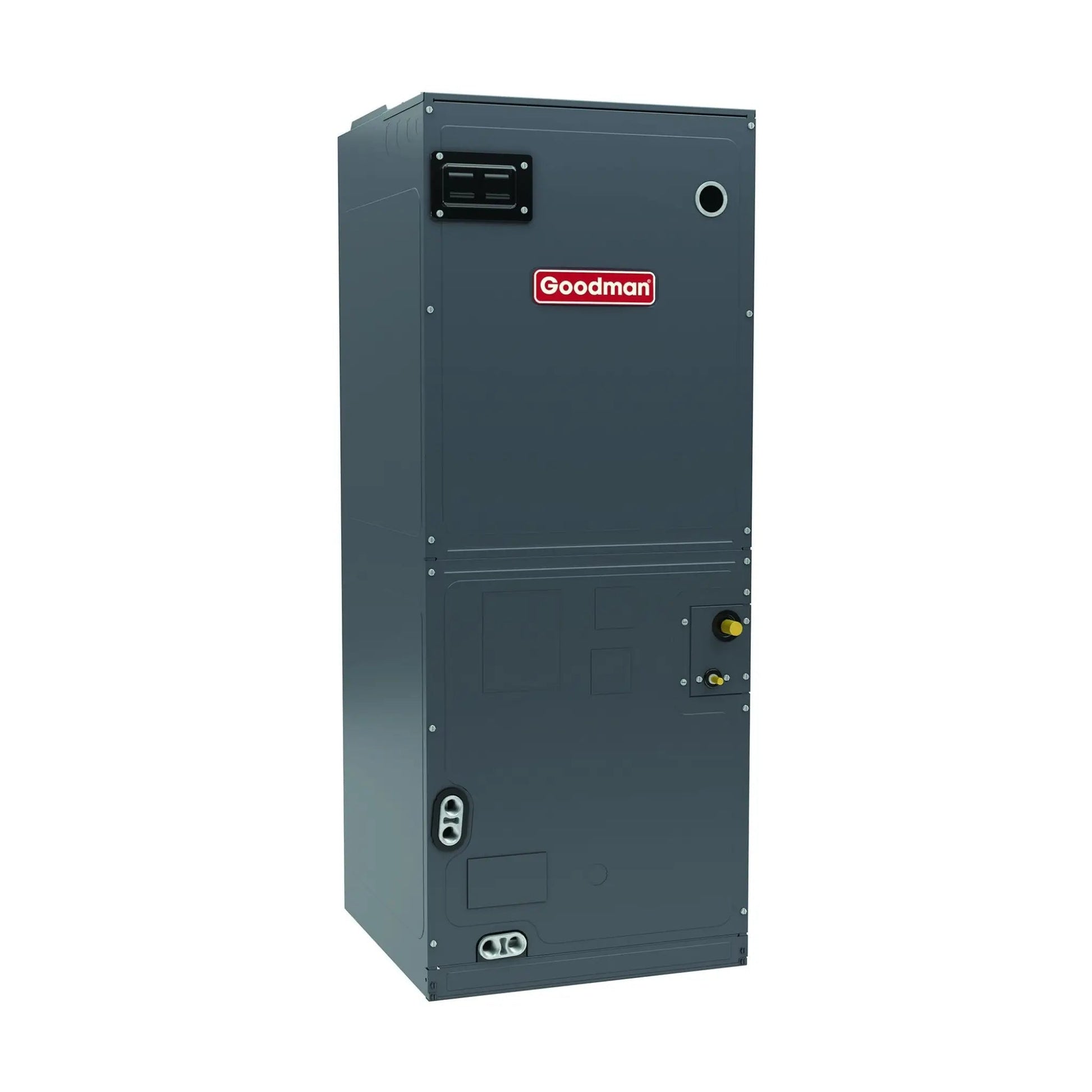

The Goodman AHVE24BP1300 is a 2-ton variable-speed air handler designed to provide efficient, reliable, and quiet heating and cooling for residential spaces. Equipped with ComfortBridgeâ„¢ communicating technology, this air handler intelligently optimizes system performance to deliver consistent indoor comfort, energy savings, and precise humidity control.
With a durable, insulated steel cabinet and multi-position installation options, the AHVE24BP1300 is engineered for flexible integration with Goodman heat pumps and air conditioners. Its variable-speed ECM blower motor ensures smooth airflow, reduced noise, and improved energy efficiency throughout the home.
The Goodman AHVE24BP1300 variable-speed air handler is an ideal choice for homeowners looking for reliable airflow, energy efficiency, and advanced climate control. Its combination of ComfortBridge technology, quiet operation, and durable construction makes it a long-lasting solution for enhancing home comfort.
| Warranty Type | Parts |
| Standard Warranty | 5 years |
| Registered Warranty | 10 years |

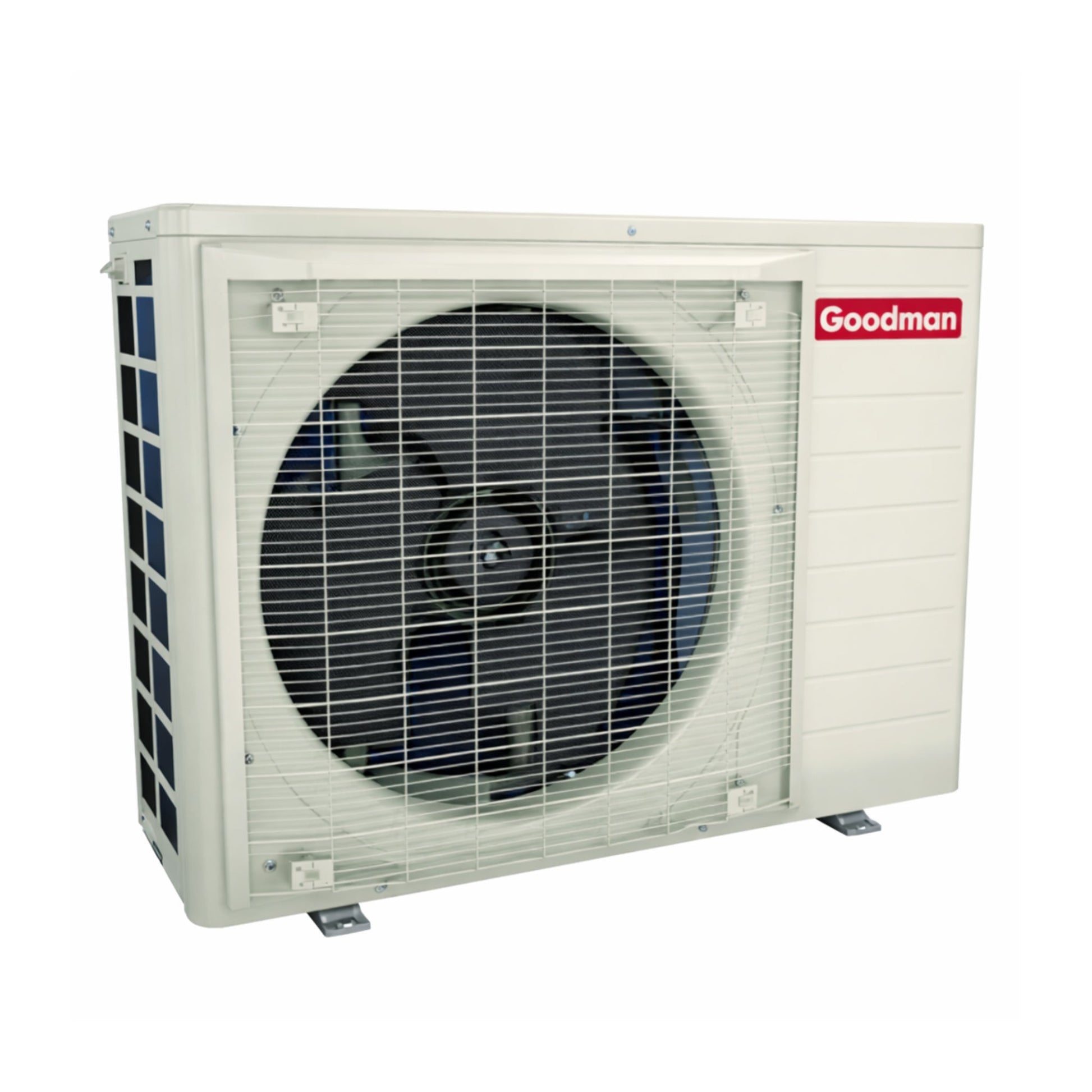

The Goodman GZV6SA2410 is a high-efficiency 2-ton side discharge heat pump condenser designed for compact installations, quiet performance, and dependable year-round comfort. Featuring a variable-speed inverter compressor and optimized for R-32 refrigerant, this unit delivers precise temperature control while meeting modern efficiency and durability standards. Its space-saving design makes it ideal for residential applications with limited outdoor clearance.
This 2-ton condenser is an excellent solution for homeowners seeking inverter technology, compact design, and reliable heating and cooling performance.
| Warranty Type | Parts | Compressor |
| Manufacturer Warranty | 10 Years | Limited Lifetime |
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AHVE230V_32 |
| series name | Inverter compatible Air Handler |
| installation type | Ducted Multi-position |
| communication feature | Yes |
| communication feature type | ComfortNet Compatible |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051735170 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | USA |
| us hts code | 8415.90.8085 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 24000 Btu/H |
| produced in us | Yes |
| indoor blower fla | 3.9 A |
| max overcurrent protection | 15/15 A |
| max voltage | 253 V |
| min circuit amps | 4.9/4.9 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| dimensions blower diameter | 9.5 in |
| dimensions blower width | 6 in |
| dimensions evap wheel diameter | 9.5 in |
| dimensions evap wheel width | 6 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 45 in |
| dimensions unit width | 17-1/2 in |
| evap coil face area ft | 3.06 |
| evap motor rpm | 1250 r/min |
| expansion device | EEV |
| motor speed type | Variable Speed ECM |
| number of speeds | Variable |
| weight unit | 115 lb |
| blower motor horsepower | 0.5 metric hp |
| tonnage | 2 |
| tonnage range | 2 |
| factory std refrigerant charge | 0 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 24.50 in |
| dimensions case height | 49.00 in |
| dimensions case width | 18.50 in |
| dimensions distribution unit depth | 24.5 in |
| dimensions distribution unit height | 49 in |
| dimensions distribution unit width | 18.5 in |
| dimensions pallet depth | 49.00 in |
| dimensions pallet height | 49.00 in |
| dimensions pallet width | 37.00 in |
| dimensions shipping unit depth | 24.50 in |
| dimensions shipping unit height | 49.00 in |
| dimensions shipping unit width | 18.50 in |
| distribution shipping volume unit | 22209.25 in³ |
| shipping volume unit | 22209.250 in³ |
| truck factor | 0.0000 |
| volume case | 22209.250 in³ |
| volume distribution shipping unit | 22209.25 in³ |
| weight case | 114.000 lb |
| weight distribution shipping unit | 116.09 lb |
| weight shipping unit | 114.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GZV6SA |
| series name | GSV6S |
| model efficiency | 16.2 SEER2 |
| family description | High-Effciency, Communication, Split System Heat Pump Up to 16.2 SEER2 & 8.5 HSPF2 |
| installation type | Ducted |
| communication feature | Yes |
| communication feature type | Non-Communicating |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051747074 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | Mexico |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cop47 hsvtc | 3.3 |
| eer2 hsvtc | 10.2 |
| energy star certified | No |
| heating capacity nominal | 24000 Btu/H |
| hspf 2 hsvtc | 8.5 |
| seer 2 hsvtc | 18 |
| produced in us | Yes |
| cooling operation range std max | 115 °F |
| cooling operation range std min | 0 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -10 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 20 A |
| min circuit amps | 16.8 A |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| rated load amps | 13.3 A |
| compressor stages | Variable |
| compressor type | Inverter |
| dimensions unit depth | 13.75 in |
| dimensions unit height | 27.375 in |
| dimensions unit width | 36-5/8 in |
| expansion device | EEV |
| sound pressure high cooling | 64 dBA |
| weight unit | 122 lb |
| cooling capacity rated | 23200 Btu/H |
| heating capacity rated | 23200 Btu/H |
| tonnage | 2 |
| factory std refrigerant charge | 74 oz |
| pipe size gas | 7/8 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 100 ft |
| standard line set length vertical | 90 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 17.50 in |
| dimensions case height | 30.00 in |
| dimensions case width | 39.00 in |
| dimensions distribution unit depth | 17.5 in |
| dimensions distribution unit height | 30 in |
| dimensions distribution unit width | 39 in |
| dimensions pallet depth | 35.50 in |
| dimensions pallet height | 64.50 in |
| dimensions pallet width | 39.00 in |
| dimensions shipping unit depth | 17.50 in |
| dimensions shipping unit height | 30.00 in |
| dimensions shipping unit width | 39.00 in |
| distribution shipping volume unit | 20475 in³ |
| shipping volume unit | 20475.000 in³ |
| truck factor | 0.0000 |
| volume case | 20475.000 in³ |
| volume distribution shipping unit | 20475 in³ |
| weight case | 136.090 lb |
| weight distribution shipping unit | 136.09 lb |
| weight shipping unit | 136.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS;ALL PARTS - 10 YEARS PARTS;COMPRESSORS - 10 YEARS PARTS |
| registered unit replacement warranty residential | COMPRESSORS - 10 YEARS UNIT REPLACEMENT;COMPRESSORS - 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Technical Data
Loading technical data…
Product FAQs
Goodman Homeowner Support and Consumer Affairs can be reached at 1-877-254-4729 for product, registration, warranty, and claim-related questions. Have the model number, serial number, installation details, and a clear description of the issue available.
Not necessarily. Many Goodman manufacturer limited warranties provide the covered replacement part but exclude labor, freight, and other service-related expenses unless the model certificate specifically states otherwise. Separate Asure extended-service coverage may be available through an authorized dealer for eligible equipment and locations.
Cooling equipment normally lists the model and serial numbers on the outdoor unit rating plate, generally near the refrigerant valves. Furnaces and air handlers normally have a rating plate inside the cabinet, so a licensed dealer should assist with access. Installation paperwork may also include the traveler label from the shipping carton.
Goodman’s internet-sales policy states that equipment purchased through online or other electronic channels is not offered warranty coverage unless it is installed by a dealer who follows all applicable federal, state, and local codes, policies, licensing, and permitting requirements. Keep installation and permit documentation.
Goodman equipment can be registered through the manufacturer’s online product-registration system. Registration may be completed by the homeowner or the installing dealer, so confirm who will submit it and retain the confirmation for your records.
Goodman publishes model-specific product specifications, brochures, and warranty certificates in its Literature Library. Use the exact model number because documentation and warranty terms can differ between product families and revisions.
Goodman offers residential air conditioners, heat pumps, gas furnaces, packaged systems, air handlers, evaporator coils, temperature controls, indoor air products, and selected ductless equipment. Available capacities, efficiencies, refrigerants, and features vary by model and matched system combination.
For many eligible residential Goodman products, registration within 60 days of installation can qualify the original homeowner for enhanced limited-warranty terms. Standard coverage may still apply without registration, but the coverage period and available remedies can be different. Registration rules and exceptions vary by product and jurisdiction.
Be prepared to provide the homeowner’s contact information, installation address, installation date, model and serial numbers, and the installing contractor’s name and phone number. Each system component should be entered accurately so the registered equipment matches the installed system.
No. Goodman states that a homeowner may use another licensed contractor to maintain the system and perform work in accordance with the limited warranty. The contractor should verify coverage and follow Goodman’s warranty and distributor procedures.
The applicable Goodman warranty certificate generally covers qualifying defects in materials or workmanship under normal use and maintenance. The remedy is typically based on replacement parts or another model-specific remedy stated in the certificate. Coverage is not the same as a maintenance plan or protection against every system problem.
The licensed technician should contact Goodman Technical Support or work through the local Goodman distributor. Goodman does not provide technical troubleshooting directly to unlicensed homeowners because HVAC diagnosis and repair involve regulated electrical, gas, and refrigerant work.
Common exclusions can include faulty installation or application, improper operation or maintenance, incompatible or unauthorized accessories, external damage, inadequate electrical service, routine maintenance, filter or coil cleaning, and other conditions listed in the model-specific warranty certificate. The exact certificate controls.
Use Goodman’s online warranty lookup with the equipment model and serial number and the requested homeowner or installation information. The lookup is the best way to confirm the coverage recorded for a specific installed unit.
No. Goodman limited-warranty coverage varies by model, product category, installation type, registration status, installation date, and location. Some eligible models may include enhanced parts, compressor, heat-exchanger, or unit-replacement coverage. Always review the warranty certificate for the exact model.
