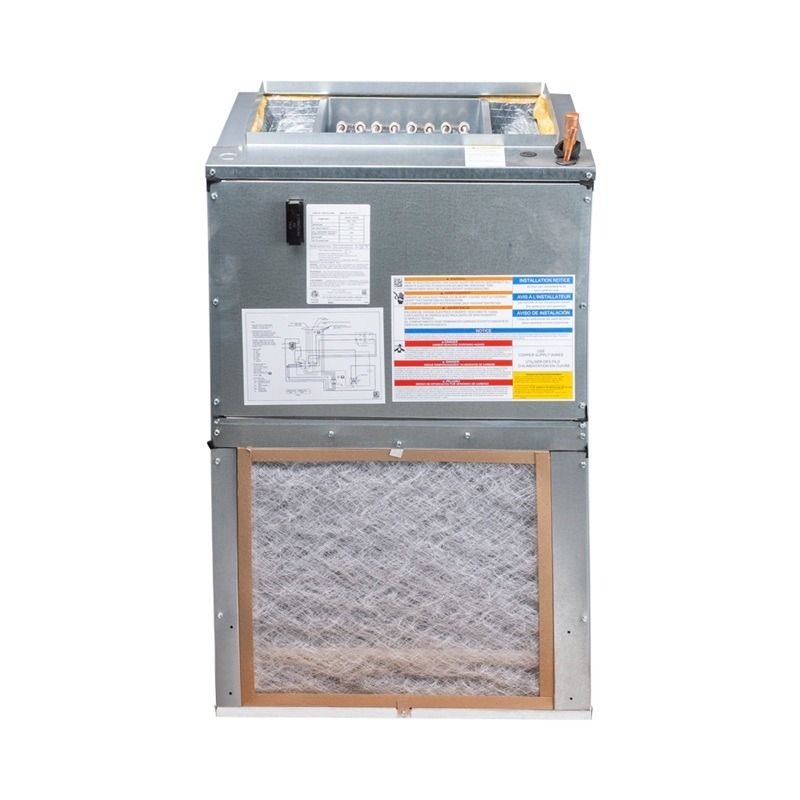

Product Overview
The Goodman AWST wall-mounted air handler is a space-saving alternative to traditional air handlers. Designed to be stud-mounted to a wall or installed in tight recessed spaces, this air handler comes built with a fully insulated, galvanized-steel cabinet for added durability. These air handlers are excellent options for any multi-tenant buildings, such as apartments, condos, and townhomes. With the AWST air handler, Goodman upholds its goals to bring efficiency and enhanced comfort to a cost-effective solution.
Features
- Suitable for use with R32 refrigerant
- Equipped with a fully adjustable TXV for cooling-only and heat pump operation
- Direct-drive, multi-speed motor allows air volume variation for heating and cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Factory-installed pull-type disconnect
- Aluminum tube coils on all models
- AHRI Certified
- ETL Listed
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack (filter included)
- Large chassis (2.5- and 3-ton units) - front return only
- Small chassis (1.5- and 2-ton units) - front or bottom return
- Wall-hanging bracket provided

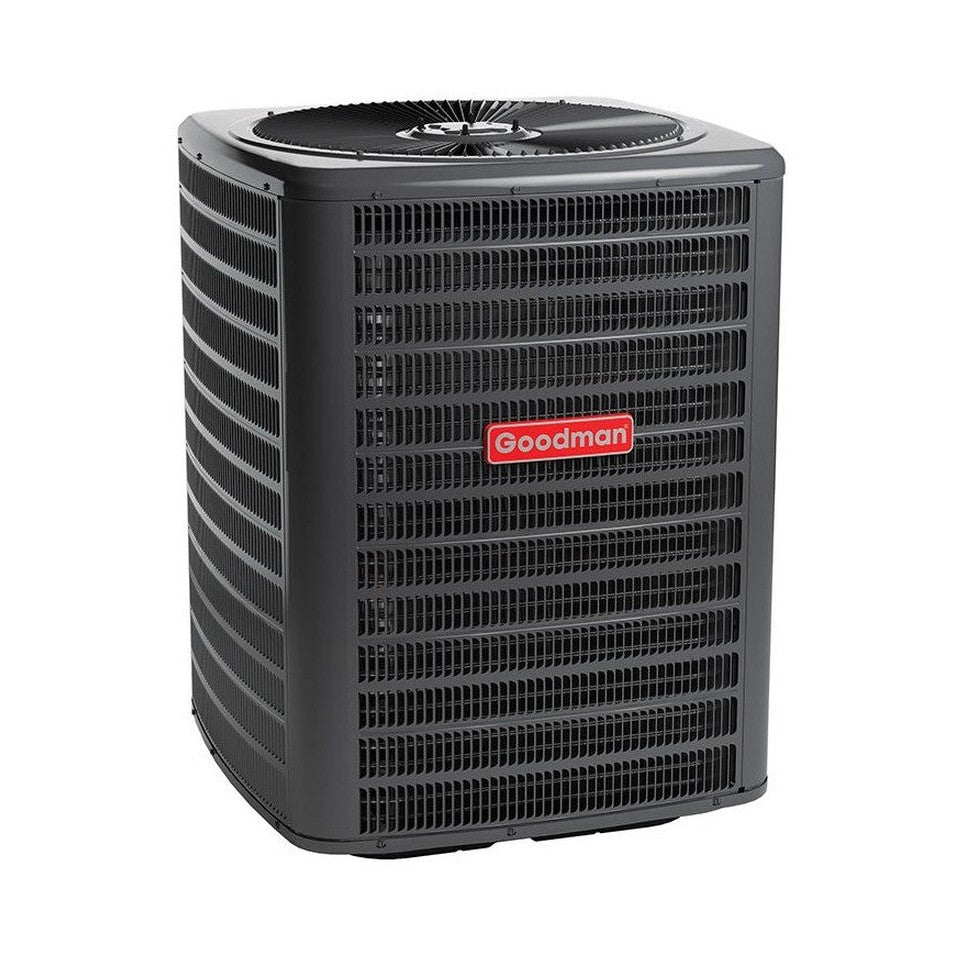

Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser Multi-Family R32 Single Stage
The unit features a high-efficiency scroll compressor with Smart-Shift technology for quiet defrosting. It includes an enhanced aluminum fin coil, a single-speed PSC fan motor, and factory-installed components such as a bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler. It also has high- and low-pressure switches, service valves with easy gauge access, and is fully charged for 15 feet of tubing. Additional features include a contactor with a lug connection, ground lug connection, extended-life capacitors, and it is AHRI Certified and ETL Listed.
The unit features a removable grille-style top design that complies with UL 60335-2-40 standards. It is protected by a steel louver coil guard and housed in a heavy-gauge galvanized-steel cabinet with an attractive Architectural Gray powder-paint finish, approved for 500-hour salt-spray exposure. The design includes top and side maintenance access. When properly anchored, the unit meets the 2023 Florida Building Code requirements for hurricane-type winds.
- High-efficiency scroll compressor
- R32 Freon, Â meets the 2025 refrigerant change guidelines
- Smart-Shift technology for quiet defrost
- Enhanced aluminum fin coil with 5 mm (1.5T-3.5 Ton) and 7 mm diameter tubes (4.0-5.0 Ton)
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow filter drier, suction-line accumulator, compressor crankcase heater, and high-capacity muffler
- High- and low-pressure switches
- Service valves with easy gauge access
- Fully charged for 15 feet of tubing
- Contactor with lug connection and ground lug
- Extended-life capacitors
- AHRI Certified; ETL Listed
- Removable grille-style top (UL 60335-2-40 compliant)
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet with Architectural Gray powder-paint finish (500-hour salt-spray approved)
- Top and side maintenance access
- Meets 2023 Florida Building Code for hurricane-type winds when properly anchored
Goodman 2 Ton 14.3 SEER2 Heat Pump Condenser Multi-Family R32 Single Stage
| Warranty Type | Residential | Multi-Family | Commercial |
| Standard Warranty | 5 year parts | 5 year parts | 5 year parts |
| Registered Warranty | 10 year parts | 10 year parts | 5 year parts |
Product Benefits (AWST30LU1310)
- All Aluminum Coil
- Improved Reliability and Quality
- Factory TXV Installed for Quicker Install
- More Efficient Refrigerant Metering
Product Features (AWST30LU1310)
- AWST Models: Equipped wit a fully adjustable TXV
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Sequence-controlled, rust-resistant nickel chromium heating elements of 3, 5, 8, and 10 kW
- Aluminum tubing coils on all models
- Factory-installed pull-type disconnect
- Thermoplastic drain pan with bottom primary and secondary drain connections
- AHRI Certified and ETL Listed
- Optimized for use with R-32 refrigerant with factory installed leak detection sensor for A2L mitigation.
Cabinet Features (AWST30LU1310)
- Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
- Built-in filter rack (filter included)
- Large chassis (2-1/2 and 3 ton units), front return only
- Small chassis (1-1/2 and 2 ton units), front or bottom return
- Wall-hanging bracket provided
Technical Specifications - AWST30LU1310
| product category | Unitary |
|---|---|
| product class pim | Air Handler |
| system family | Unitary Split System |
| function category | Air Handler |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | AWST_32 |
| series name | AWST |
| family description | Wall-Mount Air Handler 1½ to 3 Tons |
| installation type | Ducted Wall Mounted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051683846 |
| item stocking unit of measure uom | EA |
| pallet qty | 4 |
| country of origin | Mexico |
| us hts code | 8415.90.8065 |
| canadian hts code | 8415.90.90.00 |
| cooling capacity nominal | 30000 Btu/H |
| produced in us | No |
| indoor blower fla | 3.8 A |
| max overcurrent protection | 50/60 A |
| max voltage | 253 V |
| min circuit amps | 48.1/54.8 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/230 V |
| dimensions blower diameter | 10 in |
| dimensions blower width | 8 in |
| dimensions evap wheel diameter | 10 in |
| dimensions evap wheel width | 8 in |
| dimensions unit depth | 21 in |
| dimensions unit height | 36 in |
| dimensions unit width | 24 in |
| evap coil face area ft | 3.35 |
| evap motor rpm | 1200 r/min |
| expansion device | TXV |
| motor speed type | Multi Speed ECM |
| number of speeds | 5 |
| weight unit | 109 lb |
| blower motor horsepower | 1/2 metric hp |
| tonnage | 2.5 |
| tonnage range | 1.5;3 |
| factory std refrigerant charge | 0.5 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 25.00 in |
| dimensions case height | 39.00 in |
| dimensions case width | 22.50 in |
| dimensions distribution unit depth | 25 in |
| dimensions distribution unit height | 39 in |
| dimensions distribution unit width | 22.5 in |
| dimensions pallet depth | 52.00 in |
| dimensions pallet height | 44.00 in |
| dimensions pallet width | 46.00 in |
| dimensions shipping unit depth | 25.00 in |
| dimensions shipping unit height | 39.00 in |
| dimensions shipping unit width | 22.50 in |
| distribution shipping volume unit | 21937.5 in³ |
| shipping volume unit | 21937.500 in³ |
| truck factor | 0.0000 |
| volume case | 21937.500 in³ |
| volume distribution shipping unit | 21937.5 in³ |
| weight case | 106.000 lb |
| weight distribution shipping unit | 106 lb |
| weight shipping unit | 106.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Product Benefits (GLZS4MA2410)
- Meets the 2023 M1 Test Standards
Product Features (GLZS4MA2410)
- High-efficiency compressor
- SmartShift® technology to ensure quiet reliable defrost
- Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
- Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15’ of tubing length
- Fully enclosed contractor with lug connection
- Ground lug connection
- Capacitors with extended life
- AHRI Certified
- ETL Listed
Cabinet Features (GLZS4MA2410)
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available).
Technical Specifications - GLZS4MA2410
| product category | Unitary |
|---|---|
| product class pim | Split Heat Pump |
| system family | Unitary Split System |
| function category | Heat Pump |
| product type | Equipment |
| unit type | Outdoor |
| market type | Residential-Single Family |
| product family | GLZS4M |
| series name | GLZSM4 |
| model efficiency | 14.3 SEER2 |
| family description | Energy-Efficient Multi-Family R-32 Split System Heat Pump, up to 15.2 SEER2 and 7.8 HSPF2, 1-1/2 to 3 Tons |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| iso certified | Yes |
| product notes | R32 Outdoor |
| universal product code upc | 663051689701 |
| item stocking unit of measure uom | EA |
| pallet qty | 2 |
| eer2 hsvtc | 12.5 |
| energy star certified | No |
| heating capacity nominal | 24000 Btu/H |
| hspf 2 hsvtc | 7.8 |
| seer 2 hsvtc | 15.2 |
| produced in us | No |
| cooling operation range std max | 125 °F |
| cooling operation range std min | 55 °F |
| heating operation range std max | 70 °F |
| heating operation range std min | -20 °F |
| rated cooling condition ambient db | 95 °F |
| rated cooling condition ambient wb | 75 °F |
| rated heating condition ambient db | 47 °F |
| rated heating condition ambient wb | 43 °F |
| max overcurrent protection | 20 A |
| max voltage | 253 V |
| min circuit amps | 13.8 A |
| min voltage | 197 V |
| power frequency | 60 Hz |
| power phase | 1 Ph |
| power voltage | 208/240 V |
| rated load amps | 10.2 A |
| compressor stages | Single Stage |
| compressor type | Scroll |
| dimensions unit depth | 29 in |
| dimensions unit height | 32.5 in |
| dimensions unit width | 29 in |
| expansion device | TXV |
| sound pressure high cooling | 69 dBA |
| weight unit | 160 lb |
| cooling capacity rated | 23800 Btu/H |
| heating capacity rated | 22000 Btu/H |
| additional refrigerant charge oz ft | 0.55 lb |
| factory std refrigerant charge | 70 oz |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant pre charged line length | 15 ft |
| refrigerant type | R-32 |
| standard line set length max | 200 ft |
| standard line set length vertical | 79 ft |
| valve size suction o d | 3/4 in |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 30.50 in |
| dimensions case height | 34.50 in |
| dimensions case width | 30.00 in |
| dimensions distribution unit depth | 30.5 in |
| dimensions distribution unit height | 34.5 in |
| dimensions distribution unit width | 30 in |
| dimensions pallet depth | 30.50 in |
| dimensions pallet height | 34.50 in |
| dimensions pallet width | 60.00 in |
| dimensions shipping unit depth | 30.50 in |
| dimensions shipping unit height | 34.50 in |
| dimensions shipping unit width | 30.00 in |
| distribution shipping volume unit | 31567.5 in³ |
| shipping volume unit | 31567.500 in³ |
| truck factor | 0.0000 |
| volume case | 31567.500 in³ |
| volume distribution shipping unit | 31567.5 in³ |
| weight case | 170.000 lb |
| weight distribution shipping unit | 170 lb |
| weight shipping unit | 170.000 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
Submittals
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
Leaflets & Manuals
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- AWST Air Handler, Multi Speed ECM Motor, 2.5 Ton
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
- Goodman Split Heat Pump 14.3 SEER2, Single Stage
Loading accessories…
We will prepare your order within 24 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION: Please be kindly informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery. To AVOID delays, please check if the provided phone number in the order details is a current number where you can be reached. You can also contact the carrier directly and refer to your tracking number to set up a date and time for your appointment. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. PLEASE verify your shipping address, as changes to the address after freight has shipped can result in an additional 15% or higher fee depending on freight weight and dimensions.
SMALLWARES INFORMATION: Please be informed that for smaller items, such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves, when these items are ordered individually, they may be shipped via FedEx without a signature requirement. It is your responsibility to ensure a safe and secure environment for delivery. Please note that we cannot be held liable for any packages that are stolen or lost after delivery has been confirmed. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING: Please inspect your boxes thoroughly when you receive them. They should arrive shrink-wrapped and on a pallet. If you notice any damages or imperfections (e.g. crushed box or forklift hole), please write comments on the receipt before signing for delivery, no matter how small damages seem. Contact us immediately to assist you.
Shipping & Delivery
We will prepare your order within 24–48 hours if it’s received on a weekday (before noon). Orders are shipped in one to two business days. Transit time is between 3 to 6 business days, although exceptions apply. We email tracking information once your purchase is shipped.
Delivery Map
IMPORTANT DELIVERY INFORMATION
Please be informed that this air conditioner, due to its weight and shipping restrictions, is shipped palletized with an arranged freight service and requires an appointment for delivery.
To AVOID delays, please make sure the phone number in your order details is accurate and one where you can be reached. You may also contact the carrier directly using your tracking number to schedule your delivery.
It is your responsibility to ensure a safe and secure delivery environment. We are not liable for any packages that are stolen or lost after delivery is confirmed.
Please verify your shipping address carefully. Changes to your shipping address after the freight has been shipped may result in additional fees of 15% or more, depending on freight weight and dimensions.
SMALLWARES INFORMATION
Smaller items such as Installation Kits, Smart Connectivity Dongles, and TTW Sleeves may be shipped via FedEx without a signature requirement if ordered individually.
It is your responsibility to ensure a safe delivery location. We are not liable for packages lost or stolen after delivery confirmation. Thank you for your understanding and cooperation.
INSPECT YOUR MERCHANDISE BEFORE SIGNING
Please inspect your boxes carefully upon delivery. Shipments should arrive shrink-wrapped and on a pallet. If you notice any damage or signs of mishandling (such as a crushed box or forklift puncture), write comments on the delivery receipt before signing, even if the damage appears minor.
Contact us immediately if any issues arise so we can assist you promptly.
SMS Delivery Notifications
If you opted into SMS notifications, we may send you order updates or delivery reminders by text message. Message frequency may vary. Message and data rates may apply. Text STOP to opt out. Text HELP for assistance.
For more details, see our Privacy Policy.
Loading technical data…
