Product Overview

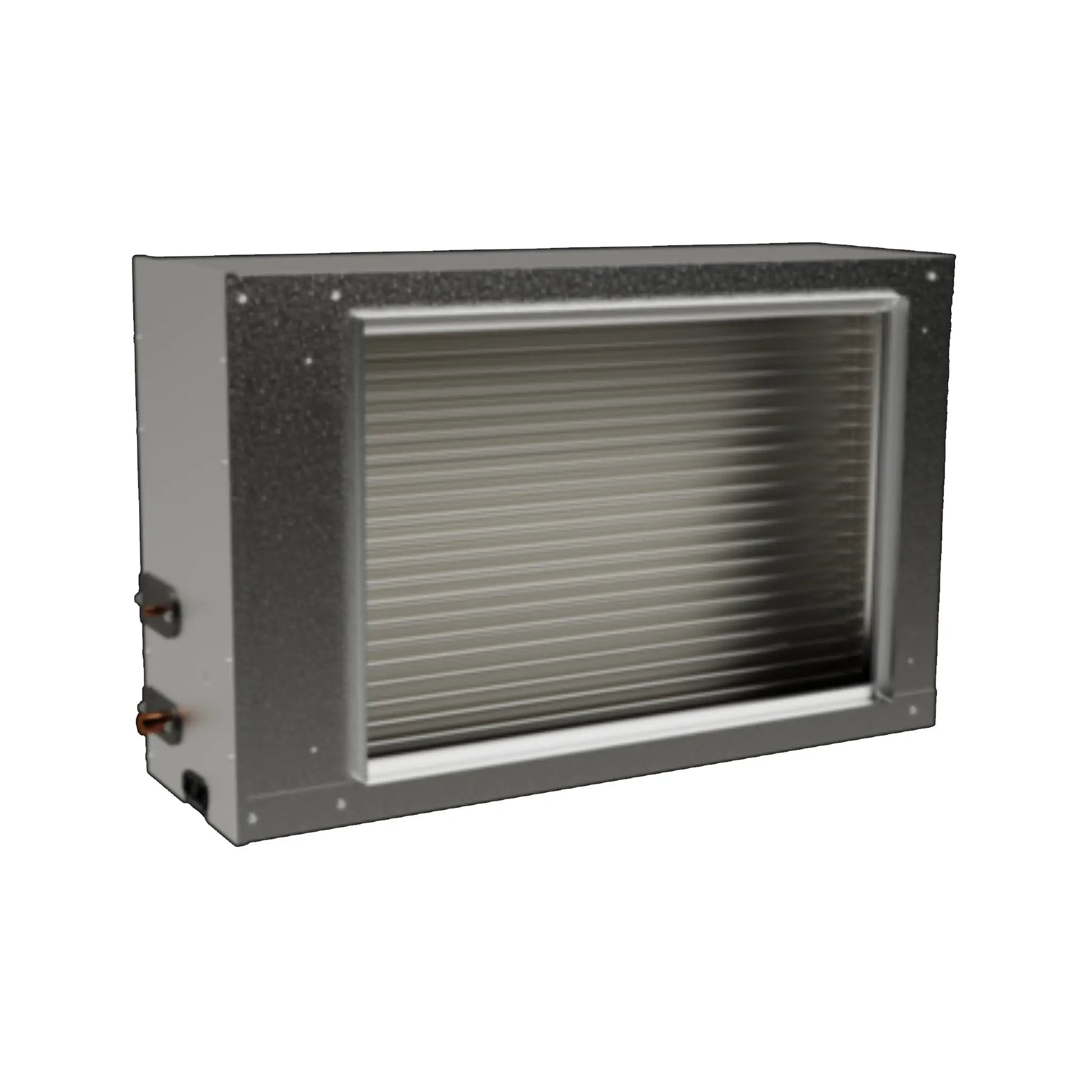

Goodman 2 Ton Cased Evaporator Coil TVX 25.5" Cabinet Horizontal Slab R32 CSCT2412S3
The Goodman CSCT2412S3 is a high-performance cased slab evaporator coil engineered for horizontal airflow applications. Built with durable all-aluminum construction, this coil is optimized for use with R-32 refrigerant and features a factory-installed internal thermostatic expansion valve (TXV). Each unit is factory pressure-tested to ensure reliable performance and quality assurance. Whether used in retrofit or new system installations, the CSCT2412S3 delivers consistent, efficient heat transfer for residential or light commercial HVAC systems.
Key Features:
- Cased slab coil – Designed specifically for horizontal airflow applications.
- All-aluminum construction – Offers enhanced corrosion resistance and extended service life.
- Internal thermostatic expansion valve (TXV) – Factory-installed for optimized cooling performance.
- Optimized for R-32 refrigerant – Engineered to meet low-GWP system requirements.
- Pressure-tested at the factory – Ensures leak-free performance and dependable operation.
- All-Aluminum Evaporator Coil – Improves system longevity and resists corrosion in various environments.
- R-32 Refrigerant Optimization – Includes circuits and manifolds designed for efficient refrigerant flow.
- Integrated R-32 Sensor – Built to match the coil’s lifespan for enhanced refrigerant management.
- Factory-Installed Thermal Expansion Valve – Increases cooling efficiency in compatible HVAC systems.
- Compact and Versatile Design – Installs easily in right or left horizontal positions for flexible applications.
- Copper Sweat Connections – Allow for secure, leak-resistant connections during installation.
- Rust-Resistant Thermoplastic Drain Pan – Features a low water-retention layout to manage condensation effectively.
- DecaBDE-Free Drain Pan – Environmentally compliant with integrated secondary drain connections.
- UV-Resistant Drain Pan – Offers long-term protection from environmental wear and degradation.
- AHRI Certified – Verified performance for energy efficiency and operational reliability.
- ETL Listed – Meets North American safety standards with third-party certification.
- Foil-Faced Internal Insulation – Reduces cabinet condensation and supports energy efficiency.
- Compact, Multi-Position Design – Compatible with right or left horizontal installations.
- Copper Sweat Connections – Simplify system integration with durable, secure fittings.
The Goodman CSCT2412S3 is a dependable, forward-compatible coil solution for HVAC professionals installing R-32 refrigerant systems in residential or light commercial environments.
Goodman 2 Ton Cased Evaporator Coil TVX 25.5" Cabinet Horizontal Slab R32 CSCT2412S3
| Warranty Type | Commercial | Multi-Family | Residential |
| Standard Parts Warranty | 5 years | 5 years | 5 years |
| Registered Parts Warranty | 5 years | 12 years | 12 years |
Product Features
- All-Aluminum evaporator coil
- Optimized for use with R-32 refrigerant including circuits and manifolds
- R-32 sensor designed for the life span of the coil
- Factory-installed thermal expansion valves for cooling applications
- Compact and versatile - right or left horizontal position
- Copper sweat connections
- Rust resistant, thermoplastic drain pans featuring a low water-retention design
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- UV-resistant drain pan
- AHRI certified
- ETL listed
Cabinet Features
- Foil-faced insulation covers the internal casing to reduce cabinet condensation
- Compact and versatile - right or left horizontal position
- Copper sweat connections
Technical Specifications - CSCT2412S3
| sku | CSCT2412S3 |
|---|---|
| manufacturer | Corporate |
| product category | Unitary |
| product class | Coil |
| system family | Unitary Split System |
| function category | Cooling Only |
| product type | Equipment |
| unit type | Indoor |
| market type | Residential-Single Family |
| product family | CSCT |
| series name | CSCT |
| short description | CSCT Evaporator Coil, Horizontal Slab, Ton, R-32 |
| family description | CSCT Horizontal Slab |
| product description | 2T Cased Horizontal Slab R-32 Coil with TXV |
| refrigerant | R-32 |
| liquid line | 3/8 in |
| suction line | 3/4 in |
| height | 25 in |
| width | 25-1/2 in |
| depth | 12 in |
| weight | 35 lb |
| warranty | ALL PARTS - 10 YEARS PARTS |
| safety information | Proposition 65 Label: Yes |
| product class pim | Coil |
| installation type | Ducted |
| communication feature | No |
| export control classification number eccn | EAR99 |
| universal product code upc | 663051750678 |
| item stocking unit of measure uom | EA |
| pallet qty | 12 |
| country of origin | Mexico |
| us hts code | 8415.90.8025 |
| canadian hts code | 8415.90.90.00 |
| produced in us | No |
| cabinet finish | Painted |
| cased vs uncased | Cased |
| dimensions unit depth | 12 in |
| dimensions unit height | 25 in |
| dimensions unit width | 25-1/2 in |
| expansion device | TXV |
| weight unit | 35 lb |
| tonnage range | 2 |
| condensate drain outlet | 3/4 in |
| pipe size gas | 3/4 in |
| pipe size liquid | 3/8 in |
| refrigerant type | R-32 |
| proposition 65 label | Yes |
| carton type | CTN |
| case qty | 1 |
| dimensions case depth | 14.00 in |
| dimensions case height | 25.50 in |
| dimensions case width | 28.00 in |
| dimensions distribution unit depth | 14 in |
| dimensions distribution unit height | 25.5 in |
| dimensions distribution unit width | 28 in |
| dimensions pallet depth | 56.00 in |
| dimensions pallet height | 56.00 in |
| dimensions pallet width | 43.00 in |
| dimensions shipping unit depth | 14.00 in |
| dimensions shipping unit height | 25.50 in |
| dimensions shipping unit width | 28.00 in |
| distribution shipping volume unit | 9996 in³ |
| shipping volume unit | 9996.000 in³ |
| truck factor | 0.0000 |
| volume case | 9996.000 in³ |
| volume distribution shipping unit | 9996 in³ |
| weight case | 48.090 lb |
| weight distribution shipping unit | 48.09 lb |
| weight shipping unit | 48.090 lb |
| registered parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| registered parts warranty multi family | ALL PARTS - 10 YEARS PARTS |
| registered parts warranty residential | ALL PARTS - 10 YEARS PARTS |
| registered unit replacement warranty multi family | 10 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| registered unit replacement warranty residential | 10 YEARS UNIT REPLACEMENT |
| standard parts warranty commercial | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty multi family | ALL PARTS - 5 YEARS PARTS |
| standard parts warranty residential | ALL PARTS - 5 YEARS PARTS |
| standard unit replacement warranty commercial | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty multi family | 5 YEARS UNIT REPLACEMENT |
| standard unit replacement warranty residential | 5 YEARS UNIT REPLACEMENT |
